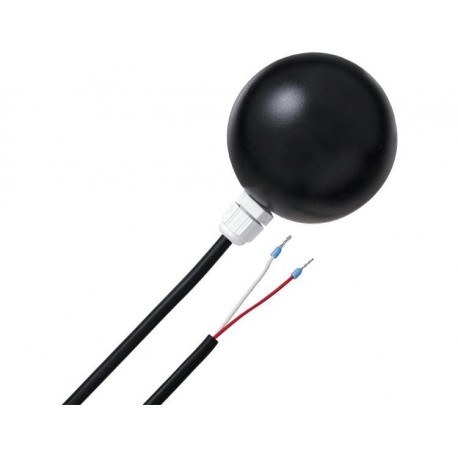

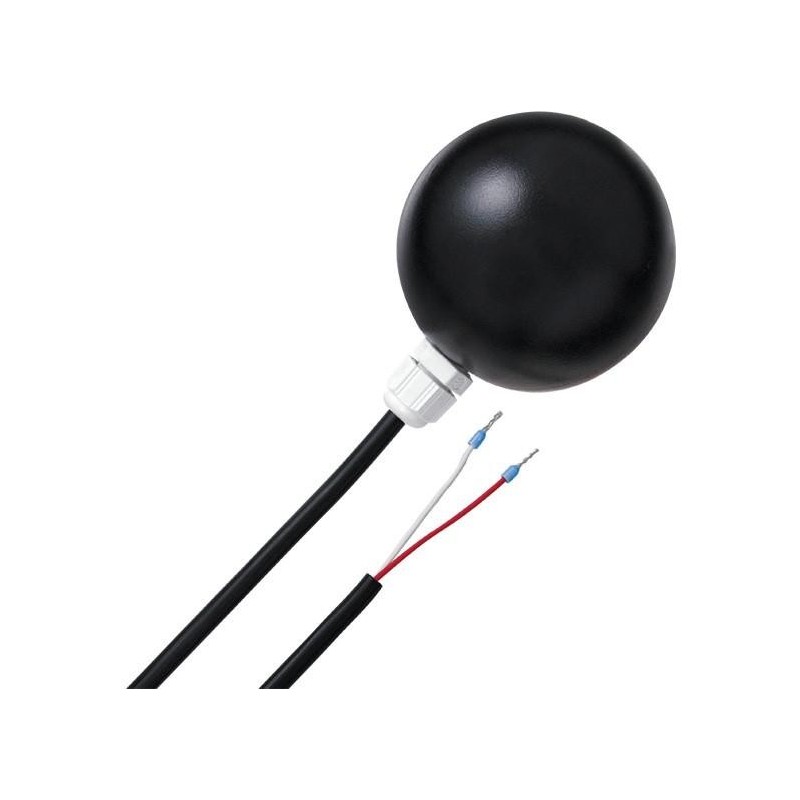

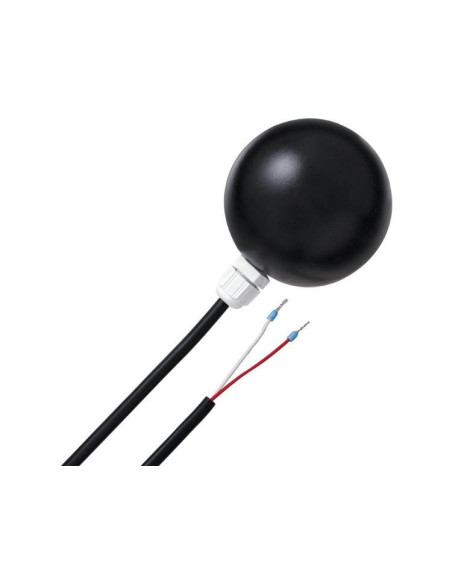

AO-TPF1/E Radiation Pendulum Temperature Sensor (-30 +75ºC)

Reference

Manufacturer: AO-Electronics

Condition: New

Radiation Pendulum Temperature Sensor (-30 +75ºC)

-30...+75°C
Choose from: Pt100, Pt500, Pt1000, Ni1000, KTY, NTC, LM235Z (other on request)

2 UNITS REMAIN IN STOCK

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

69,00 €

Quantity

The minimum purchase order quantity for the product is 2

Sensor Options

Add to wishlist

Overview
Specifications

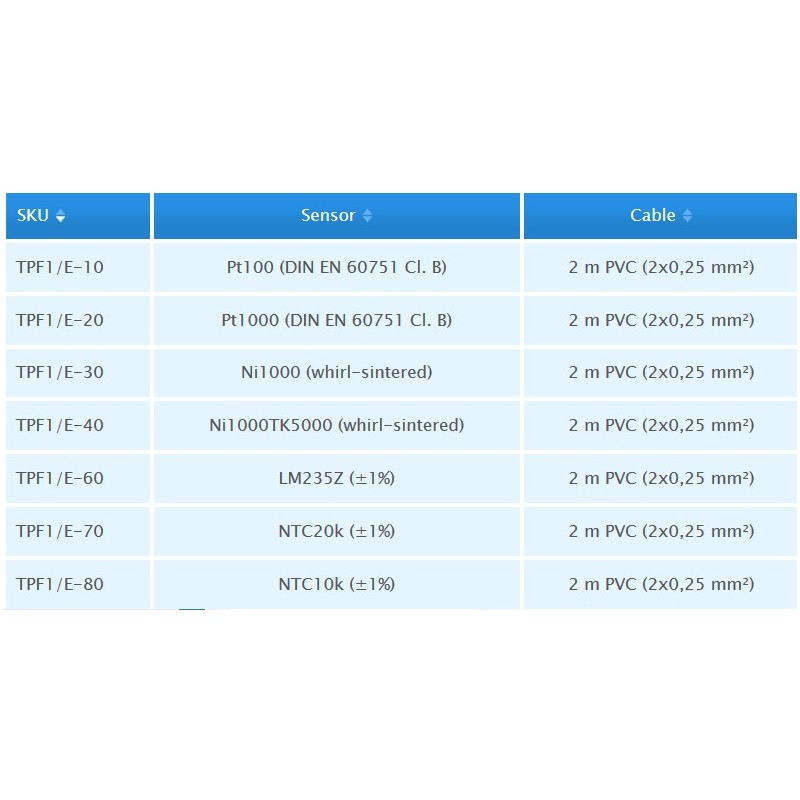

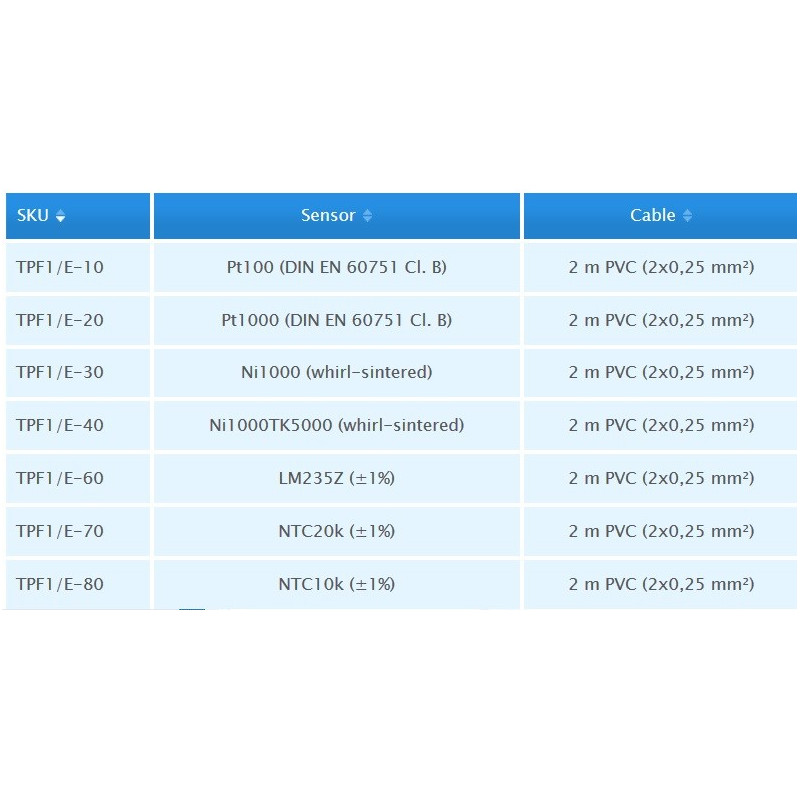

ORDERING MATRIX
Data sheet
Download
Accessories

The Sensor measures:	Thermal Radiation Temp.
Cable Length:	2m
Sensor IP Rating	IP54

AO-TPF1 Data Sheet Download (703.52k)

AO-TPF1 Manual Download (568.45k)

The AO-TPF1/E room pendulum sensor measures the thermal radiation in the range of -30 up to +75°C e.g. in high rooms and is with all current sensors available.
The temperature probe can be mounted as freely suspended pendulum in rooms whereby in high rooms a exact measurement result of the windchill factor temperature is warranted.
