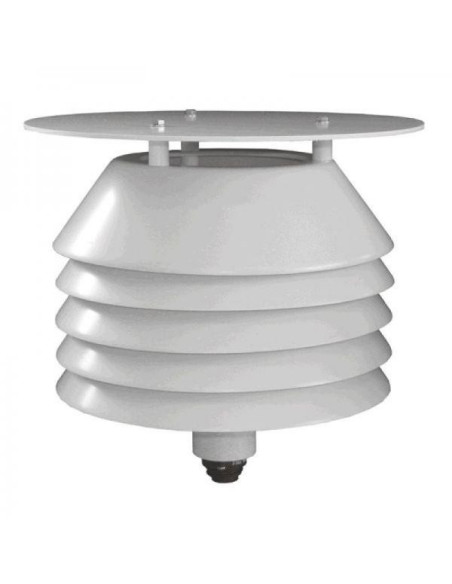

TTEPRH-N Transducer Air Temperature and RH%

TTEPRH-N

Siap Micros

New

Output transducer for Pt100 temperature and 0 ÷ 1 Vdc to humidity, for other outputs (4 to 20 mA, 0 ÷ 2 Vdc, 485) asking price

Volume discounts

Quantity Price
You Save
%
1+ 725,00 € 0%
5+ 710,50 € 2%
10+ 696,30 € 3.9586%
15+ 682,35 € 5.8828%

725,00 €

Add to wishlist

Versatility: T026 DEPTH combined in one body transducers for measuring the air temperature and relative humidity, this characteristic makes the product compact and inexpensive.
Temperature measurement principle: The sensing element consists of a Pt100 platinum resistance with response curve according to DIN 43760 class 1/3.
Measurement principle Relative Humidity: The sensitive polymer capacitive element is laser cut (in a thermo-regulated process), with integrated signal conditioning system type.
Intelligent sensor: The transducer belongs to the intelligent sensor family as provided with an internal micro-processor running among others the following functions: control of the correct operation, pre-processing of data, A / D conversion of electrical signals , etc. These characteristics ensure excellent accuracy, high data reliability.
Calibration Certificate: The sensor may be accompanied by functional verification certificate SIAP + MICROS or alternatively supplied with calibration certificates issued by accredited external laboratories (SIT Colonnetti, etc.).
Materials and standards: The sensor body is made of plastic, the external display is made of ABS (plastic material, durable and non higroscópica-), UV resistant capacity and low thermal capacity in order to ensure long-term stability and stainless steel screws. The transducer complies with European EMC regulations, I is protected against overvoltage and fully meets the recommendations of the WMO (World Meteorological Organization).

Temperatura del Aire
Rango de medición -30 ÷ +60 °C
Sensibilidad 0,03 °C
Precisión DIN47360 Clase 1/3 (ver. TTEPRH-N)
±0,1 °C (TTEPRH-I/V/S)
Elemento sensibile Termo-resistencia Pt100 DIN47360
Humedad Relativa
Rango de medición 0 ÷ 100% RH
Sensibilidad ±0,5% RH
Precisión ±2% RH
Elemento sensibile Polímero Capacitivo compensado en temperatura
Características comunes
Temperatura de funcionamiento -30 ÷ +60 °C
