UX120-014M HOBO 16-bit 4-channel Thermocouple Logger

UX120-014M

Onset

New

274,75 €

Add to wishlist

Manual: UX120-014M

Number of Channels 4 Thermocouple
ADC Bits 12 bit
Precision Depends on thermocouple used
Resolution Depends on thermocouple used
With Display Yes
IP Classification Indoor IP50
Communications USB
Battery Life 1 year
Memory Capacity 4 MB (1.9 million measurements)

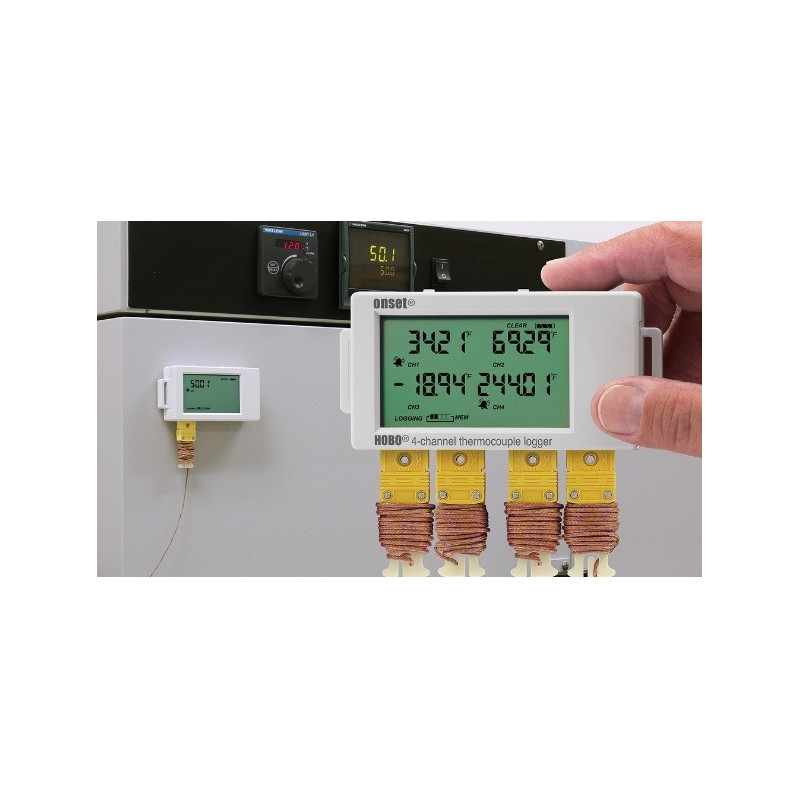

The HOBO UX120 Thermocouple Logger is a four-channel UX120-014M LCD data logger for measuring and recording temperature in a broad range of monitoring applications. The logger makes it easy and convenient to record temperatures over a broad range (-260 to 1820⁰ C) and can accept up to four J, K, T, E, R, S, B, or N type probes.

In addition to accepting four thermocouple probes, the logger features an internal temperature sensor for logging ambient temperatures, further extending the range of application possibilities

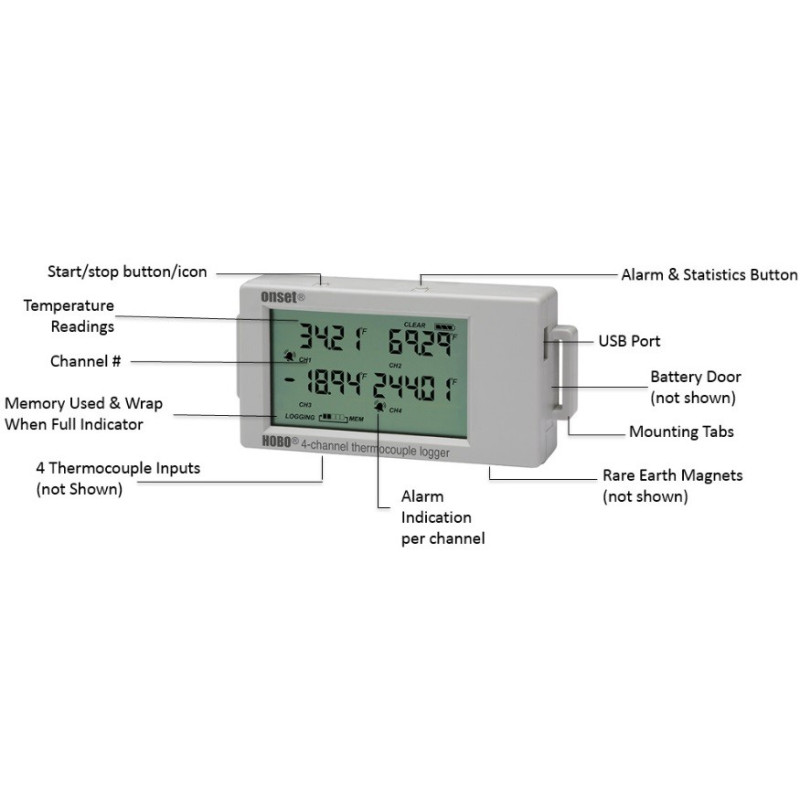

•Easy-to-view LCD display confirms logger operation and battery statusNear real-time readout of current temperatures as well as minimum, maximum, average and standard deviation statistics
•On-screen alarms notify you if temperatures exceed high or low thresholds
•Large memory capacity capable of storing 1.9 million measurements
•Start, stop, and restart pushbuttons
•User upgradeable firmware


Environment:
The UX120-014M Data Logger is for use in Indoor environments

Measurements:
The UX120-014M Data Logger supports the following measurements (sensors sold separately): Temperature

Logging Rate: 1 second to 18 hours, 12 minutes, 15 seconds

Logging Modes: Normal, Burst or Statistics

Memory Modes: Wrap when Full or Stop when Full

Start Modes: Immediately, Push Button, Date & Time or Next Interval

Stop Modes: When Memory Full, Push Button, or Date & Time

Restart Mode: Push Button

Time Accuracy: ±1 minute per month at 25°C (77°F), see Plot B

Battery Life: 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater

Battery Type: Two AAA 1.5V alkaline batteries, user replaceable

Memory: 4 MB (1.9 million measurements, maximum)

Download Type: USB 2.0 interface

Full Memory Download Time: Approximately 1.5 minutes

LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

Size: 10.8 x 5.41 x 2.54 cm (4.25 x 2.13 x 1 in.)

Weight: 30 g (1.06 oz)

Environmental Rating: IP50

Description: ce - The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)

Sensores/Sondas:
