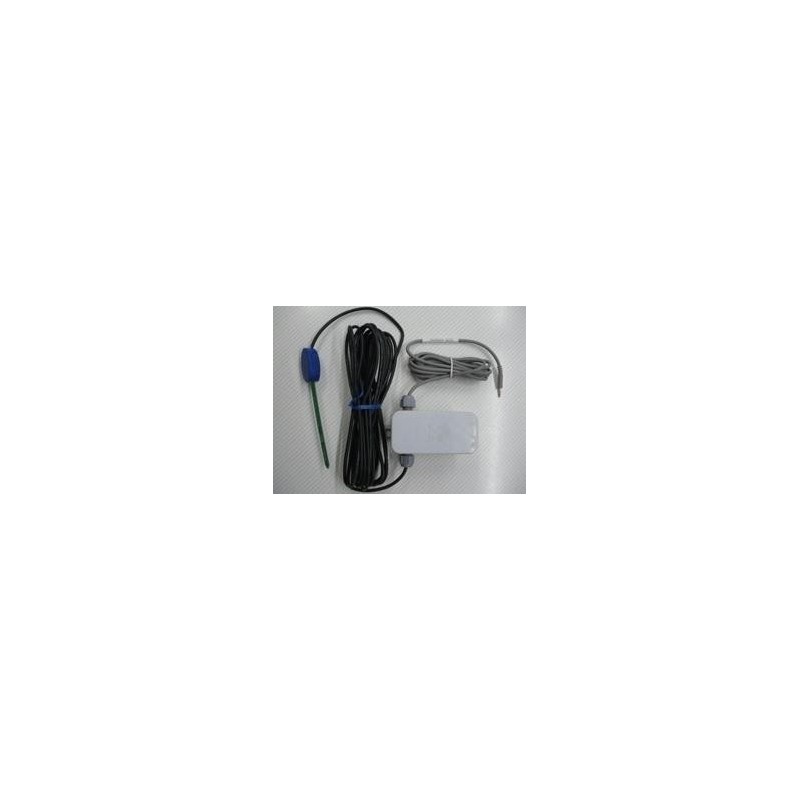

VH400-SSE Vegetronix Soil Moisture Sensor with logger anticipator View larger

VH400-SSE Vegetronix Soil Moisture Sensor with logger anticipator

VH400-SSE

AO-Electronics

New

Vegetronix Soil Moisture Sensor with SSE Anticipator and very long battery life.

240,00 €

tax excl.

Add to wishlist

The Sensor measures: Soil Humidity
Output Signal: 0 to 2,5 VDC
Cable Length: 2m, 5m, 10m.
Power Supply: Does not require
Sensor IP Rating IP67
Sensor for use in: Outdoor

Soil Moisture Sensor Probe - VH400-SSE
Properties:

-Low power
-Durable
-High accuracy
-Small size
-Insensitive to salt.

Note: VH400-SSE model is compatible with HOBO U12 loggers by using this SSE Electronics.
The VH400 has a narrow sensing range, and only senses in the immediate proximity, and so is insensitive to differences in the volume of the medium being measured.


If the probe is going to be buried or if the probe is going to be used to measure pots of differing volumes then the VH400-SSE should be used.

Use the VH400-SSE soil moisture sensors in soils where the soil will have higher water saturation.
Use the VH400-SSE where you need an absolute moisture measurement that is independent of volume, as in the case of measuring moisture in potted plants.



See Video: Soil Moisture Sensor as Water Level Sensor

The Techno Gardener demonstrates how a Vegetronix soil moisture sensor can be used as a water level sensor.

 Selection Table: VH400-SSE
Supply Voltage: 3.6Vdc from the SSE Electronics
Power on to Output stable: 400 ms - the SSE turns on power to the VH400 five seconds before the logger reads the RH value.
Operational Temperature: -40ºC to 85ºC
Output Voltage Range: 0 to 3V
Typical VH400 drain Power: < 7mA (does not drain the loggers internal battery)
Sensitive to Volume: No
Sensitive to salt: No
Frequency of Operation: 80MHz
Internal Voltage Regulator: Yes
Applications: Low power consumption, sprinkler controlers, moisture monitoring of highly saturated soils, monitoring of ground soil and soil in pots of differing volume.

VEGETRONIX/VH400-VCW-Vrs-Voltage-200g-MiracleGrowPottingSoil
