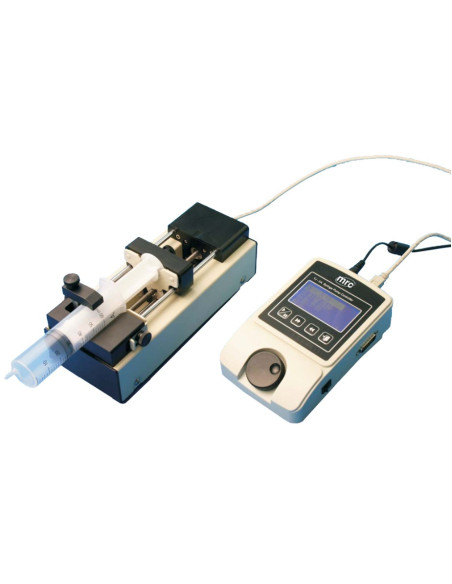

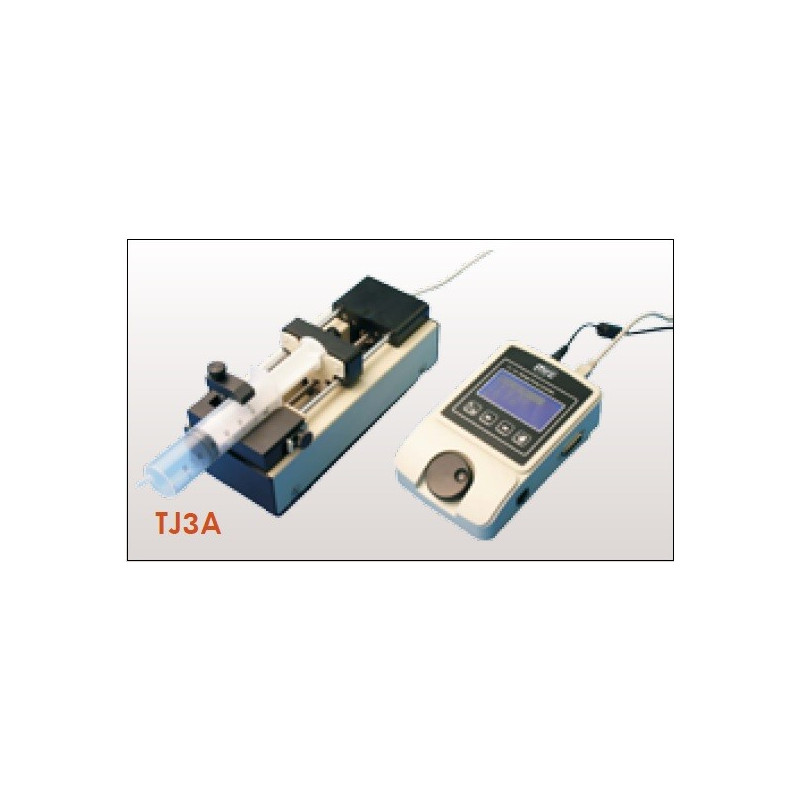

TJ-3A Micro Syringe Pump with infusion/withdrawal mode (single-channel)




Channel: 1
Working Mode: Infusion & withdrawal

Add to wishlist

Instrument for: Hospitals, Lab's, Clinics
Function: Pump, Micropump

 Working mode: Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion.
 User-defined syringe: Save 4 inner diameters of user-defined syringe barrel.
 Linear force output: Whole course > 90 N.
 Memory function: Select resume operation or remain stopped when power returns after an interruption.
 Signal output: Star t/Stop output, cw/ccw output (open collector) ● Calibration: Acquire accurate volume through calibration.
 Fast forward & fast reverse: Infusion or withdrawal at the max. speed.

 This pump is a single channel micro syringe pump which has infusion/withdrawal mode.
 It combines precision, compact size, multiple functions with ease of operation.
 It can hold a milliliter unit standard syringe.
 It features an accurate distance control and broad linear speed range (7.9 m/min - 79.4 mm/min) that can meet versatile requirements.
 The drive unit is independent. It is easy to combine and install.
 It can meet different operation requirements and is suitable for various research fields.

 Max. Infusion Distance: 90 mm
 Acceptable Sample Syringe: 5 µL - 60 mL
 Linear Speed: 7.9 µm/min - 79.4 mm/min
 Adjusting Resolution: 7.9 µL/min
 Distance Resolution: 0.165 µm
 Linear Force: > 90 N
 Setting Mode: Membrane keypad and rotary coded switch
 Control Accuracy: < +/- 0.5% in condition of 30% of the full stroke
 Display: 128x64 graphic LCD
 External Control Interface: Start/Stop control, fast forward control, fast reverse control
 Communication Interface: RS485
 Power Supply: AC 100 V - 240 V or DC12V
 Power Consumption:  < 10W
 Operating Condition: Temperature 0 to 40°C; relative humidity < 80%
 Controller Dimensions (Lx W x H) : 170 x 108 x 70 (mm)
 Controller Weight: 0.8 Kg
 Drive Unit Dimensions (L x W x H): 245 x 100x 95 (mm)
 Drive Unit Weight: 1.3 Kg
