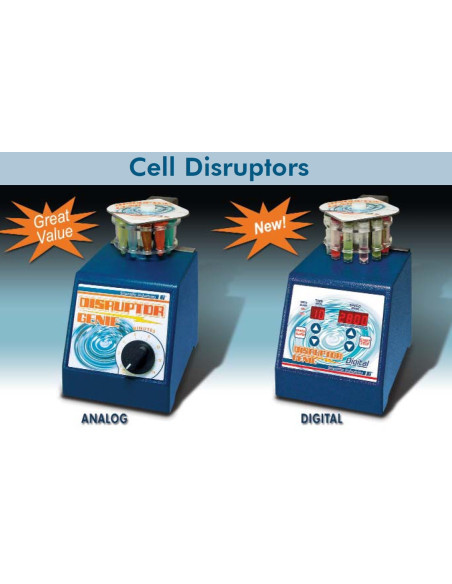

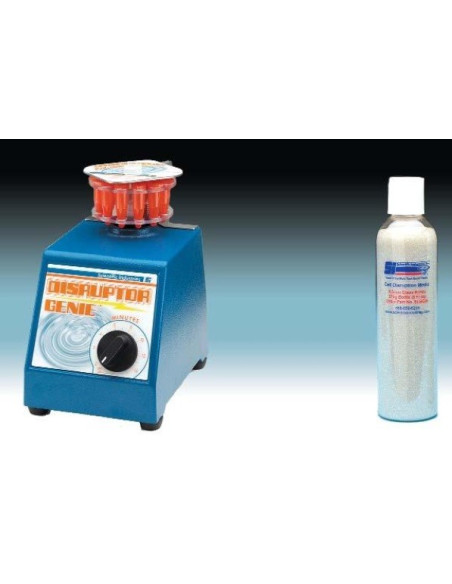

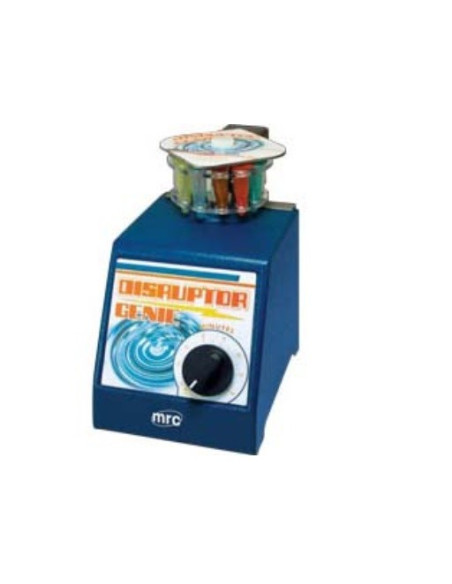

SI-D246 Vortex Mixer - Disruptor Genie, 230V w/o Plug

SI-D246

MRC

New

Vortex
In fluid dynamics, a vortex is a region within a fluid where the flow is mostly a spinning motion about an imaginary axis, straight or curved. That motion pattern is called a vortical flow.
A vortex mixer is a simple device used commonly in laboratories to mix small vials of liquid. It consists of an electric motor with the drive shaft oriented vertically and attached to a cupped rubber piece mounted slightly off-center. As the motor runs the rubber piece oscillates rapidly in a circular motion. When a test tube or other appropriate container is pressed into the rubber cup the motion is transmitted to the liquid inside and a vortex is created.

Add to wishlist

Function: Mixers

Applications:
Vortex mixers are quite commonplace in bioscience laboratories. In cell culture and microbiology laboratories they may be used to suspend cells. In a biochemical laboratory they may be used to mix the reagents of an assay or to mix an experimental sample and a dilutant.

·Rapid Cell Disruptor
·Less costly than homogenizer and ultrasonic unit
·Rapid hands free distruption up to
·12 mirotubes1.5/2.0ml at one time.
·Unique agitation,vortexing,and collision
·actions for cell distruption and sample resuspension.
·Max speed (rpm) 2700
·Timer range (min) 0 to 15 minutes
·Platform dimensions 3" dia tube holder
·Dimensions 4-7/8"W x 6-½"H x 6-½" D
·CE Compliance Yes
·Power (VAC) 240
·Power (Hz) 50 Hz
·Power (Amps) 0.5 A
