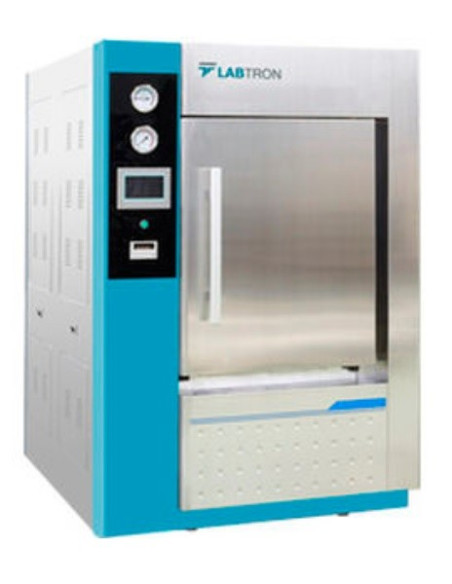

New LEOS-A11 Esterilizador de óxido de etileno (Dimensiones Cámara: 820 × 510 × 460 mm) View larger

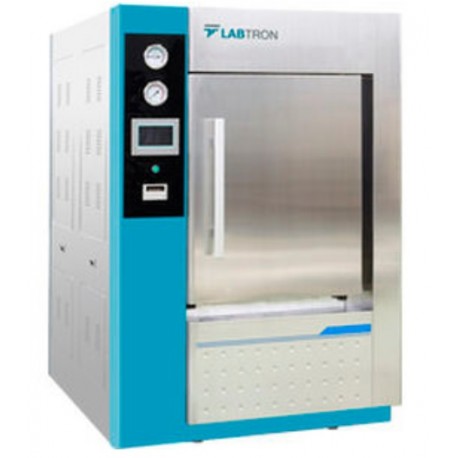

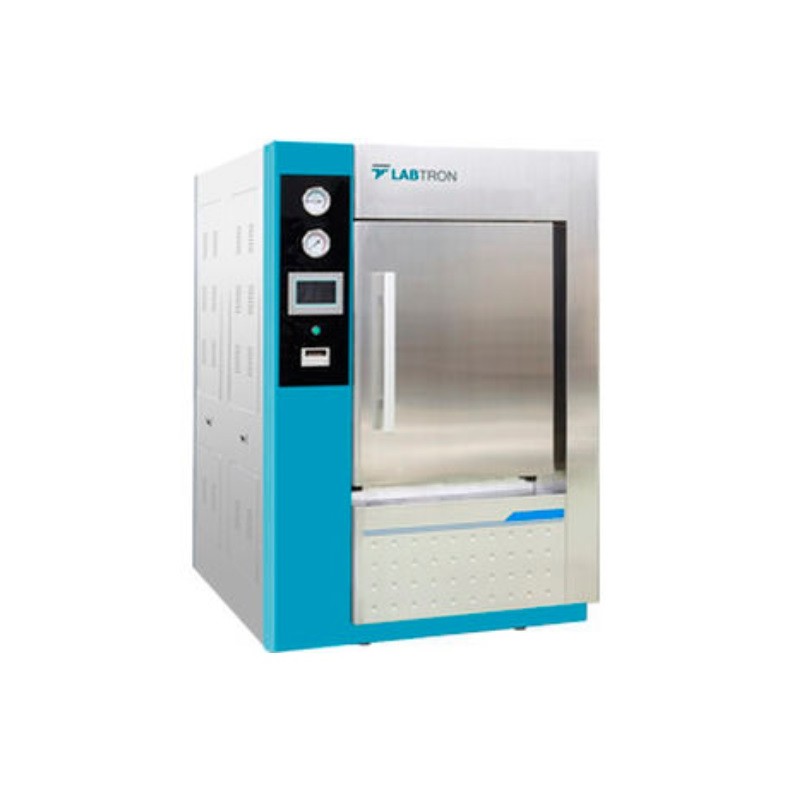

LEOS-A11Ethylene Oxide Sterilizer (Chamber Dimension: 700 × 450 × 400 mm)

LEOS-A11

New

  • Scope of application: medicine, laboratory
  • Sterilization procedure: steam
  • Configuration: horizontal
  • Other features: stainless steel
  • Temperature range: 139 ° C (282.2 ° F)
  • Capacity: 250 l (66 gal)

Add to wishlist

The LEOS-A11 Labtron Ethylene Oxide Sterilizer is a highly efficient and superior quality autoclave that allows the complete sterilization of media, liquids and wastes to be disposed of.

Features:
Structure of double horizontal layer of a single door composed of stainless steel SUS30408 or SUS31608 from the inside and decorative sheet brushed from the outside.
Designed with motorized door or sliding door with pneumatic sealing to avoid the loss of sterile steam.
It consists of Siemens PLC and Siemens touch screen.
The operating system is divided into three levels: Supervisor, Technician and Operator.
Provision to record and print all technical values and alarms.
The door locks in case the pressure of the inner chamber is higher than the safety pressure.
Equipped with a sealing door that prevents the door from opening when the program is running.

Chamber dimension: 700 × 450 × 400 mm
Sterilization cabinet dimension: 1080 × 800 × 1710 mm
Sterilization room material: 304 anti-corrosion type stainless
steel
Outer box material: Carbon steel (thickness 1.8 mm) baked
plastic powder
Work pressure: -60 kPa
Vacuum speed: -60 kPa in 5 mins
Maximum working pressure: -140 kPa
Humidity: 45 to 75 % RH
Operating temperature: 50OC ± 3OC
Gas selection: Pure EO gas(100% EO)
Sterilization time: 0 to 99 hours, adjustable
Air exchange: Automatic ventilation system, cycle ventilation
3 times with 30 mins interval
Automatic control system: One button controlled start to
finish whole process automatically with printing record.
Display: LED digital display
Printer: Yes, Micro-Printer to record whole sterilization
process
Humidity sensor: Built-in humidity sensor
Pressure sensor: Built-in pressure sensor
Temperature sensor: Built-in temperature sensor
Vacuum system: Adapted with oil free vacuum pump
Heating system: Adapting to anti-explosion electric heating
device for more precision and accuracy
Variety of protective function: Over temperature protection
function, residual gas automatic
process system. More secure and reliable.
wearing parts: Sealing gasket ring
Sterilization chamber material: Anti-corrosion type 304
stainless steel
Power: 2.95 kW
Power supply: AC 220 V/50 Hz
