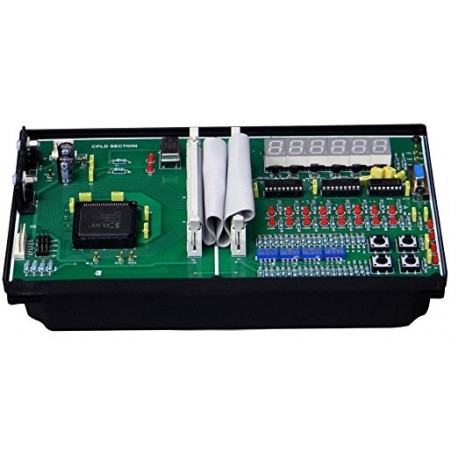

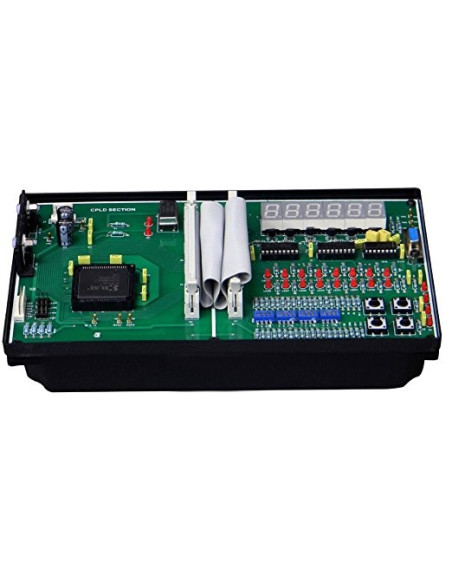

Scientech105 CPLD Development Platform

Reference Scientech105

Condition: New

Scientech 105 CPLD Development Platform featuring the Xilinx CPLD XC95108PC84.This platform provides an inexpensive & Expandable Circuit board on which to design & Implement digital Circuit of all kinds.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

SPECIFICATIONS

Explanation of System Architecture
CPLD (Xilinx XC95108PC84) Development Board
108 macrocells with 2400 usable gates 108 users I/O pins
Xilinx Webpack Development Software CD
Sample Code for Board Testing
Learning Material (CD) for reference
Functional Explanation of Development Boards
Detachable 54 I/Os for easy to experiment
16 DIP Switches for Logic Inputs
16 LED Outputs for Logic Outputs
6 Digit 7-Segment Multiplexed Display
Pushbutton switches for Pulse Inputs
Scientech 105 can also be used as an XC95108PC84 programmer
