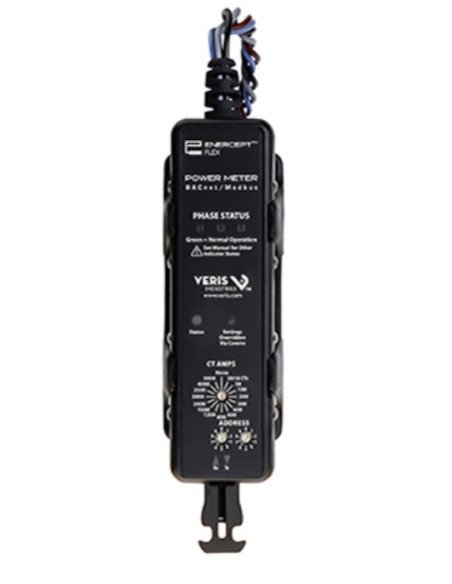

E23C6 "Enercept" Energy Power Meter




Enercept Flex Meter, RS485, Mb/BAC, 3Ph4W ANSI (N. & S. America) Wire Color.
Enercept Flex Meter,RS485,Mb/BAC, 3Ph4W ANSI (North & South Americas) Wire Color.

Add to wishlist

The Sensor measures: Energy and Power
Output Signal: Modbus
Sensor for use in: Indoor

Enercept FLEX E20 Series power and energy meters provide a unique solution for measuring energy data. Designed with the user in mind, the E20 Series offers maximum application flexibility for retrofit applications.  The E20 Series is compatible with split-core, solid-core and Veris U018 Series rope-style Rogowski current transducers (CT) from five to 5000 amperes, often allowing installers to utilize existing CTs with the meter. Adding to its versatility, the E20 has a wide input range of 90 to 480 VAC, alleviating the need to keep multiple models in stock. The meter’s small form factor enables installation in existing panels with limited space, and does not require external mounting or the expense of extra enclosures or conduit runs. Communicating models support auto detection of baud rate, parity, and protocol for Modbus® RTU and BACnet® MS/TP.

-  Energy monitoring  (BAS)

-  Renewable  energy

-  Energy  management

-  Commercial  submetering

-  Industrial  monitoring

-  Cost allocation

-  High reliability with ANSI C12.20 0.2% accuracy, IEC 62053-22 Class 0.2S

-  Modbus  and BACnet protocols along with uni-directional and bi-directional feature sets in one
   unit....simplifies ordering and stocking options

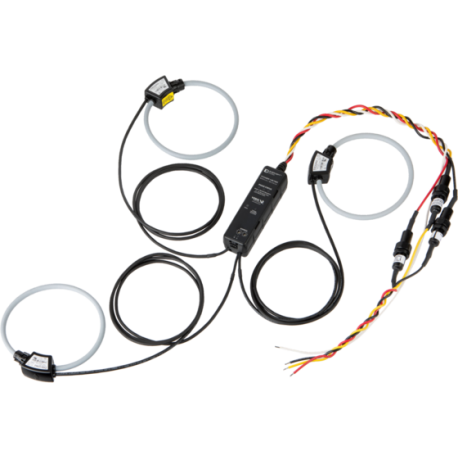

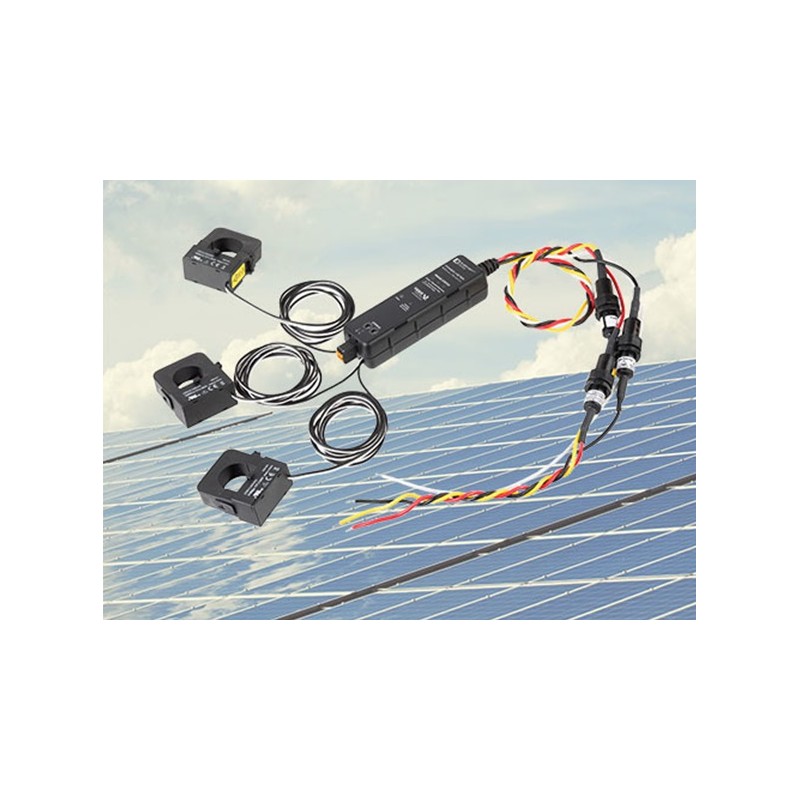

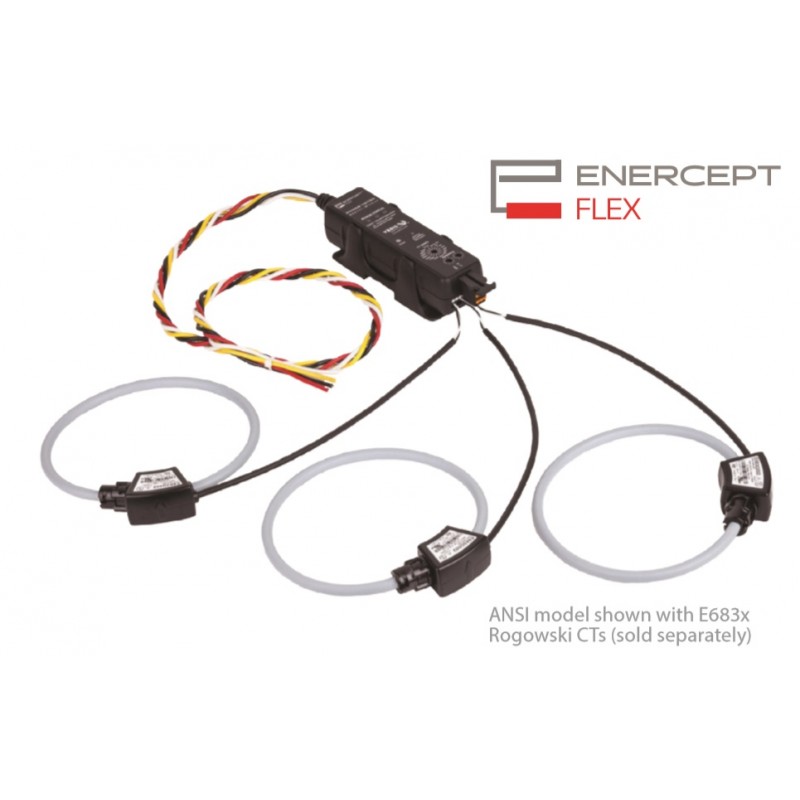

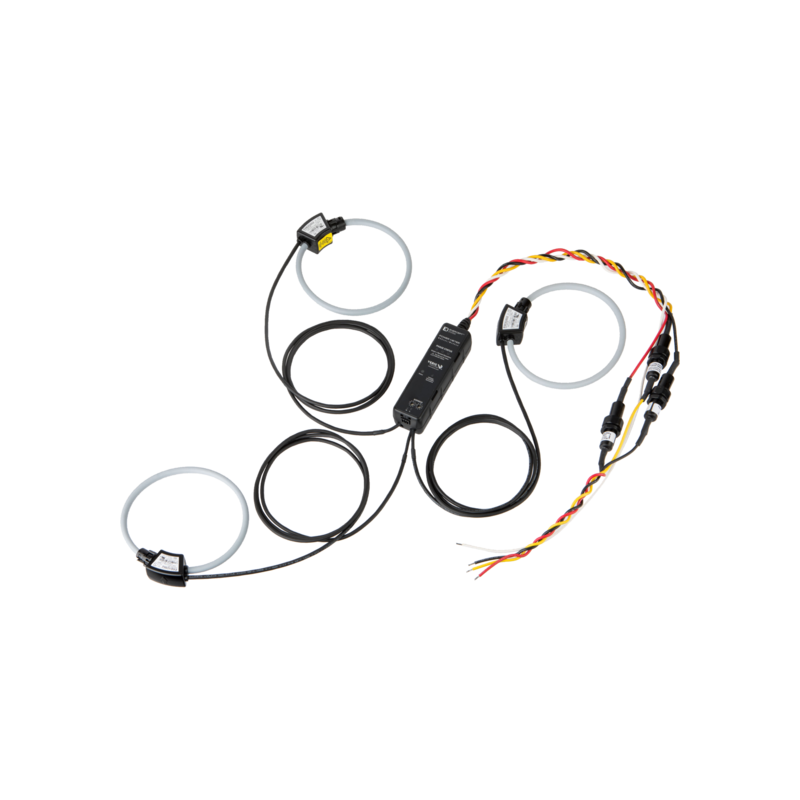

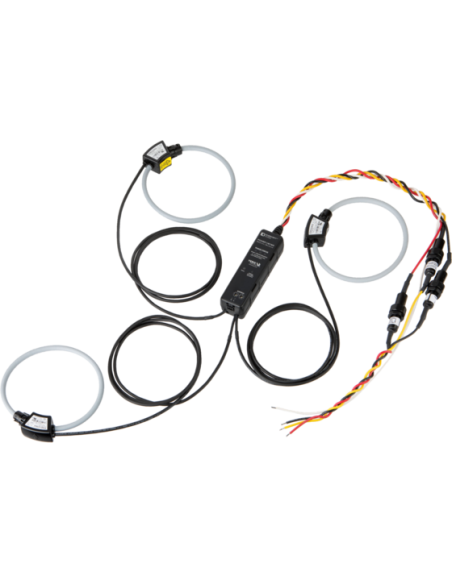

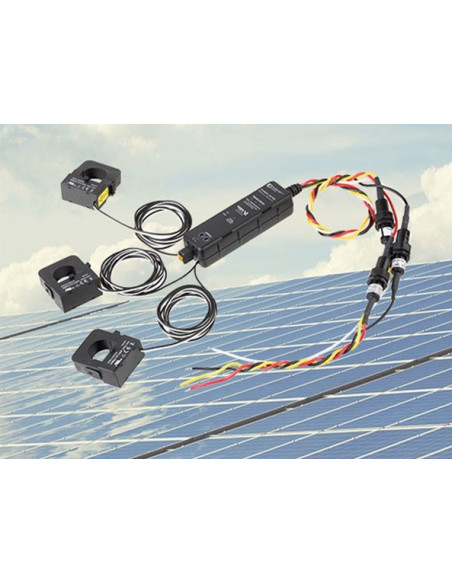

-  Compatible with multiple CT form factors (Split-Core, Solid-Core, rope-style Rogowski U018)

-  Amperage measurements from 5 A to 5000 A...supporting a wide range of service types

-  90 to 480 VAC...application versatility with fewer models to stock

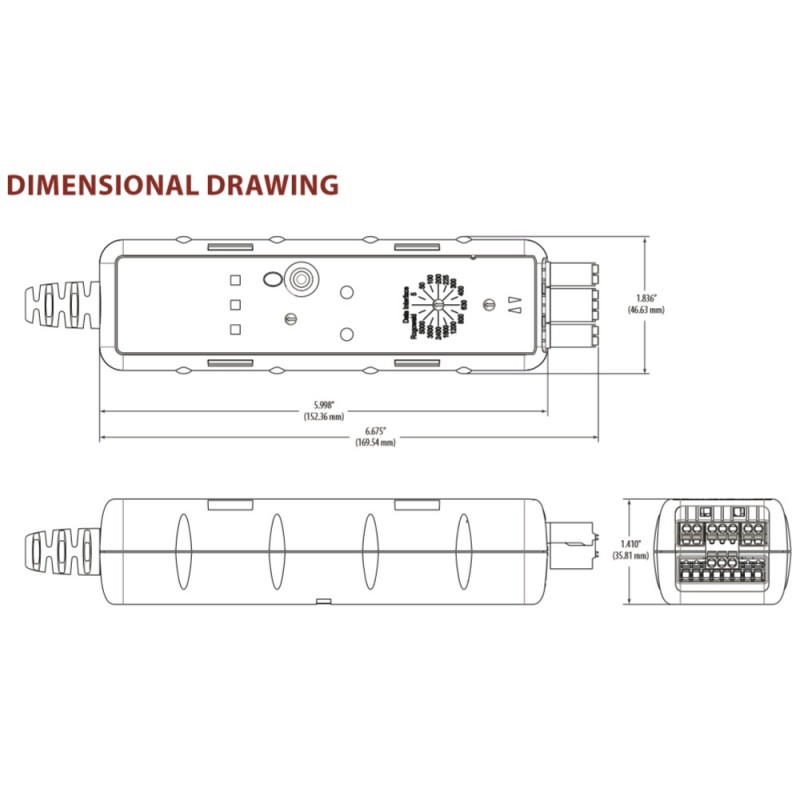

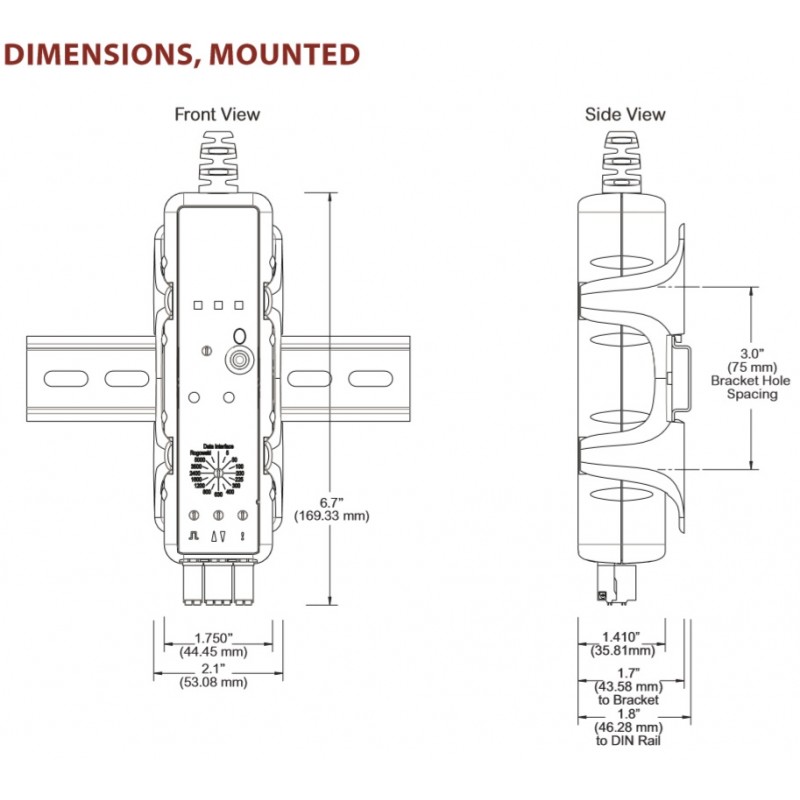

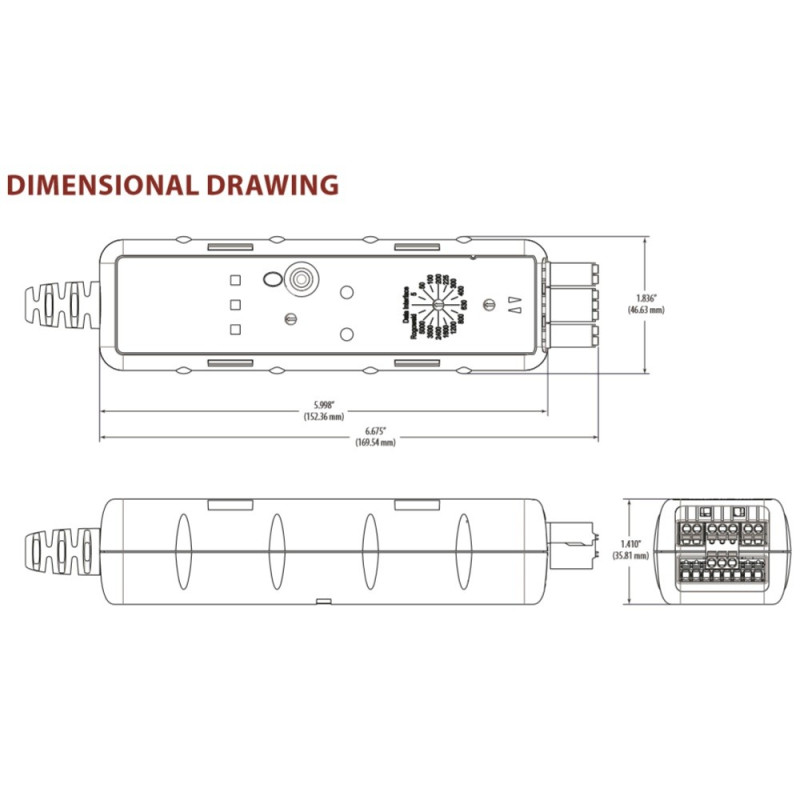

-  DIN rail or screw mount options (with included mounting bracket)...easy installation

-  Native Modbus and BACnet MS/TP support with serial rates up to 115.2 kbaud

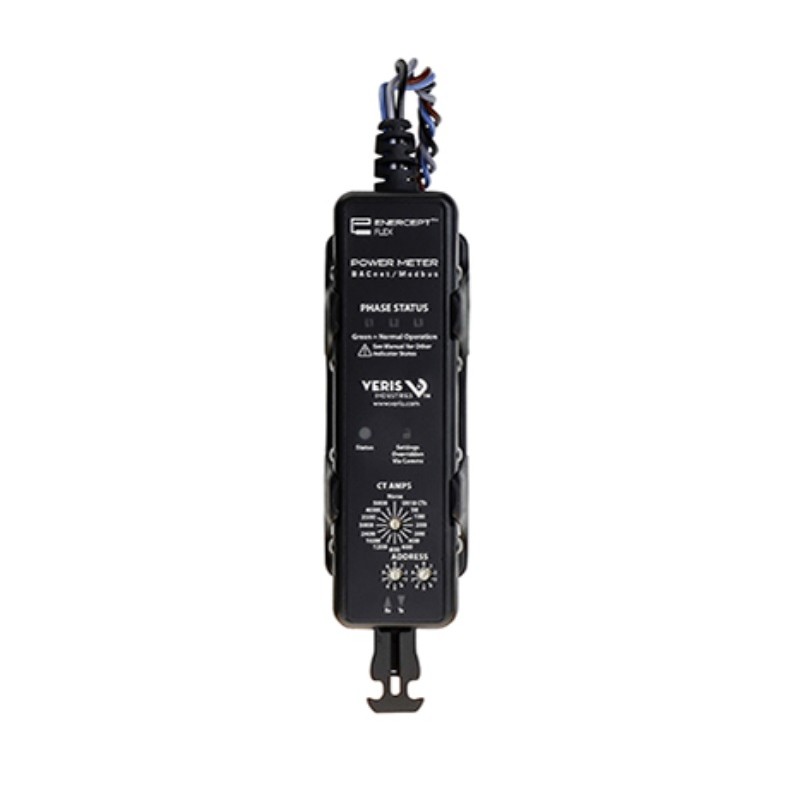

-  Rotaries on meter allow for easy set up and configuration with or without power
