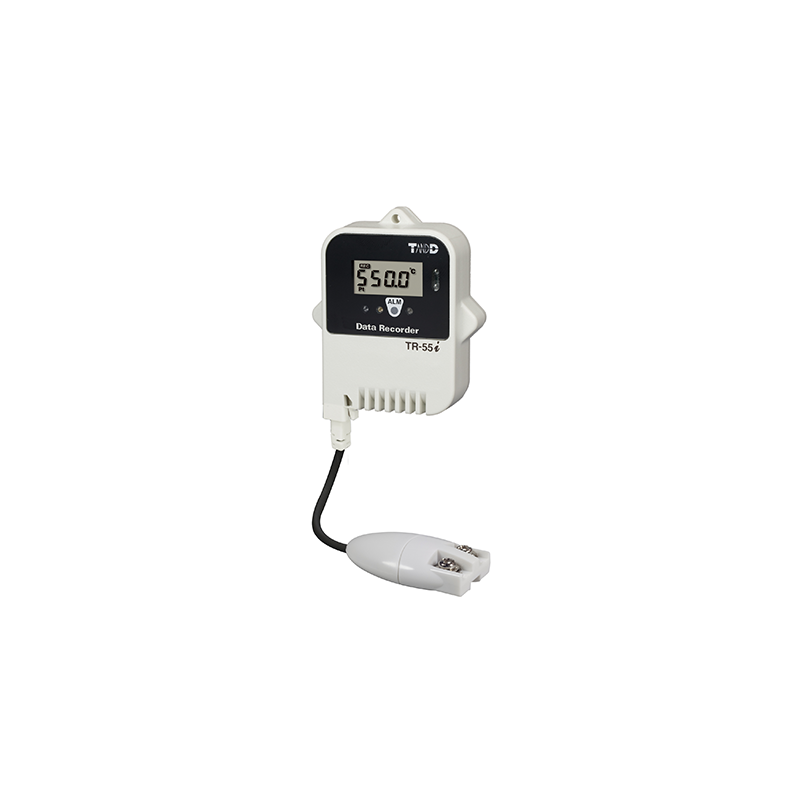

TR-55i-Pt Infrared Temperature Data Recorder (-199 to 600°C)

Reference TR-55i-Pt

Manufacturer: TandD

Condition: New

The TR-5i series includes durable, compact, water-resistant, easy-to-use recorders for measuring temperature, voltage, 4-20 mA and pulse counting, and its low power design means longer battery life.

Volume discounts

Quantity	Price (tax excl.)	You Save %
1+	190,00 €	0%
5+	184,30 €	3%
10+	178,60 €	6%
15+	172,90 €	9%

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVEW
OVERVIEW
Wireless Communication
Data sheet

Number of Channels	1 channel (temperature)
Precision	±(0.3 °C + 0.3 % of reading)
With Display	Yes
IP Classification	IP64
Communications	Optical, Infrared
Battery Life	2 years
Memory Capacity	16,000 measures

Data collection is made easier with a handheld enabled "IR" for on-site use or a portable USB pluggable port for use with a PC.
The infrared temperature data recorder TandD TR-55i-Pt supports Pt100 (3-wire) and Pt1000 (3-wire) sensors. The body is water resistant when the Input Module is connected.
Recorded data can be transferred to a separate PC through the TR-57DCi data collector or the TR-50U2 communication port. From there, the data can be analyzed or visualized in graphic form.

Measurement Channels	Temperature 1ch Pt100 / Pt1000
Measurement Range	-199 to 600°C
Accuracy	±(0.3 °C + 0.3 % of reading)
LCD Display	Measurements, Battery Life Warning, etc.
Logging Capacity	16000
Recording Intervals	15 choices from 1 sec. to 60 min.
Recording Mode	Endless/Onetime
Comm Interfaces	Optical, Infrared
Warning Notifications	LCD, LED
Power	Lithium Battery
Operating Environment	Temperature:-40 to 80°C
Dimensions	H:62mm × W:47mm × D:19mm
Waterproof Capacity	IP64
Battery Life	Approx. 24 months
Accessories	Input Module, Lithium Battery, etc.
