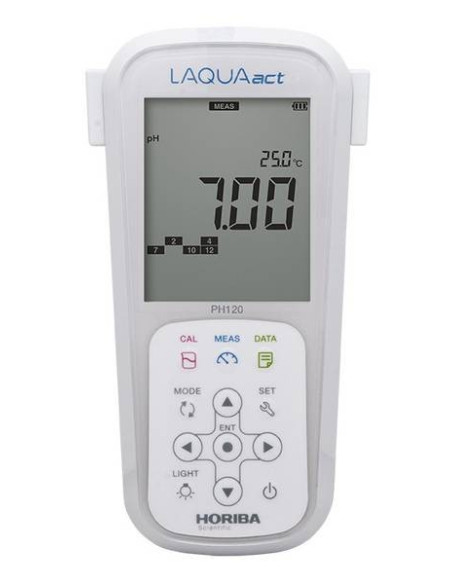

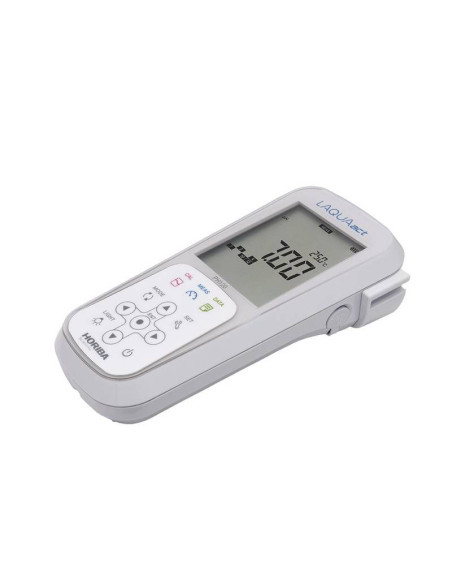

pH120 LAQUAact Handheld Meter for Water Quality

Reference pH120 (3200739845)

Manufacturer: HORIBA

Condition: New

Handheld Meter only (includes electrode attachment, manual & 2 x AAA batteries)

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overwiew
Specifications
Data sheet
Download
Accessories

With Display	LCD
Communications	RS232C
Memory Capacity	1000
The Sensor measures:	Water Flow

Manual Download (836.19k)

English Brochure Download (1.35M)

Spanish Brochure Download (2.61M)

Handheld Water Quality...

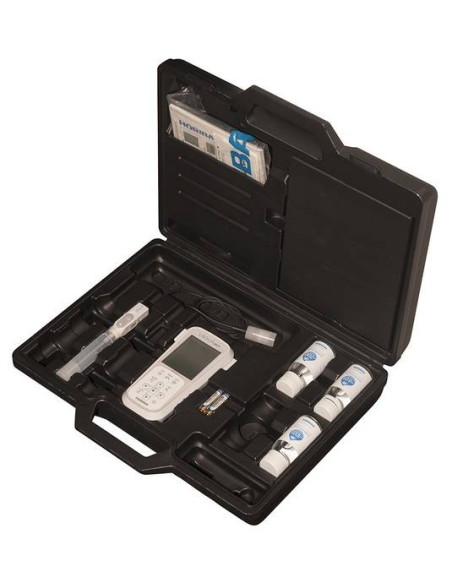

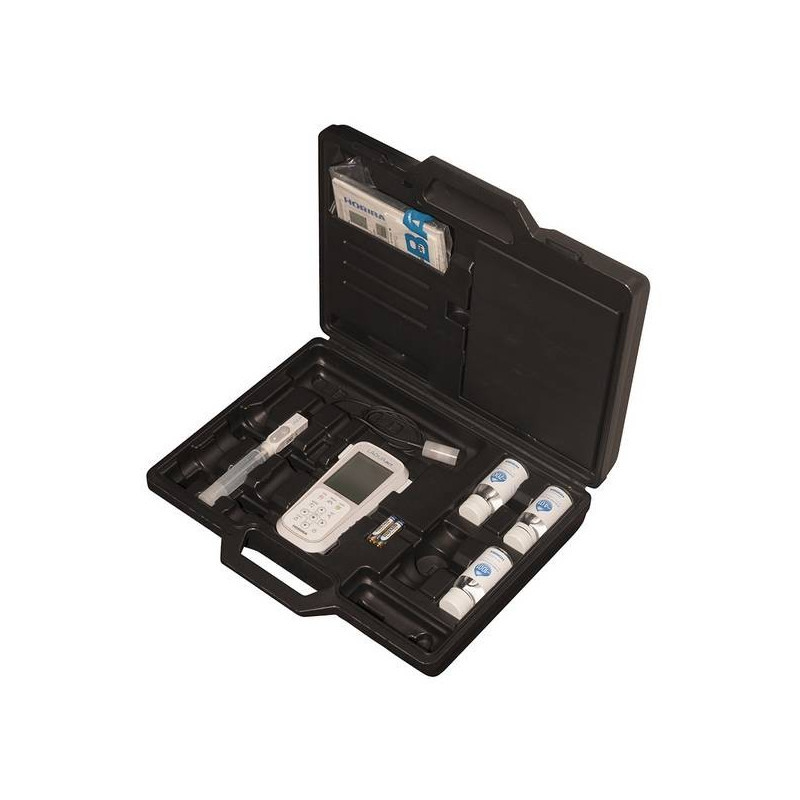

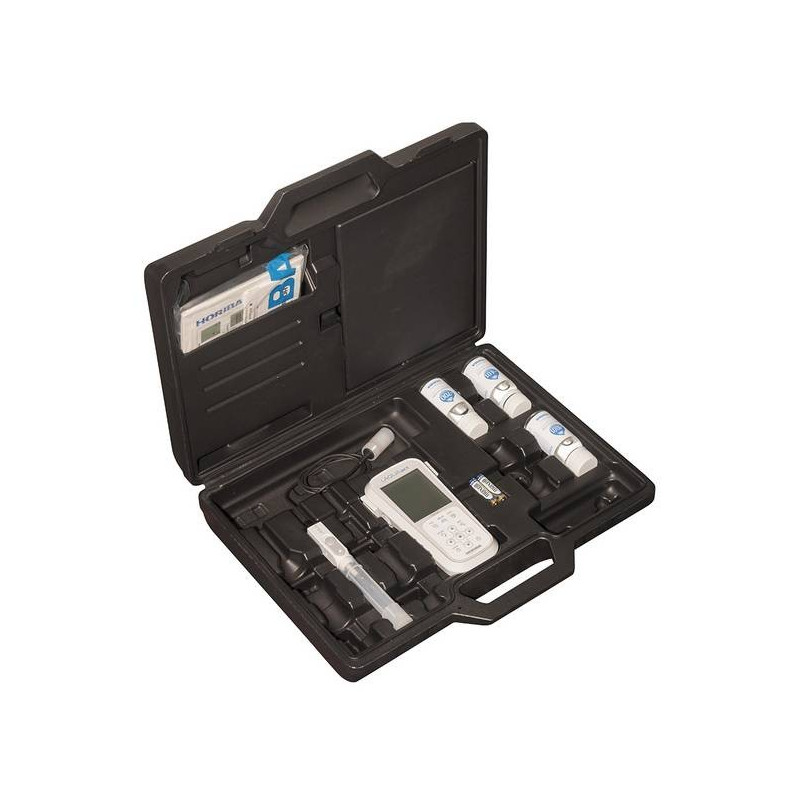

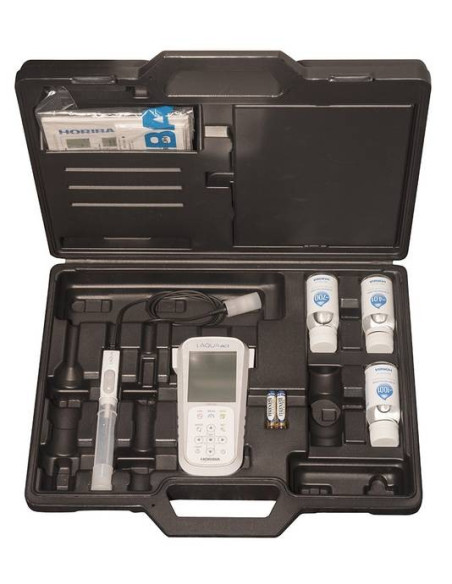

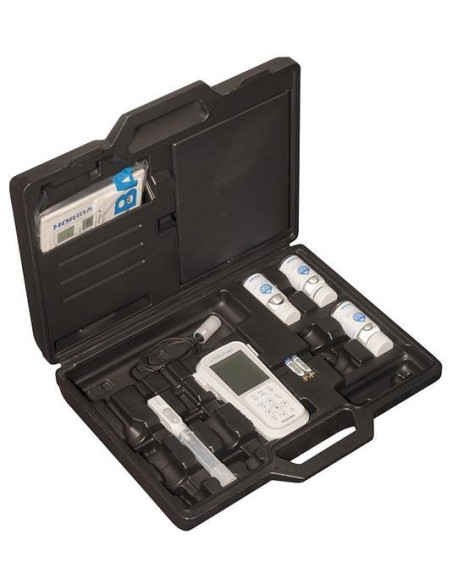

pH120K LAQUAact Portable Meter Kit for Water Quality

Add to cart

- Automatic pH calibration up to 5 points using NIST, USA or Custom pH buffers
- 0.01 pH resolution
- Offset and slope display
- Automatic / manual temperature compensation
- Temperature calibration function
- Auto log data
- Built-in memory can store up to 1000 data
- Auto-shut off (programmable: 1 to 30 minutes)
- Auto-Hold / Auto-Stable measurement
- Calibration alarm (programmable 1 to 400 days)
- Built-in electrode holder allows 2 electrodes to be attached on both sides of the meter
- Large backlit LCD: 52mm x 64mm
- RS232C output for connecting the meter to a compatible printer or computer
- IP67-rated case: waterproof (withstand 30 mins. immersion in 1m depth of water) and dustproof
- Powered by 2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
- Packaged in new molded carrying case
- 2 years meter warranty

Model	LAQUAact PH120 pH/ORP/Temperature(°C)
pH Range	-2.00 to 16.00 pH
Resolution	0.01 pH
Accuracy	± 0.01 pH
Calibration Points	Up to 5
Buffer Options	USA / NIST / Custom
ORP Range	± 2000 mV
Resolution	1 mV
Accuracy	± 1mV or 1% of reading (whichever is greater)
Temperature Range	-30.0 to 130.0 °C
Resolution	0.1 °C
Accuracy	± 0.4 °C
Calibration Option	Yes
Memory Data	1000
Auto Log Data	Yes
Real-time Clock	Yes
Date / Time Stamp	Yes
Auto-Shut Off	Yes (Programmable: 1 to 30 minutes)
Auto-Hold / Auto-Stable	Yes
Offset / Slope Display	Yes (Independent acid and alkaline slopes depending on calibration)
Calibration Alarm	Yes (Programmable: 1 to 400 days)
Electrode Status	On screen display
Diagnostic Messages	Yes
Display	Custom Backlit LCD
Inputs	BNC, phono, DC sockets
Output	RS232C
IP Rating	IP67, shock-resistant
Power Requirements	2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
Battery Life	> 500 hours
