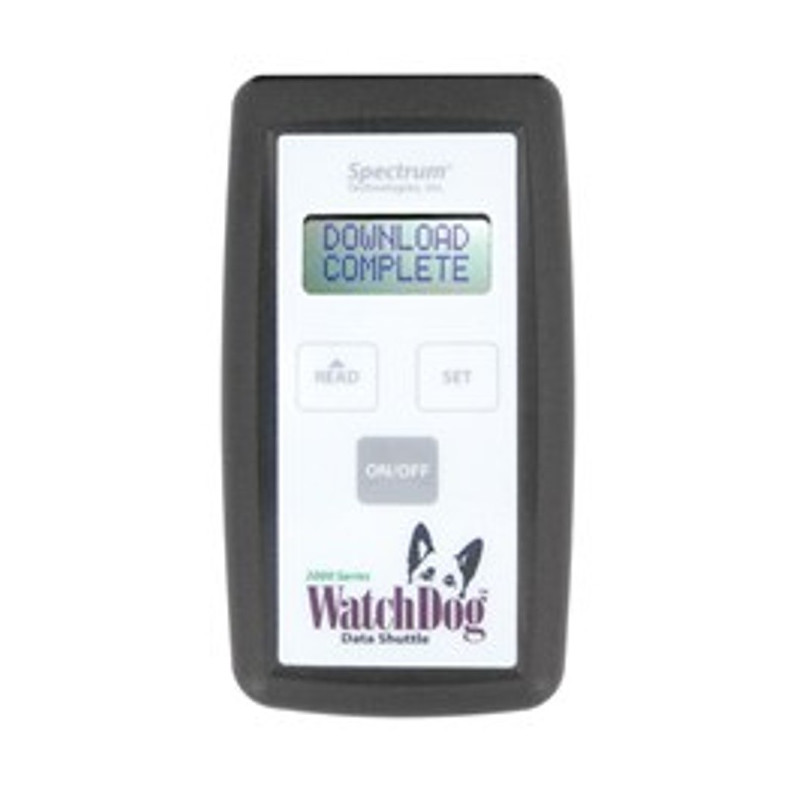

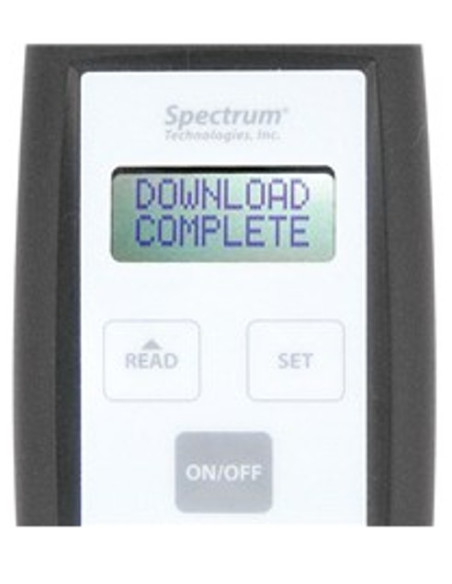

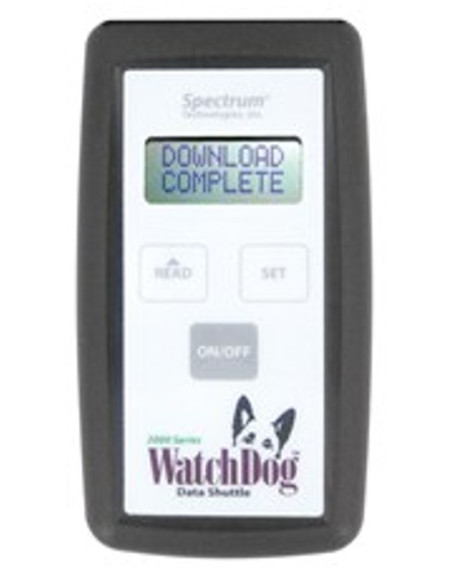

3679WD1 WatchDog 1000/2000 Series Data Transporter

WatchDog 1000/2000 Series Data Shuttle

Holds data for multiple stations (up to 5 Full, 10 Mini, or 12 Micro Stations)
Fail-safe, nonvolatile EEPROM memory provides added dependability and convenience.
 To be used with the 2000 Series Weather and Mini Stations, and the 1000 Series Micro Stations.
  Includes soft-sided case (also available separately, Item 7500)

Software:
Spec8 Pro or higher; Spec 9 Pro 9.02 Build 0223 or higher for use with WatchDog 1000 series loggers.

Compatibility:
The WatchDog 1000/2000 Data Shuttle performs the following functions:
• Download data from WatchDog 1000 and 2000 loggers, mini-stations, and Weather Stations in the field.
• Checks battery status and alerts the user if the station/logger battery needs to be replaced.
• If necessary, correct the station/recorder clock.
• Communicates with SpecWare to transfer the downloaded data to the PC.

Ability:
It can hold the maximum amount of data from 5 WatchDog 2000 Series Weather Stations, 10 Mini Stations, or 12 Loggers.
It can hold data from up to 25 drives, as long as they are partially full.


Speed:
Download the maximum amount of data from a WatchDog 2000
Standard weather station in approximately 22 minutes (depending on the number of sensors in use).
Partial downloads complete proportionally faster.


Battery:
1 user replaceable 9V alkaline battery.
Battery life is about 6 months inactive.
The battery is consumed at a faster rate when reading and writing.
One battery can process approximately 10 full shuttles.
As a general rule, if the Data Shuttle display reads “30% FULL”, then 3% of the projected battery life will have been consumed transferring that data from the logger/station to the PC.
