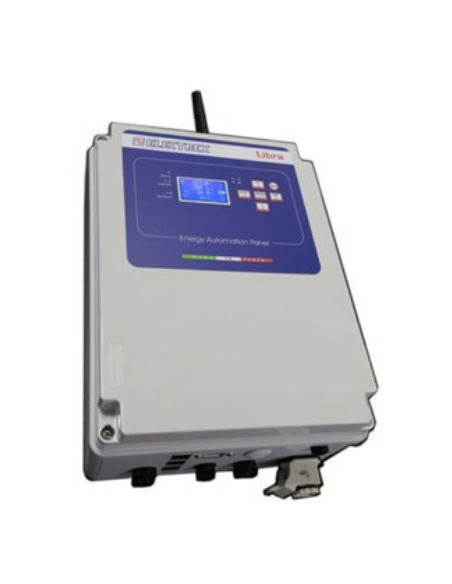

LIBRA - ENERGY AUTOMATION PANEL

ELECTREX

New

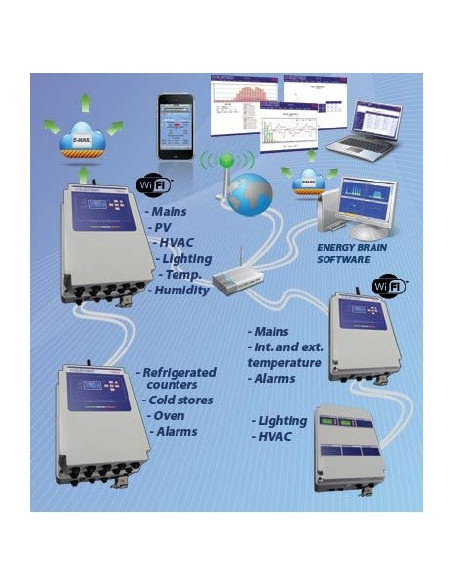

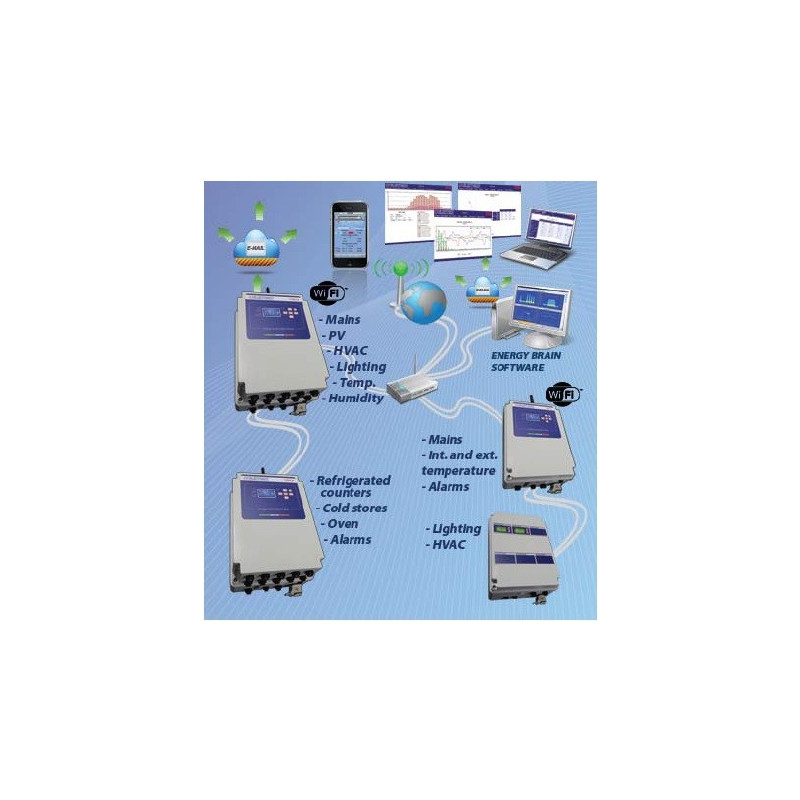

Integrated and expandable "Plug and Play" system for the monitoring and control of low and medium voltage electrical loads and environmental parameters.

Flexibility (open platform)
Connectivity (RS485, ExpBus, Ethernet, Wi-Fi, NFC)
For continuous monitoring (for example, ISO 50001)
Energy efficiency (eg, 2012-27, EU and EEC directive)
Power automation panel and energy expansion panel

Add to wishlist

Equipped with an internal UPS assuring a continuous power supply. Ethernet and/or Wi-Fi (external antenna) communication.
Astronomical, perpetual, battery powered clock / calendar and non-volatile memory.
Instantaneous measurements of each current and voltage harmonic up to the 51-st order.
Accuracy class 0,5S for Active Energy.
Version for the monitoring of the Power Quality events (peaks, sags, swells, micro-interruptions, etc) using any third party CT../5A or ../1A.
Options already activated: datalogging (1 x Upgrade Log 8), displaying of the readings on internal web pages (Upgrade Web) and historic energy graphs (Upgrade Charts).
Equipped with: 8 inputs for Electrex environmental parameter sensors, 2 digital inputs and 2 digital outputs.

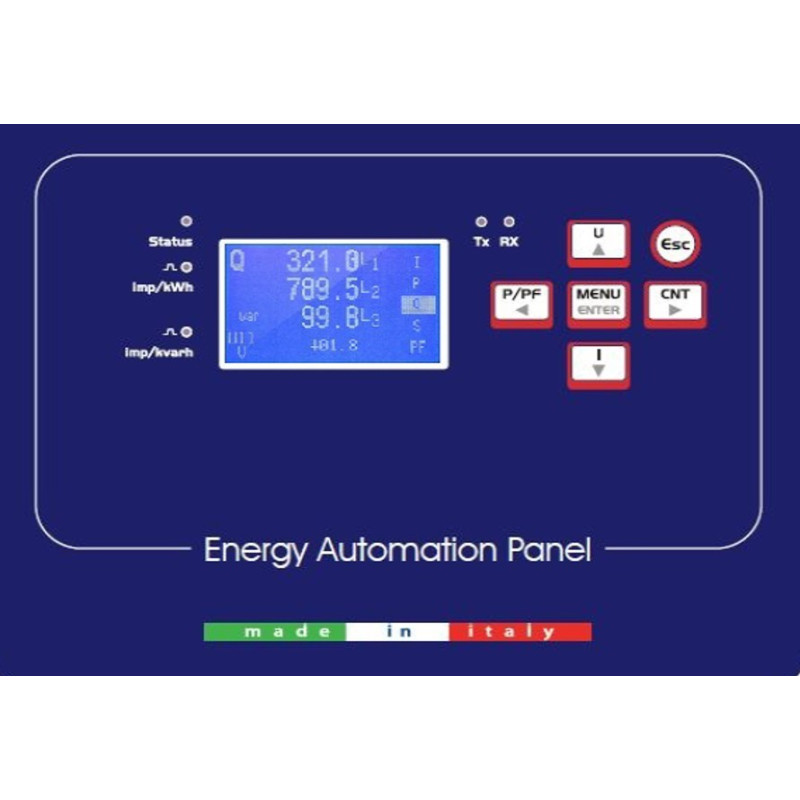

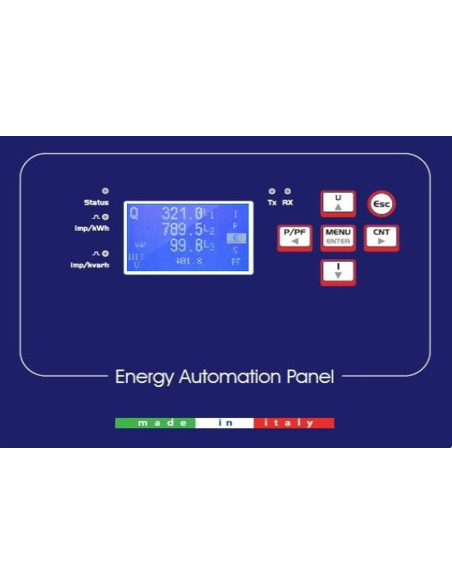

Remotely upgradable firmware. FSTN graphic display, 2 calibration LEDs, NFC communication. CTs, power supply, voltage inputs, input/output connections are made via polarized connectors for a "Plug and Play", fast and always-correct installation.
Included 1 x PCALV0-01: 5 Pins Female Polarized Power Supply / Voltage Inputs Connector; 1 x PCALA0-01: 6 Pins Female Polarized Current Inputs Connector with 2 m Cable.
Power supply: 230Vac. Size: 236x316x130 mm.
