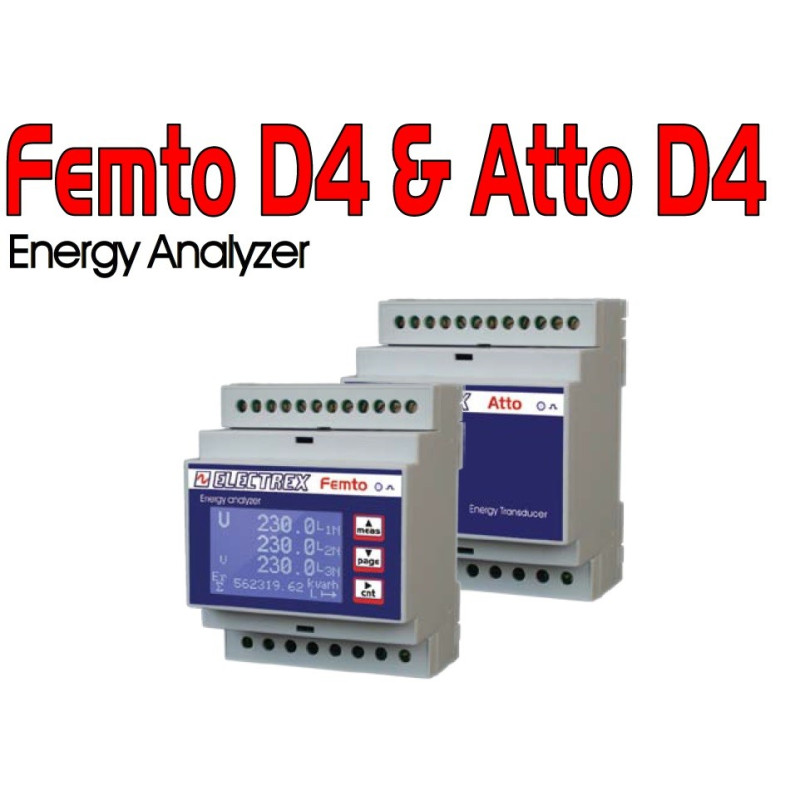

Single-three phase counter / energy analyzer (up to 3 single-phase lines).
This product is no longer in stock
|Environment of Use||Indoor|
|Type of Logger||Electric Power|
|The Sensor measures:||Energy and Power|

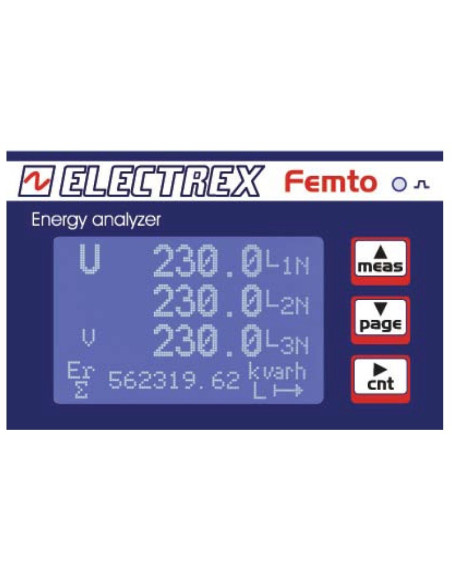

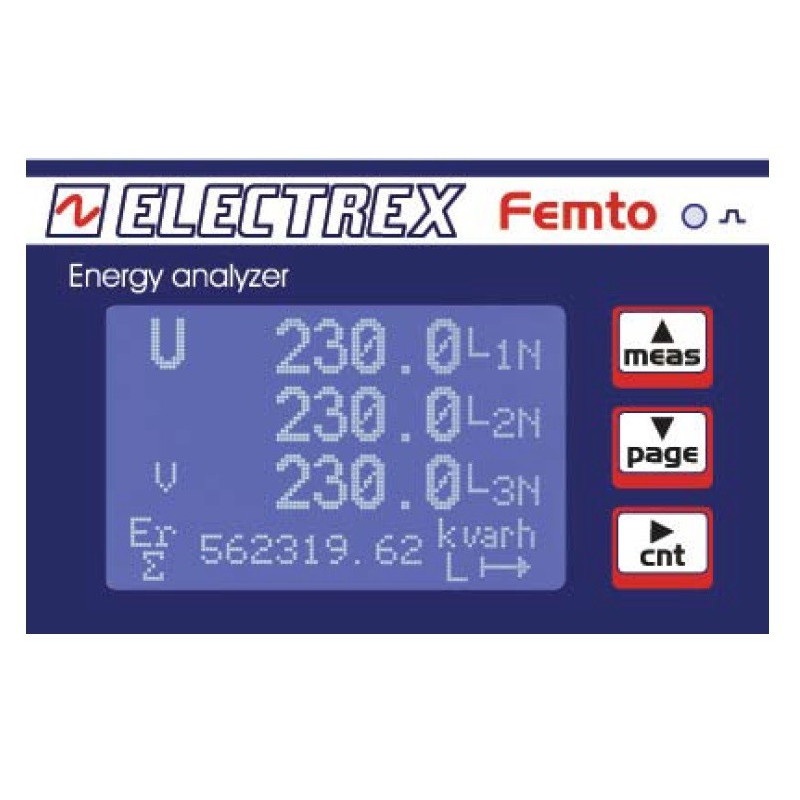

Backlit blue/white graphic LCD display.
Measurement of the THD of voltage and current, neutral current, maximum and minimum voltage, maximum power and current, active energy of each phase.
◆ Phase sequence indication.
◆ 4 load operating time counters.
◆ 1 calibration LED.
◆ Firmware update remotely. RS485 port.
◆ Size: 4 DIN rail modules.
◆ Power supply 230-240Vac.
◆ Complies with: EN 50470-1 + EN 50470-3.
