> >>TMC6-HC Sensor Stainless Steel Temp. (-40ºC to +100ºC)

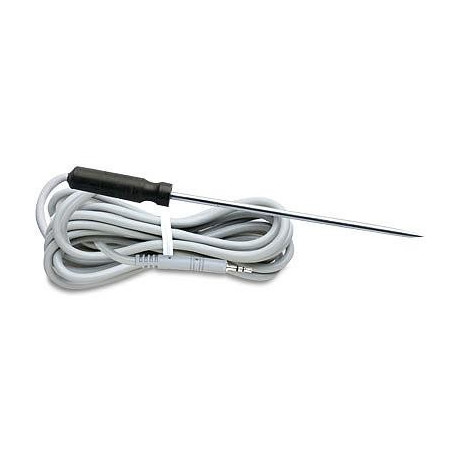

TMC6-HC Sensor Stainless Steel Temp. (-40ºC to +100ºC) View larger

TMC6-HC Sensor Stainless Steel Temp. (-40ºC to +100ºC)

Onset

New

109,00 €

tax excl.

Add to wishlist

TMC6-HC DATA NODES Download (52.7k)

TMC6-HC, a food-grade stainless-steel Air & Water temperature probe with pointed tip for use with HOBO U-Series external-channel data loggers or ZE series wireless datanodes.
Accuracy and resolution vary according with attached logger model.
Measurement range is -40° to 100°C (-40° to 212°F) in air or water.
Response time is 3 minutes typical to 90% in air moving 1m/sec (2.2mph).
Response time in stirred water is 15 seconds typical. Sensor is attached to a 1.8m (6ft) cable.

Features:
Can be plugged directly into the external input jacks of U12 Family loggers or ZW series wireless datanodes to expand the range of measurement options and applications.

Probe Dimensions: 102mm (4 in.) food-grade stainless steel probe with pointed tip; 3.2mm (±0.01') diameter

Cable Length: 1.8m (6 foot)
Range: -40° to 100°C (-40° to 212°F) in air or water
Accuracy with H8 (insert probe 2 in. min.): ±0.5° at 20°C (±0.9° at 68°F),
Accuracy with U12 (insert probe 2 in. min.): ±0.21°C from 0° to 50°C (0.38°F from 32° to 122°F),
Accuracy with U12 (insert probe 2 in. min.): ±0.21°C from 0° to 50°C (0.38°F from 32° to 122°F),
Drift:< 0.1 °C (0.2 °F) per year
Resolution: 0.41° at 20°C (0.7° at 68°F),
Resolution: 0.03° at 20°C (0.05° at 68°F),
Response time in air: 3 minutes typical to 90% in air moving 1m/sec (2.2mph)
Response time in stirred water: 15 seconds typical
