Rain-o-Matic-WMO Precission Rain Gauge (max. +/- 5 % deviation)

Rain-o-Matic-WMO

Pronamic

New

Rain-o-Matic-Meteorological rain and precipitation sensor with our patented self-emptying tipping bucket is one of the most accurate and reliable precipitation gauges on the market that comply with WMO standards.

Volume discounts

Quantity Price
(tax excl.)
You Save
%
1+ 560,00 € 0%
2+ 504,00 € 10%
5+ 448,00 € 20%
10+ 392,00 € 30%

560,00 €

tax excl.

Add to wishlist

The Sensor measures: Rain (rain gauge)
Output Signal: Pulses
Sensor for use in: Outdoor

- Meteorological rain collector, orifice 200 cm2,
- PCB no. 9602 (2 reed switches, Normally Open
- and Normally Closed, with terminal strip),
- Manual calibration
- Resolution 0,1 - 0,20 - 0,25 or 0,50 mm
- Top ring with 60 degrees angle
- Bottom in aluminium

Rain-o-Matic-Meteorological patented self-emptying tipping bucket is one of the most accurate and reliable rain gauges on the market. It gives you advantages in:

  • More accurate measurements
  • Only one adjustment screw which makes it easy to recalibrate.
  • Bucket made in POM, which is a more dismissive material and therefore makes dust and dirt not stick so easily on the spoon and maximize water release.

WMO compliant

Rain-o-Matic-Meteorological complies with World Meteorological Organization standard (WMO guide no.8) Such as:

  • Deep funnel to avoid splash out and evaporation.
  • 200 cm2 orifice angel top-ring with sharp edges.
  • Drain pipe for collection of precipitation.
  • Drip-rod/filter in plastic.

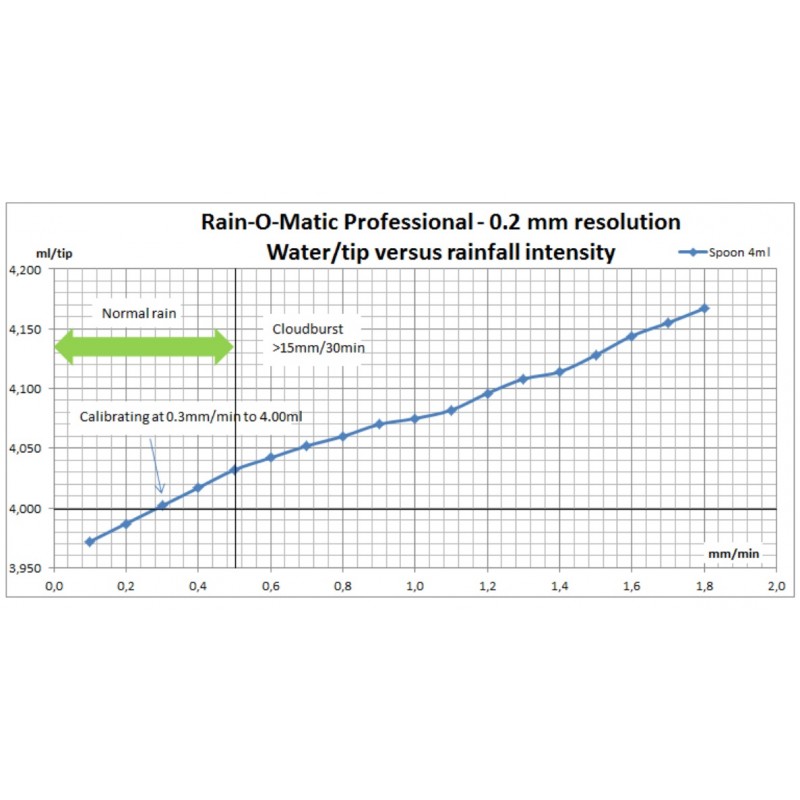

Calibration

Calibration is a very important issue for Pronamic and therefore all Meteorological rain gauges are manually calibrated. It gives you the guarantee for a very accurate measurement (max. +/- 5 % deviation).

Minimal maintenance

Our Meteorological rain gauges require minimal maintenance due to:

  • Outer shell is made from STYROSUN which makes the surface easy to clean.
  • High quality plastic materials and a simple design for a very long durability (10-20 years)

The Rain-O-Matic Meteorological is accurate and rugged which makes it perfect for:

  • Weather stations
  • Meteorological institutes
  • Research facilities
  • Water works
  • Wastewater treatment plants
  • Hydropower stations
  • Agriculture

Calibration

Calibration is a very important issue for Pronamic and therefore all Meteorological rain gauges are manually calibrated. It gives you the guarantee for a very accurate measurement (max. +/- 5 % deviation).

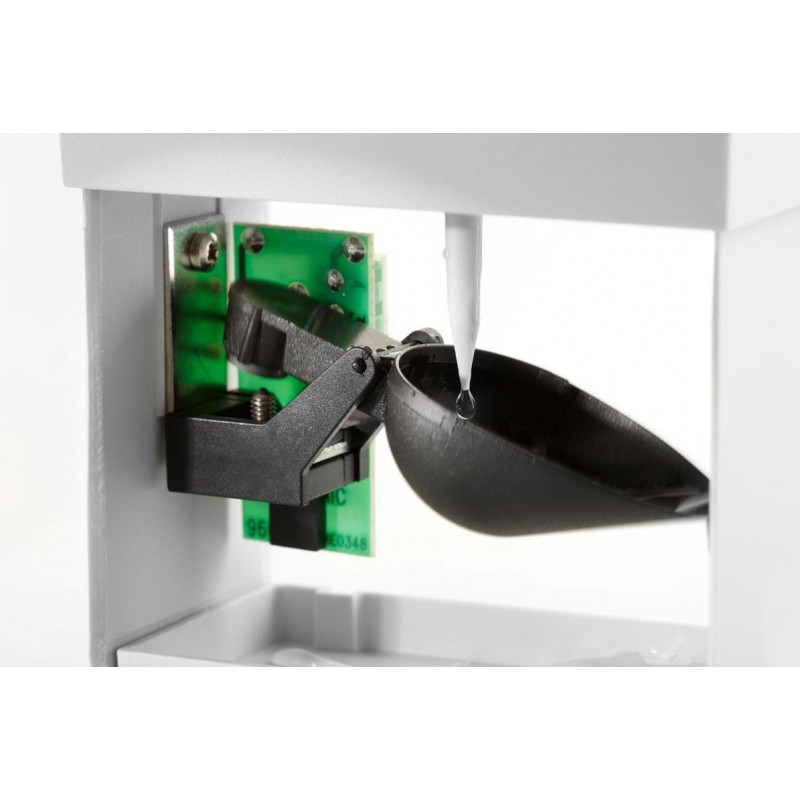

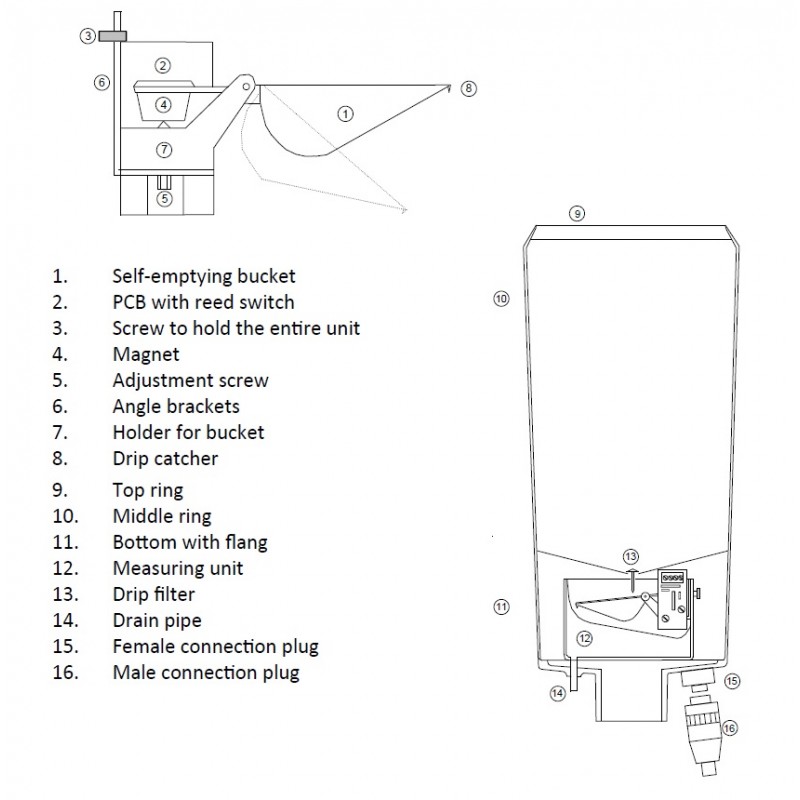

Rain-O-Matic Meteorological measures the precipitation by means of a funnel (orifice 200 cm2), which leads the water down into the self-emptying tipping POM bucket, held in place by a hard ferrite magnet. The magnet always exerts just enough tension to allow the measuring bucket to empty in one quick movement (less than 300 ms) and then return to its normal position, ready to once again collect precipitation. This means the counter weight always remains the same opposite to other conventional two spoons tipping bucket rain gauges.
In the bottom of the rain gauge there is space for a small internal datalogger.

Styrosun

The rain gauge is mainly made in molded modified high-impact polystyrene also known as STYROSUN which is a highly weather-resistant polymer that reduces breakdown and discoloration.

STYROSUN which has passed the Arizona test is extremely resistant against the sun’s UV radiation and it is frost- and heat resistant standing all climatically conditions.

STYROSUN is resistant to common household cleaners, recyclable and easily decorated.
