Disruptor Genie, 230V w/o Plug View larger

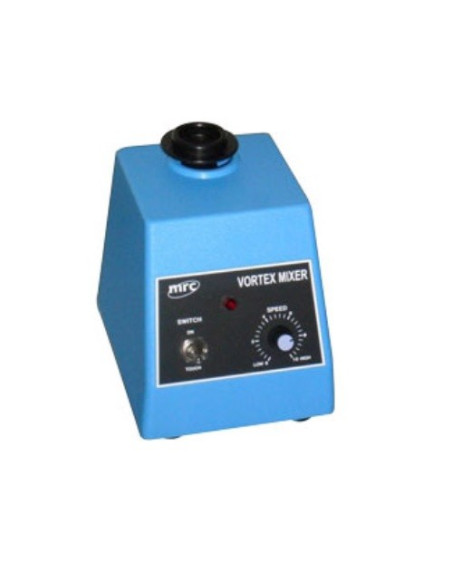

SI-100 Vortex Mixer for Tubes

SI-100

MRC

New

Vortex
In fluid dynamics, a vortex is a region within a fluid where the flow is mostly a spinning motion about an imaginary axis, straight or curved. That motion pattern is called a vortical flow.
A vortex mixer is a simple device used commonly in laboratories to mix small vials of liquid. It consists of an electric motor with the drive shaft oriented vertically and attached to a cupped rubber piece mounted slightly off-center. As the motor runs the rubber piece oscillates rapidly in a circular motion. When a test tube or other appropriate container is pressed into the rubber cup the motion is transmitted to the liquid inside and a vortex is created.

Add to wishlist

Applications:
Vortex mixers are quite commonplace in bioscience laboratories. In cell culture and microbiology laboratories they may be used to suspend cells. In a biochemical laboratory they may be used to mix the reagents of an assay or to mix an experimental sample and a dilutant.


·Vortex mixer for tubes
·Variable speed control up to 3000rpm
·Two positions of operation:
·Touch on or Hand free-continuous
·Not walking unit
·Size:d160xw130xh180mm,3kg
