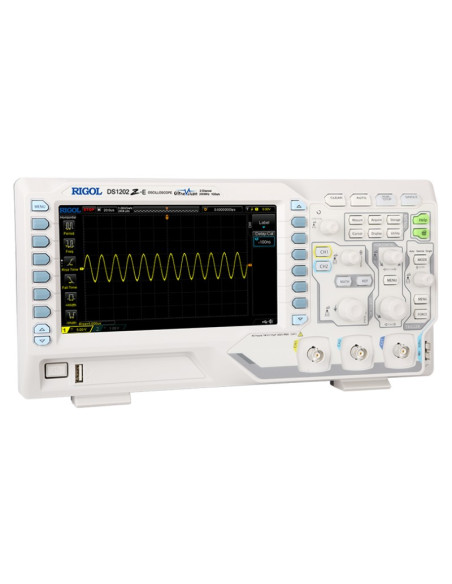

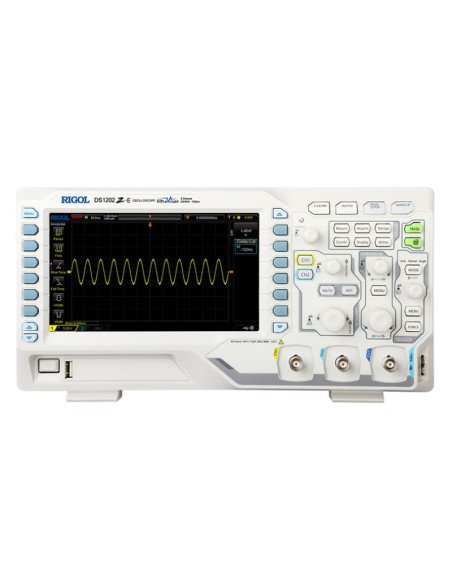

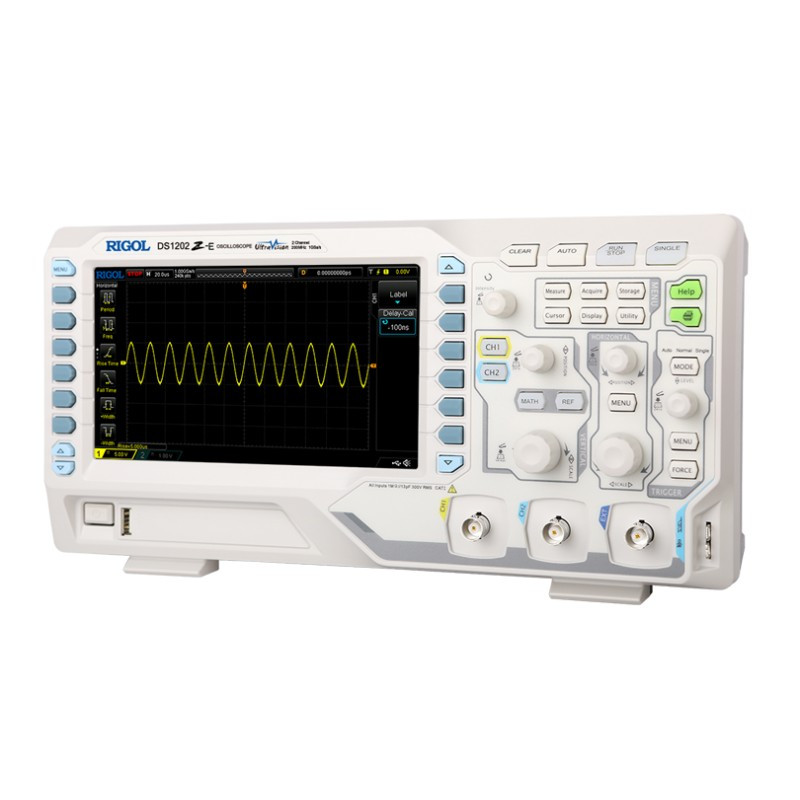

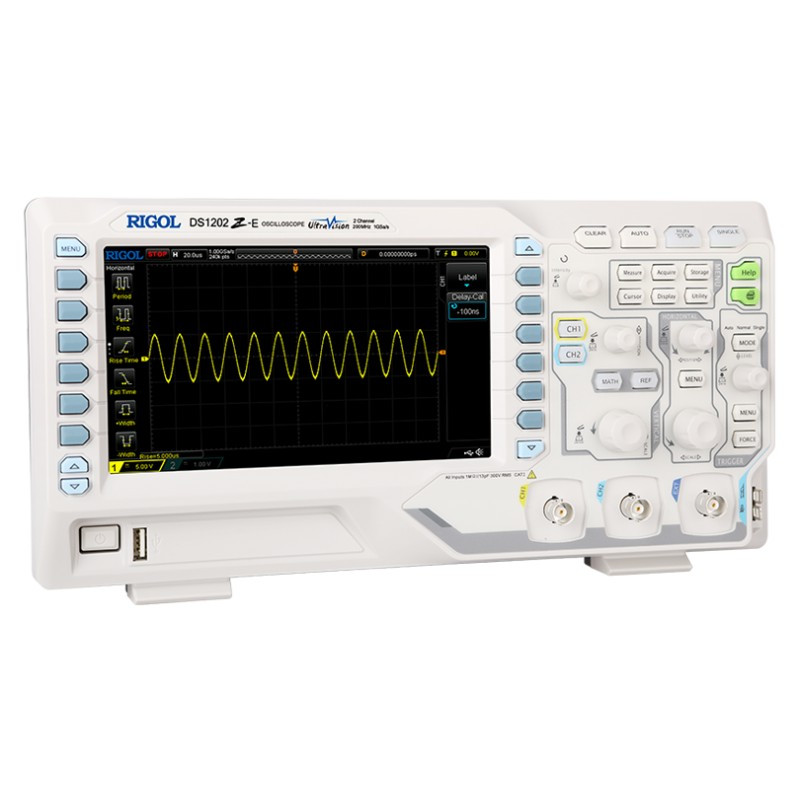

Digital Oscilloscope DS1202Z-E, 1 GSa/s, 24 Mpts, 2 Ch + 1 EXT

DS1202Z-E

RIGOL

New

DS1000Z-E Series Digital Oscilloscope is designed by RIGOL based on the mainstream demand. It is a high-performance and economic digital oscilloscope specially contributed by e-commerce.

Add to wishlist

MEASUREMENT AND CALIBRATION INSTRUMENTS Oscilloscopes

Analog channel bandwidth: 200 MHz
2 analog channels
Real-time sample rate up to 1 GSa/s
Memory depth up to 24 Mpts
Up to 30,000 wfms/s waveform capture rate

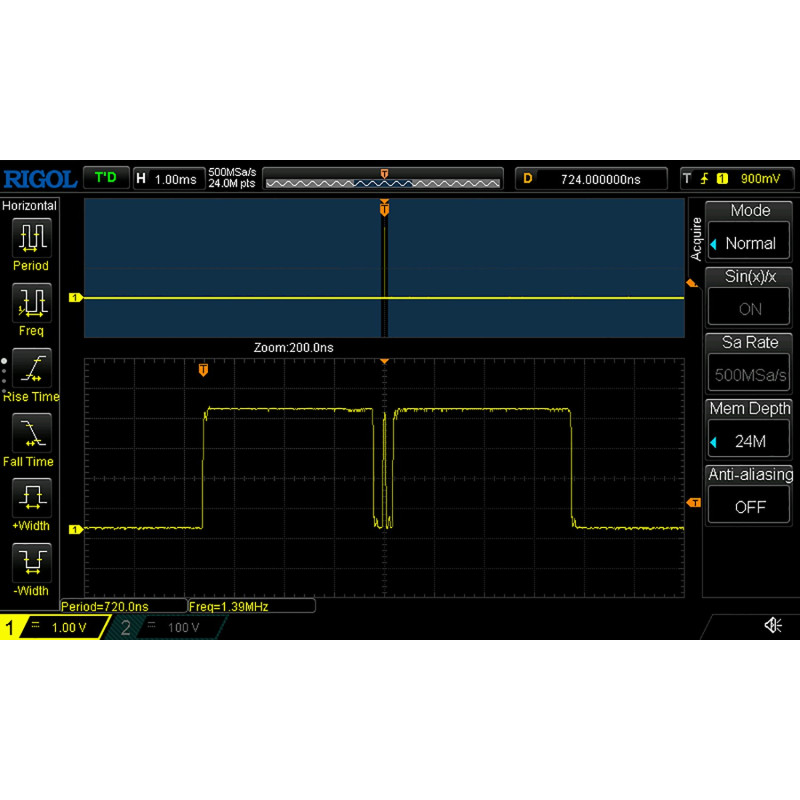

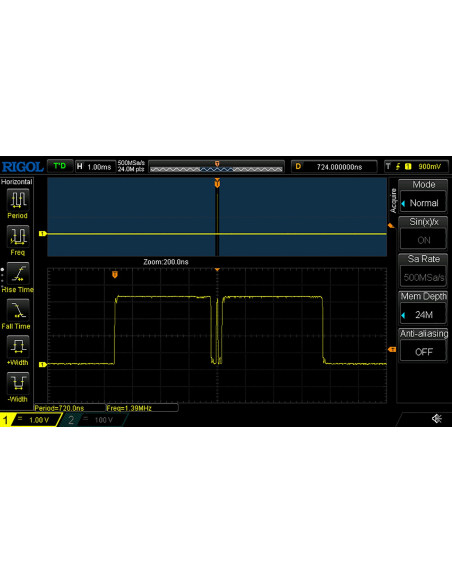

Up to 60,000 frames hardware real-time waveform recording and playback functions
Innovative "UltraVision" technology
Various trigger and bus decoding functions
Low noise floor, vertical scale range: 1 mV/div to 10 V/div
Various interfaces: USB Host&Device, LAN (LXI), AUX
Compact size, light weight, easy to use
7 inch WVGA (800x480) TFT LCD, intensity graded color display
Standard Accessories: Power cord conforming to the standard of the destination country, USB cable,2 passive probes (1X:35MHz / 10X: 350 MHz BW)

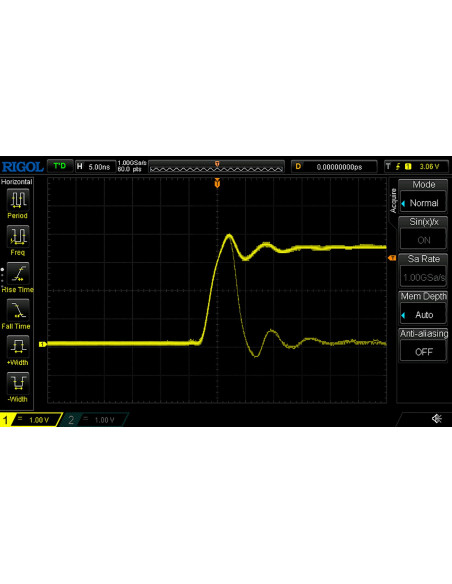

- 1 GSa / s real-time sampling rate of analog channels; up to 24 Mpts of standard memory depth
- 2 analog channels, 200 MHz analog channel bandwidth
- Waveform capture rate of 30,000 wfms / s (dot display)

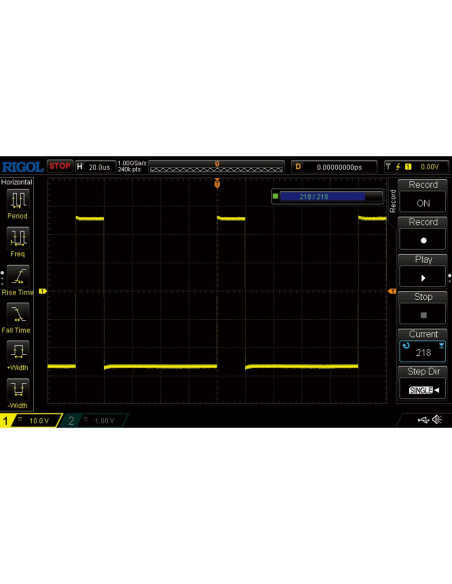

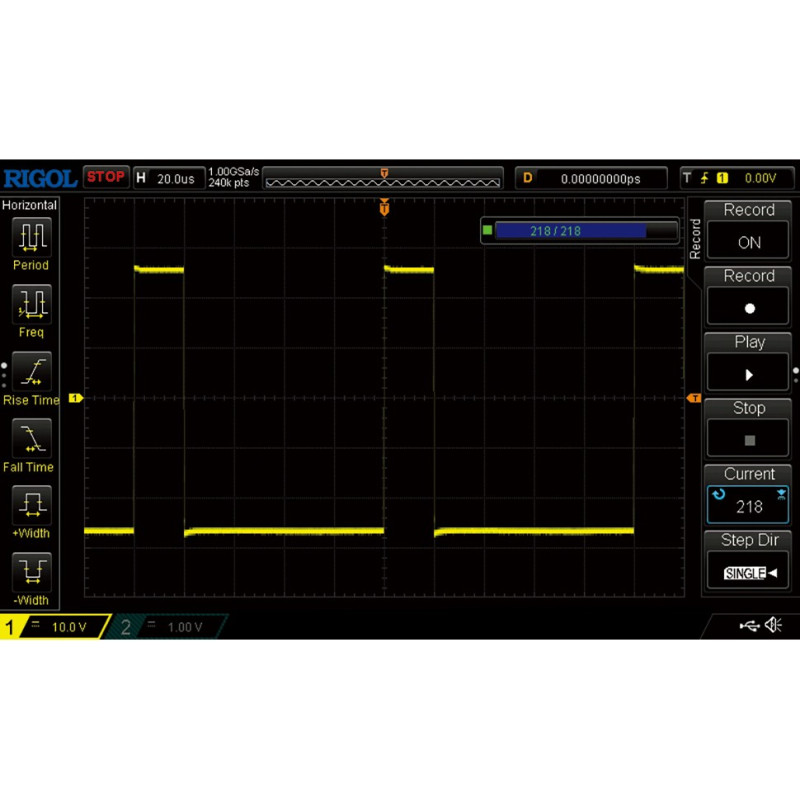

- Real-time hardware waveform recording and playback functions; up to 60,000 waveform frames can be recorded

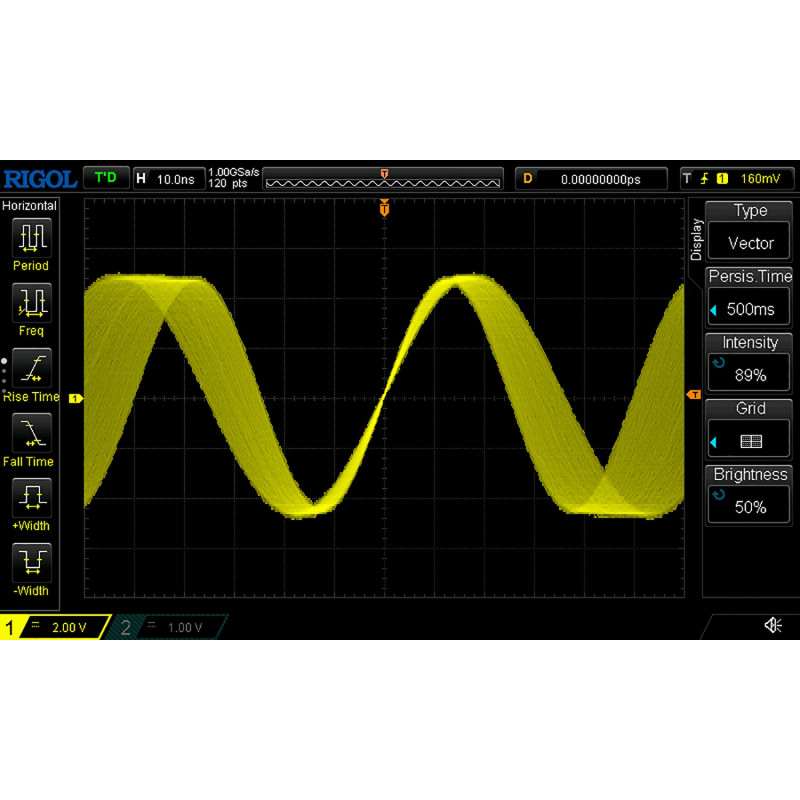

- Intensity graduated color display
Low base noise, 1mV / div to 10V / wide vertical dynamic range of disclosure
- 7.0 inch WVGA (800 * 480) TFT LCD, with ultra-wide screen, vivid image, low power consumption and long service life
- Adjustable waveform brightness
- Automatic adjustment of the waveform display (AUTO)
- Up to 15 types of trigger functions, including various protocol triggers

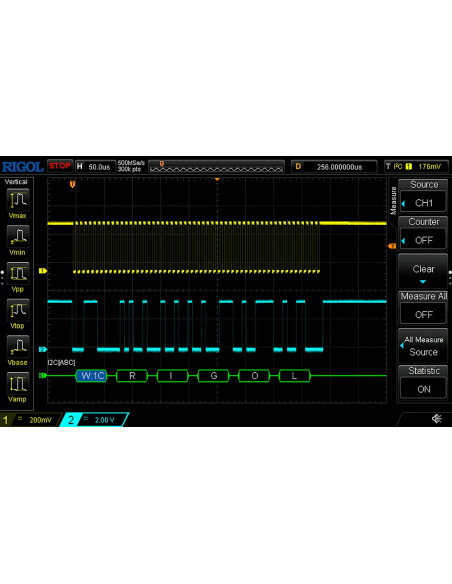

- Standard parallel decoding and multiple serial decoding
- Automatic measurement of 37 waveform parameters (with statistics)
- Fine delayed sweep function
- Built-in FFT function
- Multiple waveform math operation functions
- Pass / Fail test function

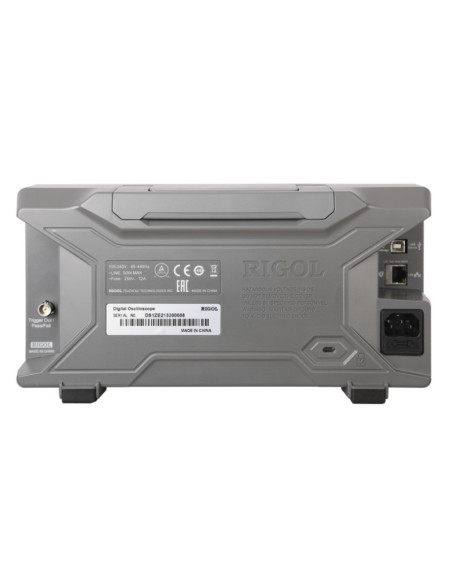

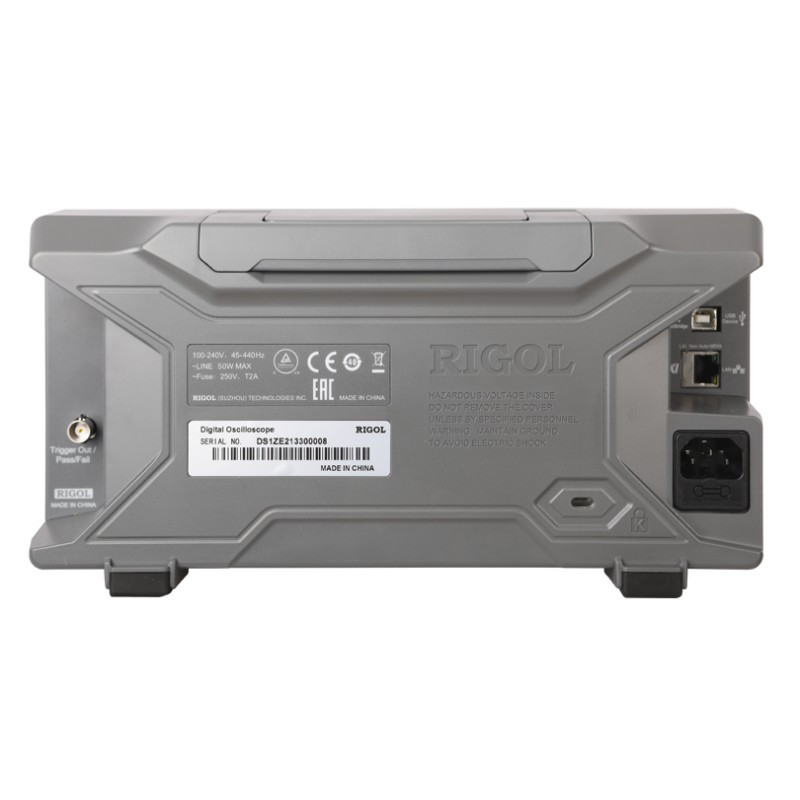

- Standard interfaces: USB device, USB host, LAN and Aux
- Meets LXI CORE 2011DEVICE class instrument standards; Enable rapid, economical and efficient creation and reconfiguration of the test system.
- Supports remote command control
- Built-in help to facilitate the acquisition of information
- Supports multiple languages ​​and Chinese / English input
- Novel and delicate industrial design and easy operation.
