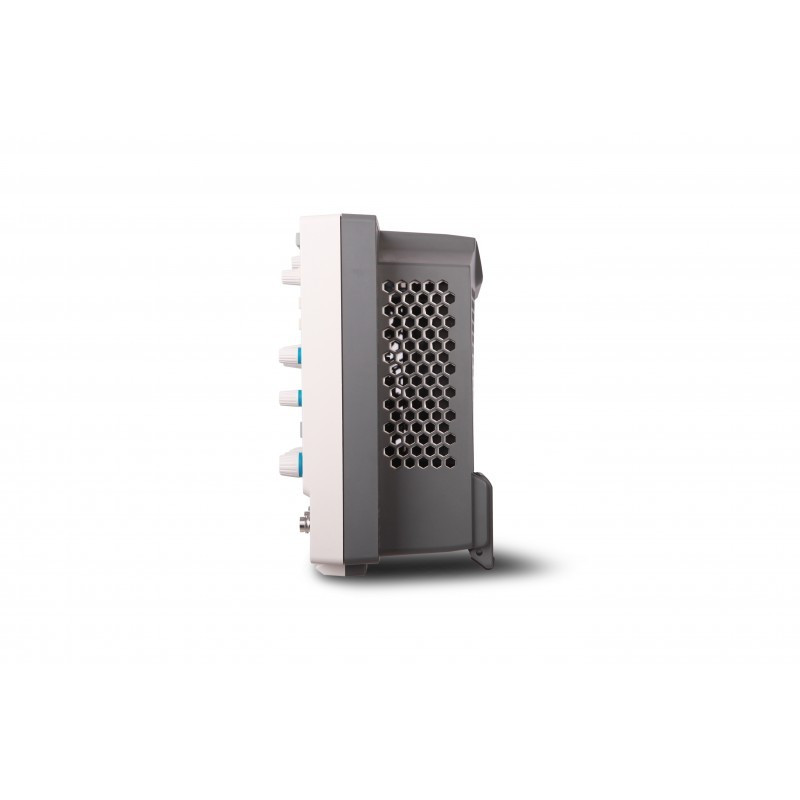

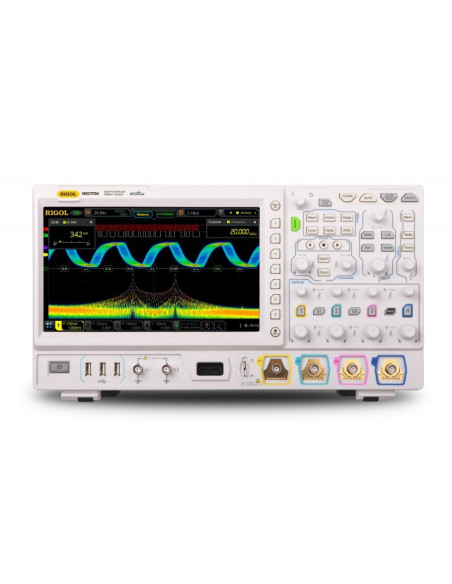

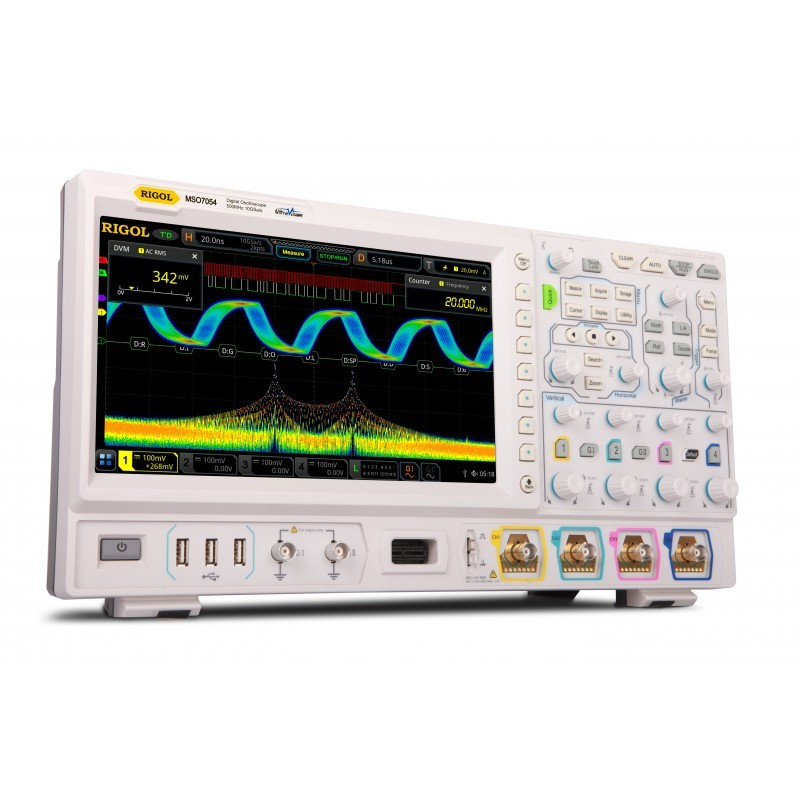

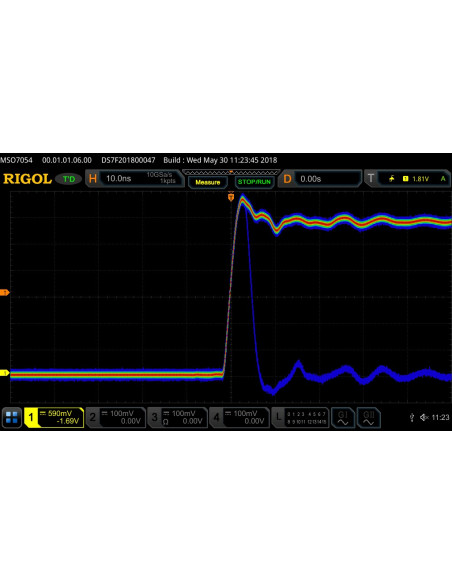

Digital Oscilloscope DS7054

DS7054

RIGOL

New

The MSO / DS7000 series are mid-range mixed signal digital oscilloscopes based on RIGOL's proprietary proprietary ASIC chip and UltraVision II technology platform.

Add to wishlist

MEASUREMENT AND CALIBRATION INSTRUMENTS Oscilloscopes

500MHz BW, 4Channel, 10GSa/s
Analog bandwidth: 500 MHz; bandwidth upgrade option supported 4 analog channels, 1 EXT channel, 16 digital channels (option)
Up to 10 GSa/s real-time sample rate

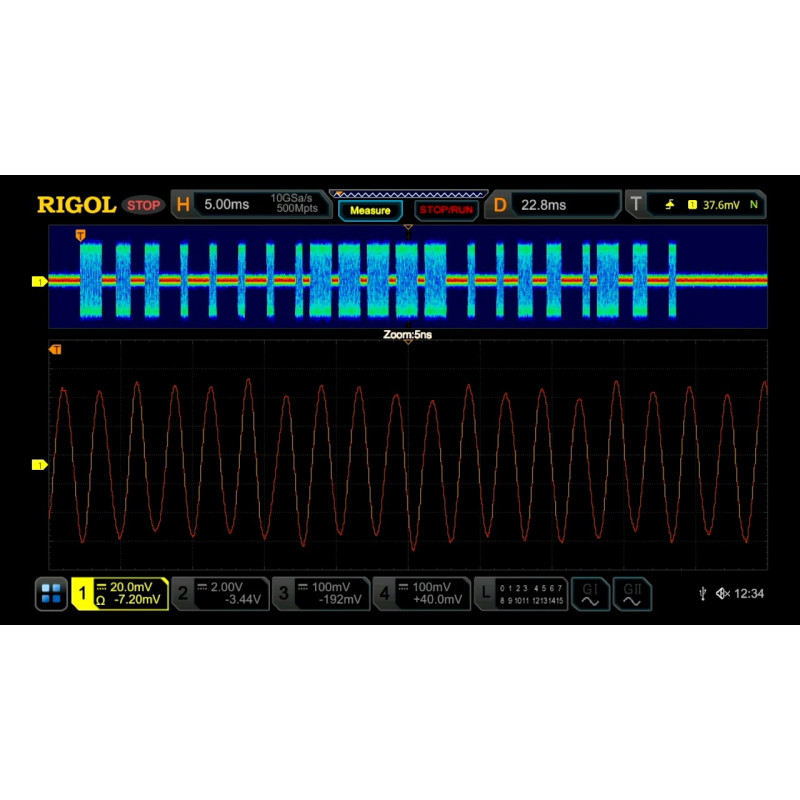

Up to 500 Mpts memory depth (option)
High waveform capture rate (over 600,000 waveforms per second)
Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback Functions

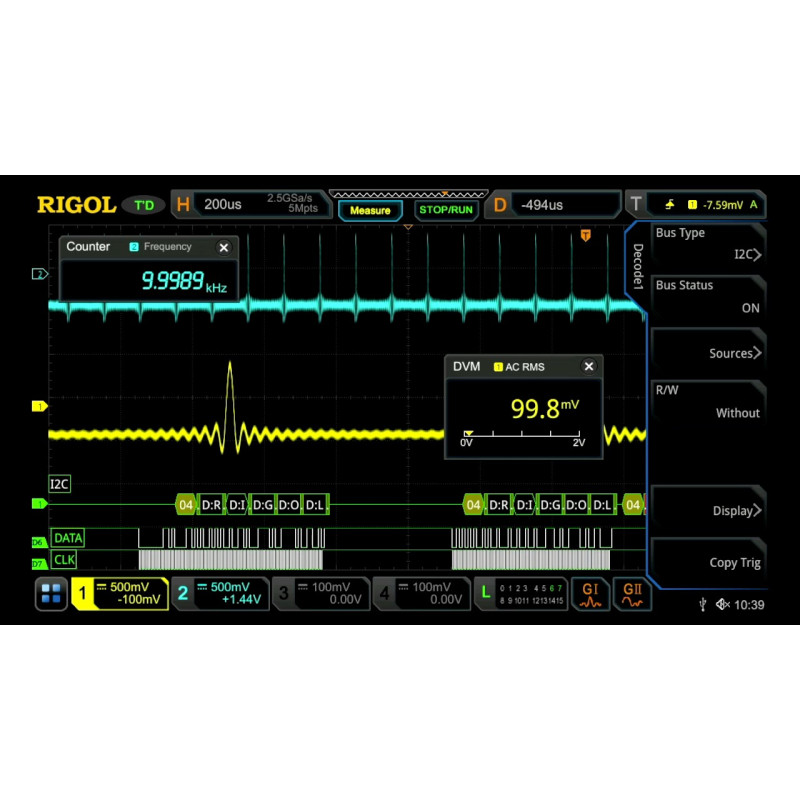

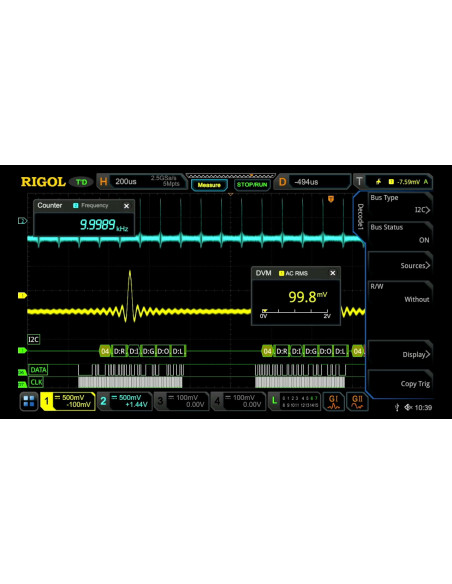

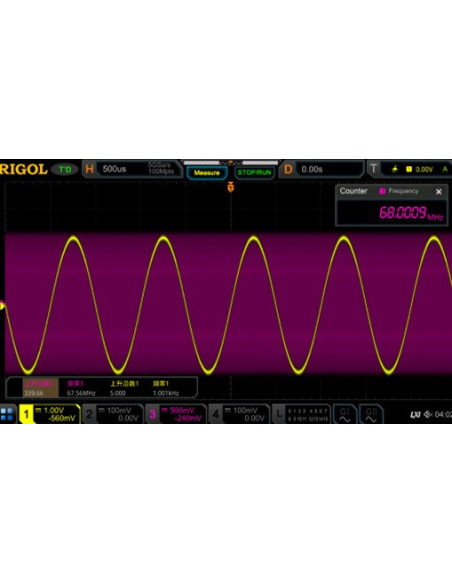

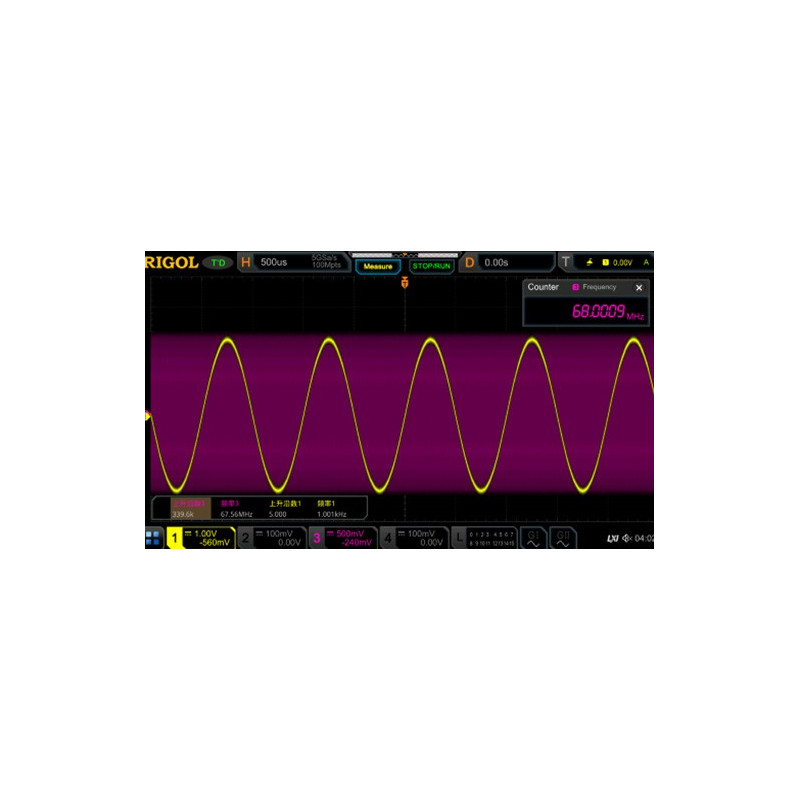

Integrates 7 independent instruments into 1, including one digital oscilloscope, one spectrum analyzer, one arbitrary waveformgenerator, one digital voltmeter, one high-precision frequency counter and totalizer, and one protocol analyzer

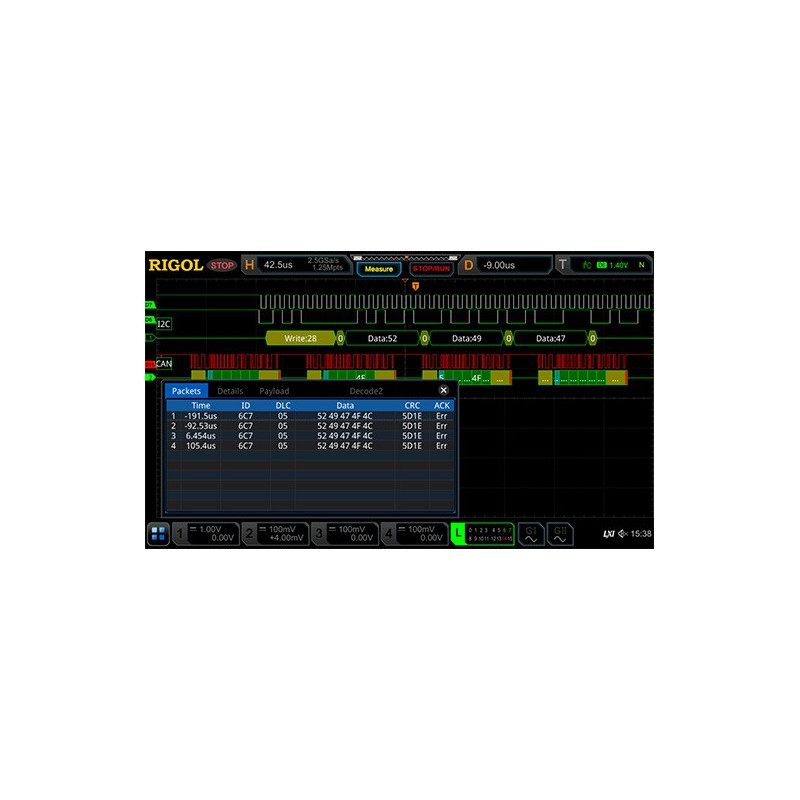

A variety of serial protocol triggers and decodes

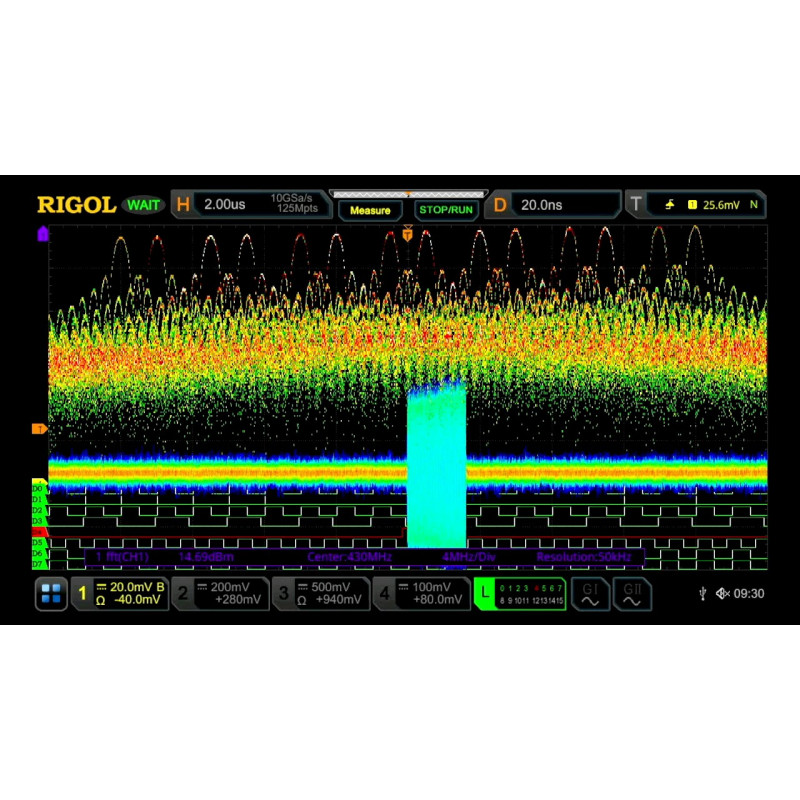

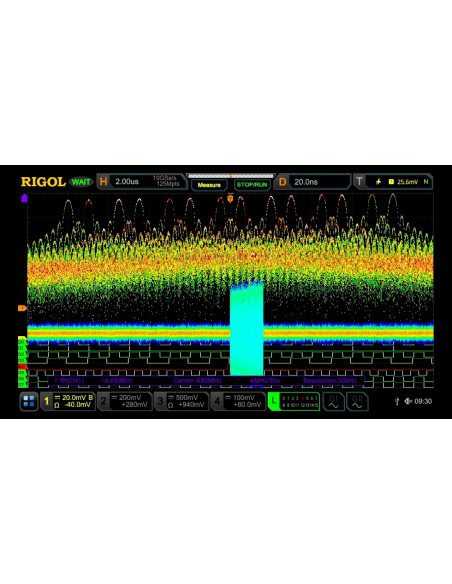

10.1-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
