Fiber Optic Splicer, Ref.: AO-AI-8C

AO-AI-8C

AO-Electronics

New

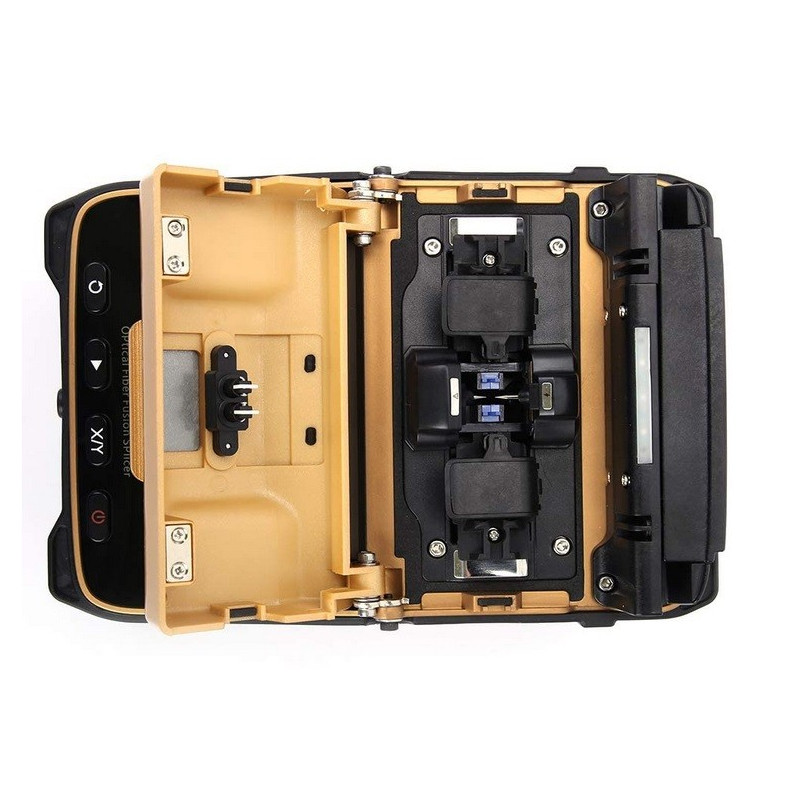

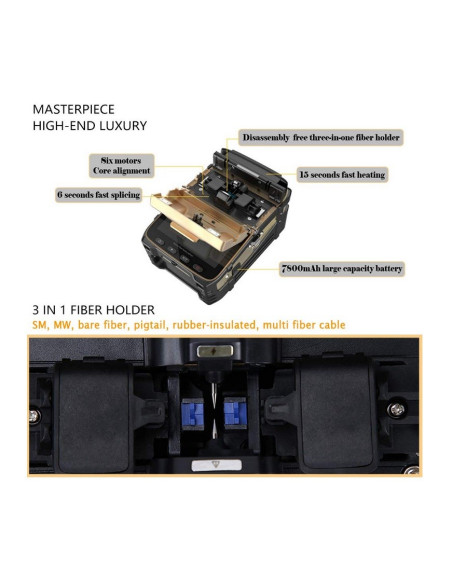

Signal Fire AO-AI-8C is a new generation of fiber fusion splicers using the latest six-motor autofocus core alignment technology.

- Fiber Fusion Splicer AO-AI-8C
- AC: 100V-240V
- Splice in 6 Seconds
- Heating in 15 Seconds
- Fiber Optic Blade Kit
- For Cable and Fiber Optic Projects (EU plug)

1 140,00 €

tax excl.

Add to wishlist

MEASUREMENT AND CALIBRATION INSTRUMENTS Fiber Optic Fusion Splicer

- Autofocus Applicable fibers SM (G.652 G.657), MM (G.651), DS (G.657), NZDS (G.655)
- Splice loss: 0.025dB (SM), 0.01dB (MM) 0.04dB (DS / NZDS technology).
- ARCR fusion calibration and real-time control technology
- Return loss: better than 60 dB
- Filler diameter: 80-150 μm
- Coating diameter: 100-1000 μm
- Fiber cut length:
     - Coating less than 250 μm: 8-16 mm
     - Coating less than 250-1000 μm: 16 mm
- Unlimited cloud storage

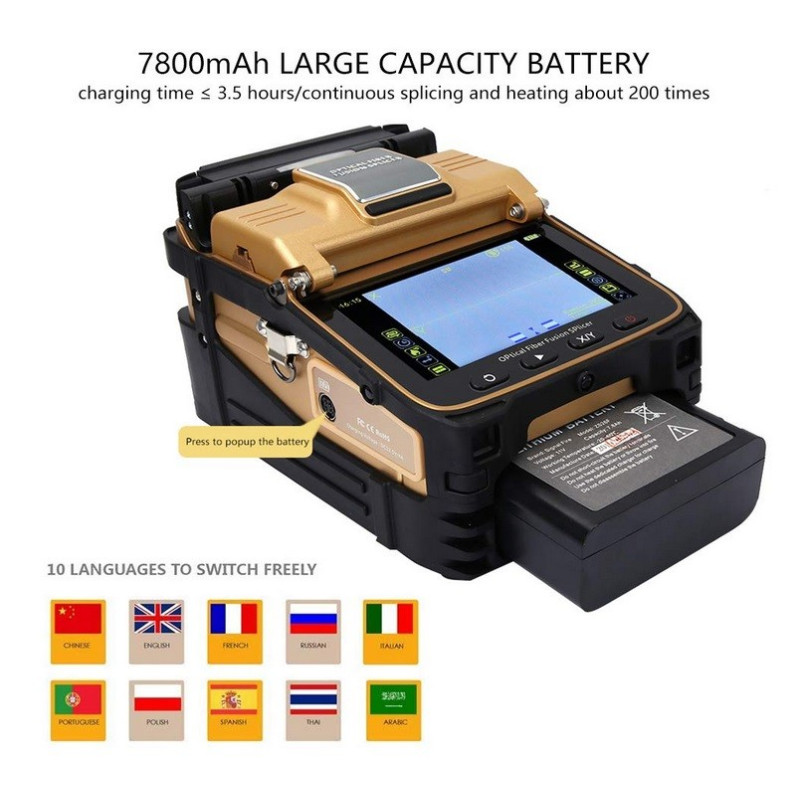

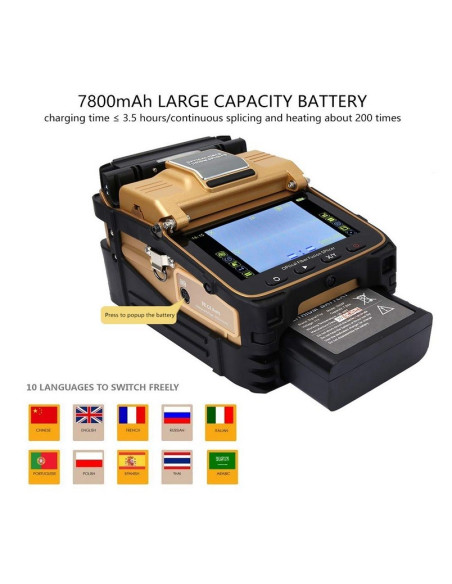

- Built-in 7800mA high capacity lithium battery.
- Charging time: ≤ 3.5 hours
- Continuous splicing and heating about 200 times
- Power supply: AC100-240V 50 / 60HZ with output in DC13.5V / 4A.
- Funcionament condition:
     - Temperature: -15 to +50 ℃
     - Humidity: <95% H. Rel. (Without condensation)

- Working altitude: 0 to 5000m.
- Resistance to max. wind speed: ≤ 15 m / s
- Shrink tube 60mm, 50mm, 40mm, 25mm
- Protection: Waterproof, dustproof and shock resistance

Manufacturer: VEVOR
Dimensions: 39.12 x 36.07 x 33.53 cm; 7.57 kilograms
Weight: 7.57 kg

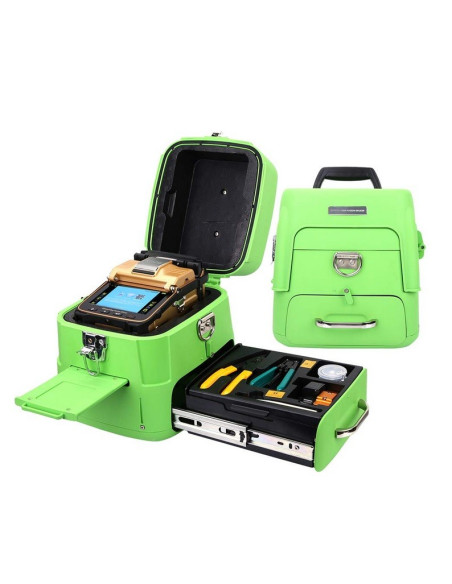

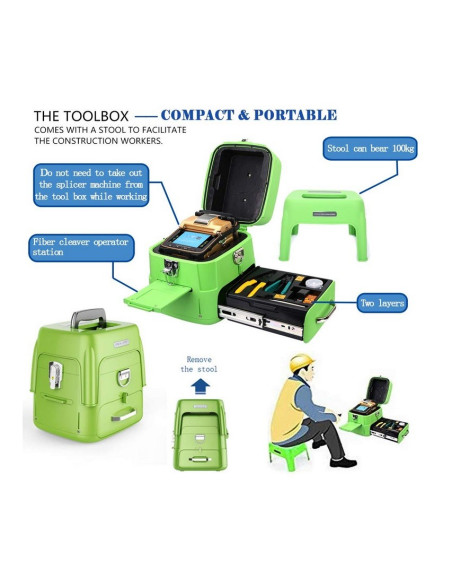

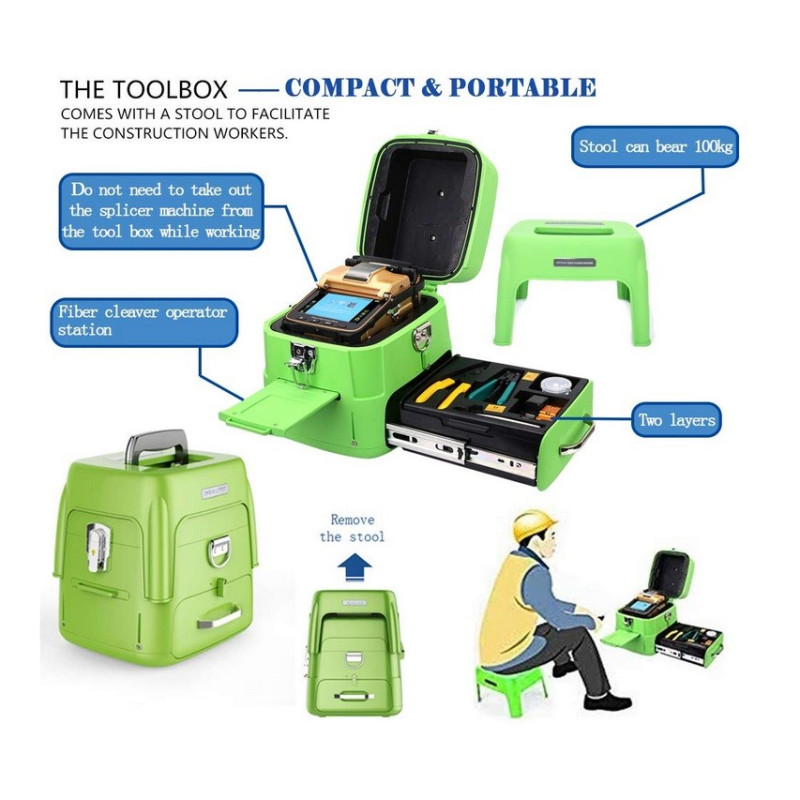

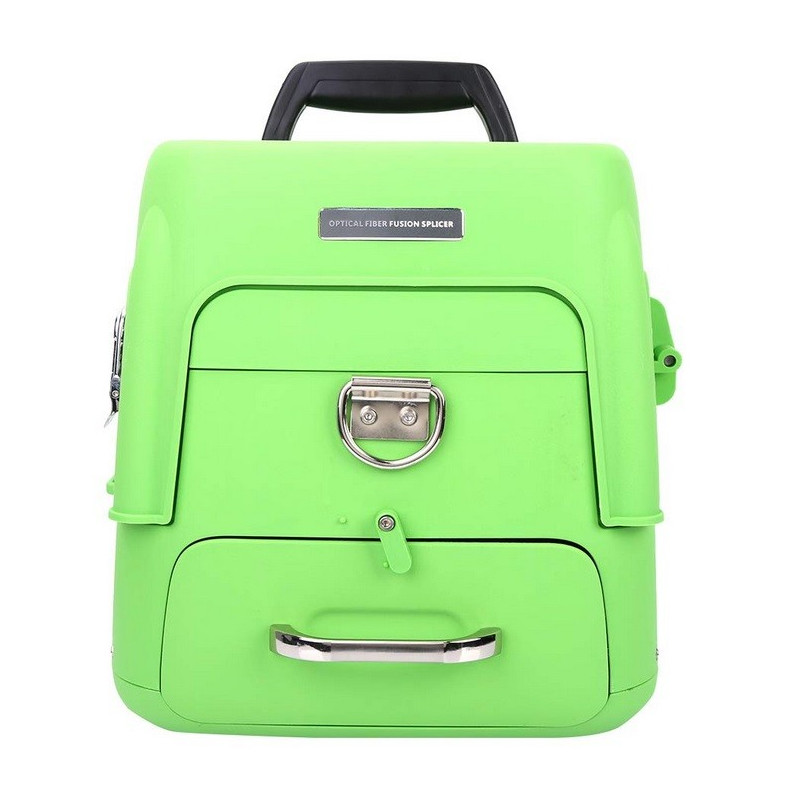

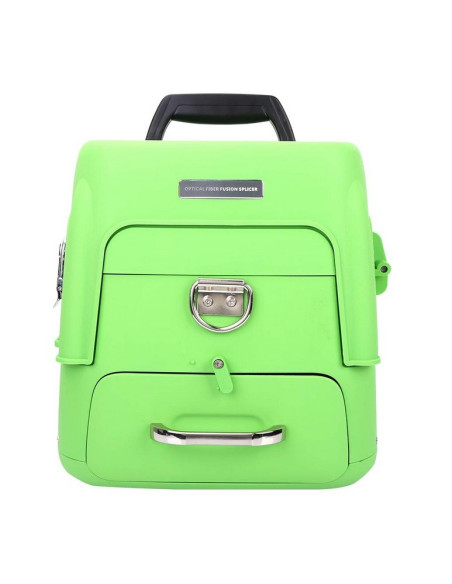

Compact and portable:
The tool box has a stool to facilitate construction workers and can support 100 kg.
Allows you to use the splicing machine inside the toolbox while working.

➤ The unit uses a fast response quad core processor and is one of the fastest fiber splicing machines on the market.

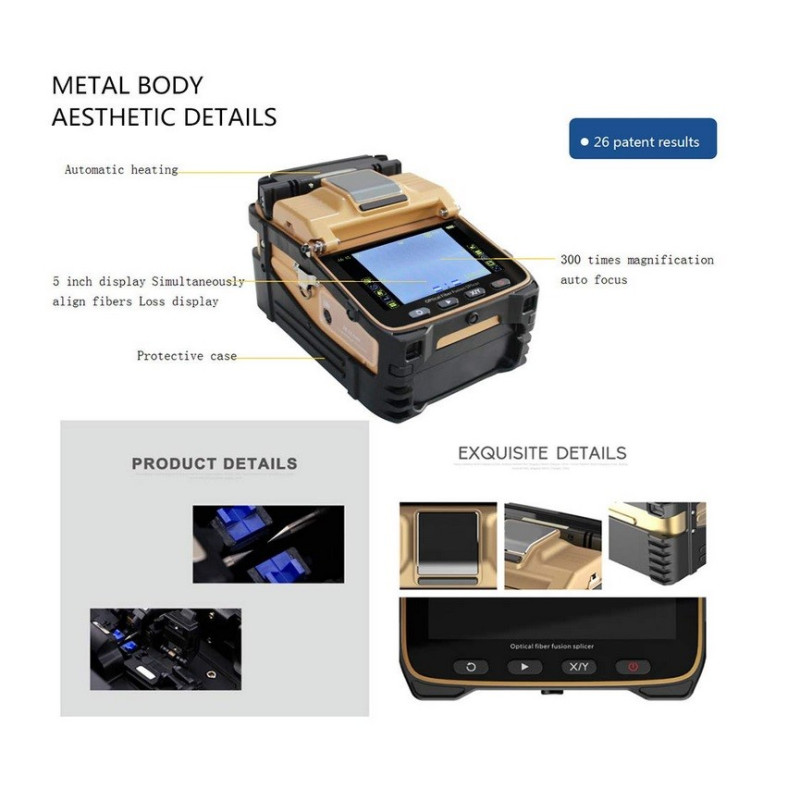

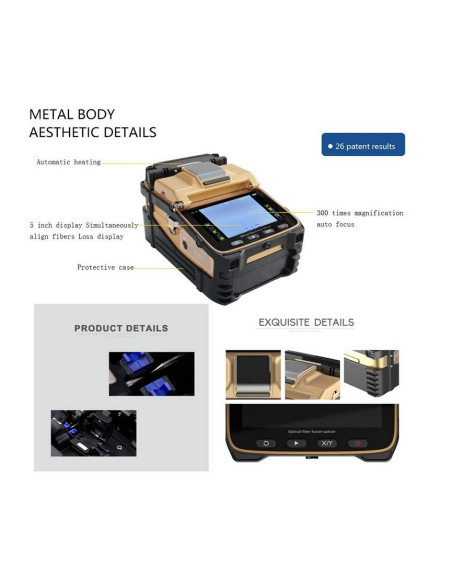

- It has a high resolution screen of 5 "(800 x 480)
- Its operation is very simple and intuitive.
- Focus magnification up to 300x.

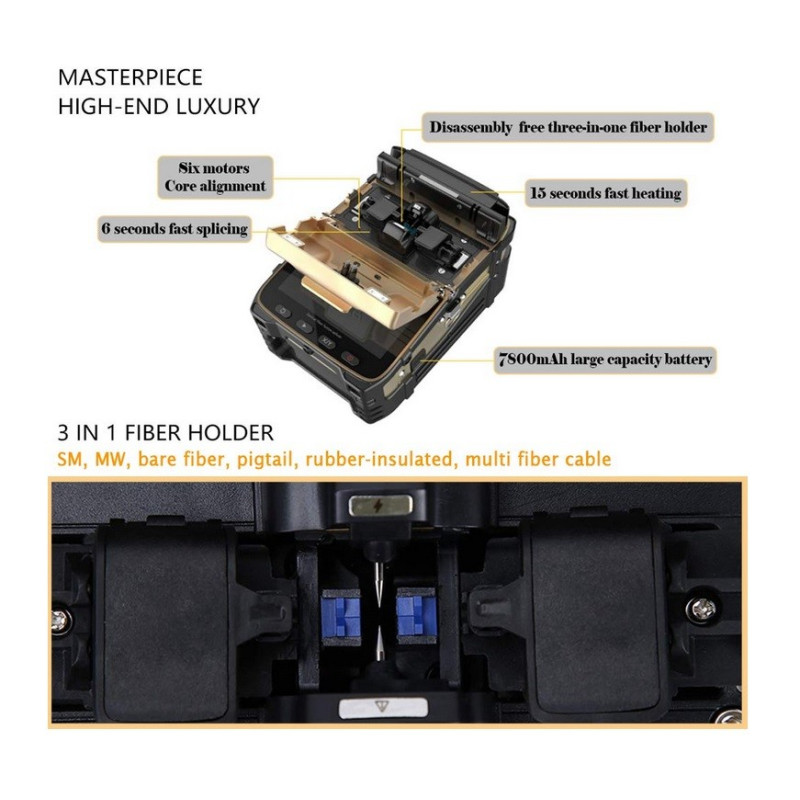

➤ Core alignment splice with 6-second speed and 15-second warm-up, allowing an increase in workload efficiency by up to 50% compared to other models.
- Charging time: ≤ 3.5 hours, continuous splicing and heating of about 200 times.
➤ The AO-AI-8C splicing machine is fully qualified for the construction of trunks in medium and short distances, FTTH projects, security surveillance and other fiber optic cable splicing projects.
➤ Performance is always exceptional even under harsh working conditions. The toolbox is small, but very complete and durable. The exclusive bench design.
- The unit is waterproof, dustproof and impact resistant.

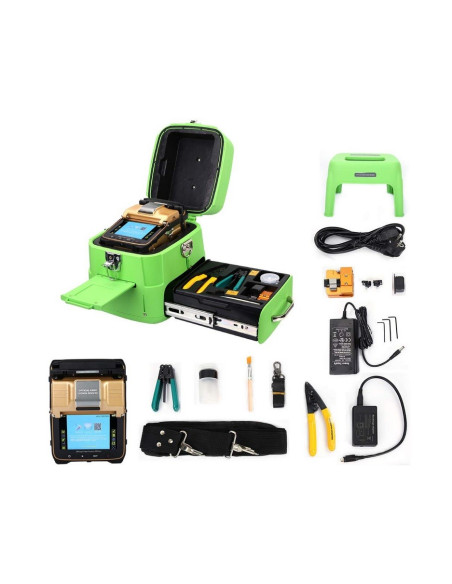

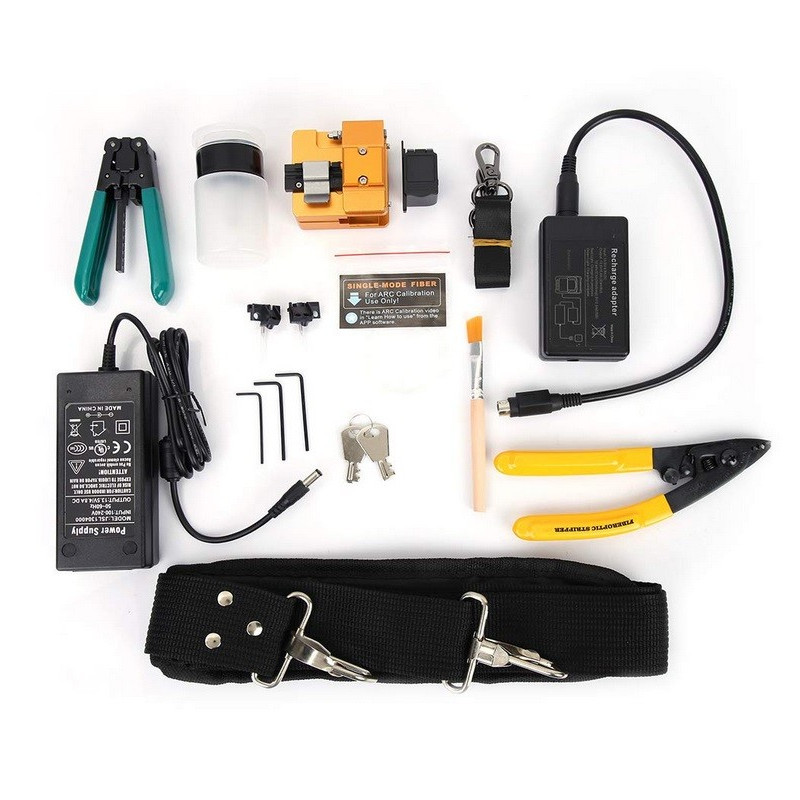

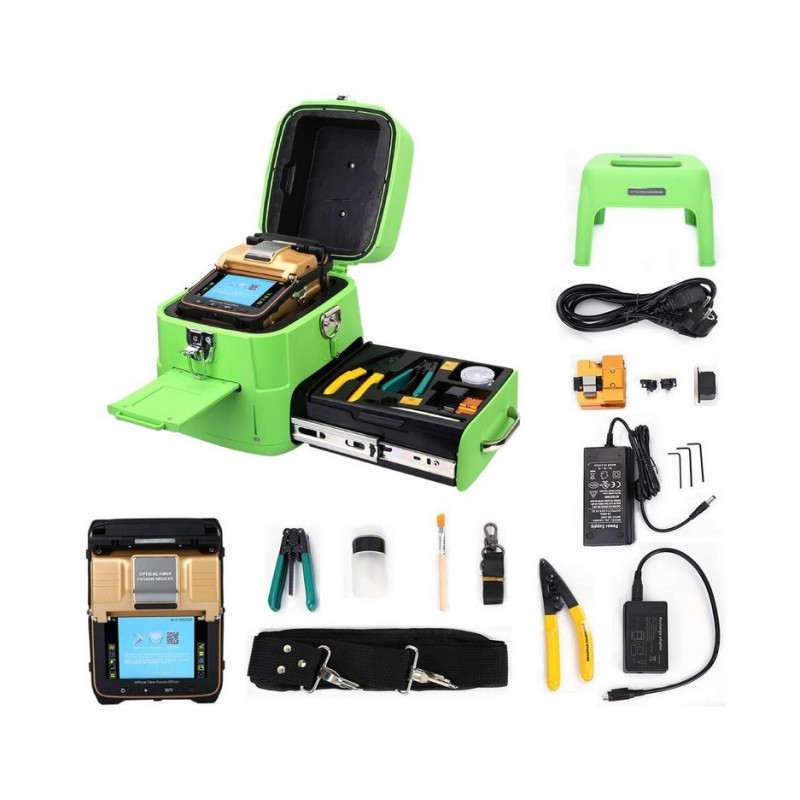

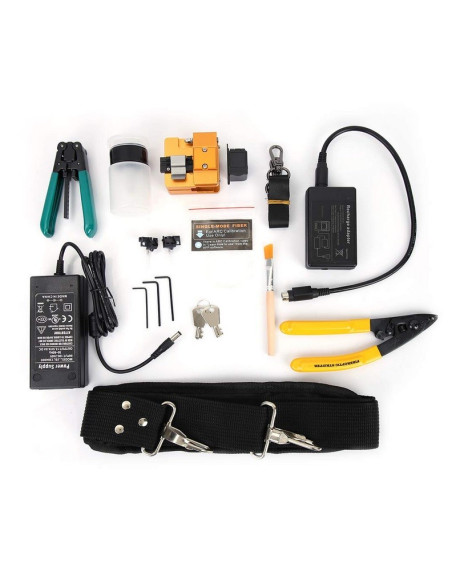

1 pc. - Fusion Splicer
1 pc. - Replacement electrode
1 pc. - Fiber blade
1 pc. - "Miller" clamp
1 pc. - Wire stripper pliers
2 pcs. - Hex wrench (blade adjustment)
1 pc. - Brush
1 pc. - Adapter for recharging
1 pc. - Power adapter
1 pc. - Bottle of alcohol
1 pc. - Case
1 pc. - Case strap
1 pc. - Belt for Fusion Splicer
1 pc. - Bare fiber (only for use in ARC calibration)
1 pc. - User's manual
