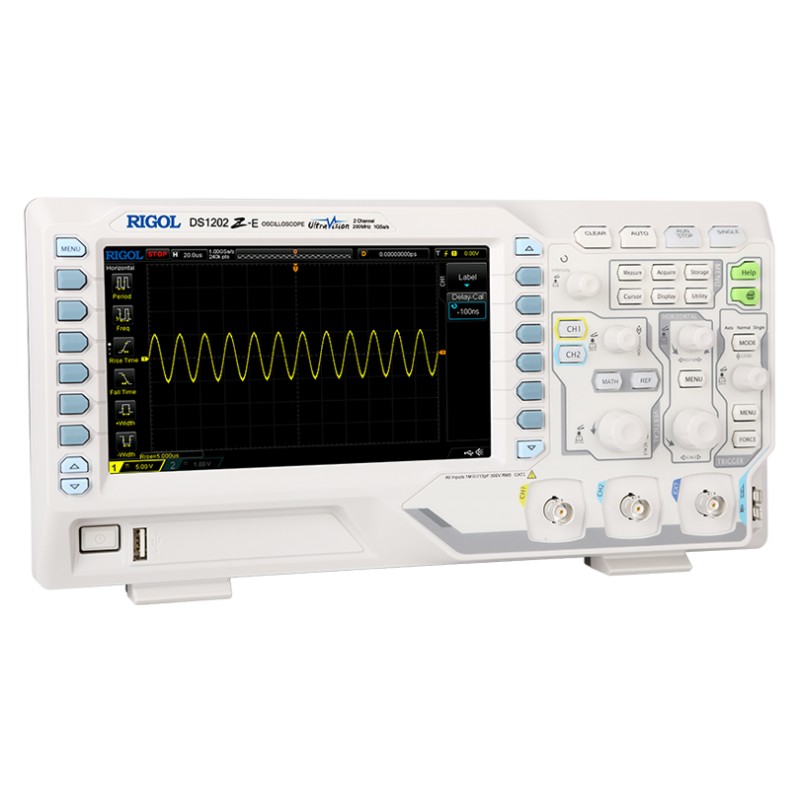

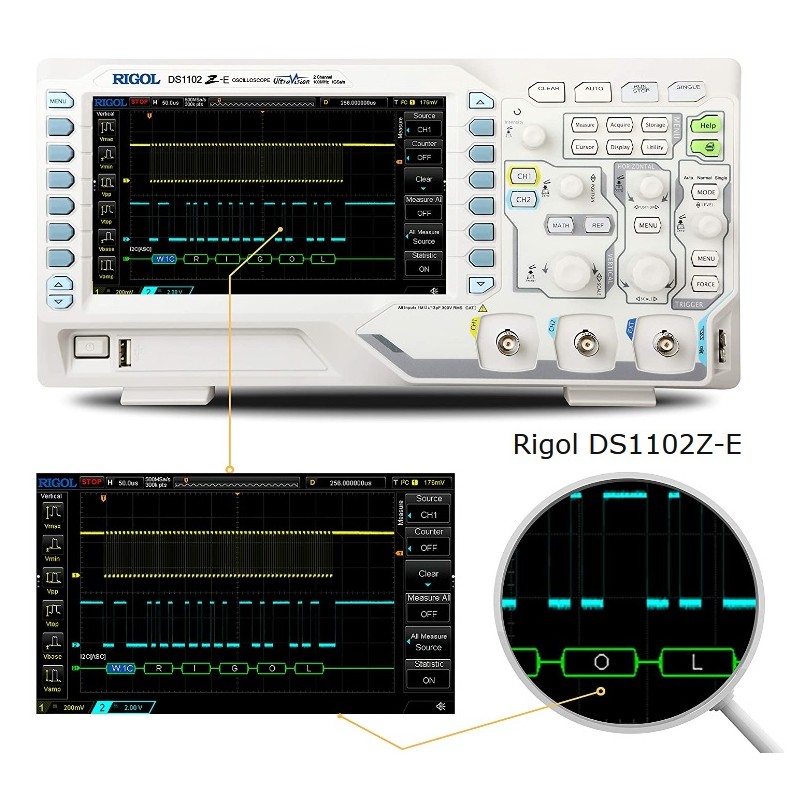

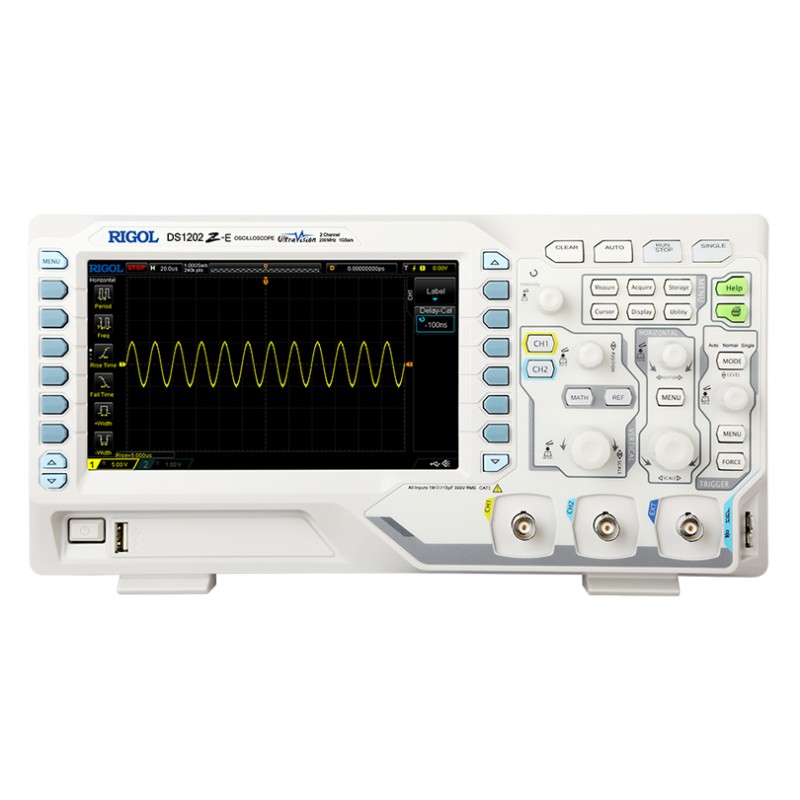

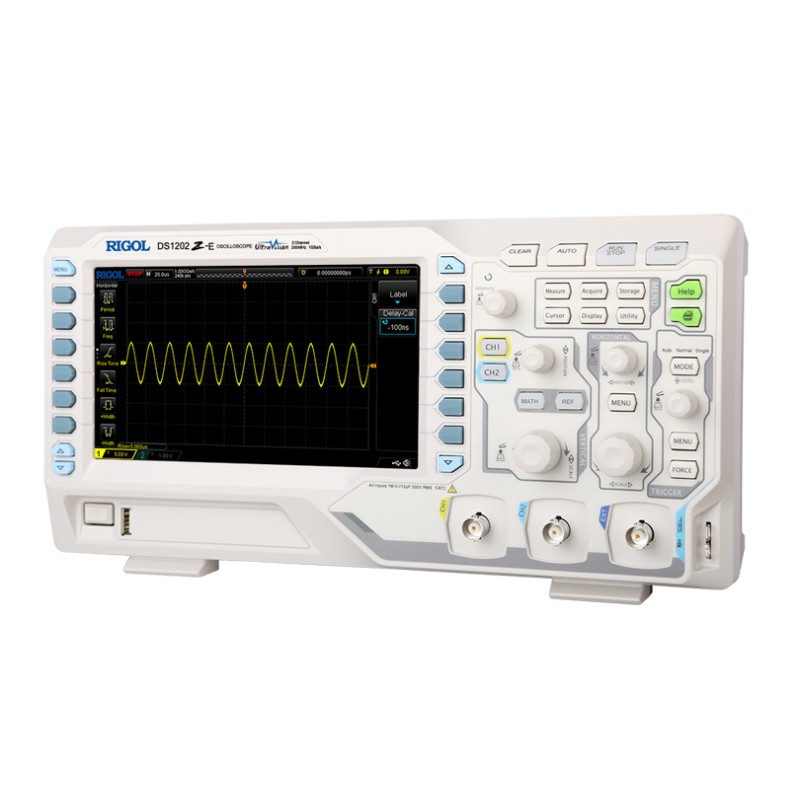

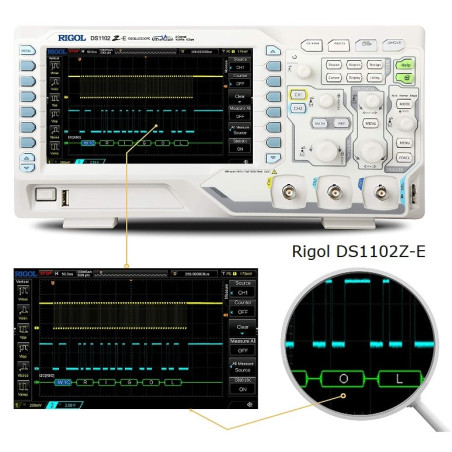

Digital Oscilloscope DS1102Z-E

DS1102Z-E

RIGOL

New

A high-performance and economic digital oscilloscope.
100 MHz, 1 GSa/s, 24 Mpts, 2 Ch + 1 EXT, free Trigger and Decoding
DS1000Z-E Series Digital Oscilloscope is designed by RIGOL based on mainstream demand.
Warranty: Three -year warranty, excluding probes and accessories.

325,00 €

Add to wishlist

MEASUREMENT AND CALIBRATION INSTRUMENTS Oscilloscopes

-  Analog channel bandwidth: 100 MHz
-  2 analog channels
-  Real-time sample rate up to 1 GSa/s

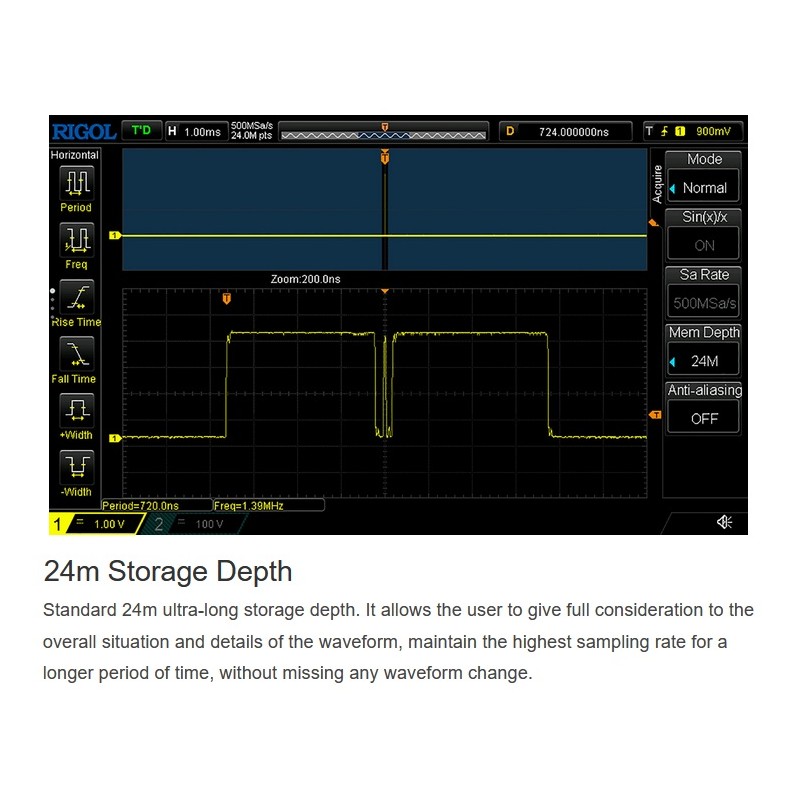

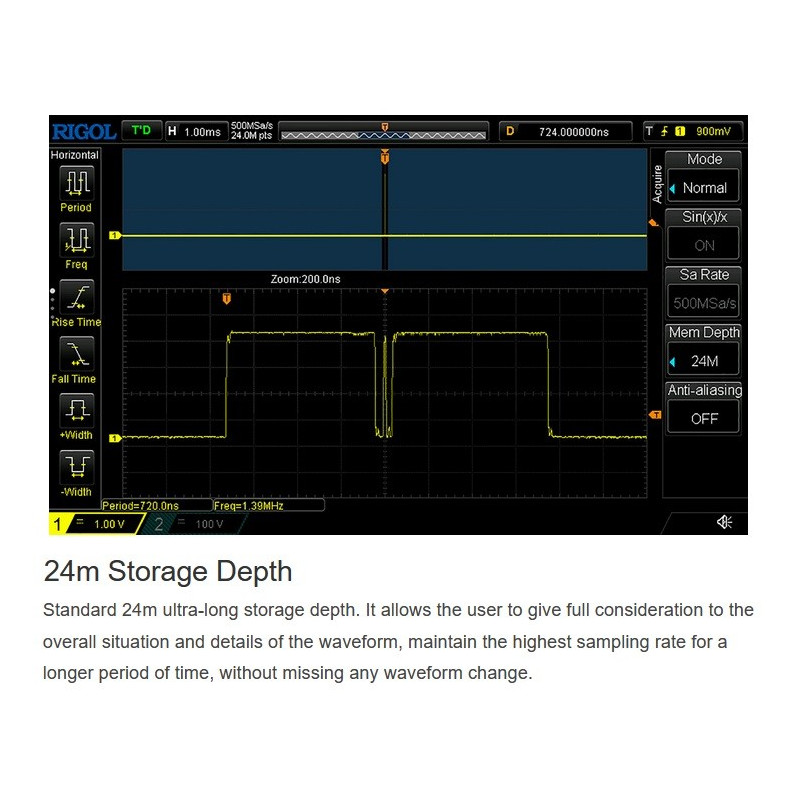

-  Memory depth up to 24 Mpts

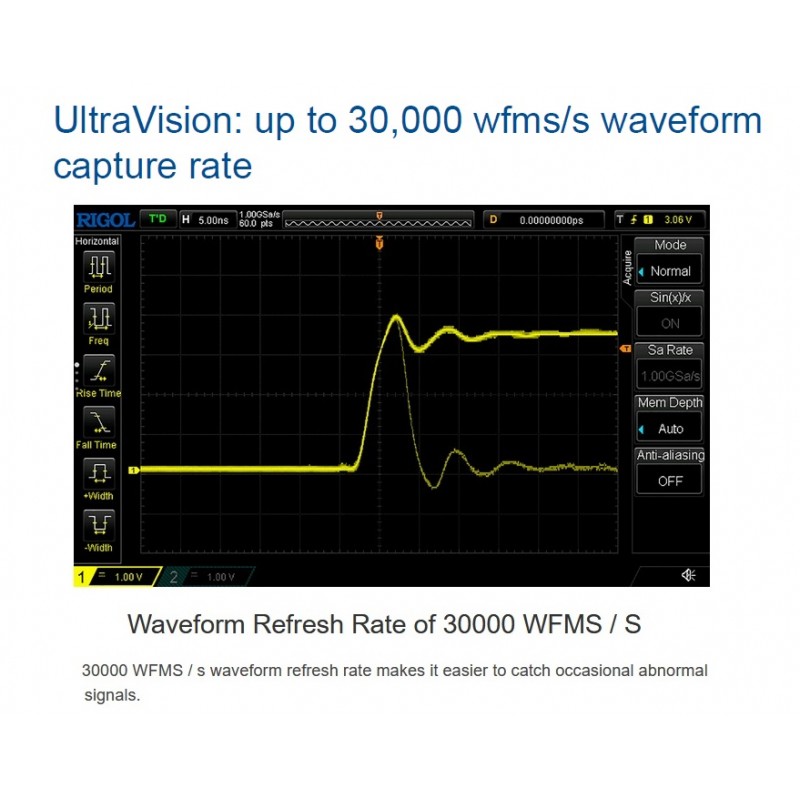

-  Up to 30,000 wfms/s waveform capture rate
-  Up to 60,000 frames hardware real-time waveform recording and playback functions
-  Innovative "UltraVision" technology
-  Various trigger and bus decoding functions
-  Low noise floor, vertical scale range: 1 mV/div to 10 V/div
-  Various interfaces: USB Host&Device, LAN (LXI), AUX
-  Compact size, light weight, easy to use
-  7 inch WVGA (800x480) TFT LCD, intensity graded color display
-  Standard Accessories: Power cord conforming to the standard of  destination country, USB cable,2 x PVP3150 150 MHz passive High Impedance probes.

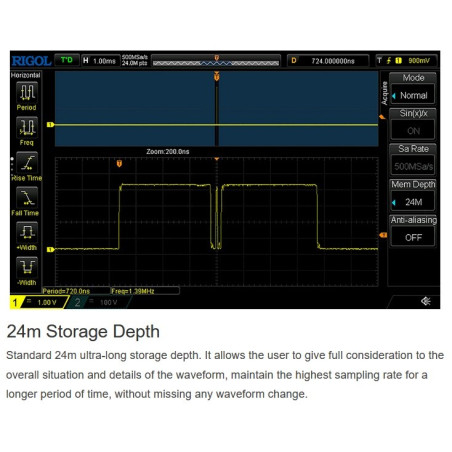

-  1 GSa/s real-time sample rate of the analog channels; up to 24 Mpts standard memory depth
-  2 analog channels, 200 MHz analog channel bandwidth
-  30,000 wfms/s (dots display) waveform capture rate

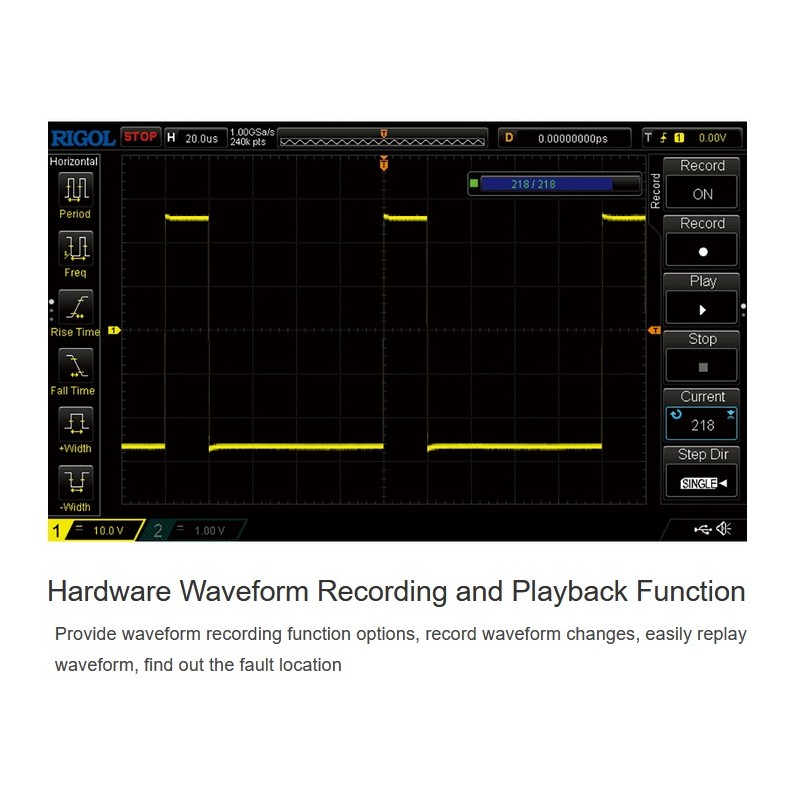

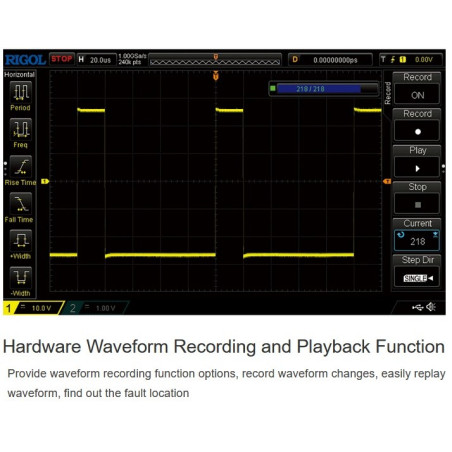

-  Real-time hardware waveform recording and playback functions; up to 60,000frames of waveform can berecorded

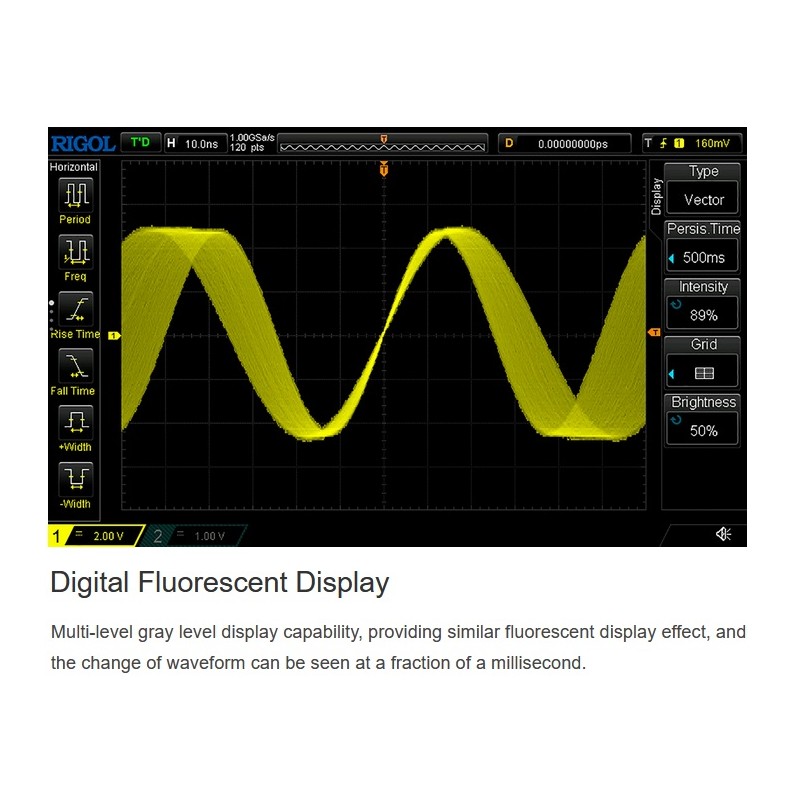

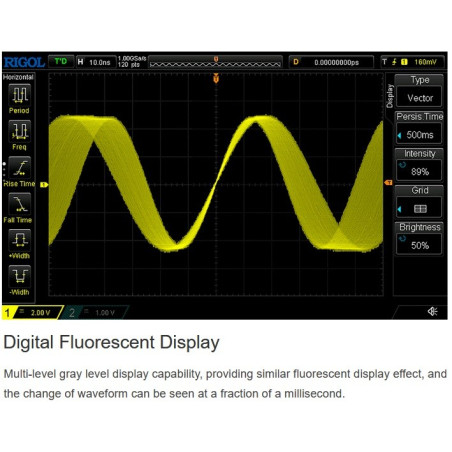

-  Intensity graded color display
-  Low base noise, 1 mV/divto 10 V/divultra-wide vertical dynamic range
-  7.0 inch WVGA (800*480) TFT LCD, with ultra-wide screen, vivid picture, low power consumption and long service life
-  Adjustable waveform brightness
-  Auto setting of waveform display (AUTO)
-  Up to 15 kinds of trigger functions, including various protocol triggers

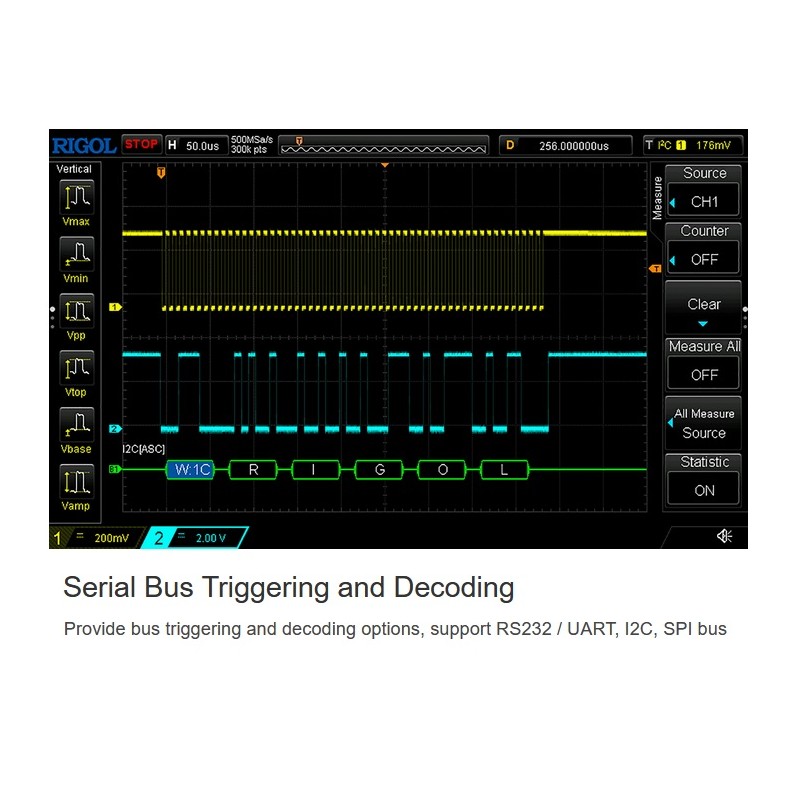

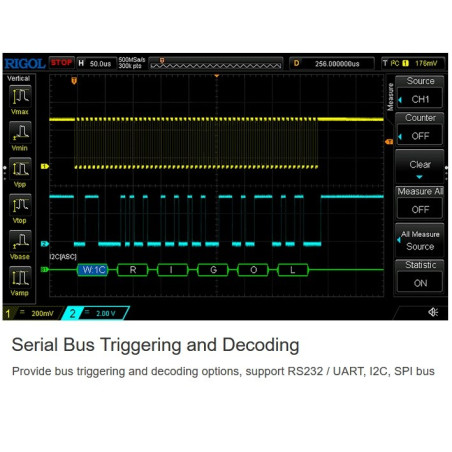

-  Standard parallel decoding and multiple serial decoding
-  Auto measurement of 37 waveform parameters (with statistics)
-  Fine delayed sweep function
-  Built-in FFT functions
-  Multiple waveform math operation functions
-  Pass/fail test function

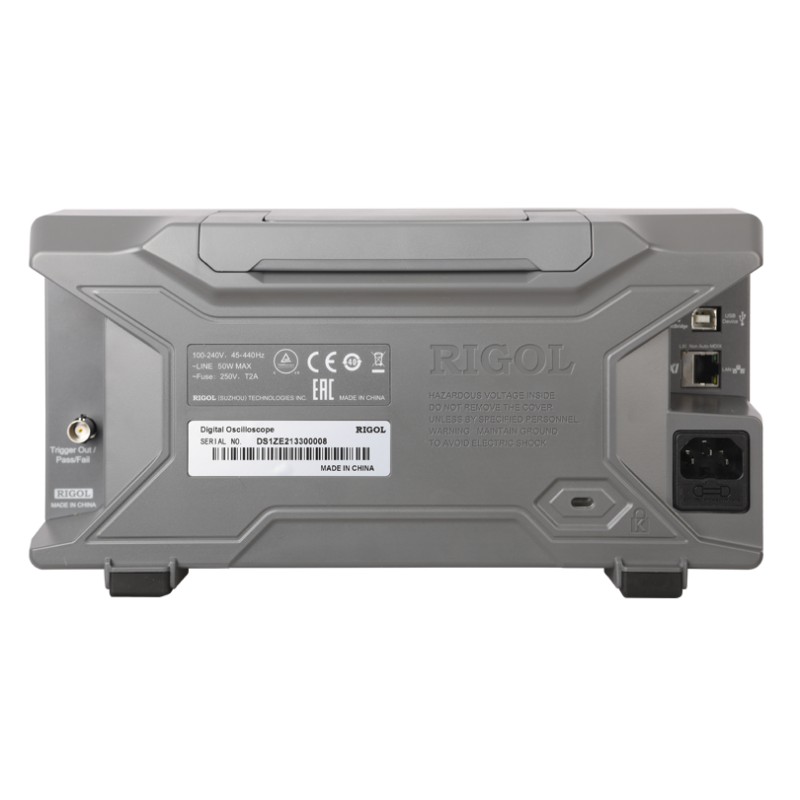

-  Standard interfaces: USB Device, USB Host, LANand Aux
-  Conform to LXI CORE 2011DEVICE class instrument standards; enable quick, economicand efficient creation and reconfiguration of test system
-  Supports remote command control

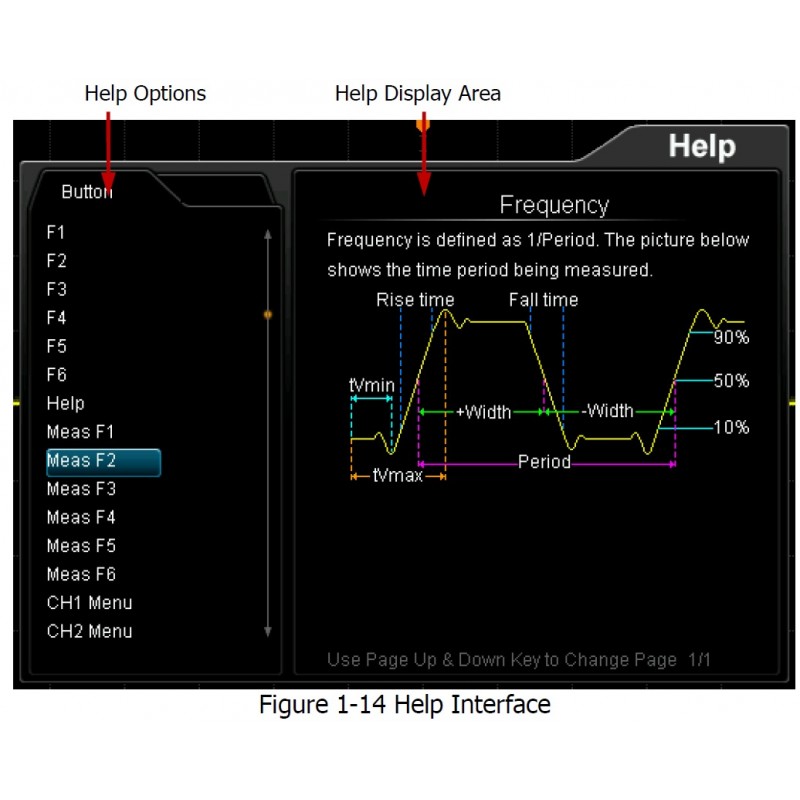

-  Built-in help to facilitate information acquisition
-  Supports multiple languages and Chinese/English input
-  Novel and delicate industrial design and easy operation
