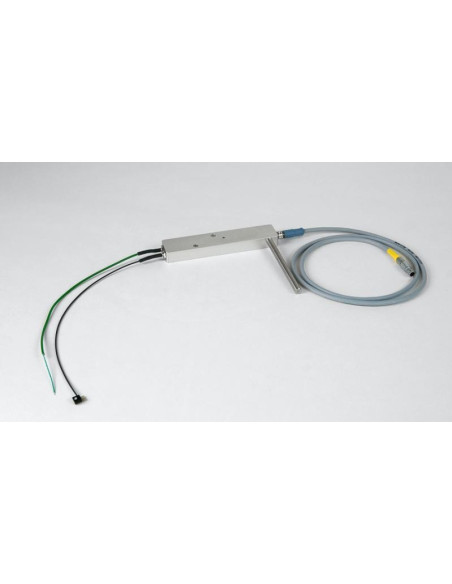

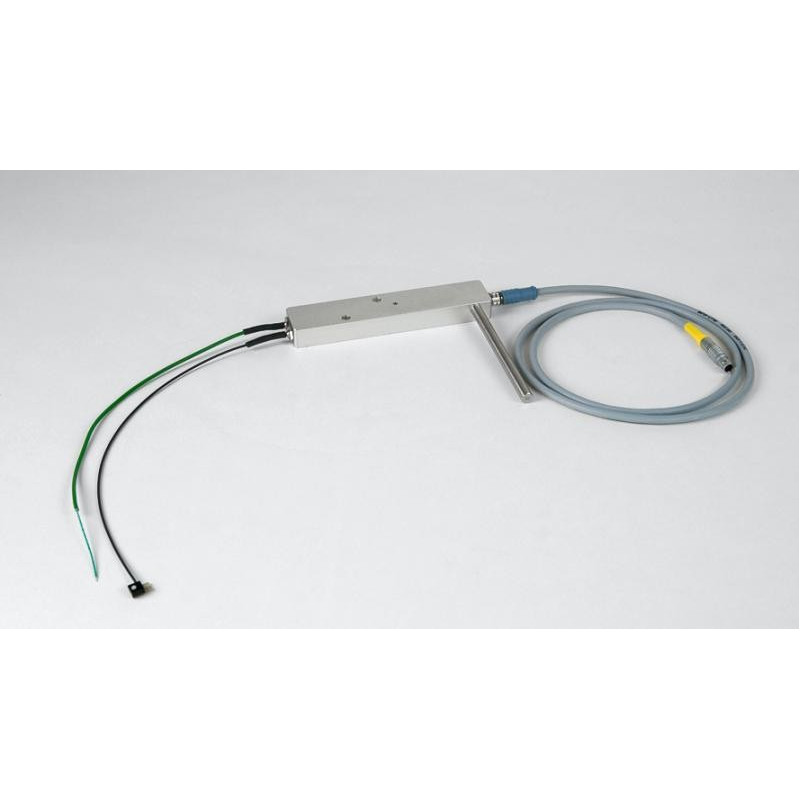

2060-M Mini-Quantum/Temp.-Sensor WALZ




Mini-Quantum/Temp.-Sensor WALZ

Add to wishlist

Precise mini quantum and temperature sensors usable independently or in conjunction with the 2060-B Arabidopsis Leaf Clip or the 2060-A Fiberoptics Holder for Surfaces.


Mini quantum sensor: LS-C sensor, selective PAR measurement, 0 to 20000 μmol m-2 s-1 PAR


Thermocouple: Ni-CrNi, 0.1 mm diameter, -20 to +60 °C


Output: PAR, high sensitivity range: 0 to 1000 µmol/(m2·s); normal sensitivity range: 0 to 20000 μmol m-2 s-1 PAR (output 0 to 2.5 V for each range). Leaf temperature, -20 to +60 °C (0 to 0.8 V)


Power supply: PAM-2500 leaf clip socket (5 V/4 mA)


Length of power cable: 100 cm


Length of sensor cables: 30 cm


Dimensions: 16 cm x 3 cm x 1.7 cm (L x W x H)


Weight: 220 g
