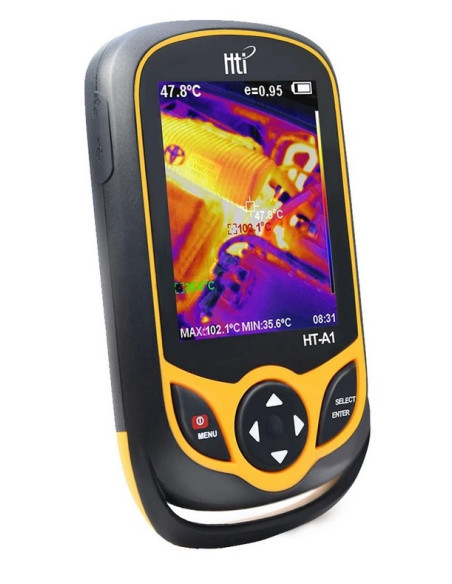

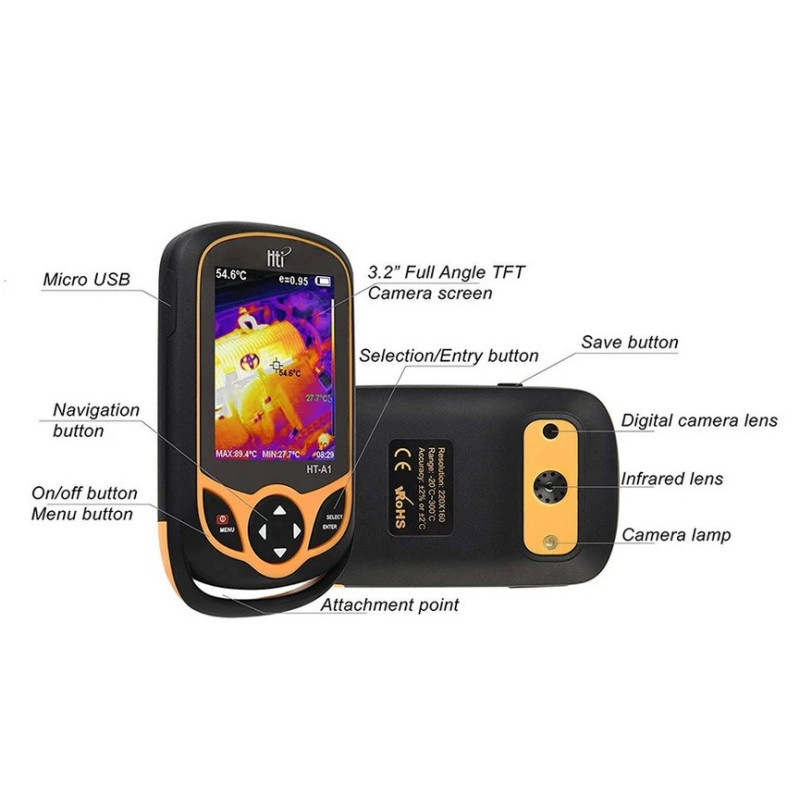

AO-HT-A1 Thermal Imager (220×160)

HIGH RESOLUTION AND PIXELS: This IR camera comes with high resolution image quality, sharp infrared resolution of 35,200 (220 x 160) pixels, a 3.2-inch color display screen, and a thermal sensitivity of 0.07 ° C. The accuracy of the measurement is ± 2 ° C or 2%. To help professionals see and detect subtle temperature differences common in a measurement. Find and display hot or cold patterns that signal wasted energy, structural defects, pipe obstructions, and other invisible trouble spots.

POCKET PORTABLE: Camera dimensions: 140 x 80 x 28mm (5.5 x 3.1 x 1.1 ”), Weight: 208g (0.46lb). This is a full-featured pocket thermal camera. Designed for contractors, construction industry experts, and anyone who needs a pocket-sized thermal camera. The slim and lightweight profile fits comfortably in your work pocket so you can always have your camera by your side and never miss an opportunity to discover problems.

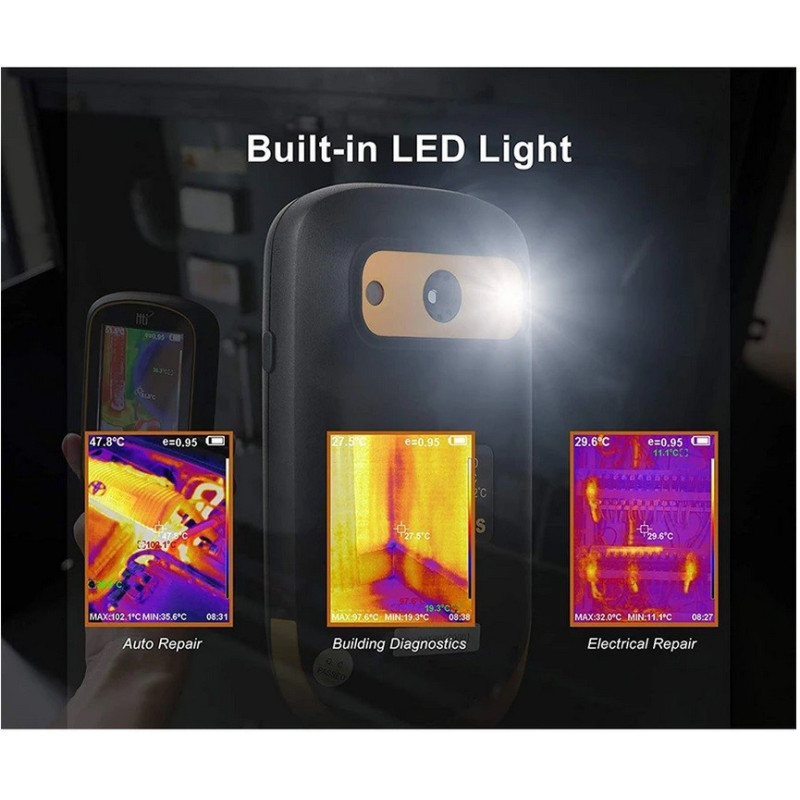

MULTIFUNCTIONAL APPLICATION: The infrared camera has the ability to "see" the heat in this way creates a whole new level of consciousness for professionals and consumers, it is very different with a traditional inspection. In buildings and mechanical systems, this includes water penetration, loss of heat or cooling, blockages or leaks in plumbing systems, malfunctioning mechanical systems (motors, bearings, belts, heat pumps, etc.), overloaded electrical circuits or loose and diagnostic problems of buildings. .

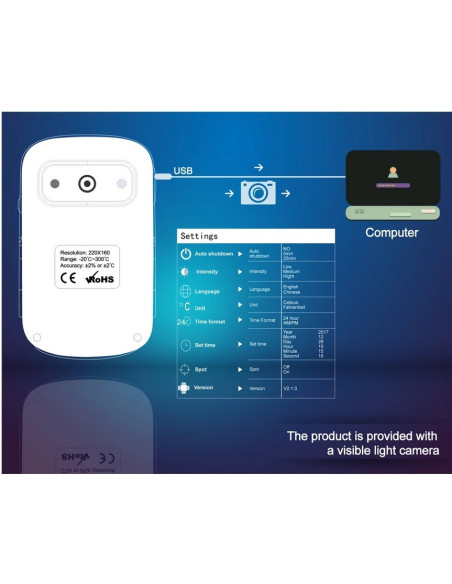

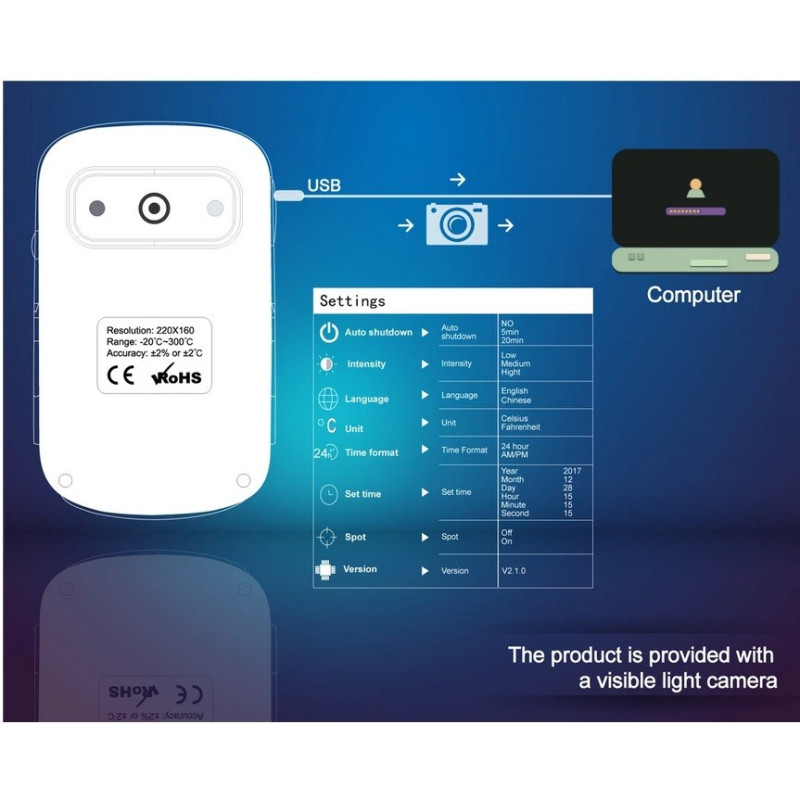

EASY-TO-USE DESIGN: This real-time thermal imaging camera provides 5 different color palettes for a more detailed view of the target. The menu of this infrared camera uses intuitive icons that facilitate its operation. No special training is required. Transfer those images and data to your computer via USB Micro-B to create detailed reports.

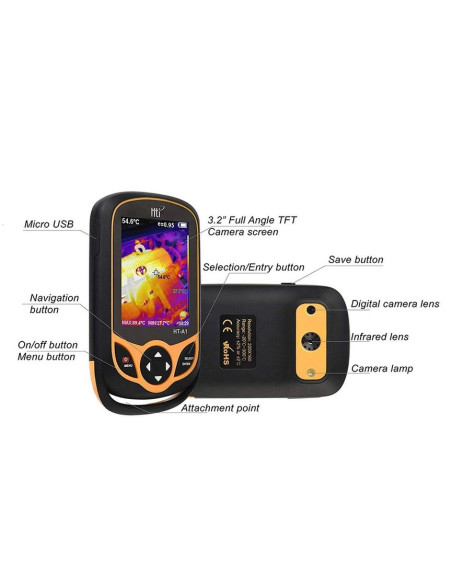

Monitor: 3.2 inch full view TFT screen

Infrared image resolution: 220 * 160

Total pixel: 35,200 pixels

Visible image resolution: 0.3 mega pixels.

Thermal sensitivity: 0.07 ℃

Temperature range: -20 ℃ to 300 (-4 ℉ to 572 ℉)

Measurement accuracy: ± 2% or ± 2 ℃ (± 4 ℉)

FOV / Shortest focal length: 35 ° x26 ° / 4.0mm

Palette: Iron Red, Cool Color, Thermal White, Thermal Black, Rainbow

Wave range: 8-14μm

Emissivity: 0.1-10.0 Adjustable

Image frequency: 9HZ

Focus mode: Fixed

Vision option: Full infrared image and visible vision with 25% stride length

Image storage: SD card (4G)

File format: JPG

Battery supply: built-in rechargeable battery

USB: Micro USB 2.0

Shutdown time: 5 minutes / 20 minutes / non-automatic shutdown

Authentication: CE, RoHS

Operating temperature: -5 ℃ to 45 ℃

Storage temperature: -20 ℃ to 60 ℃

Relative humidity: 10% RH to 80% RH

Item size: 140 * 80 * 28mm / 5.51 * 3.14 * 1.1 ''

Item Weight: 450g

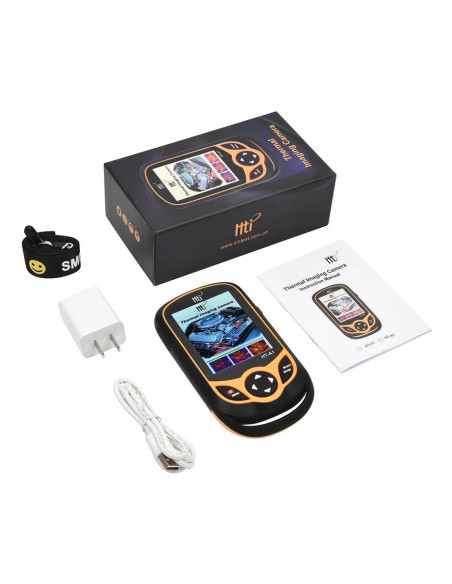

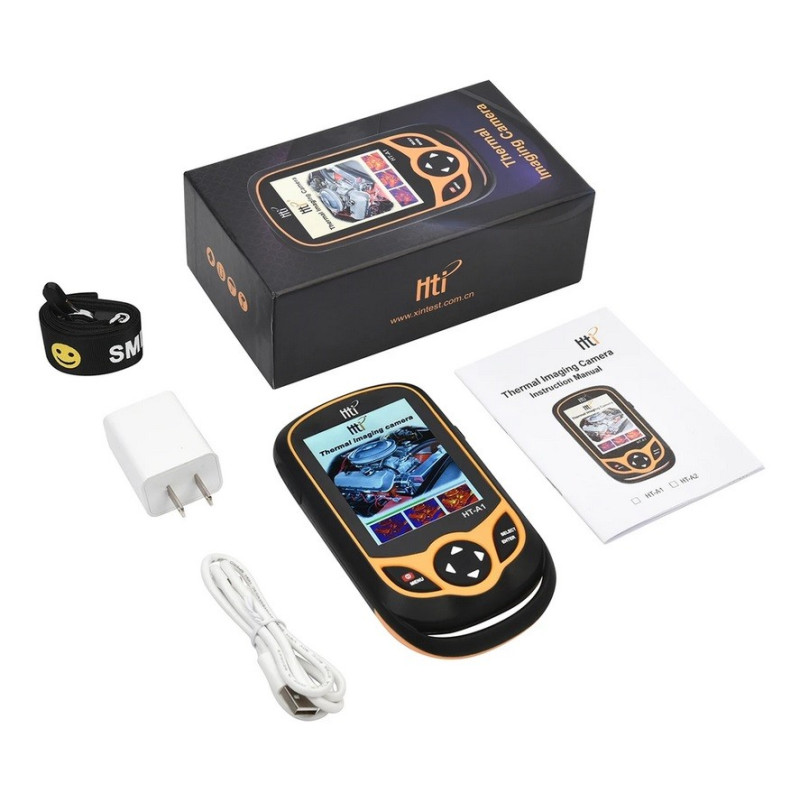

Package includes: 1 x Infrared Temperature Detector 1 x Cable
1 x user manual
1 x carry bag
1 x carry bag
1 x carton
