WTR-1N Moisture Meter for Hay, Sawdust and Pellets

WTR-1N

TANEL

New

Moisture Meter for Sawdust, Hay and Pellets

BIOMASS MOISTURE METER

435,00 €

Add to wishlist

The Sensor measures: Pellet Moisture

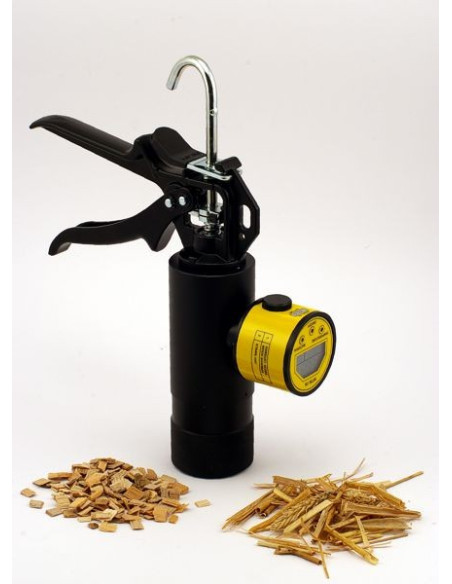

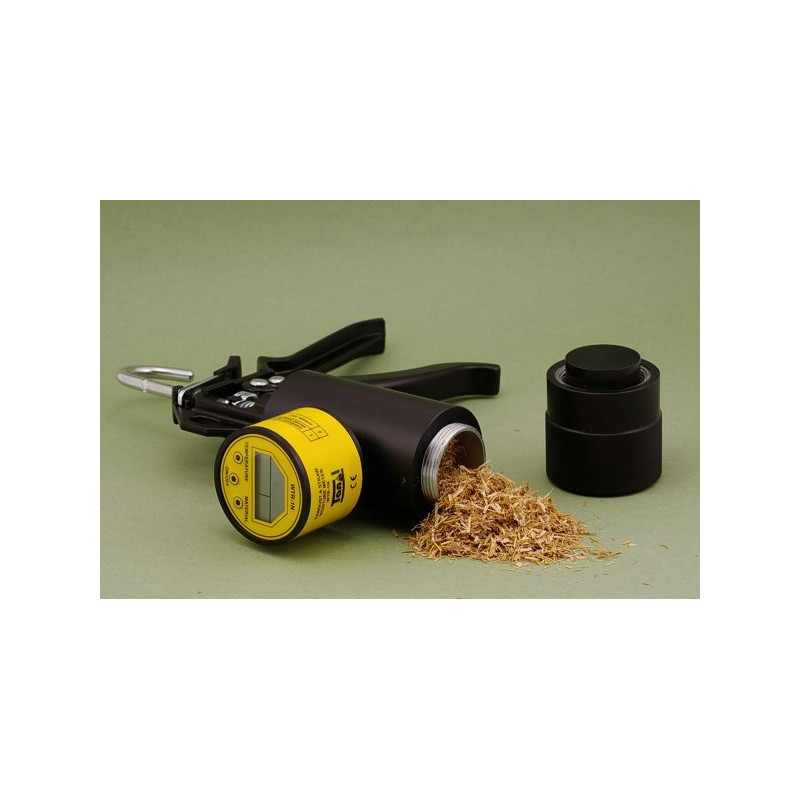

Sawdust & hay moisture meter WTR-1N is a state-of-the-art electronic device for measuring moisture contents in sawdust, scobs, wood shavings, slivers and other finely crumbled wood waste as well as cut straw and hay. It can also be used for moisture contents measurements of hay in packs. To do so tear out a handful of hay, crush it in your hands and conduct measurements the same way as with cut straw. Moisture meter WTR-1N is widely used during the manufacturing process of briquettes and pellets. The device is equipped with temperature compensation and is delivered in an aesthetic black case.

The Moisture meter measures the resistance of a compressed sample of sawdust. The measurement is done in two stages:

  • first - the sample is compressed always to the same pressure of approx. 0.2 MPa,
  • second - the resistance of the sample is measured and converted into moisture contents.
Technical data
Range
   sawdust, scobs, wood shavings
   hay, straw

8 % - 30 %
8 % - 25 %
Resolution 0.1 %
Temperature range 0°C - 50°C
Sample volume 120 cm3
Measuring pressure approx. 0.2 MPa
Display LCD
Power 1 * 12V (battery 23A)
Battery life 10'000 measurements
Low battery warning yes
Auto power off yes, after 5 min.
Size
   device
   case

300x220x65 mm
340x280x85 mm
Weight approx. 1 kG
