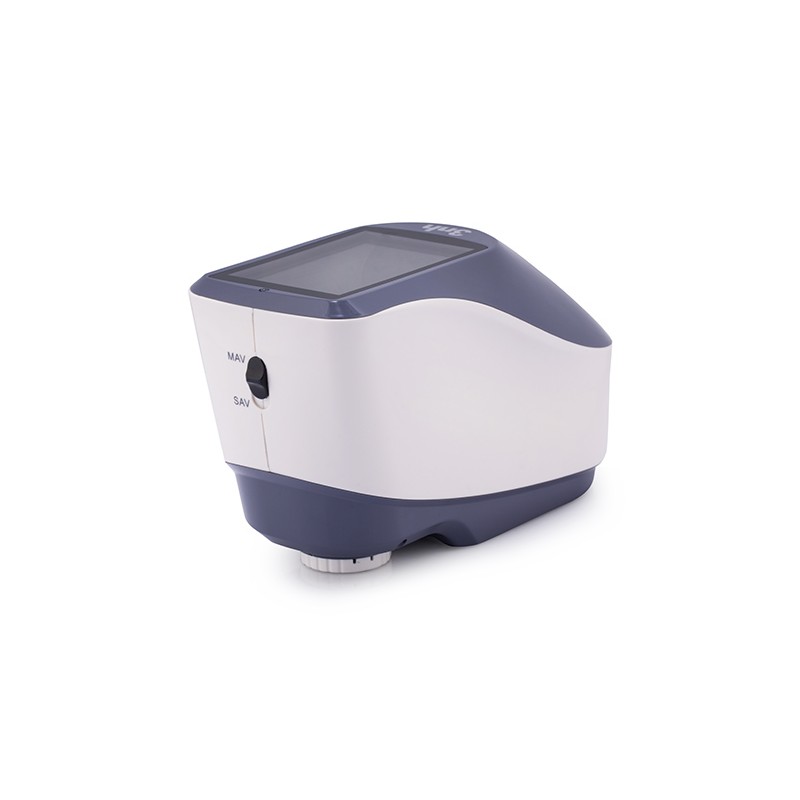

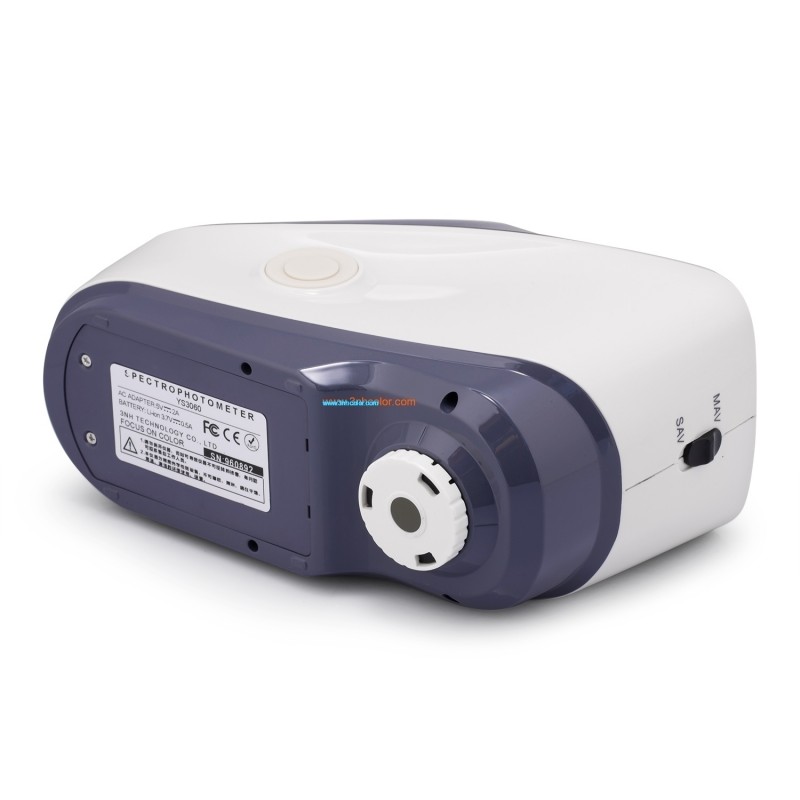

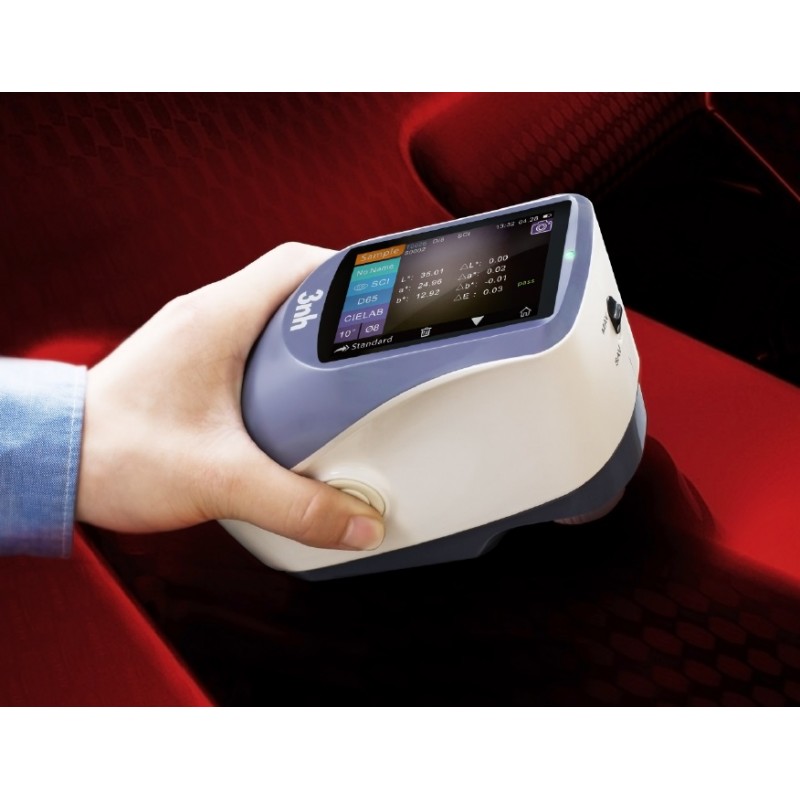

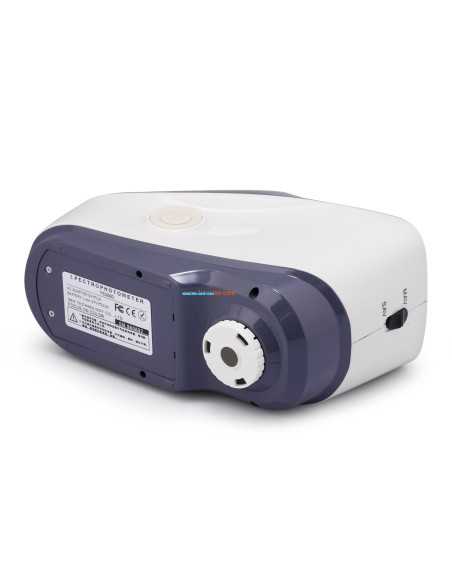

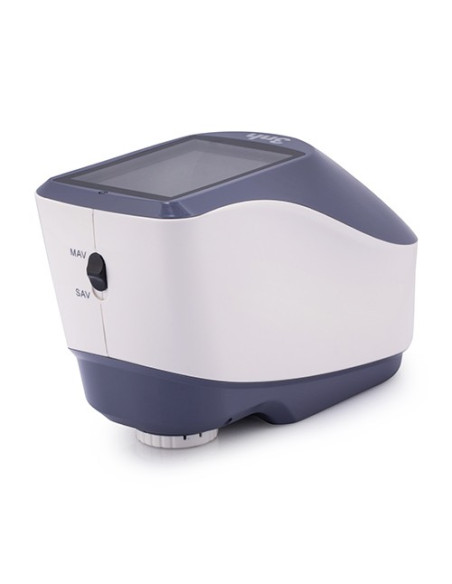

YS3060 Spectrum-photometer grid with Bluetooth SCI / SCE UV

View larger

YS3060 Grating Spectrophotometer with UV SCI/SCE Bluetooth

Reference YS3060

Manufacturer: 3nh

Condition: New

The YS30 series grid spectrophotometer adopts dual Bluetooth and USB modes for wider use, and with the SCI and SCE measurement data, it is compatible with many famous brands. 8 mm, 4 mm or custom opening is optional.

Volume discounts

Quantity	Price (tax excl.)	You Save %
1+	3 990,00 €	0%
2+	3 790,50 €	5%
3+	3 591,00 €	10%

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
APPLICATIONS
Data sheet
Download

Type	Grid Spectrum-Photometer
Measurement opening	10mm/8mm & 5mm/4mm

YS3060 Data Sheet Download (1.3M)

Compliant with CIE No.15: GB / T 3978, GB 2893, GB / T 18833, ISO7724 / 1, ASTM E1164, DIN5033 Teil7, grid spectrophotometer YS3060 with UV, SCI / SCE, USB / bluetooth, switch opening 8 mm / 4 mm, etc. It has a high precision of 0.03 based on the white calibration plate measured 30 times at 5 second intervals after the white calibration was performed.

Special ultraviolet light makes the YS3060 sample easy to measure with UV and high precision, and the PC software with features extends to a good companion for managing contrast in color and color quality.

Characteristics:

A. Perfect combination of beautiful appearance and structural design of human body mechanics;

Geometric optics B.D / 8, compliant with CIE No.15, GB / T 3978, GB2893, GB / T 18833, ISO7724 / 1, ASTM E1164, DIN5033 Teil

C. Use a combination long lasting LED light source with low power consumption, including UV / UV excluded;

D. Opening of Φ8 / 4mm, adapts to more samples; support SCI and SCE at the same time;

E. Measure sample spectra, accurate laboratory data, can be used in color matching and accurate color transmission;

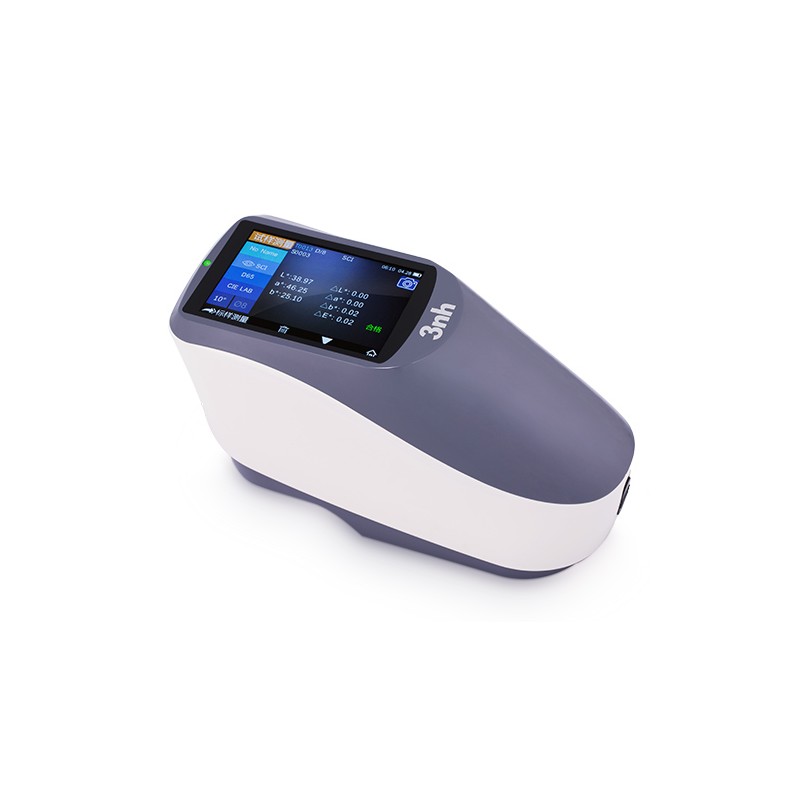

Electronic F.High hardware configuration: 3.5-inch color TFT LCD screen, capacitive touch screen, concave grid, 256 double image matrix CMOS Image sensor;

G.USB / Bluetooth 2.1, dual mode, widely useful;

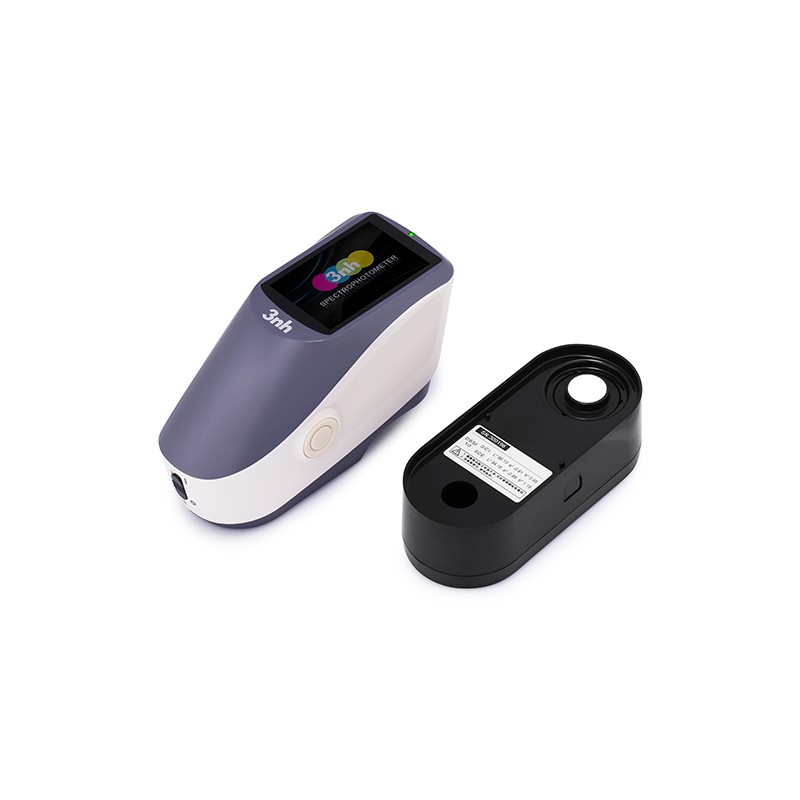

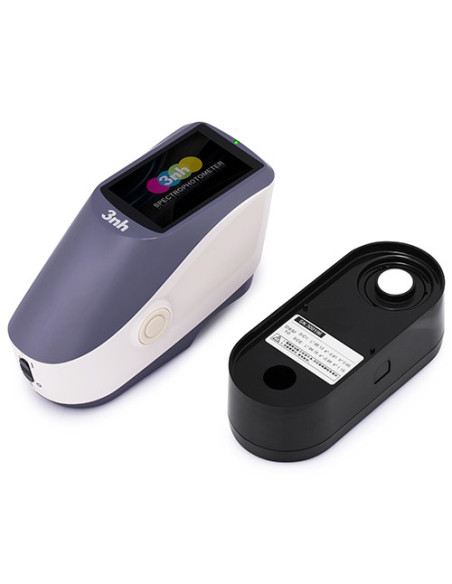

H. Standard white calibration plate stain resistant and dirt stable;

I. Large capacity storage space, more than 20,000 measurement data;

J. Two standard observer angles, a variety of illuminants, a variety of color indices, conforms to a variety of standard colorimetric data, satisfy a wide variety of customer demands for color measurement;

K. Camera Location function, better position;

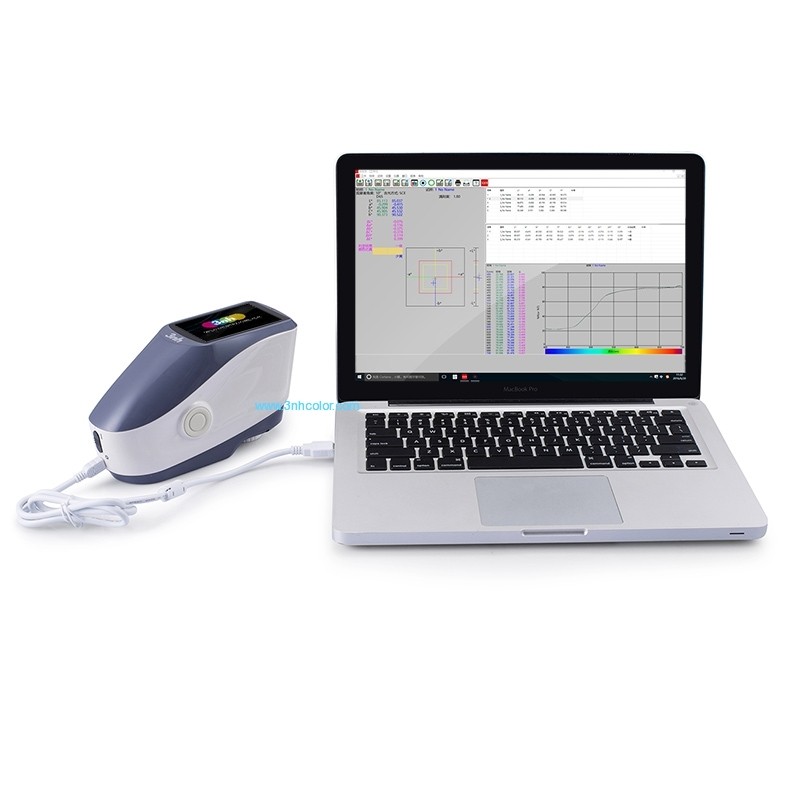

The .PC software has a powerful extension of function.

Models	YS3060	YS3020	YS3010
Optical Geometry	Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
Integrating Sphere Size	48mm
Light Source	Combined LED Light, UV Light	Combined LED Light
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400-700nm
Wavelength Interval	10nm
Semiband Width	10nm
Measured Reflectance Range	0-200%
Measuring Aperture	Dual Aperture: 10mm/8mm & 5mm/4mm	Customized Aperture: 8mm/4mm/1×3mm	Single Aperture: 8mm/10mm
Specular Component	SCI&SCE
Color Space	CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula	ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔE00v, ΔE(Hunter)
Other Colorimetric Index	WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
Observer Angle	2°/10°
Illuminant	D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12	D65, A, C, D50, D55, D75, F2, F7, F11	D65, A, C, D50
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time	2.6s
Repeatability	MAV/SCI: ΔE*≤0.03	MAV/SCI: ΔE*≤0.05	MAV/SCI: ΔE*≤0.06
Inter-instrument Error	MAV/SCI: ΔE*≤0.15	MAV/SCI: ΔE*≤0.2	MAV/SCI: ΔE*≤0.4
Measurement Mode	Single Measurement, Average Measurement
Locating Method	Camera View Finder Locating
Battery	Li-ion battery. 5000 measurements within 8 hours
Dimension	LWH=18477105mm
Weight	600g
Illuminant Life Span	5 years, more than 3 million times measurements

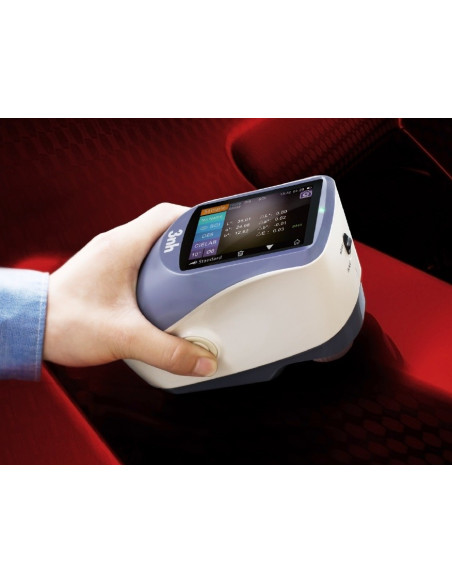

Display	3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB, Bluetooth 4.0		USB
Data Storage	Standard 2000 Pcs, Sample 20000 Pcs
Language	English, Chinese
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment	-20~50℃, 0~85%RH (no condensing)

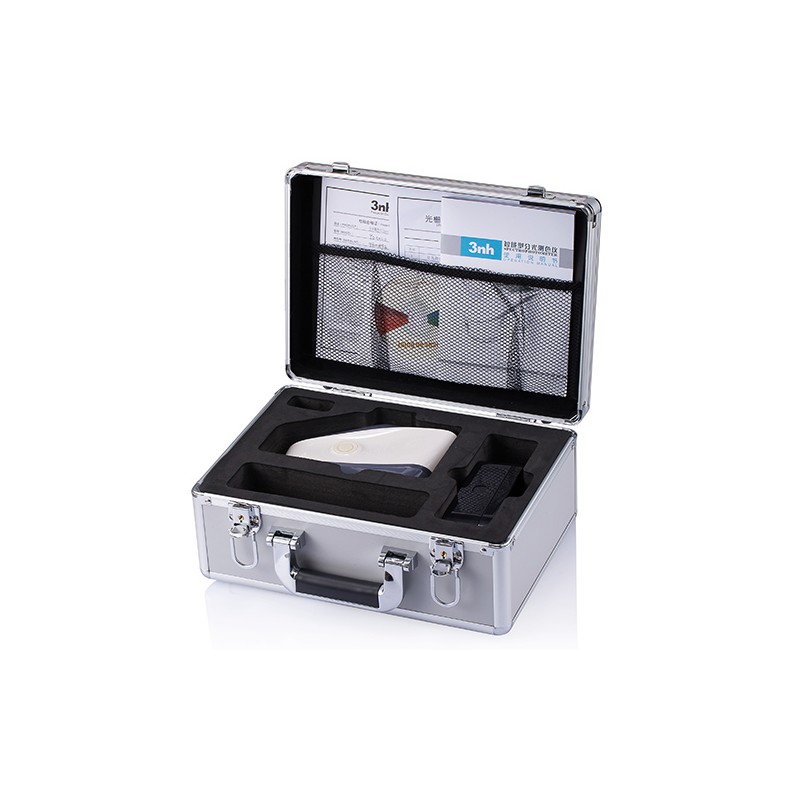

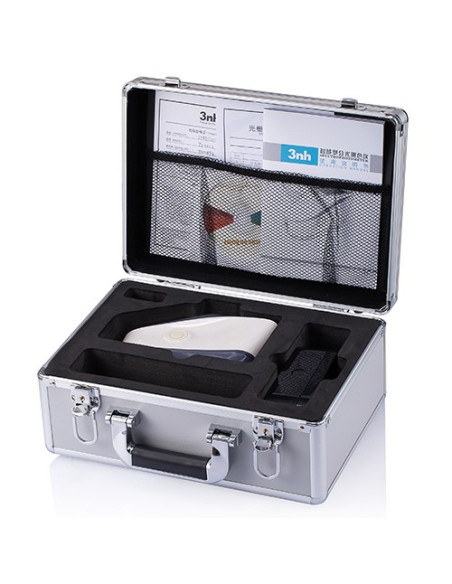

Standard Accessory	Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
Optional Accessory	Micro Printer, Powder Test Box
Notes: The specifications are subject to change without notice.

Application Industries:
3nh handheld spectrophotometers can easily achieve color transferring, and be used as precision instruments for color matching systems. They are widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
