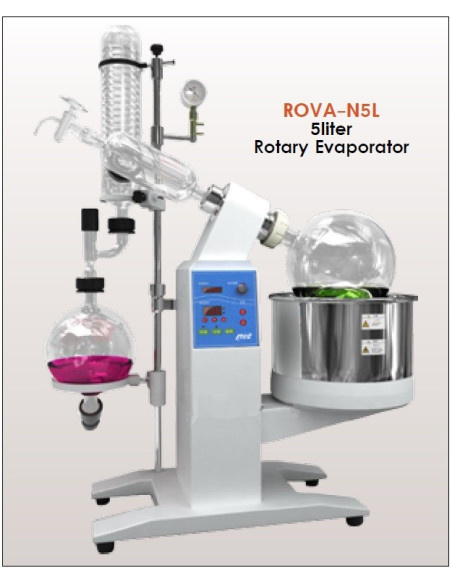

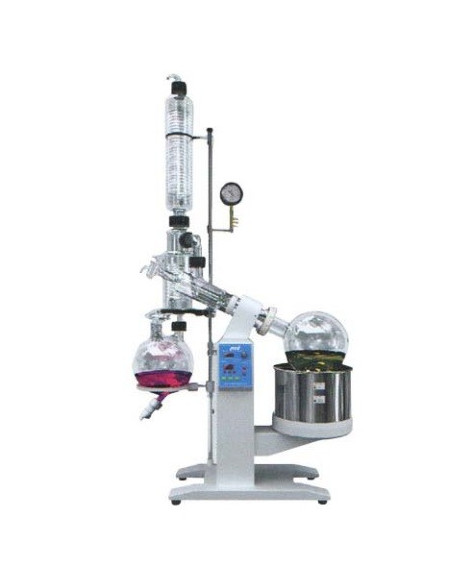

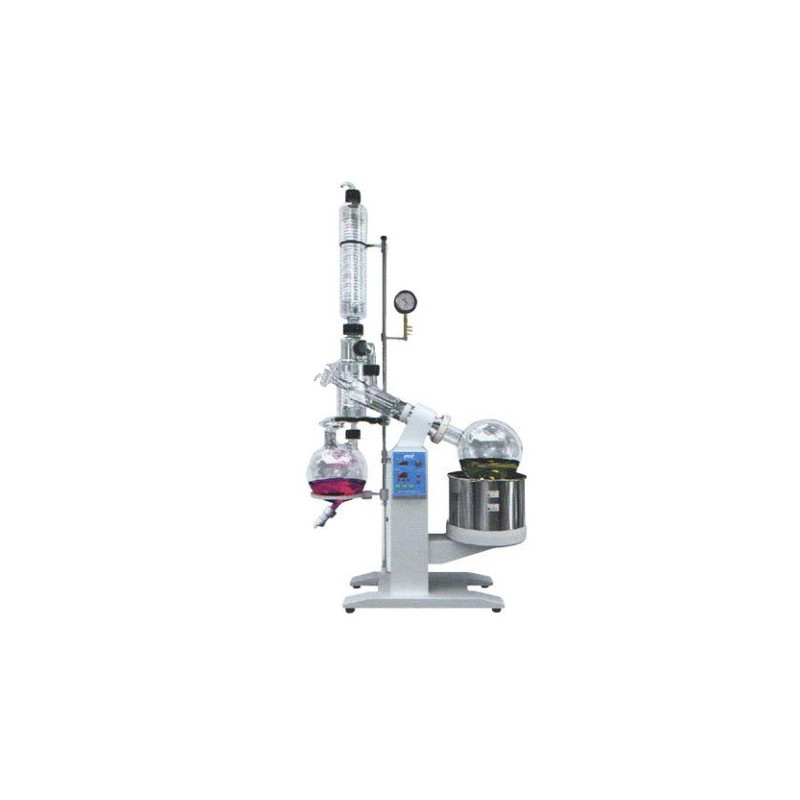

5 Liter Rotary Evaporator ROVA-N5L

ROVA-N5L

MRC

New

- Rotary Bottle: 5L
- Diameter of flange opening: Ф50mm
- Collecting bottle: 3
- Rotary speed of main Machine: 10-140rpm
- Temperature control: Digital display, temperature control 0~99°C
- Evaporating capability Water: ≥2L/h
- Alcohol: ≥4L/h
- Elevating stroke: 0~150mm

Add to wishlist

Instrument for: Hospitals, Lab's, Clinics
Function: Rotary Evaporator

For biological, pharmaceutical, chemical, food and other small scale areas.
Large capacity, large diameter rotary evaporator flask, evaporation area, vacuum water bath,  edge heating while rotating, evaporation of the solution diffusion efficiency can be used.
Products with recycled water, multi-use vacuum pumps, diaphragm pumps, low temperature cycle (vacuum) pumps, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other devices supporting component systems.

Model

ROVA-N5L

ROVA-N10L

ROVA-N20L

ROVA-N50L

Rotary Bottle

5L, diameter of flange opening: Ø50mm

10L, diameter of flange opening: Ø95mm

20L, diameter of flange opening: Ø95mm

50L, diameter of flange opening: Ø125mm

Collecting bottle

3

5

10

20

Speed-regulationj of main machine

Digitaldisplay, vayiable frequency, stepless Speed-regulation

Rotary speed of main Machine

10-140rpm

10-130rpm

10-130rpm

10-110rpm

Rotaring motor (W)

phase AD induction motor, power: 40W

phase AD induction motor, power: 90W

phase AD induction motor, power: 180W

phase AD induction motor, power: 180W

Condensing tube

Vertical Type Water Refrigerating

Standing, main+auxiliary cooling and highly effcient 3 circulating cold trap

Heating boiler

stainless water bath

Temperature control

Digital display, temperature control, 0~99°C

Achievable vacuum

399.9Pa (below 3mmHg)

Evaporating capability

Water ≥2L/h Alcohol ≥4L/h

Water ≥3.2L/h Alcohol ≥6.5L/h

Water 5L/h Alcohol 11L/h

Water 9L/h Alcohol 19L/h

Elevating function

Electric elevation

Electric elevation

Electric elevation

Electric+Manual elevation

Elevating stroke

0~150mm

0~160mm

0~190mm

0~230mm

Rated power supply

220V/50Hz

220V/50Hz

380V/50Hz

380V/50Hz

Power of power supply

2.2KW

4.8KW

6.3KW

8.3KW

Dimensions (mm)

765Lx400Wx1070H

920Lx550Wx1700H

1250Lx600Wx2100H

1320Lx770Wx2340H
