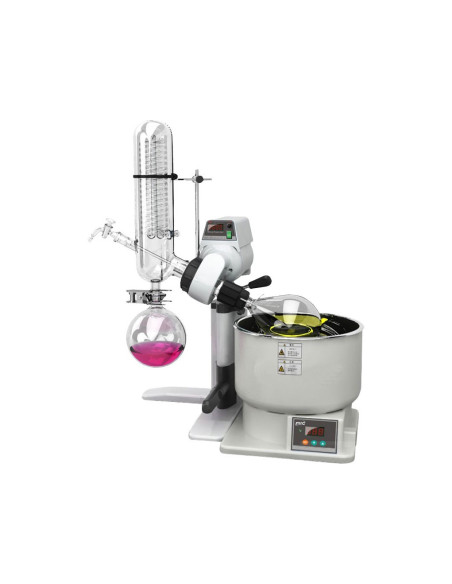

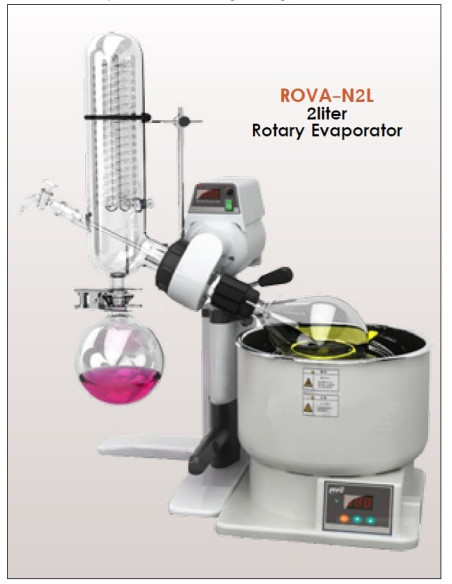

2 Liter Rotary Evaporator ROVA-N2L

ROVA-N2L

MRC

New

- Rotary speed (Rpm): 10 ~ 180
- Evaporating speed (ml/min): 20
- Achievable vacuum (Pa): 399.9 (below 3mmHg)
- Temperature range (OC): Room temp ~ 100
- Temperature display: Keypad input, Digital display
- Speed-setting: Knob setting, Digital display

Add to wishlist

Instrument for: Hospitals, Lab's, Clinics
Function: Rotary Evaporator

This equipment for purification distillation test rotates
and shapes a thin film in negative pressure conditions by
heating, evaporating efficiently, and then condenses and
recollects solvents to purify and separate.

The unit can be incorporated into a system device using:
- Multi-purpose Circulating Water Vacuum Pump
- Diaphragm Vacuum Pump
- Low Temperature Circulating (vacuum) Pump
- Circulating Cooler
- Constant Temperature Circulator
- Low Temperature Cooling Lliquid Circulating Pump.

Model

ROVA-N2L

Rotary speed (Rpm)

10 ~ 180

Evaporating speed (ml/min)

20

Achievable vacuum (Pa)

399.9 (below 3mmHg)

Temperature range (OC)

Room temp ~ 100

Temperature display

Keypad input, Digital display

Speed-setting

Knob setting, Digital display

Safety functions

Insurance

Functions of lifting table

Weight balancing Gliding elevating+ manual lifting

Rotary motor (W)

25

Heater wattage (KW)

1.5

Condenser model

Vertical type water refrigerating

Rotary bottle (L)

0.5 ~ 2

Collecting bottle (L)

1

Vacuum sealing

Double sealing rings made of Teflon + Vinton materials

Water Bath size and volume (L)

φ260×140·7.4

Elevating stroke (mm)

100+150

Ambient temperature (OC)

5 ~ 35

Dimensions (mm)

560L×320W×660H

Weight (kg)

9.5

PowerSupply (V/Hz)

220/50
