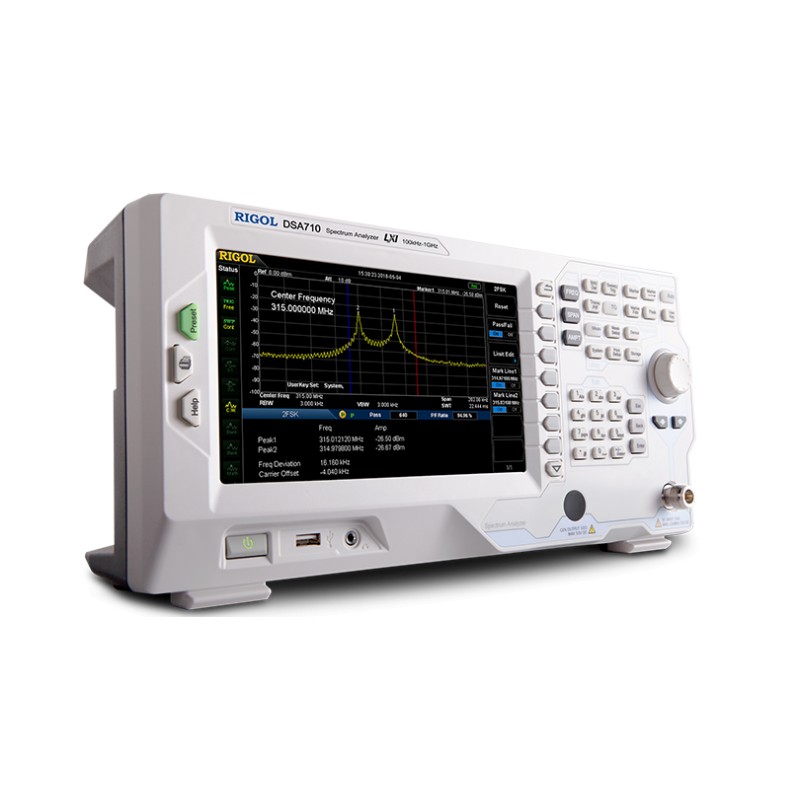

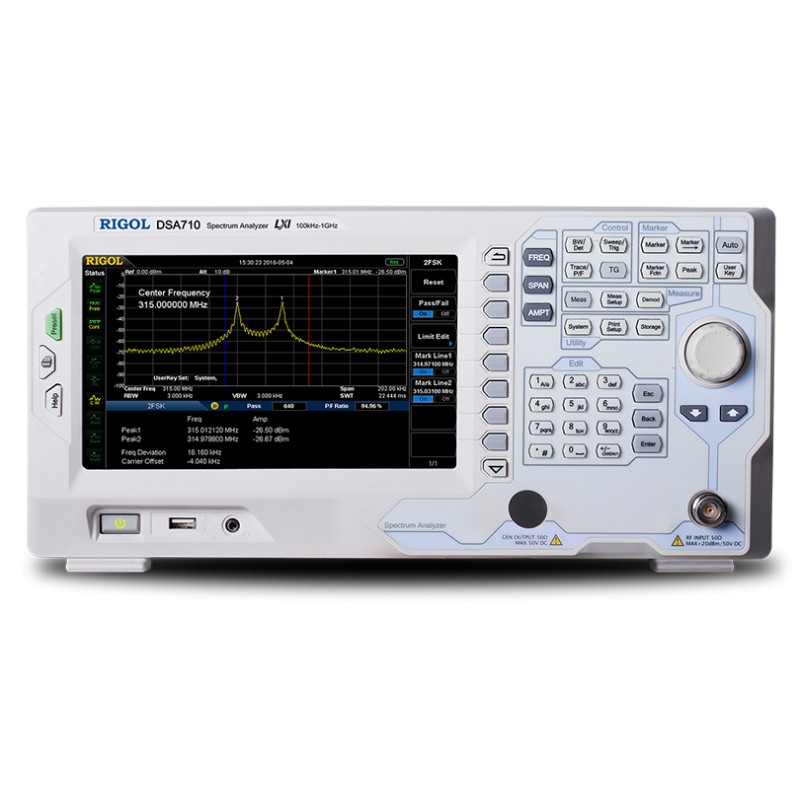

Spectrum Analyzer DSA710, 100kHz - 1GHz

Reference DSA710

Manufacturer: RIGOL

Condition: New

Entry level spectrum analyzers for education, IoT, hobby, and radio applications 500 MHz and 1 GHz models with option for Seamless Signal Capture, EMI, and more

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet
Download

MEASUREMENT AND CALIBRATION INSTRUMENTS	Spectrum Analyzers

DSA700 Series Manual Download (4.14M)

Data Sheet Serie DSA700 Download (19.11M)

All-Digital IF Technology
Frequency Range from 100 kHz up to 1 GHz
Min. -130 dBm Displayed Average Noise Level (Typ.)
Min. <-80 dBc/Hz @ 10 kHz Offset Phase Noise
Level Measurement Uncertainty <1.5 dB
100 Hz Minimum Resolution Bandwidth
Advanced Measurement Functions (Opt.)
EMI Filter & Quasi-Peak Detector Kit (Opt.)

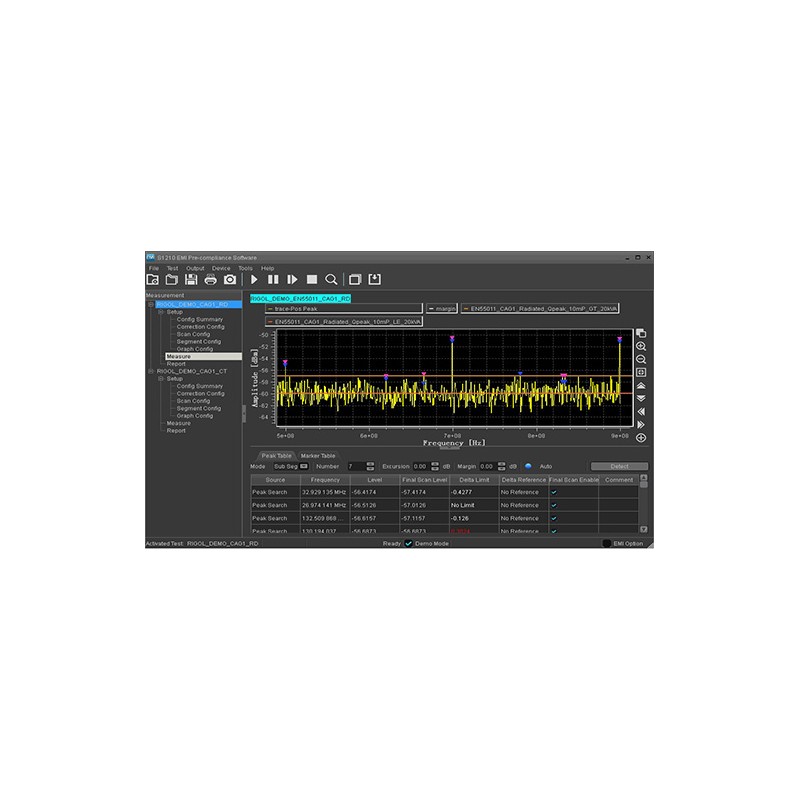

PC Software (Opt.)
Optional RF TX/RX Training Kit
Optional RF Accessories (Cable, Adaptor, Attenuator ...)
Complete Connectivity: LAN (LXI), USB Host & Device, GPIB (Opt.)
8 Inch WVGA (800×480) Display
Compact Size, Light Weight Design
