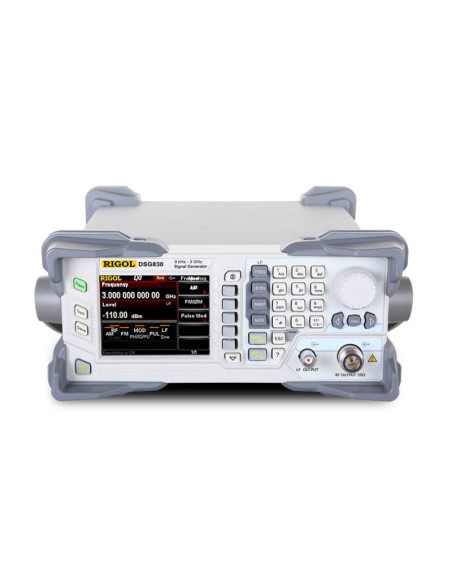

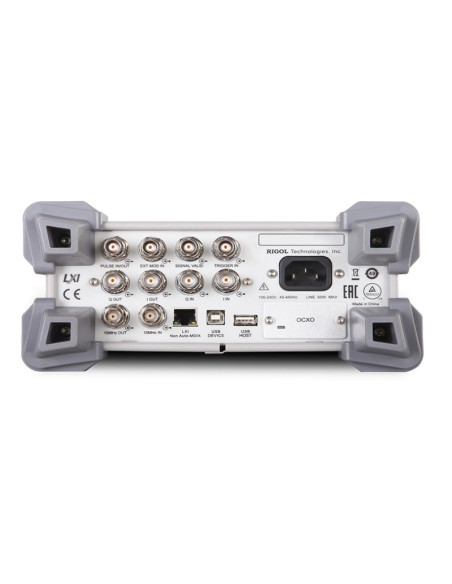

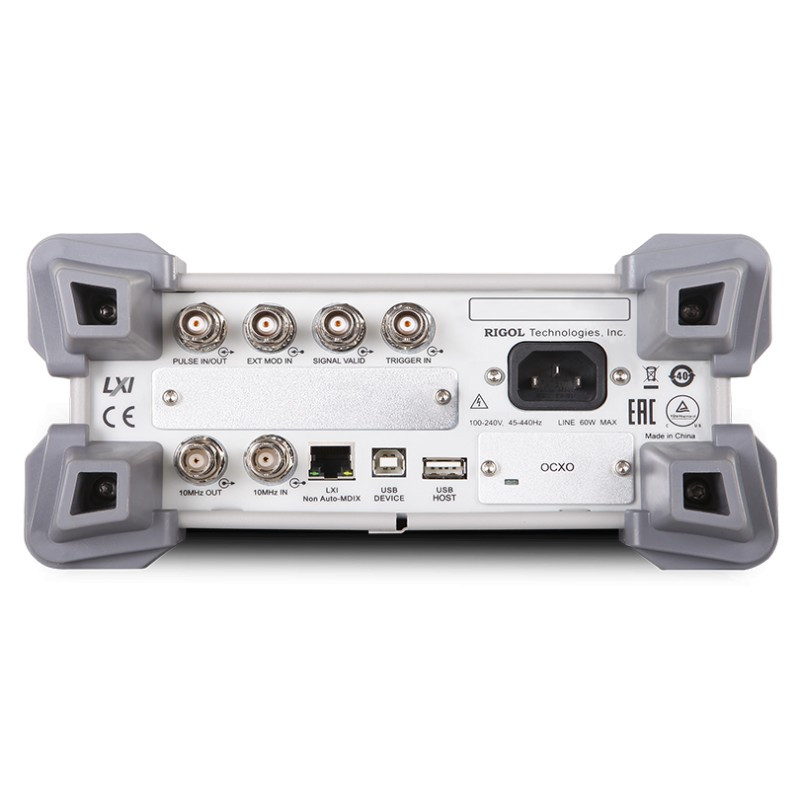

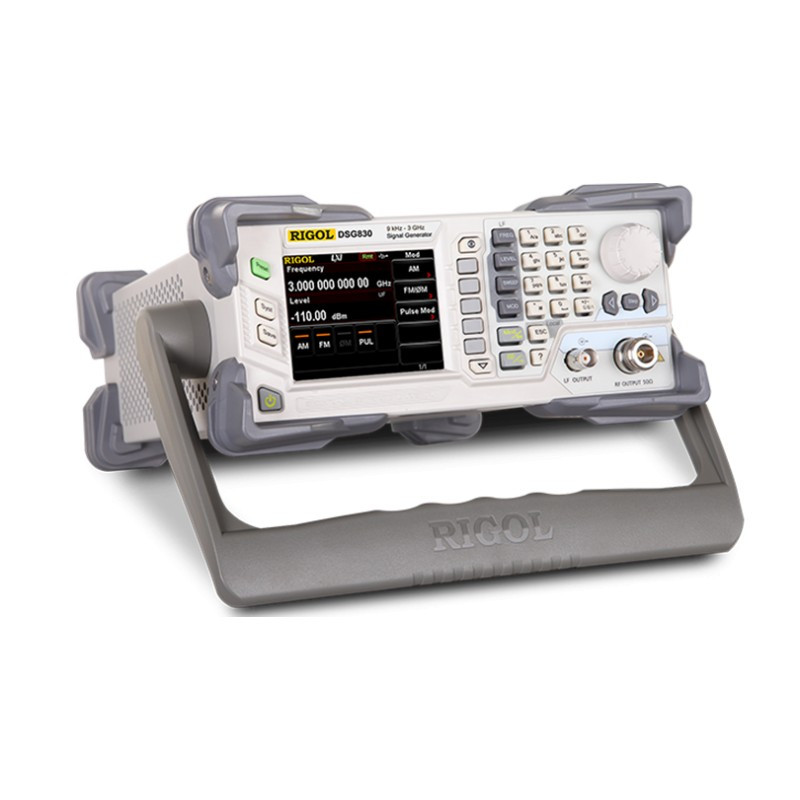

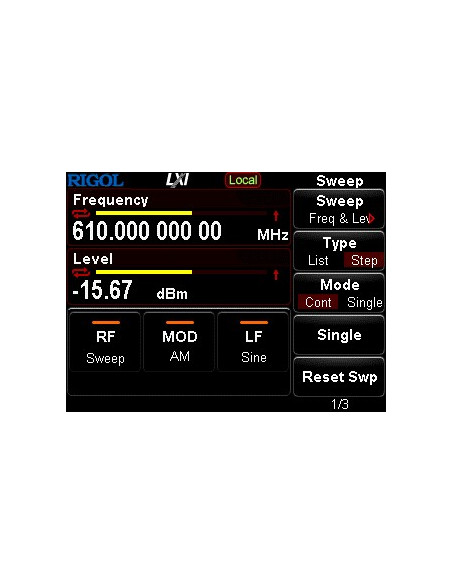

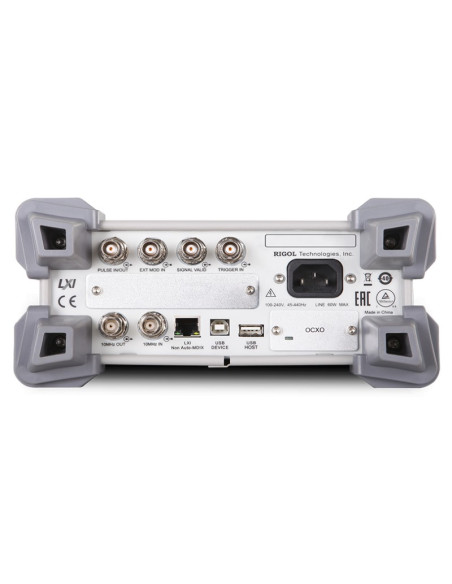

RF Signal Generator DSG836A

Reference DSG836A

Manufacturer: RIGOL

Condition: New

The DSG800 series offers outstanding performance in a class of economical RF signal sources with full frequency and power sweep capability, as well as AM / FM / ØM analog modulation and powerful pulse modulation. Compared to similar products, the DSG800 has the smallest size, light weight, and superior portability, making it the perfect choice for educational labs, industrial production lines, research and development applications.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet
Download

MEASUREMENT AND CALIBRATION INSTRUMENTS	RF-Signal-Generators

DSG800 Series Manual Download (1.4M)

DSG800 Series Data Sheet Download (4.13M)

3.6 GHz RF signal generator With IQ modulation

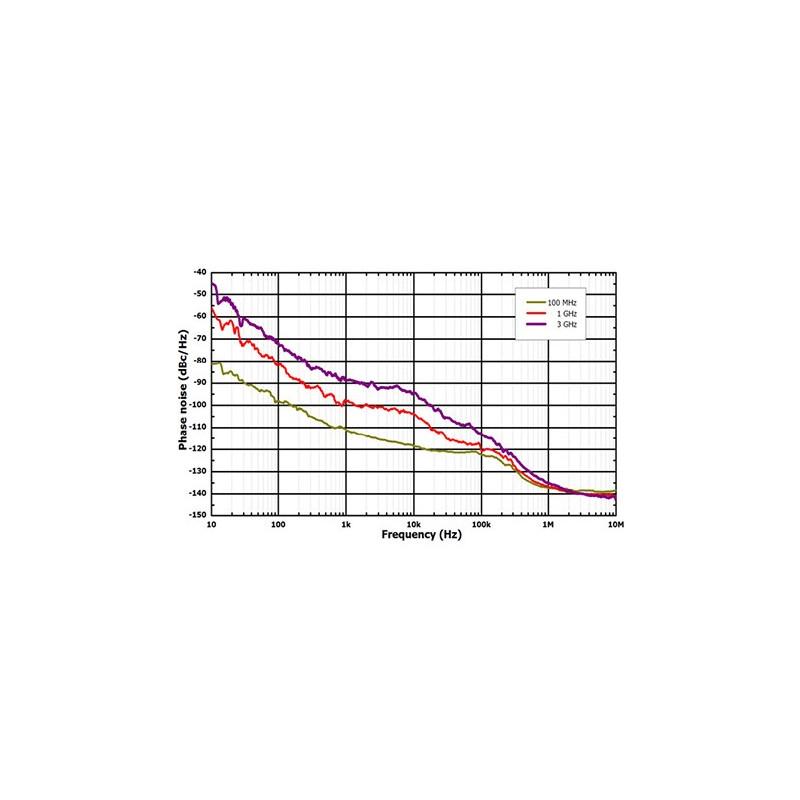

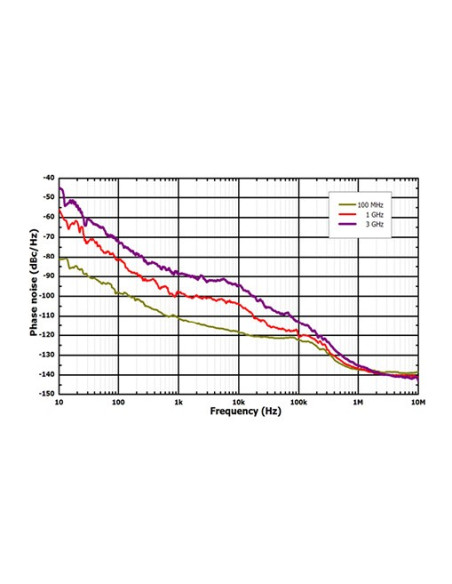

EUp to -112 dBc / Hz (typical) phase noise

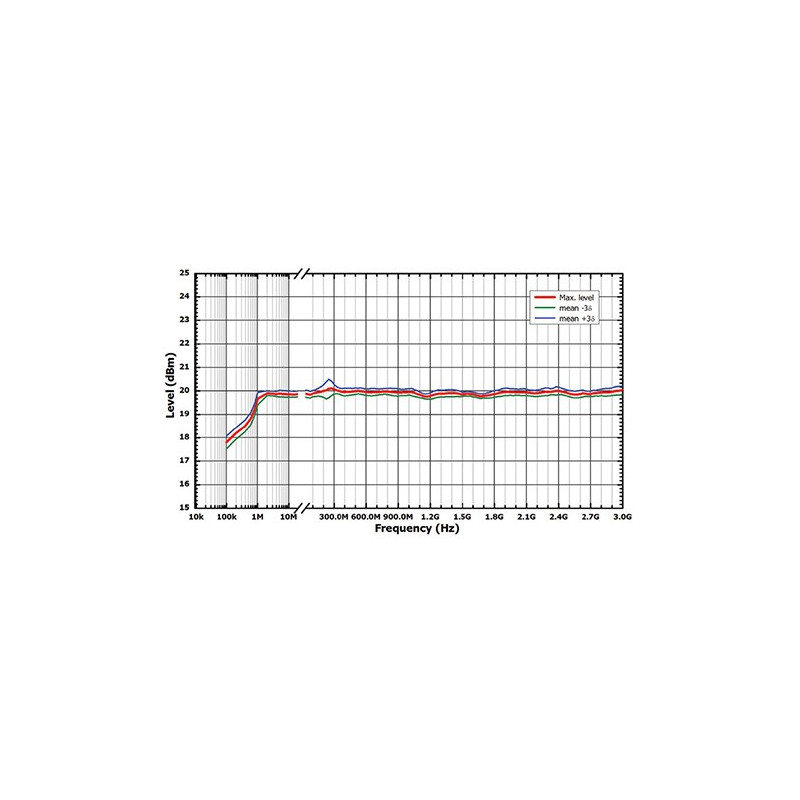

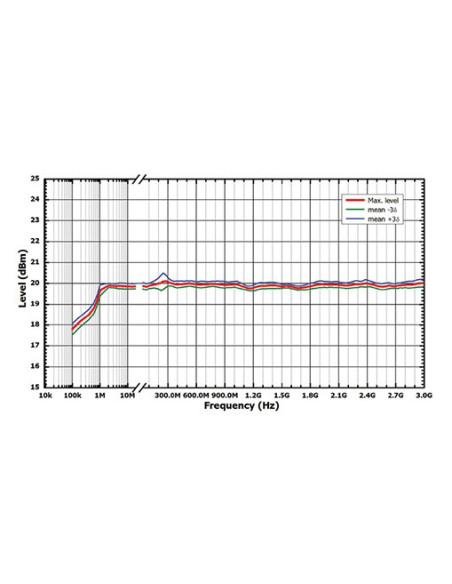

Up to +20 dBm (typical) maximum output power

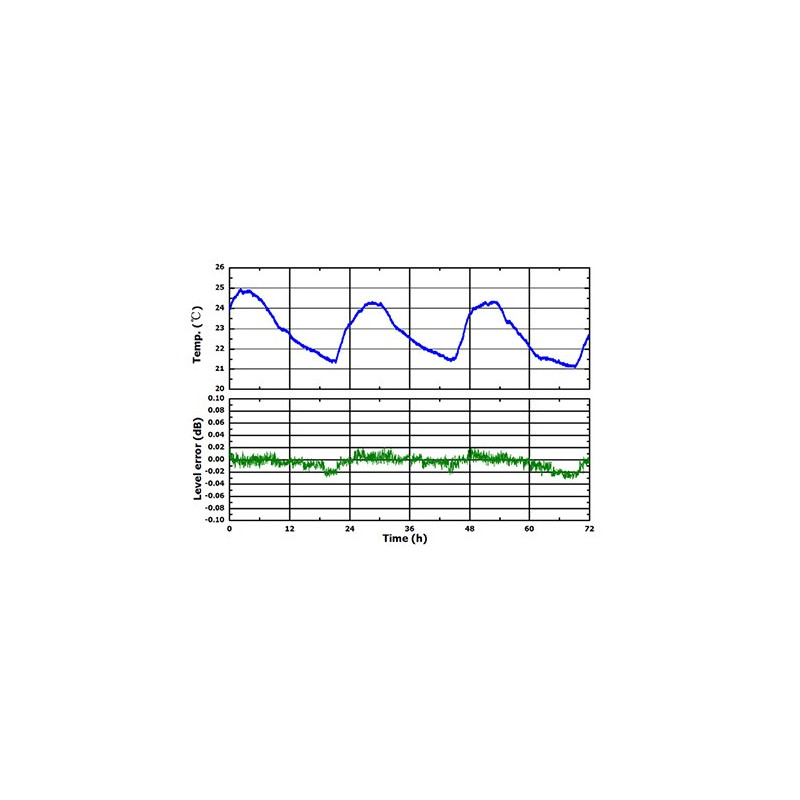

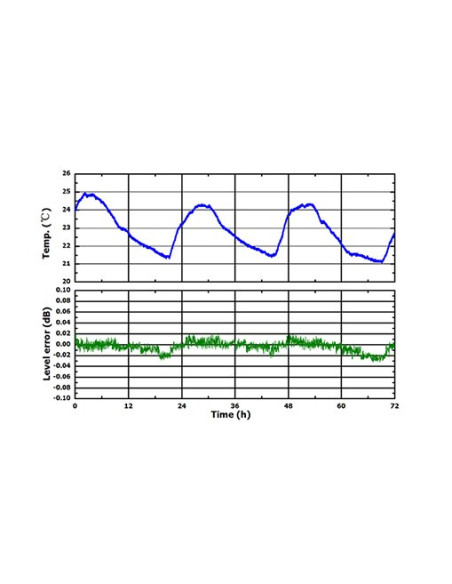

Special digital ALC circuit ensuring its stability and reliability

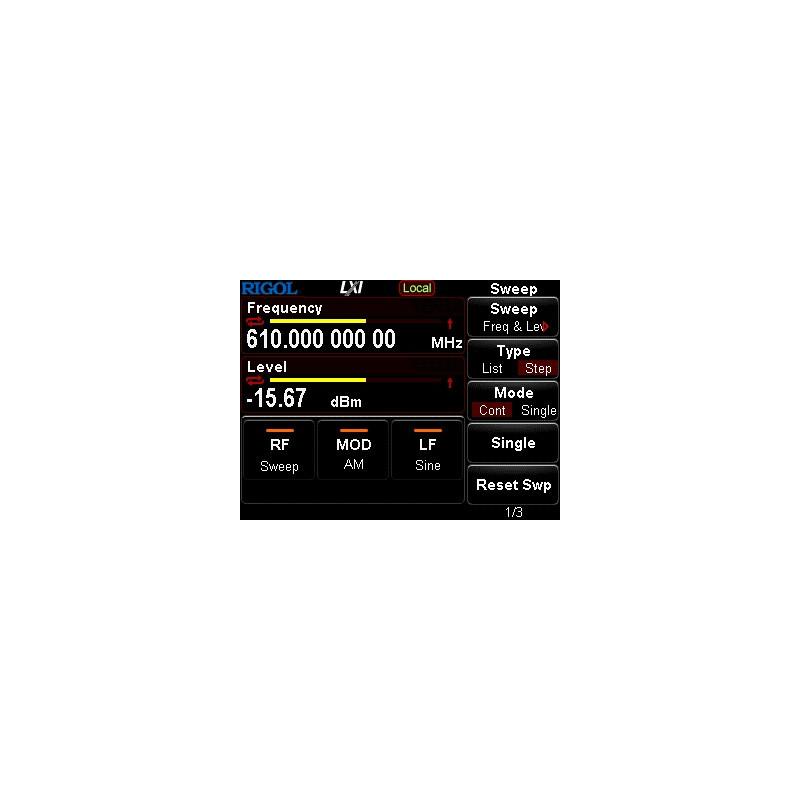

Flexible frequency and amplitude sweep functions
Open vector modulation function (for A type model)

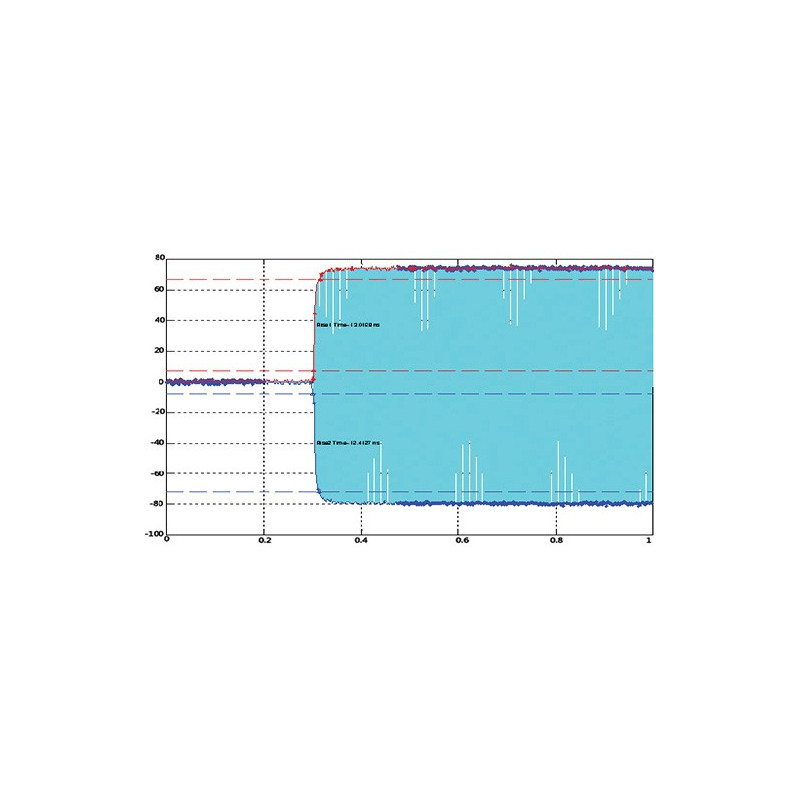

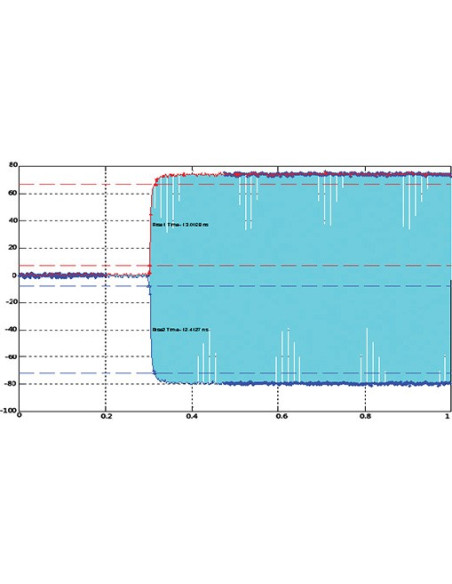

Powerful pulse modulation function
Prominent portability; Simple and easy to operat
