AO-ME440 Three-Phase Power Analyzer for Rogowski Coils

Meatrol

New

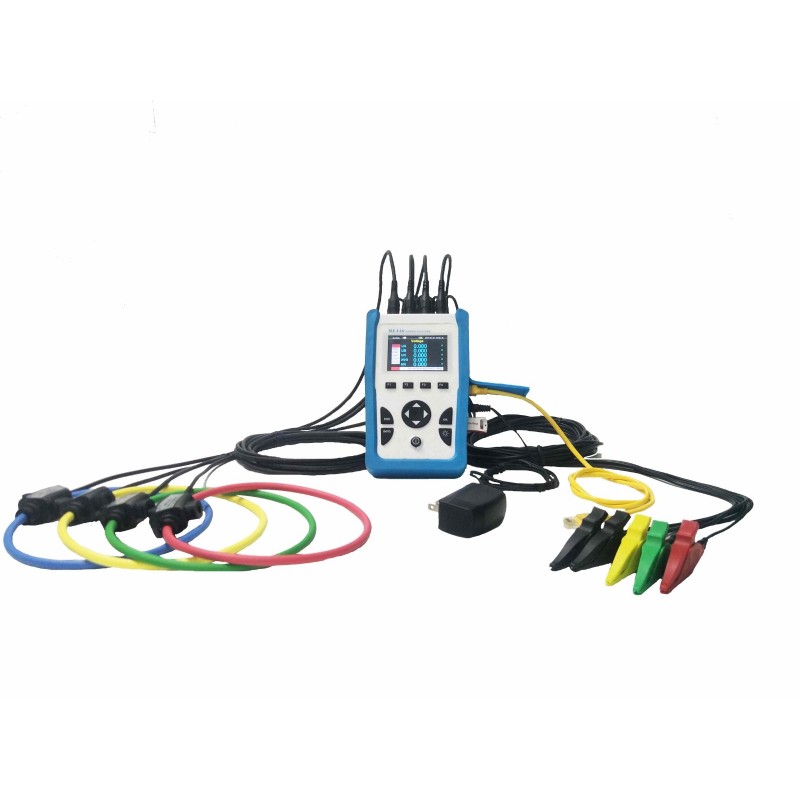

Portable Multifunction Power Analyzer for Rogowski Coils
Three Phase handhel data logger 0.5 class accuracy with 3 nominal current ranges: 600A, 3kA, 6kA.

-Voltage, Current, Harmonic, Demand, Power factor, Frequency, Max/Min values, active & reactive & apparent power and energy, Unbalance, Angle.

695,00 €

Add to wishlist

The Sensor measures: AC Current
---------- INDUSTRY ------------ Network Analyzers

INCLUDED:
- Power supply: 2900 mAh or 5 Vdc lithium battery
- Harmonic: 51THD
- 16GB memory, USB DISK download data
- Modbus-TCP communication
- 5 pieces voltage clamps, adapter

OPTIONS:
- 3 x Rogowsky Coils to choose from the following models:
- 100A, model MRC-16 diameter 16 mm
- 300A, model MRC-24 diameter 24 mm
- 600A, model MRC-36 diameter 36 mm
- 1kA, model NRC-100 diameter 100 mm
- 3kA, model NRC-150 150 mm diameter
- 6kA, model NRC-200 diameter 200 mm

 PQ-4G Gateway para ME440

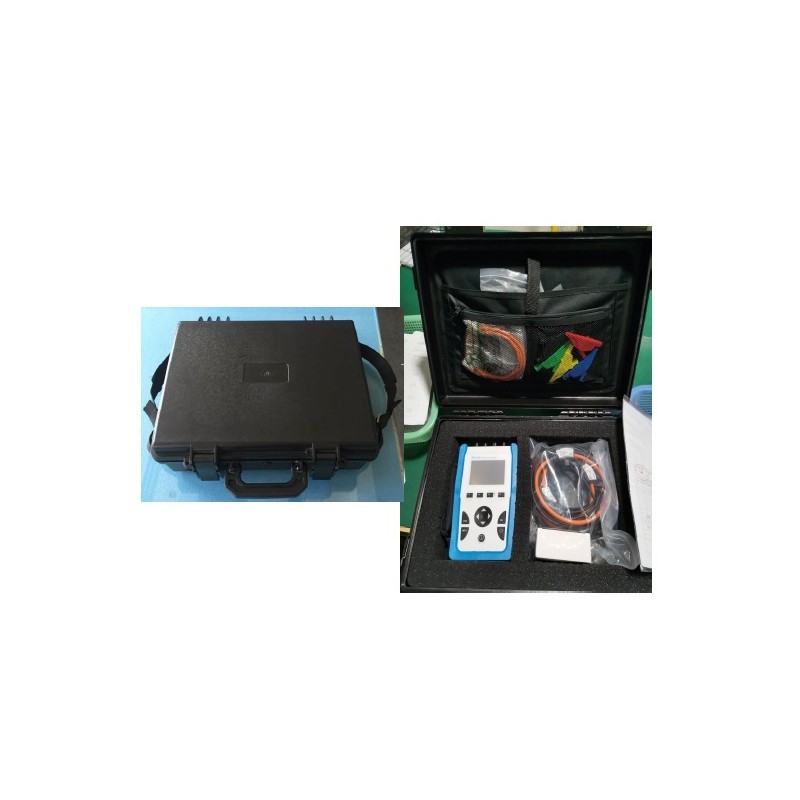

BOX-440 Optional transport box:
- BOX only for ME440
- Dimensions: 456x355x133mm
- Material: Anti-collision ABS
- Weight: 3.1kgs
- IP CLASS: IP67

 PQ-4G Gateway for ME440

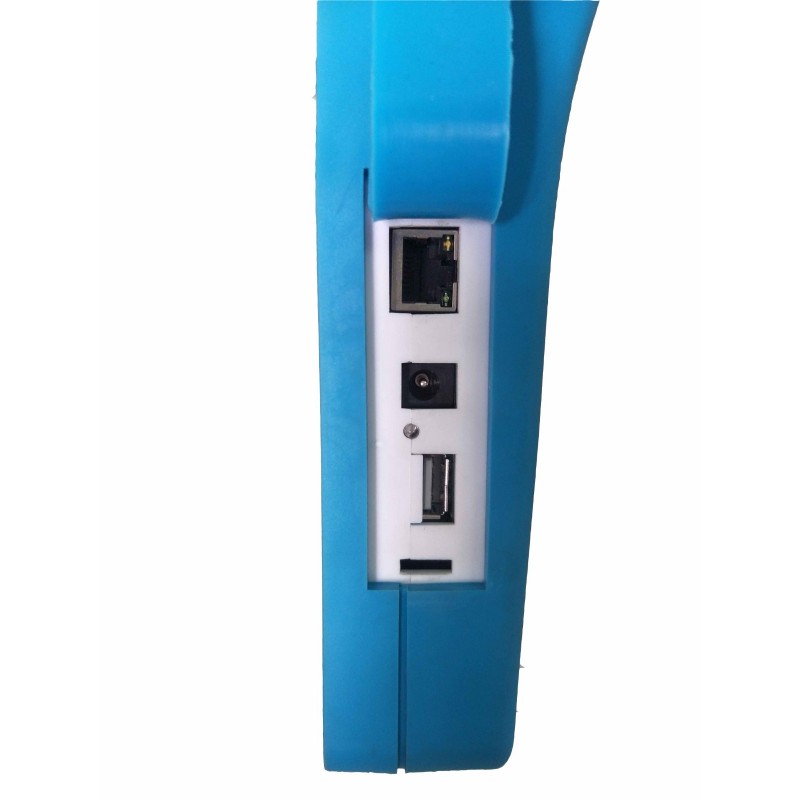

ME440 has 3 nominal currents, (600A, 3kA, 6kA), different currents require connecting different Rogowski coils.

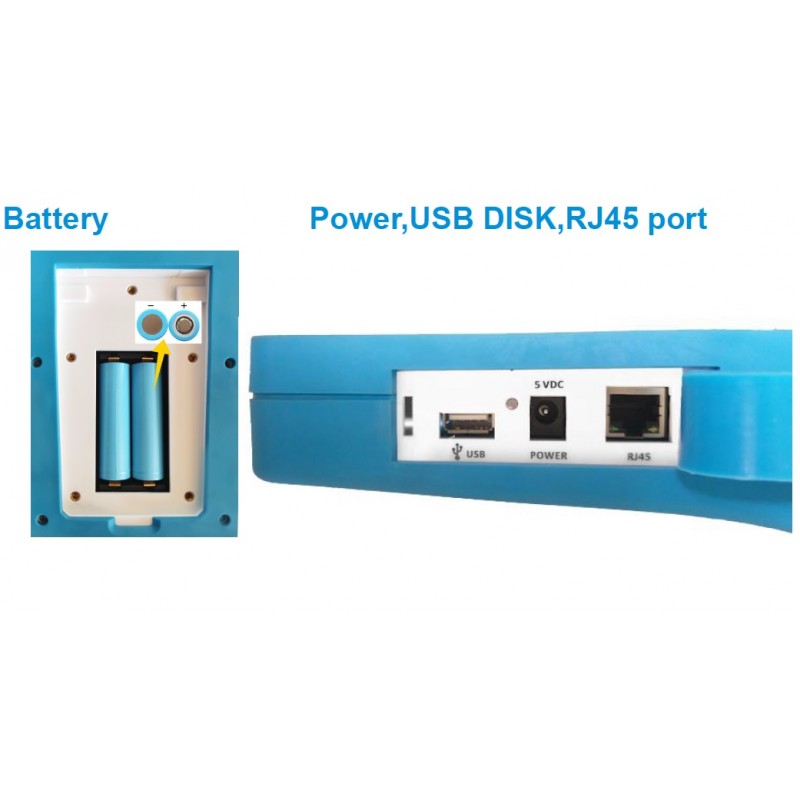

1) 2 PANASONIC 2900 mAh lithium batteries
2) 16GB memory, DISC download by USB
3) RJ45-Modbus-TCP

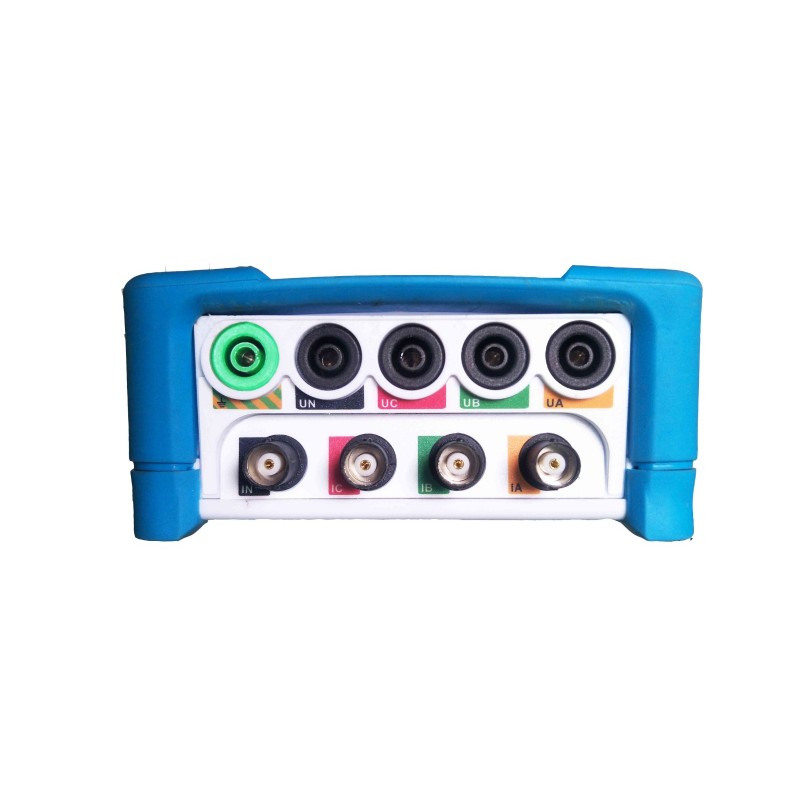

4) PE-N voltage: (5-piece voltage clamp)
5) N phase current measurement: (4 rogowski coils)
6) 51 times harmonic display

ME435 has 5 nominal currents, (100A, 600A, 1kA, 3kA, 6kA), different currents require connecting different Rogowski coils.
1) 4 * AA battery
2) 1GB SD card
3) No communication.
4) 5 times harmonic display
