ZIVE SP1 Compact Potentiostat + EIS 1MHz (Compliance: ±12V - Max. Current: ±1A, 30fA)
ZIVE SP1
New
The best choice for the complete DC and impedance characterization of various electrochemical application. System is designed under FPGA and DSP control with high speed capability with:
DAC control: Two set of high speed 16 bit DAC(50MHz) for offset & scanning & one set of 16 bit DAC(1MHz) for auxiliary analog output control
ADC reading: Two set of 16 bit 500kHz ADC for reading voltage/current and 1 channel 16 bit 250kHz ADCs for auxiliary data. It can provide high frequency EIS, fast pulse techniques with options and high speed sampling time.
- More info about this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
ZIVE SP1 is equipped with a frequency response analyzer(FRA) for system as standard and it provides high performance impedance measurements over the frequency range 10uHz to 1MHz. ZRA(zero resistance ammeter) function can measure max 1 A in galvanic corrosion technique. ZIVE SP1 can be easily upgraded with adding optional application software package without returning the system to the factory for upgrade.
|
Main system |
|
|
PC communication |
USB2.0 High Speed |
|
Line voltage |
100-240VAC, 50/60Hz, 1Amp |
|
Power adapter |
24V @2A 60Watt |
|
Size/weight |
160X330X81mm(W*D*H) / 2.05kg |
|
Max output power |
15Watt |
|
|
|
|
System |
|
|
Cell cable |
1meter shielded type (Standard) |
|
|
Working, reference, counter, |
|
|
Working sense,AuxV |
|
Control |
DSP with FPGA |
|
Calibration |
Automatic |
|
Data acquisition |
2x16bit ADCs (500kHz)for voltage, current |
|
ADC |
1x 16bit ADCs(250kHz) for auxiliary voltage & temperature reading |
|
DAC |
2x16bit DAC(50MHz) for bias & scan |
|
1X16bit DAC(1MHz) for analog output |
|
|
Filter |
4ea (5Hz,1kHz,200kHz, 5MHz) |
|
Scan rate |
0 – 200V/sec |
|
Max. channel No. |
8 Channels via USB connection |
|
Internal Data Memory |
295,000 points |
|

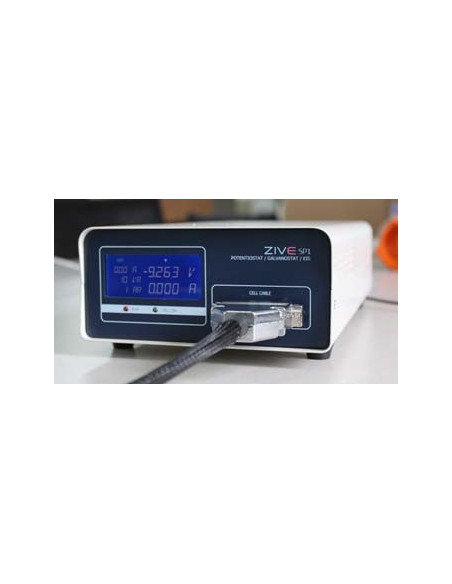

LCD Display |
DC & EIS mode automatically |
|
|
|
|
Power amplifier(CE) |
|
|
Power |
12Watt (12V@1A) |
|
Compliance voltage |
±12V |
|
Maximum current |
±1A |
|
Control speed selection |
4ea |
|
bandwidth |
2MHz |
|
Slew rate |
10V/usec |
|
|
|
|
Potentiostat mode(voltage control) |
|
|
- voltage control |
|
|
Control voltage range |
±10V, ±1V, ±100mV |
|
Voltage resolution |
16 bit per each range |
|
Voltage accuracy |
±1mV±0.05% of setting |
|
Max. scan range |
±10V vs. ref. E |
|
- current measurement |
|
|
Current ranges |
10 ranges(auto/manual setting) |
|
1nA ~ 1A |
|
|
(1nA & 10nA with gain) |
|
|
Current resolution |
16 bit; |
|
30uA,3uA,300nA,30nA,3nA,300pA, |
|
|
30pA,3pA, 300fA, 30fA |
|
|
Current accuracy |
±10pA±0.1% of range(gain x1) >100nA fs. |
|
|
|
|
Galvanostat mode(current control) |
|
|
- Current control |
|
|
Control current range |
Max. ±1A |
|
± full scale depending on selected range |
|
|
Current resolution |
16 bit; |
|
30uA,3uA,300nA,30nA,3nA,300pA, |
|
|
30pA,3pA, 300fA, 30fA |
|
|
|
|
|
Current accuracy |
±10pA±0.1% of range(gain x1) >100nA fs |
|
- Voltage measurement |
|
|
Voltage ranges |
10V,1V,100mV |
|
Voltage resolution |
16 bit; 0.3mV,30uV,3uV |
|
Voltage accuracy |
±1mV±0.05% of reading |
|
Electrometer |
|
|
Max input voltage |
±10V |
|
Input impedance |
2x1013Ω||4.5pF |
|
Bandwidth |
>22MHz |
|
CMRR |
>114dB |
|
|
|
|
EIS(Internal FRA) for system |
|
|
Frequency range |
10uHz ~ 1MHz |
|
Frequency accuracy |
0.01% |
|
Frequency resolution |
5000/decade |
|
Amplitude |
0.1mV ~ 5V rms (Potentiostatic) |
|
0.1 ~ 70% f.s(Galvanostatic) |
|
|
Mode |
Static EIS: |
|
Potentiostatic, galvanostatic, pseudo-galvanostatic, OCP |
|
|
Dynamic EIS: |
|
|
Potentiodynamic, Galvanodynamic |
|
|
Fixed frequency Impedance: |
|
|
Potentiostatic, Galvanostatic, potentiodynamic, galvanodynamic |
|
|
Multisine EIS: |
|
|
Potentiostatic, Galvanostatic |
|
|
Intermittent PEIS/GEIS |
|
|
|
|
|
Interfaces for system |
|
|
Auxiliary port |
|
|
Auxiliary voltage inputs |
1analog Inputs: ±10V |
|
|
For measurement of WE vs. CE |
|
|
CE vs. RE or other signal |
|
I/Ffor external booster |
|
|
|
|
Zero Resistance Ammeter |
100nA ~ 1A ranges |
|
|
|
|
Software |
|
|
Max steps per experiment |
1000 |
|
Shutdown safety limits |
Voltage, current, Auxiliary V etc |
|
Max. sampling rate |
20kHz(50usec)-burst mode/500jHz(2usec) in fast sweep mode |
|
Max. sampling time |
unlimited |
|
Sampling condition |
Time, dv/dt, dI/dt etc. |
|
PC requirement |
|
|
Operating system |
WindowsXP SP3/7/8/10 |
|
PC specification(minimum) |
Pentium4, RAM 1GB |
|
Display |
1600x900 high color |
|
USB |
High speed 2.0 |
|
General |
|
|
Dummy cell |
One external dummy cell included |
|
Specifications & software subject to change without notice. ZIVELAB |
|
