MCC Membrane Conductivity Cell




- Four electrode technique
- Material
         - Cell body: PEEK
         - Wire: platinum
- Operating temperature: to 130 ̊C
- Fuel cell hardware available: 5, 9 and 25 cm2 fuel cell test hardware (not included, provided by WonATech)
- Easy to assemble

Add to wishlist

Type of Cells Membranes for Fuel Cells

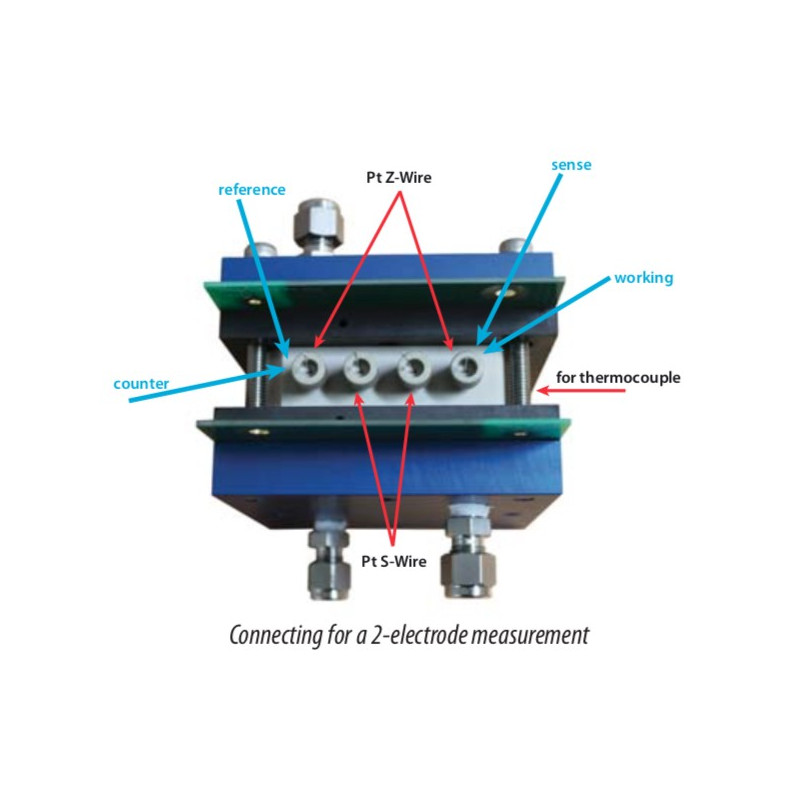

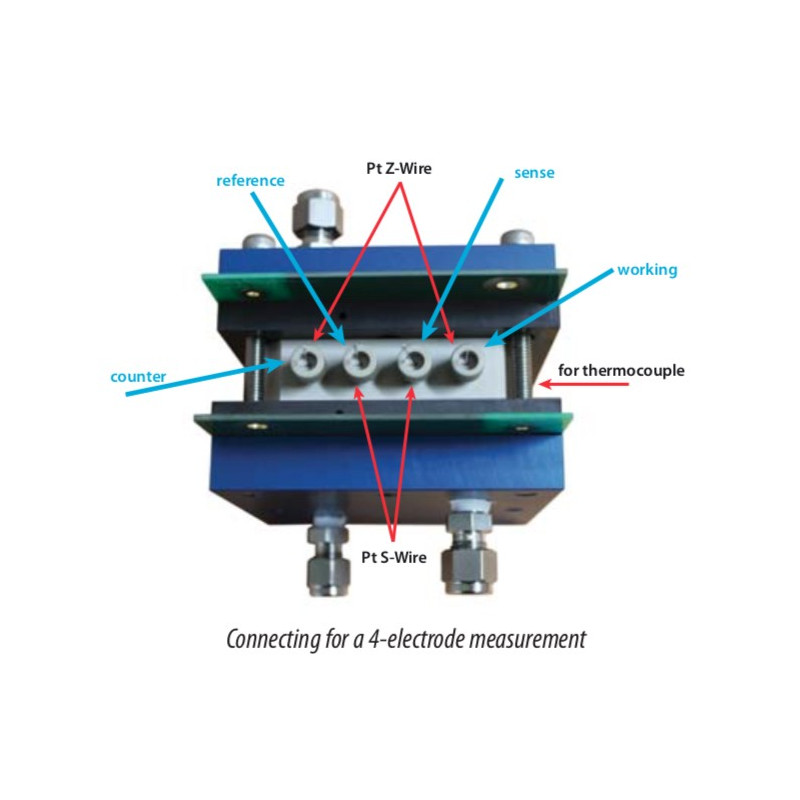

The membrane conductivity cell, MCC, is designed to measure ionic conductivity by simply loading a membrane into cell hardware. The MCC adopts 4 point probe for measuring conductivity. By passing current through two outer electrodes and measuring the voltage through the inner electrodes, it allows the measurement of the conductivity. In the 4-electrode configuration, there is virtually no current flow at the inner voltage sensing electrodes. Therefore, polarization does not occur. The second benefit of the 4-electrode sensor is its tolerance of electrode coating. Since the 4-electrode technique measures potential drop rather than resistance, the measurement remains accurate, despite minor coating. The 2 probe measurement is also available by attaching the working and sensing electrical connections to the cathode side while attaching the counter and reference electrical connections to the anode side. Please see the below configuration.

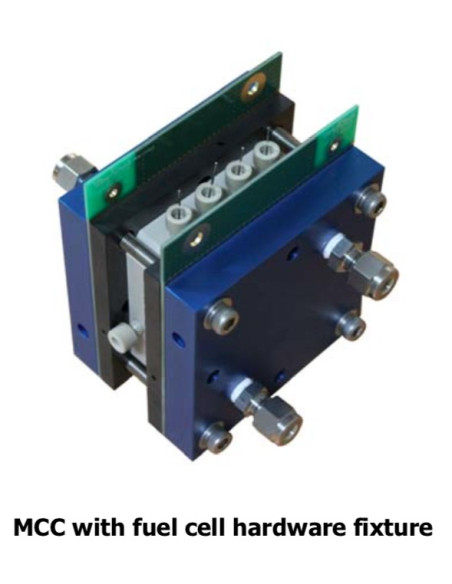

By placing the conductivity cell between the anode and cathode conduction plate, you can simply assemble the conductivity cell into your fuel cell hardware.
