The Plug & Probe is a new designed test station for thin films and pellets. It is available in three different materials: 1. Glass (Plug&ProbeGreen) 2. Quartz glass (Plug&ProbeBlue) and 3. Alumina (Plug&ProbeOrange). These three test stations are physically identical. Only the materials and its properties of the interior e.g. maximal temperature or oxygen exchange are different.
Such test stations are used for PLD thin films on 10 ×10 mm substrate samples and for pressed ceramic pellets. The main goal during construction for this test stations was that they are super easy to use and easy to maintain.
This product is no longer in stock

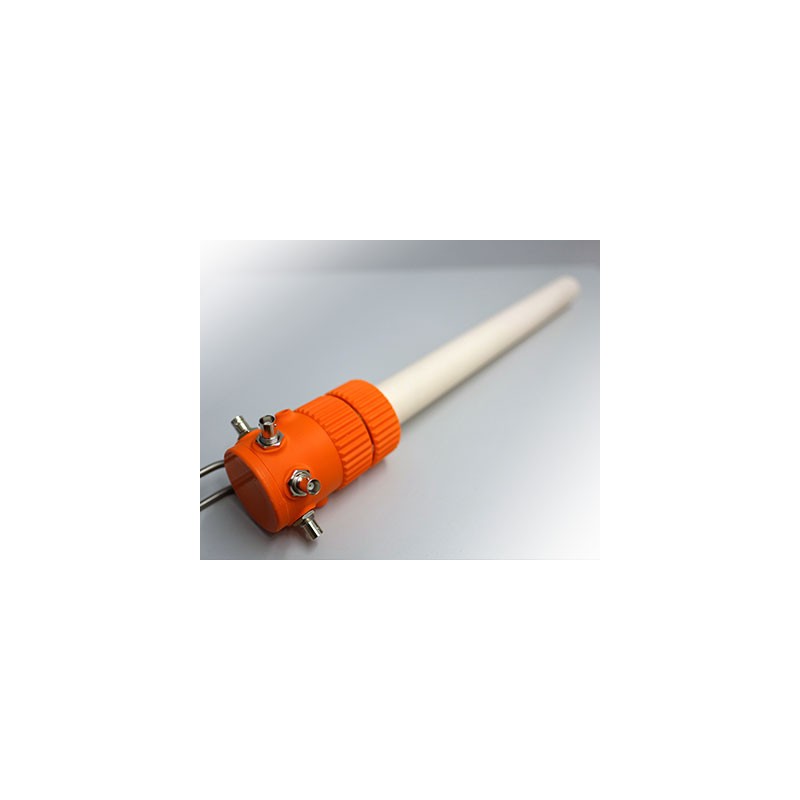

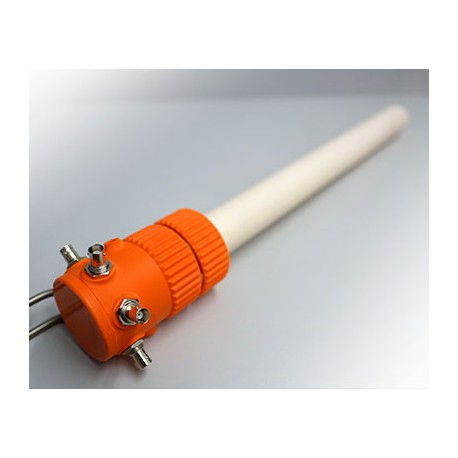

The Plug & Probe Orange is designed to provide a tool to perform easy electrical measurements on pellets or thin film samples at elevated temperatures and changing gas environments.
Made from alumina, up to 1400 °C
The Plug & Probe Orange consists of a metal flange in a blue cover and a removable alumina test rod with an interior alumina test interface using platinum wiring. All parts are spring mounted to prevent breaking and ensures a stable electrical contact between the electrodes and the specimen. The heated part of the Plug & Probe Orange only consist of alumina and platinum to ensure no outgassing and to prevent any reactions between specimen and sample holder. In case you cannot use platinum in your experiment, you may want to change to another test station with different contact materials.
Open circuit impedance measured at room temperature gives ca. 1 · 1013 Ω and ca. 1 · 10-12 F for the resistive and the capacitive part respectively. The inductive part in the impedance spectra, if visible, generally depends on the connected measurement BNC cables between the impedance analyzer and the Plug & Probe.
|Minimal diameter of tube:||40 mm|
4x individually shielded electrical feedthroughs with BNC plugs
1x miniature thermocouple plug
2x 6 mm stainless steel tubes for gas supply
|Maximum Sample diameter:||20 mm|
|Maximum Sample thickness:||ca. 20 mm|
|Maximal temperature:||1400 °C|
|Short circuit impedance:||(set-up resistance with 2 m coaxial BNC cables at room temp)|
|Two wire configuration:||ca. 2 Ω|
|Four wire configuration:||ca. 5 · 10-2 Ω|
|Temperature Measurement with||thermocouple Type S (optional Type K)|
|Leak rate is typically:||5 · 10-4 mbar · l · s–1|
