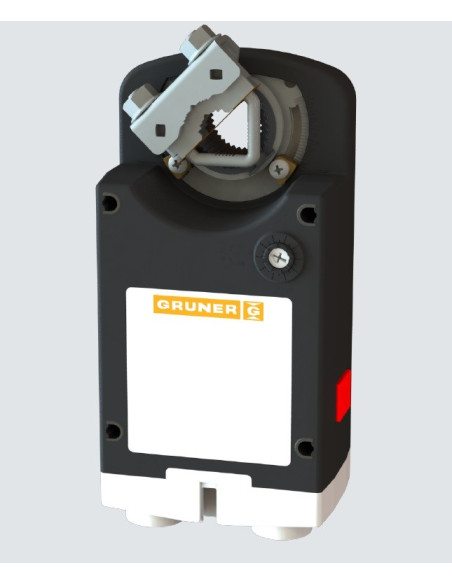

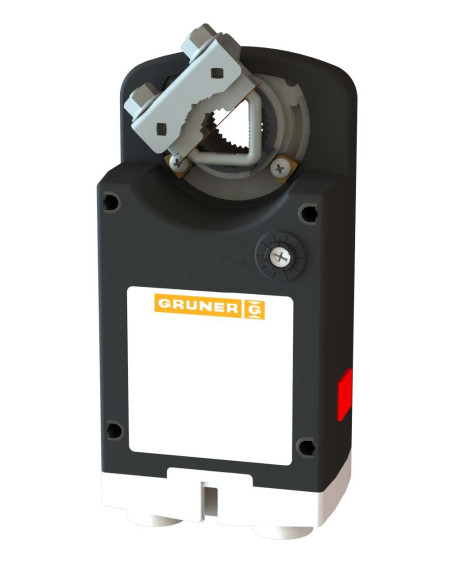

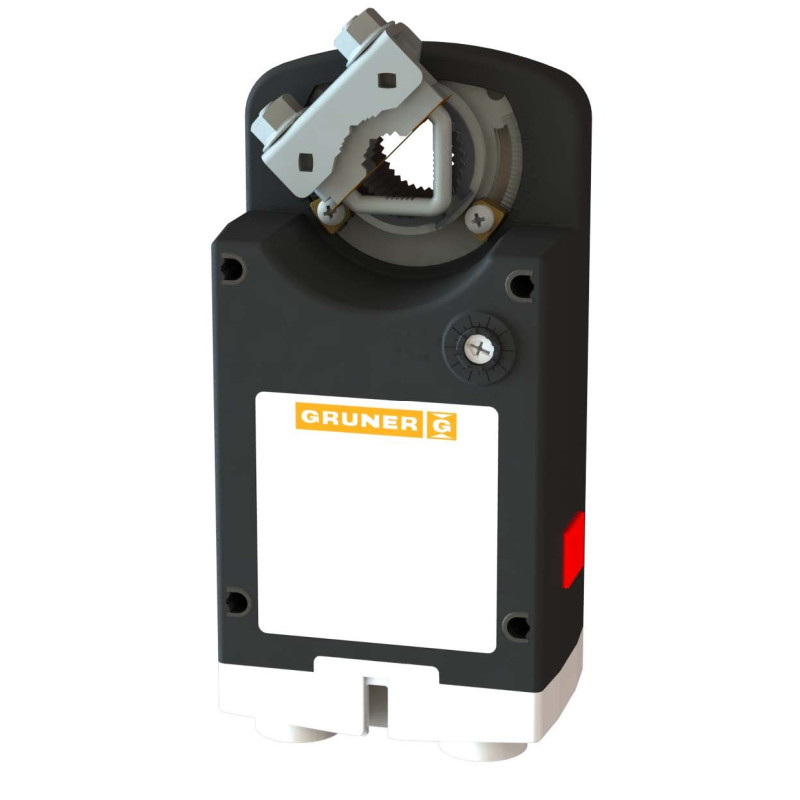

Rotary Actuator, Ref.: 363-230-20G-S2-P5

Reference Gruner 363-230-20G-S2-P5

Manufacturer: Gruner

Condition: New

- Rotary actuator without spring return actuator
- 120...230 VAC/DC, 2/3 point
- Torque 20 Nm
- Running time 60 s/90°
- Connection with 1m cable
- Feedback signal: 2x Auxiliary switch, Potentiometer
- Shaft coupling: O 9-26 mm, square 9-18 mm
- Assembly with mounting strip + screws

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
MODELS
Data sheet
Download

---------- INDUSTRY ------------	Rotary Actuators

Data Sheet Download (902.69k)

Rotary actuator for adjusting dampers in HVAC installations

- Running time: 60 s / 90°
- Torque: 20 Nm
- Nominal voltage: 230 VAC/DC

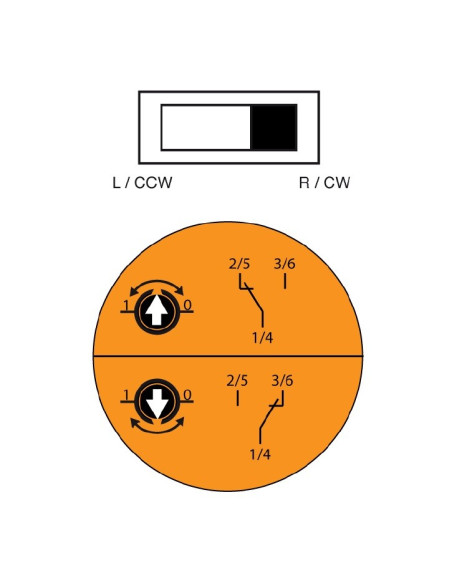

- Control: 2-/3-point
- Feedback potentiometer: P5 = 5 kOhm
- Auxiliary switch: 2x freely adjustable
- Damper size: up to approx. 4 m²
- Shaft coupling: clamp square 9-18 mm / round 9-26 mm
