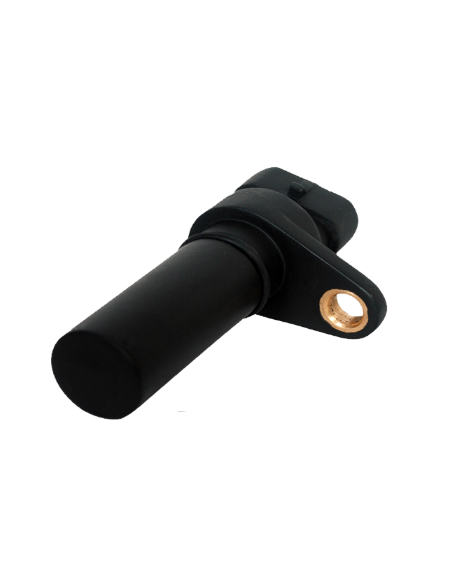

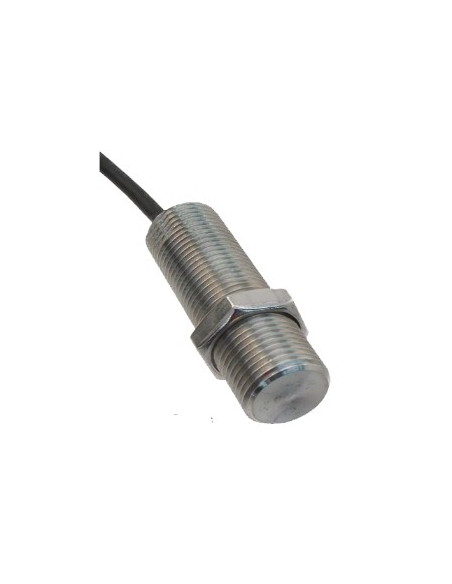

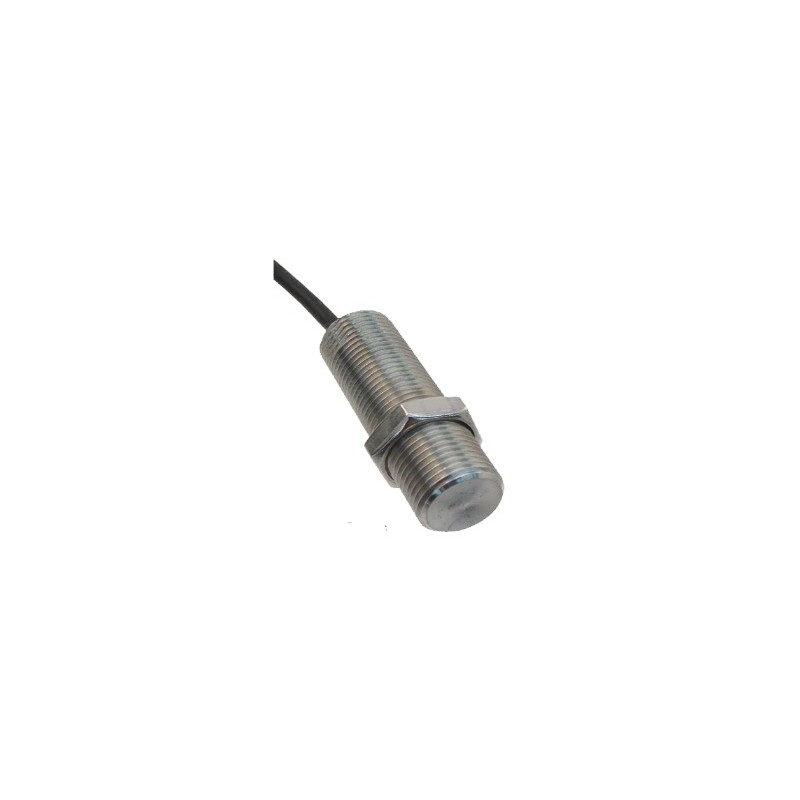

GTS-DO Speed and Direction Sensor
New
- Speed and Direction sensor is based on magnetic Hall's effect Technology.
- GTS-DO is Dual Output Magnetic Proximity sensor such that channel A lags or leads Channel B if used along with a gear wheel.
- More info about this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
| The Sensor measures: | Speed and Direction |
| ---------- INDUSTRY ------------ | Transducers |
- The signal of the channel goes high with leading edge of tooth and goes low on trailing edge of the gear.
- GTS-DO is used to detect the direction as well as speed using a gear wheel. Hence we can consider that GTS-DO along with Agear wheel can simply replace a Optical encoder.
- The main USP of the Product is it is IP67 protected with Extremely High speed functional capability upto 15kHz and upto zero speed on lower end .
- Functional Block Diagram:
-- Technical:
- Electrical Characteristics:
- Environmental and Mechanical Characteristics:
-- Mechanical:
- For sensor Best performance we recommend minimum target width of 2.5mm. However smaller dimension target may work but depends on the application and sensor precise mounting.
- This sensor only detect ferrous / magnetic material.
- Sensor performance also depends on the air gap between the sensor sensing surface and the target.
- Sensor is available with inbuilt water sealed connector.
