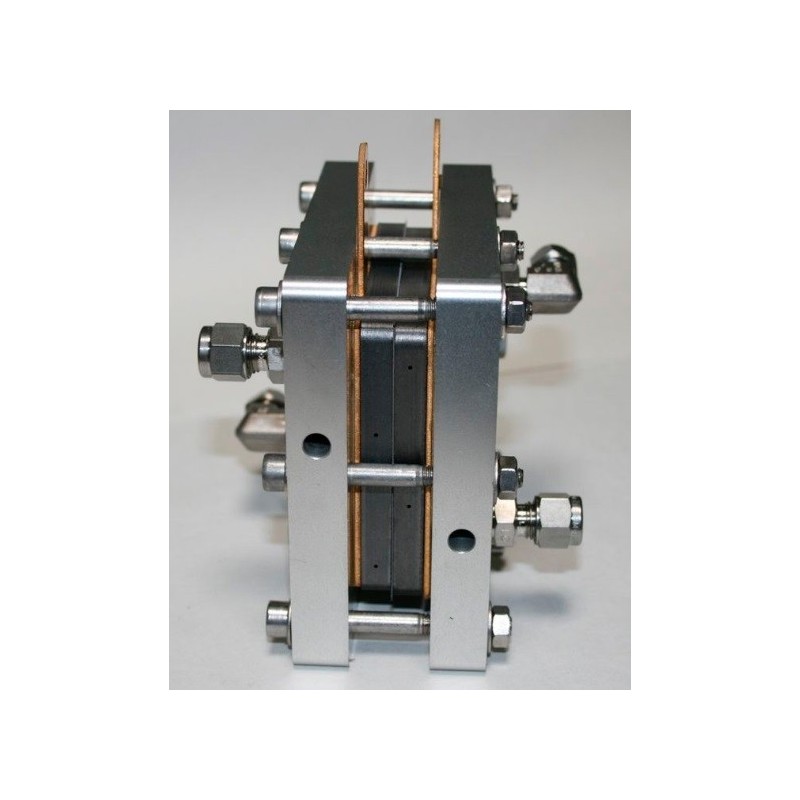

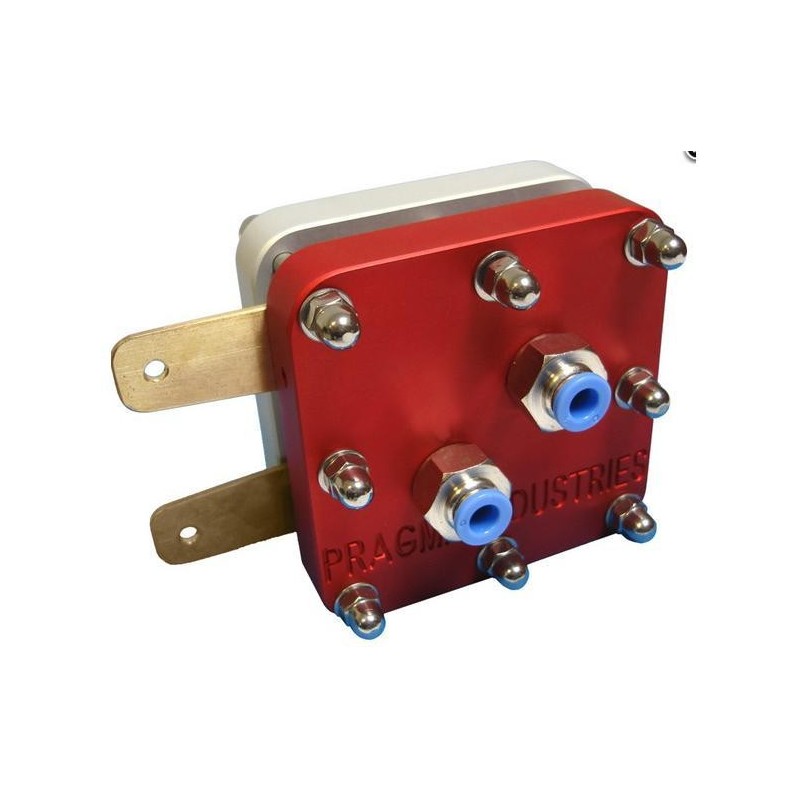

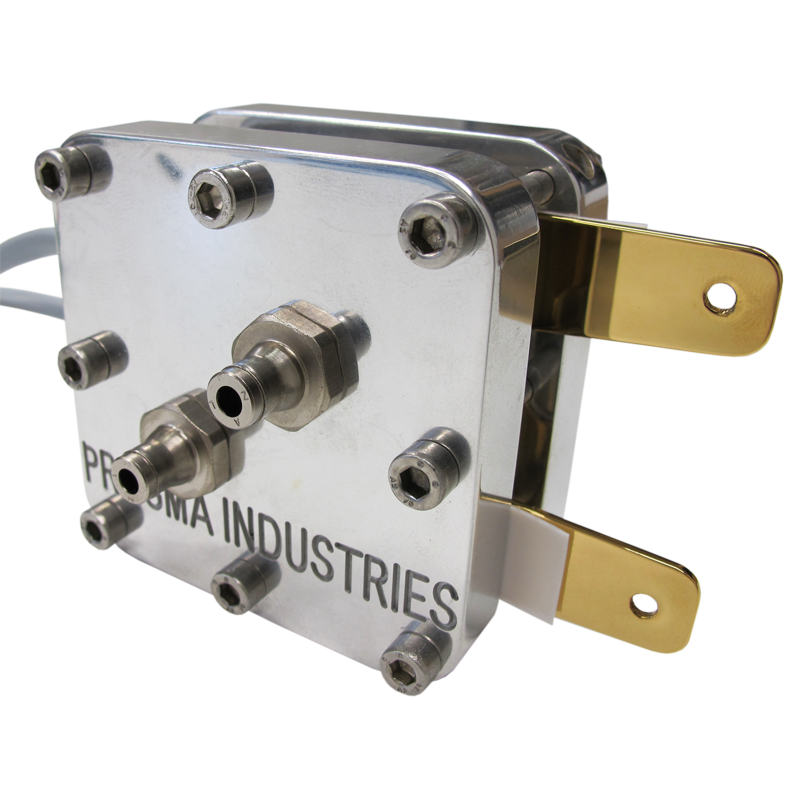

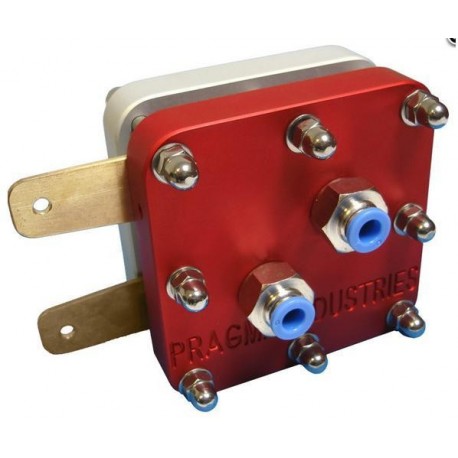

SQUAREPAK PEM Single Fuel Cell
SQUAREPAK
New
Professional single cell for designed for research and experimentation on Proton Electrolyte Membrane fuel cell.
- More info about this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
Description

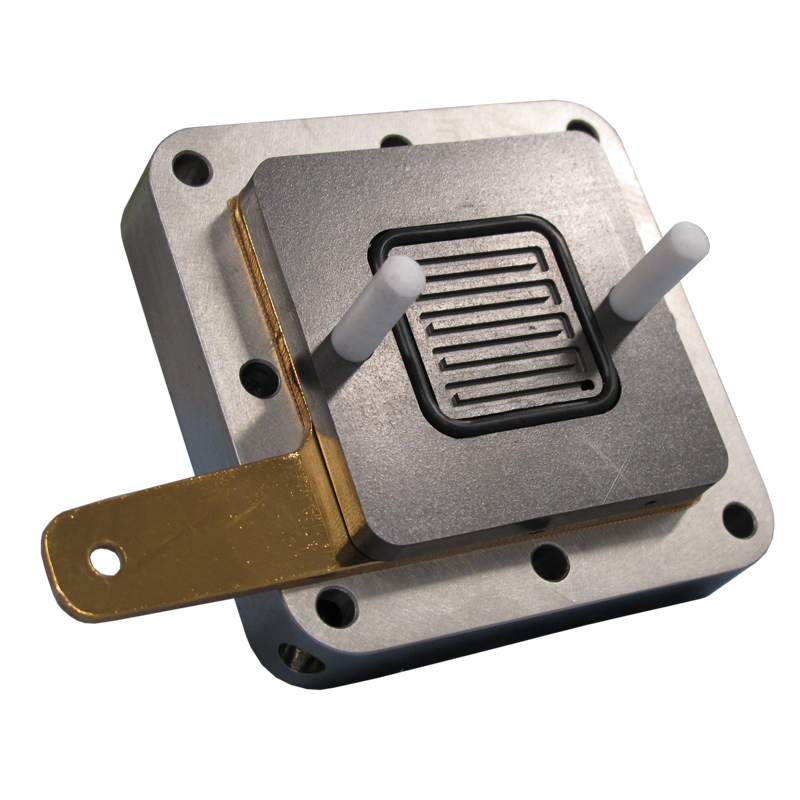

SquarePak is a professional single cell for designed for research and experimentation on Proton Electrolyte Membrane fuel cell. SquarePak cells are designed for ease of use and reliable testing results. Mounting pins inside the cells ensure perfect alignment of current collectors, monopolar plates and MEA. Monopolar plates have a 1mm holes to receive thermocouple and voltage sensor.
SquarePak is a professional single cell for designed for research and experimentation on Proton Electrolyte Membrane fuel cell. SquarePak cells are designed for ease of use and reliable testing results. Mounting pins inside the cells ensure perfect alignment of current collectors, monopolar plates and MEA. Monopolar plates have a 1mm holes to receive thermocouple and voltage sensor.
Key features
- Reliable and robust design
- Designed for easy and accurate assembly
- Low internal resistance
- Reliable and robust design
- Designed for easy and accurate assembly
- Low internal resistance

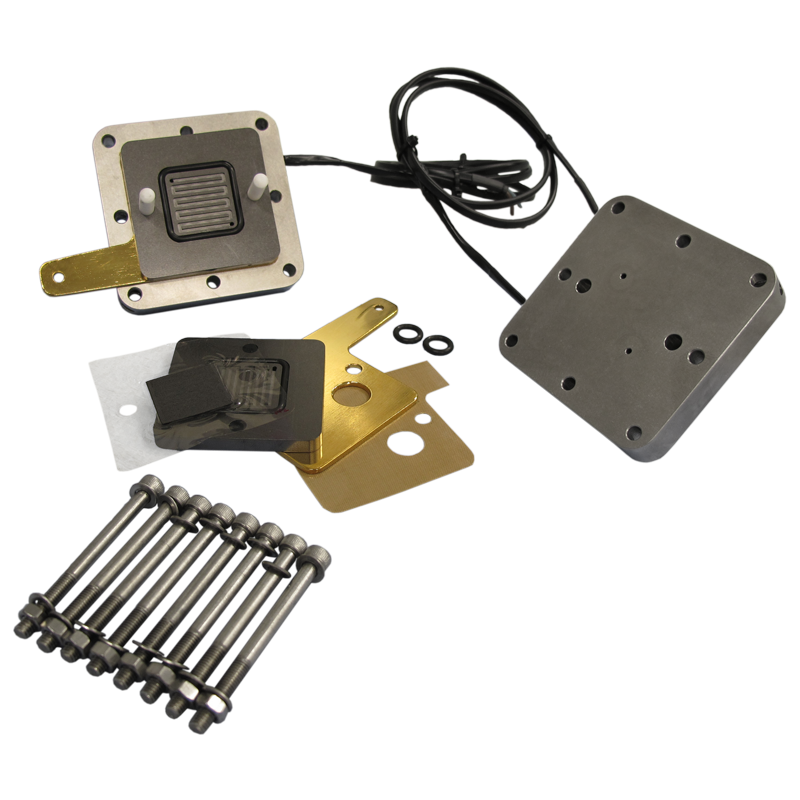

Package includes

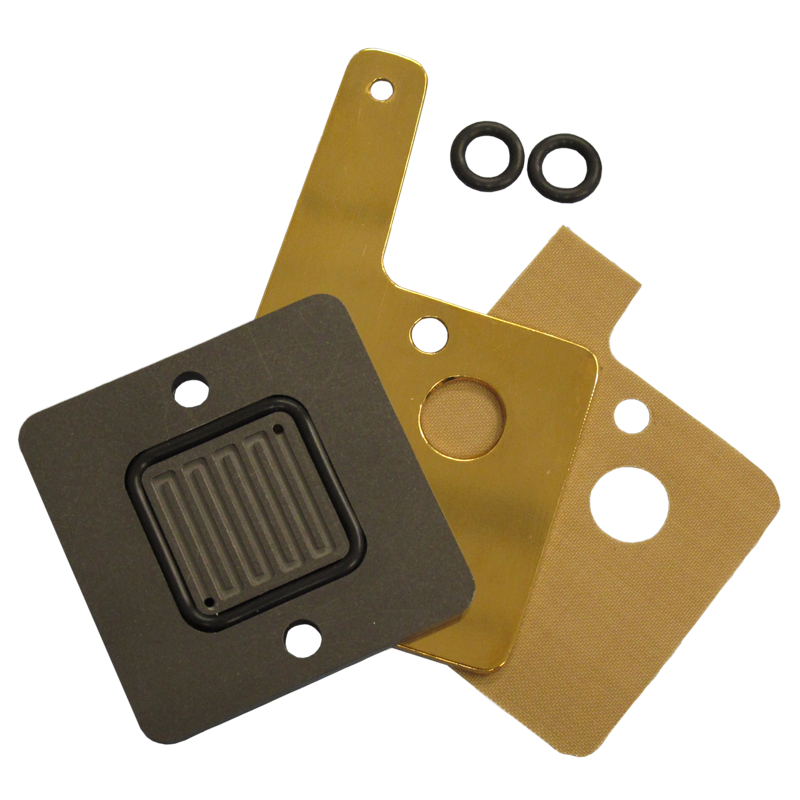

- Monopolar plates with selected flowfields design
- Gold plated current collectors
- Anodized aluminum or stainless steel compression plates with guiding pins
- Integrated heating cartridges
- Type-k thermocouple
- Voltage sense pins
- Gaskets and insulating material
- Gas connectors
- Set of nuts, rods, washers
- Monopolar plates with selected flowfields design
- Gold plated current collectors
- Anodized aluminum or stainless steel compression plates with guiding pins
- Integrated heating cartridges
- Type-k thermocouple
- Voltage sense pins
- Gaskets and insulating material
- Gas connectors
- Set of nuts, rods, washers
Technical Specifications
| Available sizes (active area) | 5, 25, 50, 100cm² |
| Operating pressure | 0-3barg |
| Reactants | H2, MeOH, KOH, reformate… O2, air |
| Operating temperature | 180°C max |
| Monopolar plates | Fuel cell grade composite graphite 5mm thickness |
| Available flow field types | Single serpentine Multiple serpentine Parallel Interdigitated Column/grid Custom |
| Current collectors | Copper with 15µm nickel + 5µm gold coating |
| Compression plates | Anodised aluminium or stainless steel |
| Heating | 24V heating cartridges inserted in compression plates |
| Gaskets | Integrated O-ring gaskets or flat gaskets-ready |
