AO-HT-1200 Medidor Digital LCD Ultrasónico de Espesor

View larger

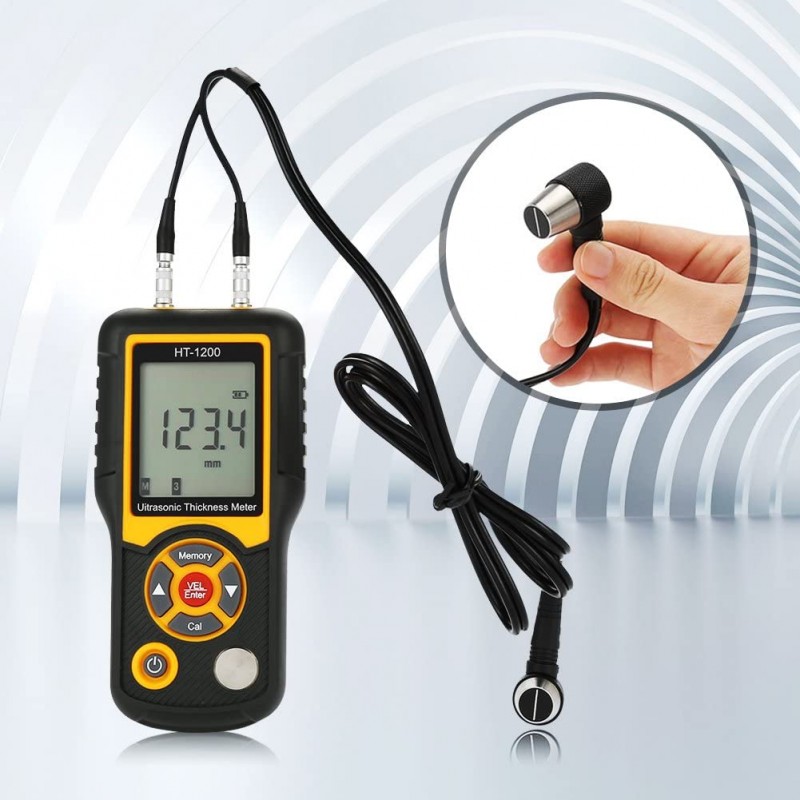

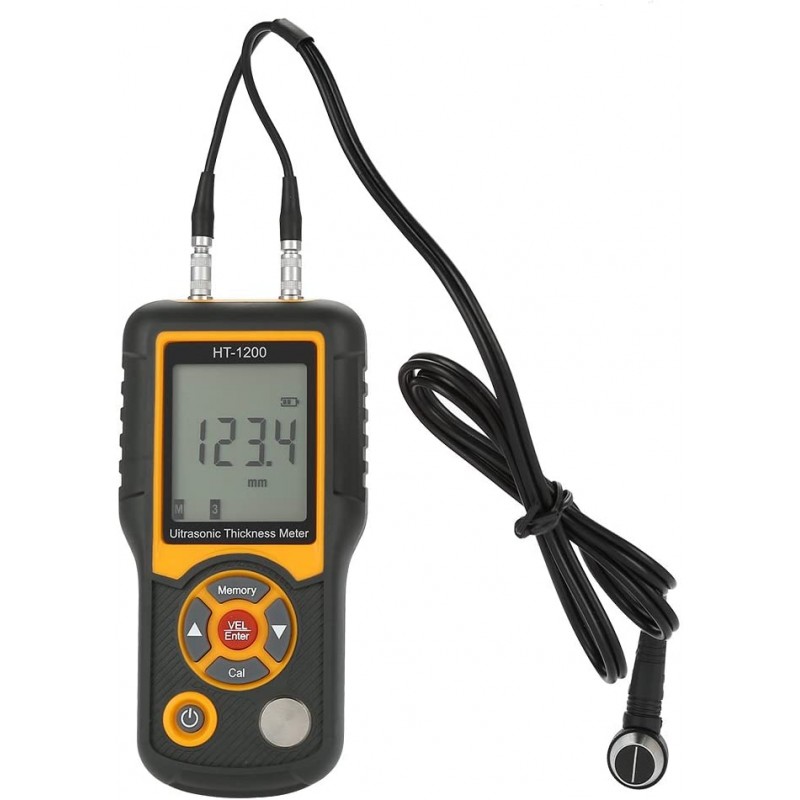

AO-HT-1200 Ultrasonic Digital Thickness Gauge with LCD

Reference AO-HT-1200

Manufacturer: HTi

Condition: New

This ultrasonic thickness gauge is a smart portable product, which adopts the principle of ultrasonic measurement and is controlled by a microprocessor.
Provides a fast and accurate measurement of the thickness of most industrial materials.
This unit is widely used to accurately measure various parts / hardware in industrial settings.
One of its main uses is to control the level of thickness decrease during the operation of various vessels under pressure.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

SPECIFICATIONS

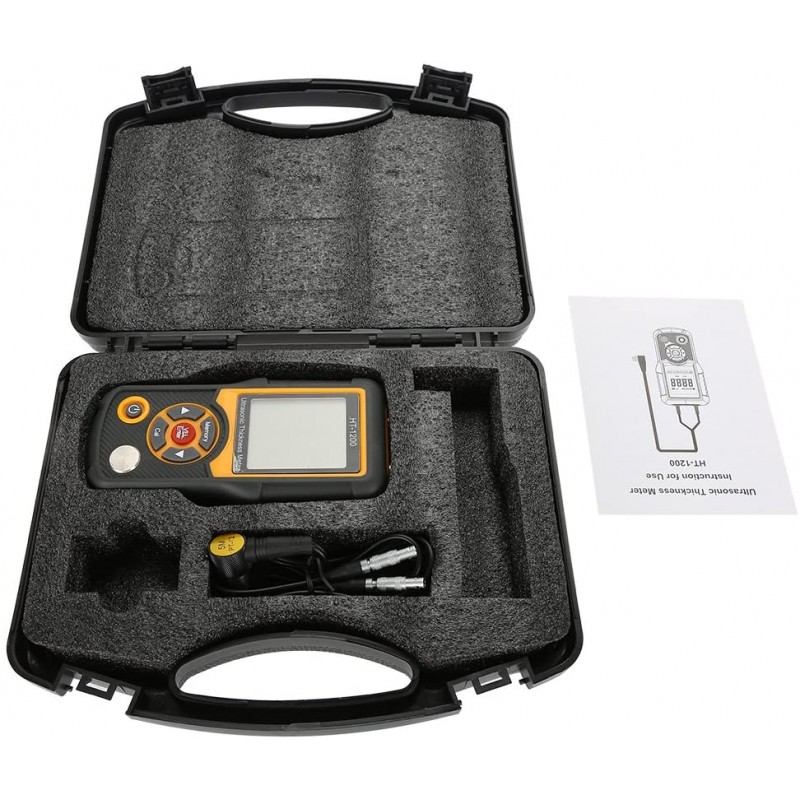

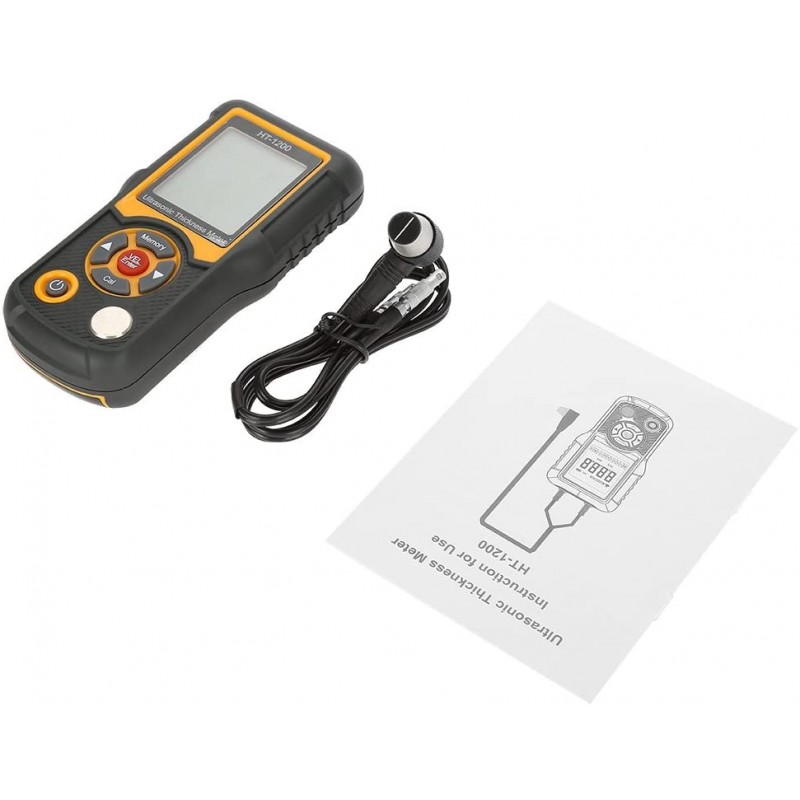

WHAT'S INCLUDED
Data sheet

The instrument measures:	Thickness

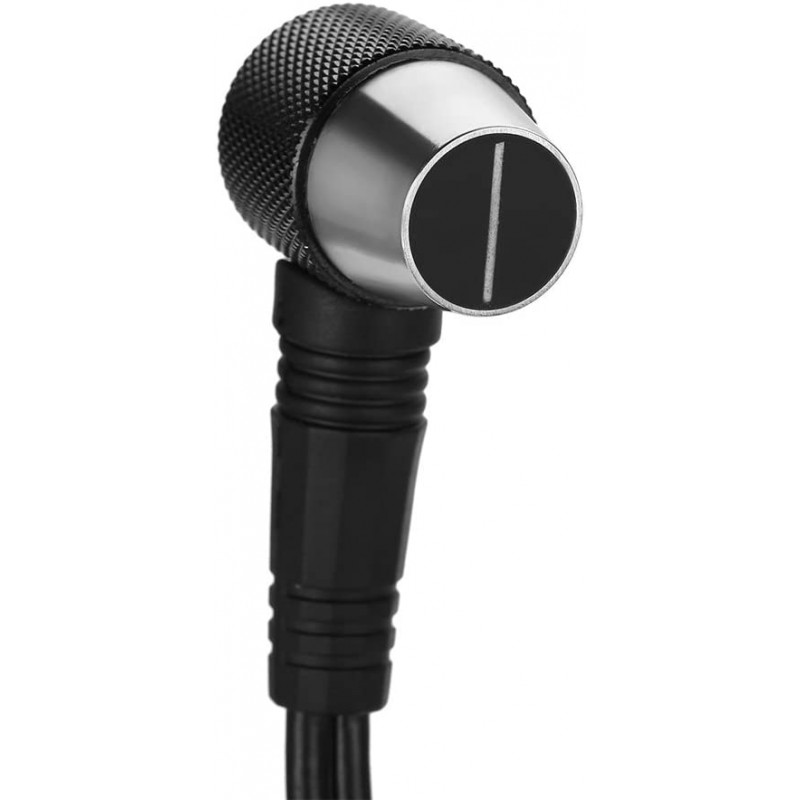

- Test sensor operating frequency: 5 MHz.

- Range: 1.2 ~ 225mm (steel).

- Resolution: 0.1mm.

- Measurement accuracy: ± (1% H + 0.1) mm, H is the thickness of the object.

- Lower limit of tube measurement: diameter 20 x 3 mm.

- Sound speed adjustment range: 1000 ~ 9999 m / s.

- Known thickness of the measured sound velocity: measuring range of 1000 ~ 9999m / s.

- When the measured thickness is <20mm, the sound measurement speed is ± 1mm / H x 100%.

- When the measured thickness of the object is> 20mm, the sound measurement speed is ± 5%.

- Power: works with 3 x 1.5V AA alkaline batteries (not included).

- Relative humidity: <90% RH.

- Storage temperature: -10 ° C to 50 ° C.

- Workpiece temperature: <60 ° C.

- Operating current: <100 mA.

- Weight: 784 g.
