AO-OM3-E Surface temperature transducer with stainless steel tip (-40 a + 400°C)

AO-Electronics

New

  • -40...+400°C
  • 16 measuring ranges per device
  • output 0-10 V, 4-20 mA
  • DIP-switch-technology
  • optional with LCD-Display
  • protection type IP65
  • stainless steel contacting block

130,00 €

Add to wishlist

The Sensor measures: Temperature of a surface
Output Signal: 0-10 V or 4-20 mA

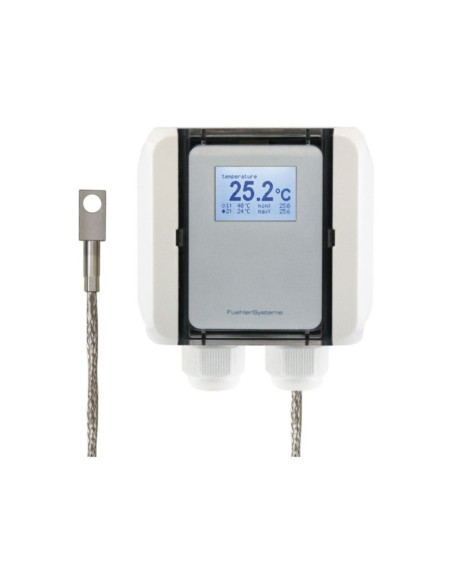

The OM3-E surface transducer with stainless steel block tip registers the temperature on surfaces and converts this measured value into a linear output signal 0-10 V respectively 4-20 mA.
As an option the temperature transducer has two potential-free changeover contacts and a backlit display. The display content can be rotated in 90° steps using a menu and the measured value, the switching threshold set, the state of the respective relay, the MIN/MAX measured values for the selected intervals (1 h / 6 h / 12 h / 24 h) etc. can be read out.
On the display version the user can, via the menu, specify an individual temperature range.
Using a screw or mounting glue the stainless steel block of the temperature sensor is quickly and securely mounted to the surface to be measured.
