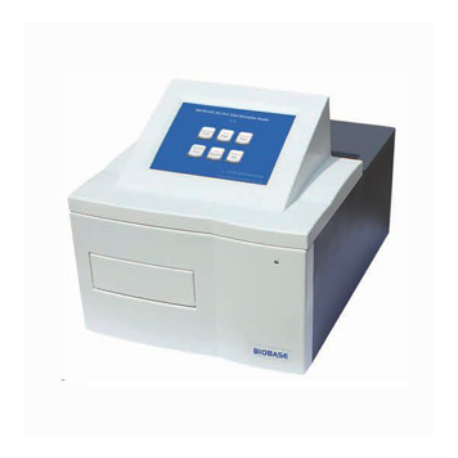

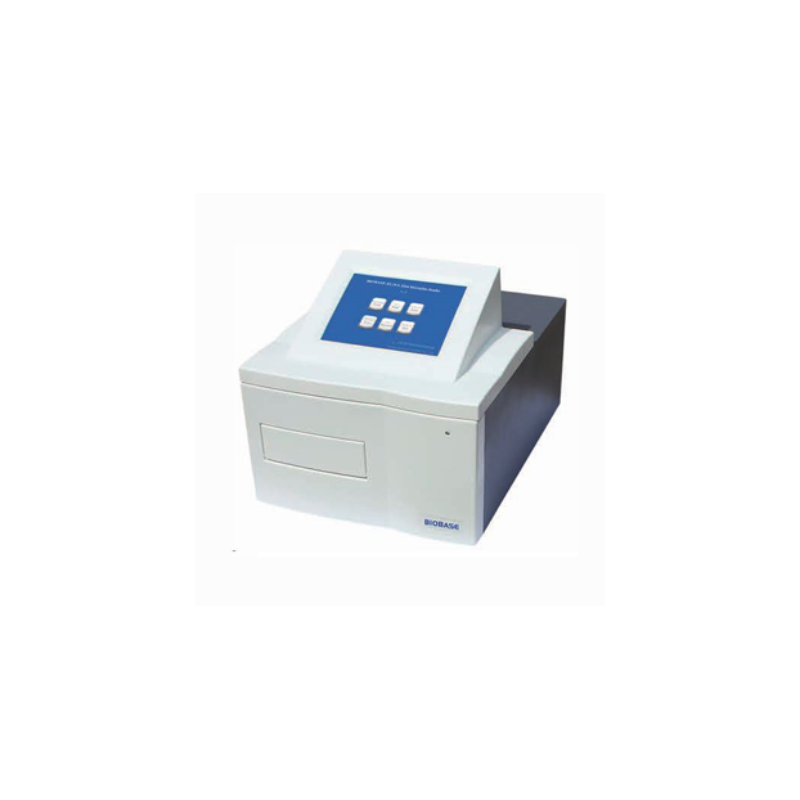

AO-EL10A
New
Equipped with LCD touch screen display, able to monitor timely and print testing results directly.
It is widely used in the fields of hospital clinical diagnosis, immune pathology testing, microbial antigen and antibody detection, parasitic diseases diagnosis, blood disease diagnosis, endocrine disorder measure, plant diseases and insect pets’ studies etc.
This product is no longer in stock
Availability date:
1. Industrial grade color LCD display, touch screen operation.
2. Eight channel optical fiber measurement system, imported detector.
3. Center positioning function, accurate and reliable.
4. Three kinds of linear vibration plate function.
5. Unique open Cut-Off judgment formula, Think what you think.
6. End point method, two point method, dynamics, single / dual wavelength test mode.
7. Configure the inhibition rate measurement module, dedicated to the field of food safety
Model |
AO-EL 10A |
Lamp |
12V/20W,Halogen tungsten Lamp |
OpticalPath |
8 channal vertical ligh path system |
Wavelength range |
400-800nm |
Filter |
Default configuration 405,450,492,630mm, Can be installed up to 10 filter |
Reading range |
0~4.000Abs |
Resolution |
0.001Abs |
Accuracy |
≤±0.01Abs |
Stability |
≤±0.003Abs |
Repeatability |
≤0.3% |
Vibration plate |
Three kind of vibration plate function,Adjustable 0~255 seconds |
Display |

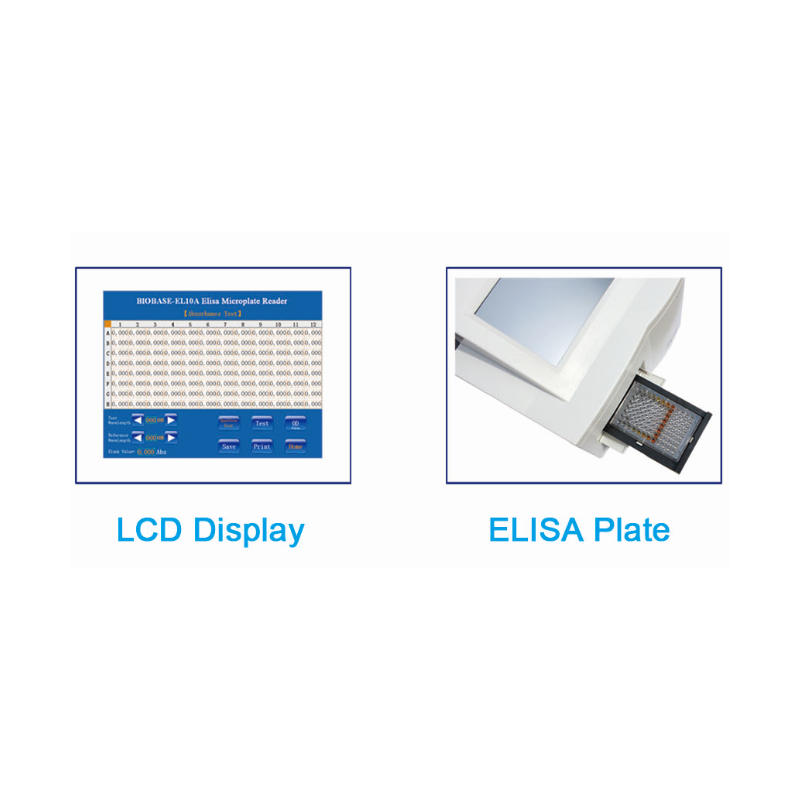

8 inch color LCD screen, display the entire ELISA Plate board information,touch screen operation |
Software |
Professional software,Can store 200 groups program,100000 sample results,more than 10 kind of courve fittling equation |
Power supply |
AC110/220V±10%,50/60Hz |
Package Size(W*D*H) |
550*395*470mm |
Gross Weight |
15.5kg |
