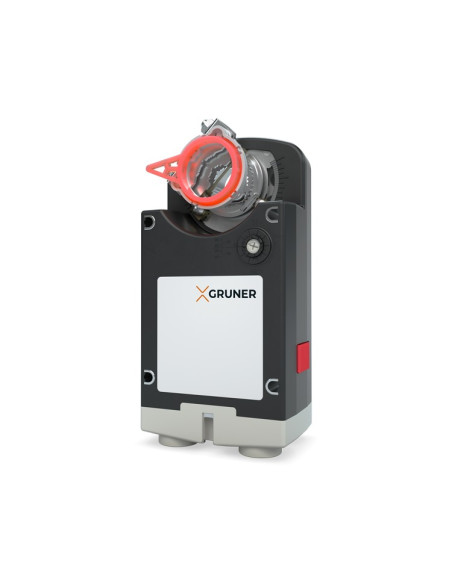

Rotary Actuator, Ref.: 363-230-20-P5

Reference Ref.: 363-230-20-P5

Manufacturer: Gruner

Condition: New

Rotary actuator for adjusting dampers in HVAC installations

With feedback potentiometer: 5 kΩ

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
MODELS
Data sheet
Download

---------- INDUSTRY ------------	Rotary Actuators

363-230-20-P5 Data Sheet Download (897.86k)

- Rotary actuator without spring return actuator
- 120...230 VAC/DC, 2/3 point
- Torque 20 Nm
- Running time 150 s/90°
- Connection with 1m cable
- Feedback signal: Potentiometer
- Assembly with mounting strip + screws
- Nominal voltage: 230 VAC/DC
- Control: 2/3 Point
- Feedback potentiometer: P5 = 5 kOhm
- Damper size: up to approx. 4 m²
- Shaft coupling: clamp square 9-18 mm / round 9-26 mm
