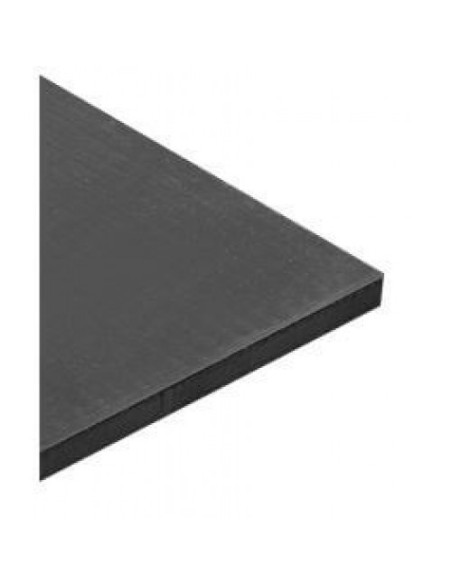

Viton Fluoroelastomer Rubber Sheet Gasket - 12" x 12" - Ref.: AO-690200
New
The AO-690200 is a thin gauge (from 0.015” to 0.25” thick) 12” by 12” chemical- resistant Viton rubber with 75A durometer for use in fuel cell test fixtures, particularly for H2/O2 (pressurized or unpressurized), H2/Air (pressurized or unpressurized), and fuel cells that are utilizing liquid electrolytes (such as sulfuric acid or potassium hydroxide, etc.) or liquid fuels (such as methanol, ethanol, formic acid, glycerol, etc.).
- More info about this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
| Type of Cells | Gaskets |
This fluoroelastomer rubber stays flexible over a wide temperature range (up to 232 °C) with excellent chemical resilience against most of the known acids/bases/solvents and its softness provides good conformability for gasketing or sealing applications where gas-tight or liquid-tight feature is required. Width and length tolerances are ± 1/4". Durometer tolerance is ± 5. This fluoroelastomer rubber sheet comes without any backing or adhesive layer.
Available Size: 12 x 12"
Available Thickness: 0.015”, 0.031”, 0.062”, 0.125”, and 0.250”
Technical Specifications:
- Durameter: 75A (hard) ± 5
- Clarity: None
- Color: Black
- Temperature range: -20°F to +450°F
- Tensile strength: 700 psi
- Width: 12 inch
- Length: 12 inch
