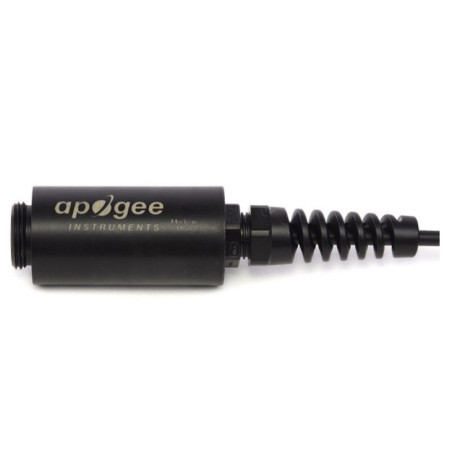

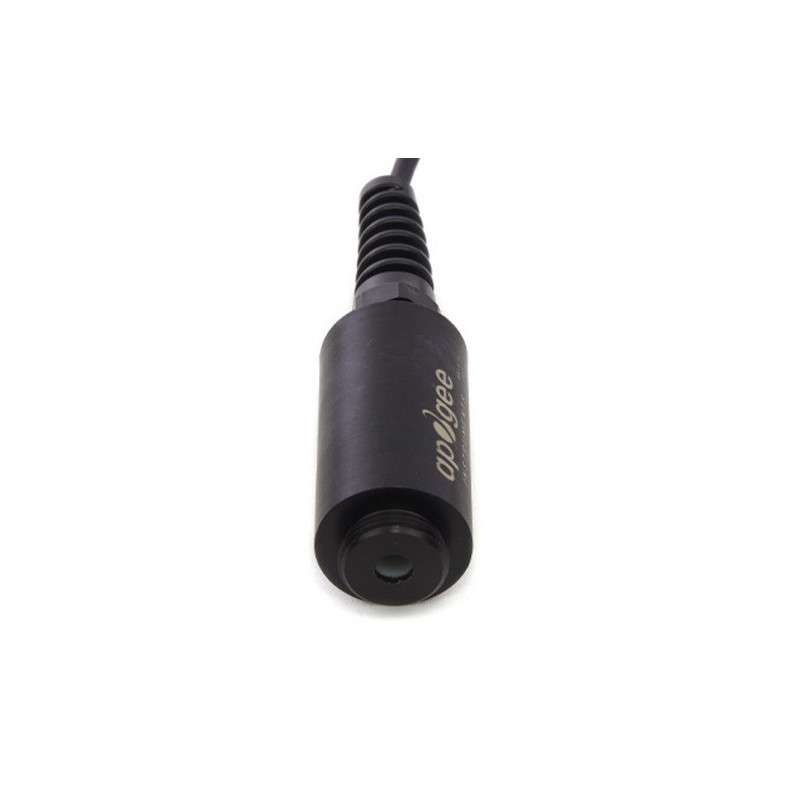

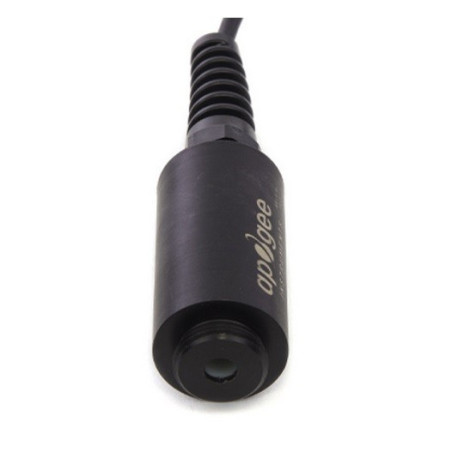

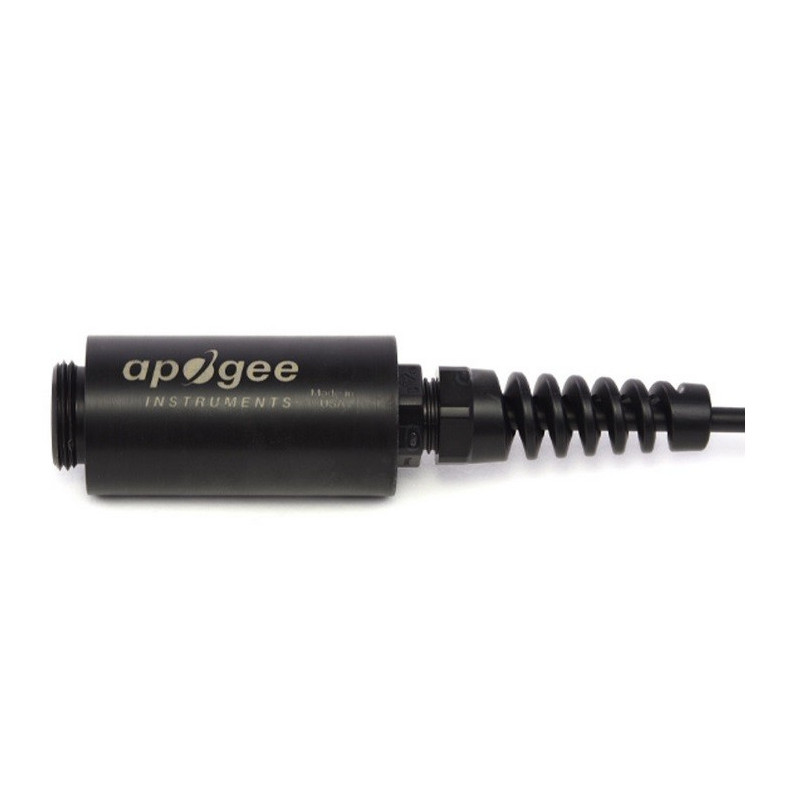

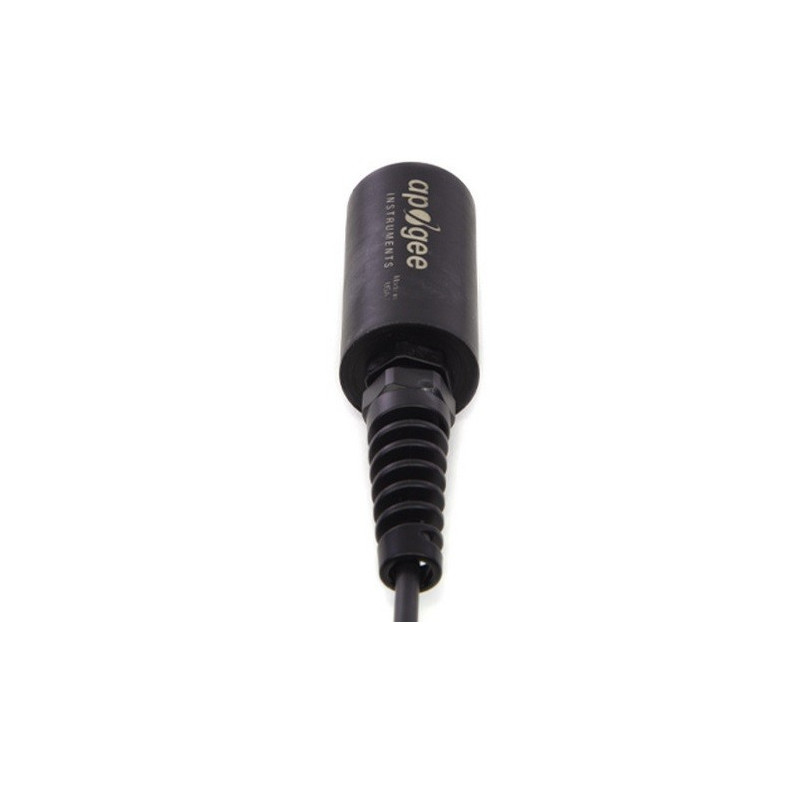

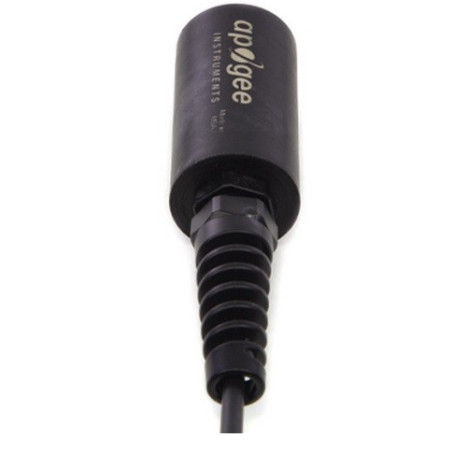

SO-210 Sensor de Oxígeno de Referencia y Respuesta Rápida con Termistor View larger

SO-210 Sensor de Oxígeno de Referencia y Respuesta Rápida con Termistor

SO-210

Apogee Instruments

New

¡¡ ENTREGA IMEDIATA !!

COMPRAR QUANTIDADE OU QUISER ALGUNS CONSELHOS ÚTEIS?
Ligue para +34 916292106 ou preencha nosso formulário
 More info about this product

475,00 €

O Sensor mede: O2 + Temperatura
Comprimento do Cabo: 5 metros
Energía: 12Vdc calor, 2.5Vdc termistor
Sensor para uso em: Ao ar livre

Sensor que mide la cantidad de Gas Oxígeno (O2) en el Aire o suelo.
Sensor de tipo célula galvánica.
Incluye Respuesta rápida y 5 metros de cable. (Tipo Termistor)

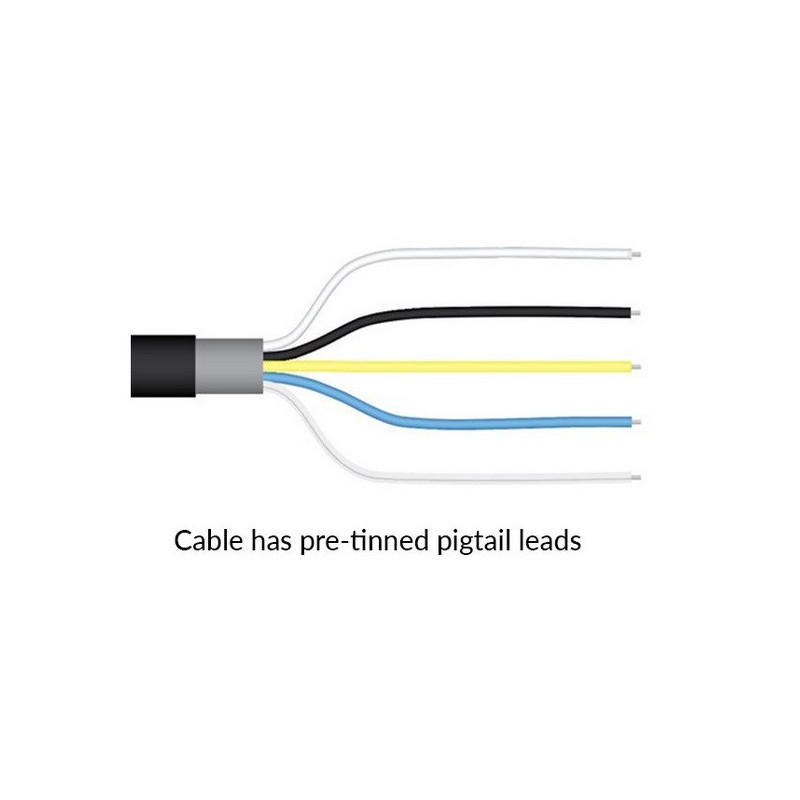

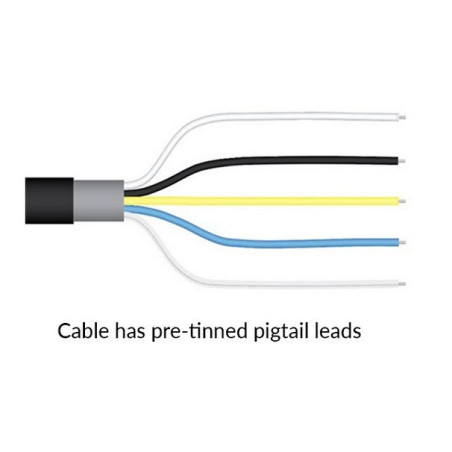

Apogee oxygen sensors are designed to measure 0 – 100% oxygen and come with tinned leads to connect to a datalogger. The SO-210 is designed for use in lab applications with a faster response. It comes with a thermistor temperature sensor to correct for temperature changes. In applications with high humidity, condensation can occur on the Teflon membrane, blocking the diffusion path of the sensor. To prevent this, a resistive heater is included to raise the temperature of the membrane approximately two degrees above ambient temperature. Select a diffusion or flow-through head if needed depending on your application. The sensor is calibrated to ambient air making it very easy to calibrate. An aluminum housing that is filled with epoxy allows the sensor to withstand harsh conditions.

OxygenSensor_SO_210-Acces

Accesorios para Sensor de Oxígeno SO-110, SO-120, SO-210, SO-220.

Imágen son Cabezales Opcionales de Difusión y Paso de Gas (vendidas aparte).

Rango de Medida: 0 to 100 % O2

Sensitivity: 2.6 and 0.6 mV per % O2 for SO-100 and SO-200 series, respectively

Output at 0 % O<sub>2</sub>: 6 % and 3 % of output at 20.95 % O2 for SO-100 and SO-200 series, respectively

Measurement Repeatability: < 0.1 % of mV output at 20.95 % O2
Non-linearity: < 1 %
Non-stability (Signal Decrease): 1 and 0.8 mV per year for SO-100 and SO-200 series, respectively

Oxygen Consumption Rate: 2.2 μmol O2 per day at 20.95 % O2 and 23 C

Response Time: 60 and 14 s for SO-100 and SO-200 series, respectively

Operating Environment: -20 to 60 C, 0 to 100 % relative humidity (non-condensing), 60 to 140 kPa

Input Voltage Requirement: 12 V DC continuous (for heater); 2.5 V DC excitation (for thermistor)
Heater Current Drain: 6.2 mA
Thermistor Current Drain: 0.1 mA DC at 70 C (maximum, assuming input excitation of 2.5 V DC)

Dimensiones: 3.2 cm diameter, 6.8 cm length
Peso: 175 g (with 5 m of lead wire)

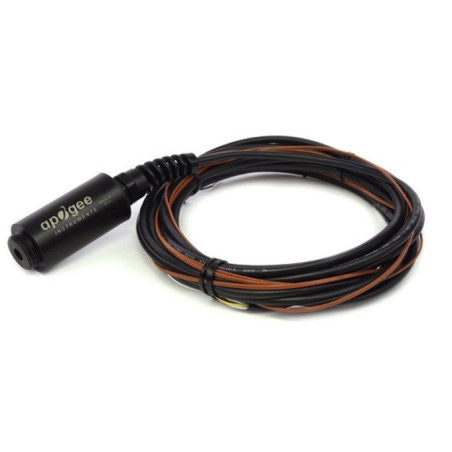

Cable: 5 m of six conductor, shielded, twisted-pair wire

Amplificador USEA con Ganancia x100 para una salida de voltaje del SO-XXX en voltios hacia registradores.
