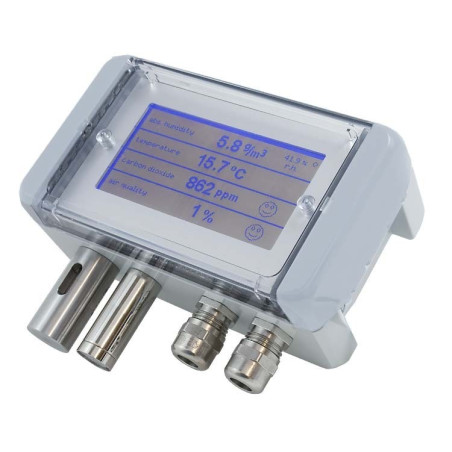

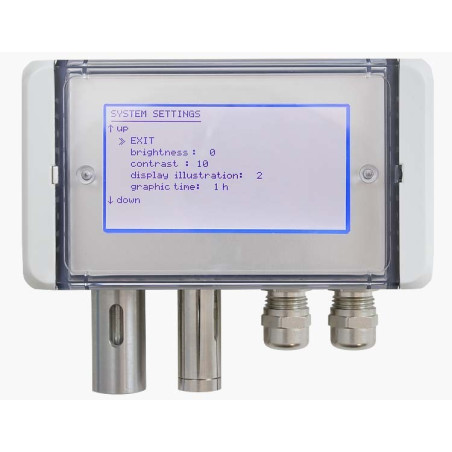

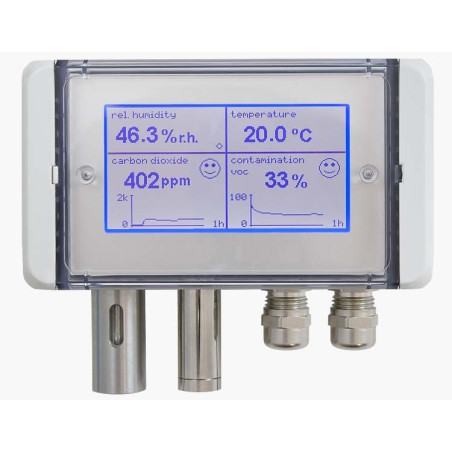

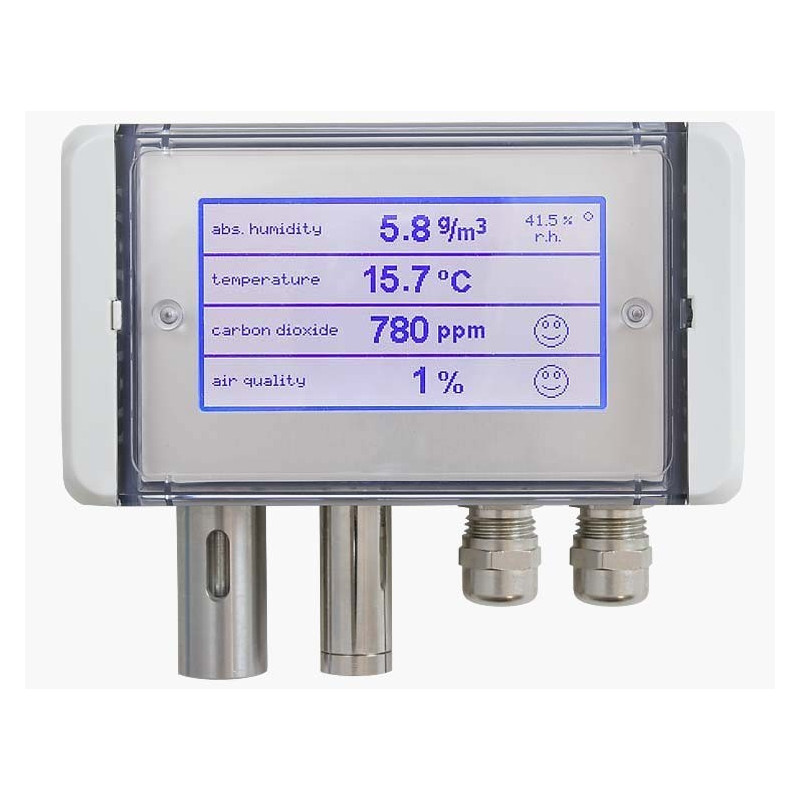

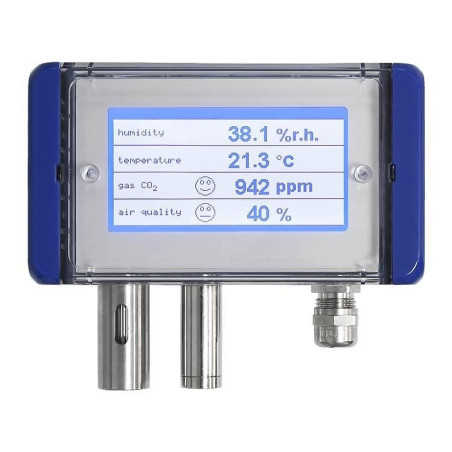

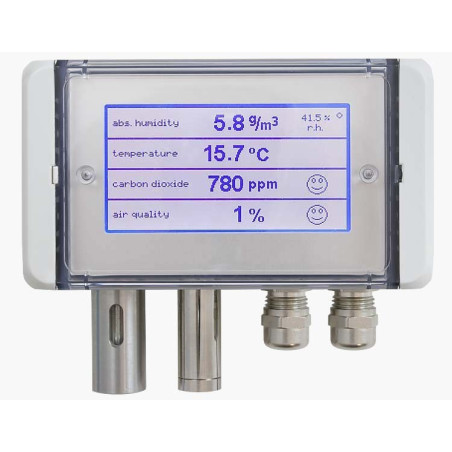

AO-CO2-M/A Sensor de Calidad de Aire de Múltiples Funciones (CO2, VOC, etc.), con display

AO-Electronics

New

Multifuncional sensor de qualidade do ar para CO2 mistura gasosa de CO2, pressão, humidade e temperatura.

  • 0-2000/5000/10000 ppm
  • 0-100% VOC
  • % r.H., °C
  • mbar
  • 0-10 V, 4-20 mA, rela

870,00 €

Imposto Excluido

Tipo de Instrumento Plataforma multi-sensor
O instrumento mede: Qualidade do Ar - VOC

  • CO2: 0-2000 / 5000/10000 ppm
  • VOC: 0-100%
  • Humidade Relativa: 0-100%
  • Temperatura: -30...+70°C/-20...+80°C/0...+50°C/0... +100°C
  • Pressão de ar: 750 ... 1150 mbar
  • Tipo de Saída (Selecionar): 0-10 V ou 4-20 mA
  • Saída de relé para alarme
  • Tipo de proteção IP65

O sensor de qualidade do ar multifuncional AO-CO2-M / A mede a concentração de CO2 no ar ambiente na faixa de 0-10000 ppm (NDIR), VOC de gás misturado na faixa de 0 ... 100% com base no gás de calibração , A temperatura e, opcionalmente, a humidade relativa, a humidade absoluta, a razão de mistura ou a temperatura do ponto de orvalho do ar ambiente.
O transdutor converte os respectivos resultados de medição para processamento posterior em um sinal de saída linear 0-10 V ou 4-20 mA. Além disso, o dispositivo tem um contato de troca livre de potencial. Para que valor medido esta saída é usada, pode ser ajustada individualmente pela tecnologia inovadora do interruptor DIP.
A concentração de CO2 é medida por um sensor infravermelho não dispersivo (NDIR). Existem 3 diferentes escalas de CO2 (0-2000 ppm, 0-5000 ppm, 0-10000 ppm) para escolher, que podem ser trocadas conforme exigido pela inovadora tecnologia de chave DIP.
A umidade relativa e a temperatura são medidas por um sensor capacitivo de umidade. Existem 4 faixas de temperatura diferentes (-30 ... + 70 ° C, -20 ... + 80 ° C, 0 ... + 50 ° C, 0 ... + 100 ° C) assim como 4 diferentes Categoria de medição de humidade (% rH, g / m³, g / kg, TP ° C), que pode ser comutada de acordo com a tecnologia inovadora de comutadores DIP.
O ajuste do ponto zero de CO2 e VOC em resposta às condições ambientais atuais pode ser iniciado manualmente no dispositivo a qualquer momento. O sensor de qualidade do ar multifuncional inicia em intervalos regulares um procedimento de recalibração automática, pelo qual é assegurada uma medição estável a longo prazo de CO2 e VOC..


Measurement range CO2 0-10000 ppm, scales 0-2000/5000/10000 ppm by DIP-switch selectable
Measurement range VOC 0...100% (good / bad air quality, referring to the calibration gas)
Measurement range r.H. 0...100% r.H.
Measurement range abs. humidity 0...50 g/m³, 0...80 g/m³ (calculated) selectable by DIP switch
Measurement range air fuel ratio 0...50 g/kg, 0...80 g/kg (calculated) selectable by DIP switch
Measurement range dew point -20 up to +50°C DP, -20 up to +80°C DP, 0 up to +50°C DP (calculated) selectable by DIP switch
Measurement range temp. -30...+70°C, -20...+80°C, 0...+50°C, 0...+100°C selectable by DIP switch
Accuracy CO2: 0-2000 ppm: ±50 ppm + 2% f. mv, 0-5000 ppm: ±50 ppm + 3% f. mv, 0-10000 ppm: ±100 ppm + 5% f. mv; VOC: ±15% FS; Humidity: ±3% r.H. (30%...70% r.H., else ±5% r.H. at 20°C); Temperature: 0,5 K (at 15...35°C, else ±1 K); all specifications at 20°C, 1013 mbar, auto-calibration ON;
Temperature dependency CO2: ±5 ppm / K, Humidity: ±0,04% r.H. / K; Temperature: ±0,1°C / 10 K
Pressure dependency CO2: 1,6% f. mv/kPa (compensated optional)
Response time (t90) < 5 min
Long term stability ±1% FS/year
Sensor CO2: Non-dispersiver Infrarot Sensor (NDIR); VOC: metal oxide sensor; Humidity/Temperature: capacitive humidity sensor
Sensor protection sinter filter
Running-in time 10 min
Supply voltage 24 V AC/DC (±5%)
Current consumption Ø 100 mA
Analogue output 0-10 V 3-wire connection
Alarm output potential-free change-over contact max. 48 V (1 A), threshold can be defined by 270° potentiometer
Electrical connection screw terminals max. 1,5 mm²
Housing polyamide with snap closing screws, colour white like RAL 9010
Cable gland PG11 high-strength cable gland with strain relief
Dimensions Housing: L 150 x W 80 x H 62 mm
Protection type IP65
Protection class III
Working range r.H. 0...98% r.H. in contaminant-free, non-condensing air
Working temperature 0...+50°C
Storage temperature -20...+50°C
Initial operation After switch-on of the device follows a self-test and the tempering, which takes ca. 10 minutes depending on the environmental conditions. At this time the analogue output drifts from the actual measurement value.
Automatic calibration To ensure an excellent long-term stability, in the interval of ca. 7 days (CO2) respectively ca. 20 days (VOC) starts an automatic recalibration. Through this automatic calibration possible drifts are compensated. This feature can be disabled on the device by DIP switch.
Manual calibration The manual calibration of the output signal to 400 ppm (CO2 zero point) respectively 1 V (VOC zero point) will be started by pushing the button on the circuit board (push ca. 5 s until LED is blinking). Before this it is to ensure a non-stop operating of min. 10 minutes on fresh air. After successful calibration the LED will be deactivated.
Installation screw fastening
Approvals CE-conformity, EAC, RoHS
