AP-2000-Pack Sondas Multiparamétricas Portáteis Avançadas para Qualidade da Água

Aquaread

New

Sondas Multiparamétricas Portáteis Avançadas para Qualidade da Água

El Pack incorpora el GPS AQUAMETER, un cable rígido de 3m con conectores en ambos extremos y los diversos accesorios suministrados en un robusto maletín.

O Sensor mede: Caudal de Água
Comprimento do Cabo: 3m
Sensor para uso em: Qualidade da água

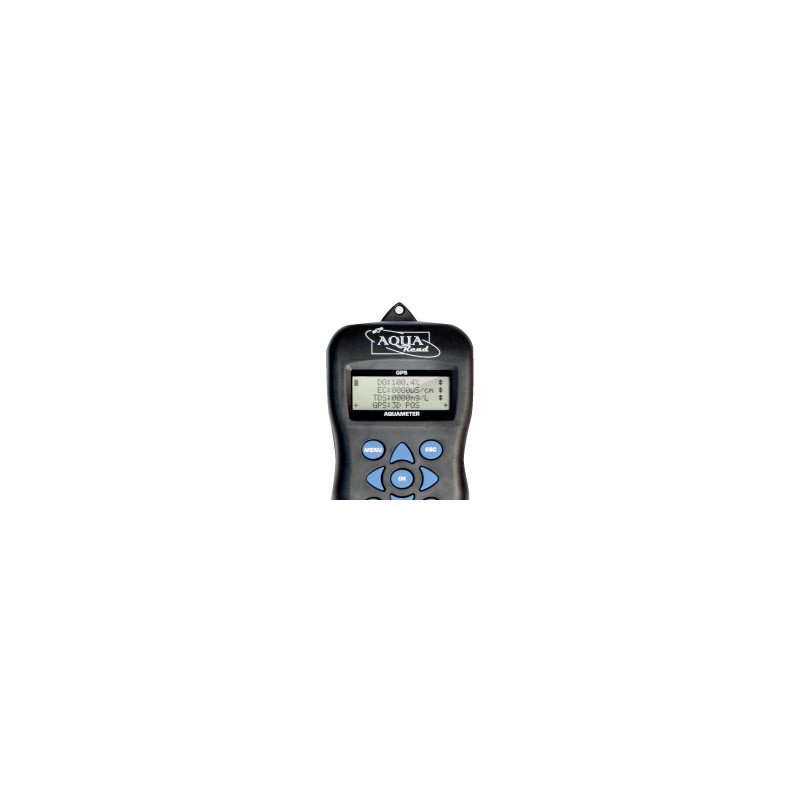

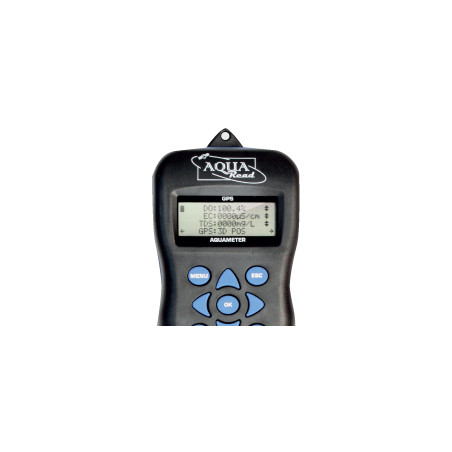

El Pack incorpora el GPS AQUAMETER

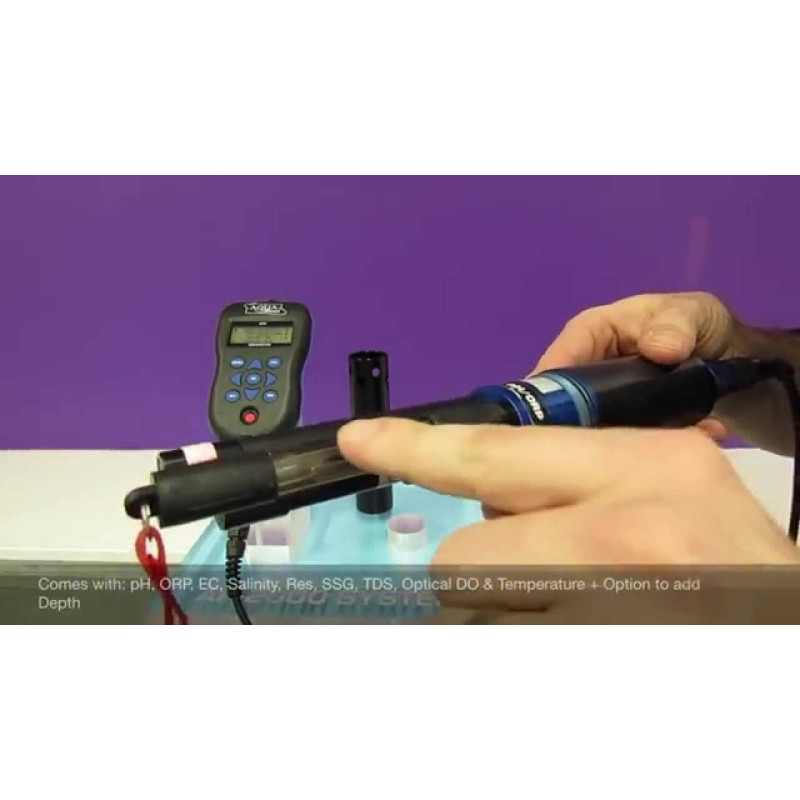

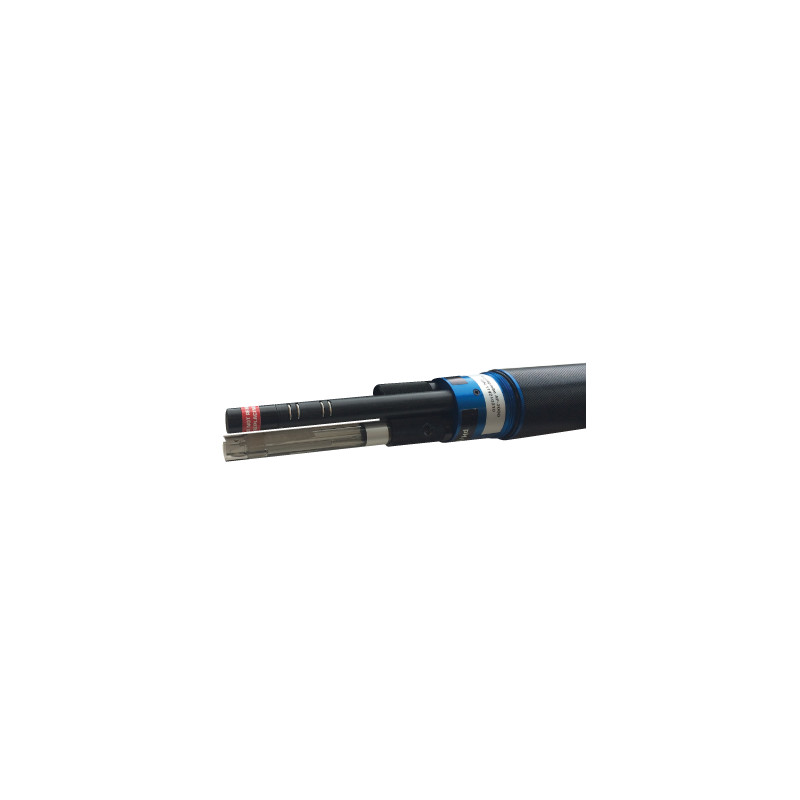

El AP-2000-Package contiene sondas multiparamétricas portátiles avanzadas para calidad de agua. Viene con una serie de sensores estándar incluidos y además ofrece algunas opciones de personalización que permiten añadirle más sensores. Todas las sondas se construyen a partir de aluminio de grado marino anodizado, por lo que son adecuadas para su uso tanto en agua dulce como salada.

Parámetros estándar de la AP-2000:

  • Oxígeno disuelto óptico
  • Conductividad específica
  • Conductividad absoluta
  • pH
  • ORP (Potencial de oxidación-reducción – REDOX)
  • TDS (Sólidos disueltos totales)
  • Resistividad
  • Salinidad
  • SSG (Gravedad específica del agua marina)
  • Temperatura

Opciones de personalización

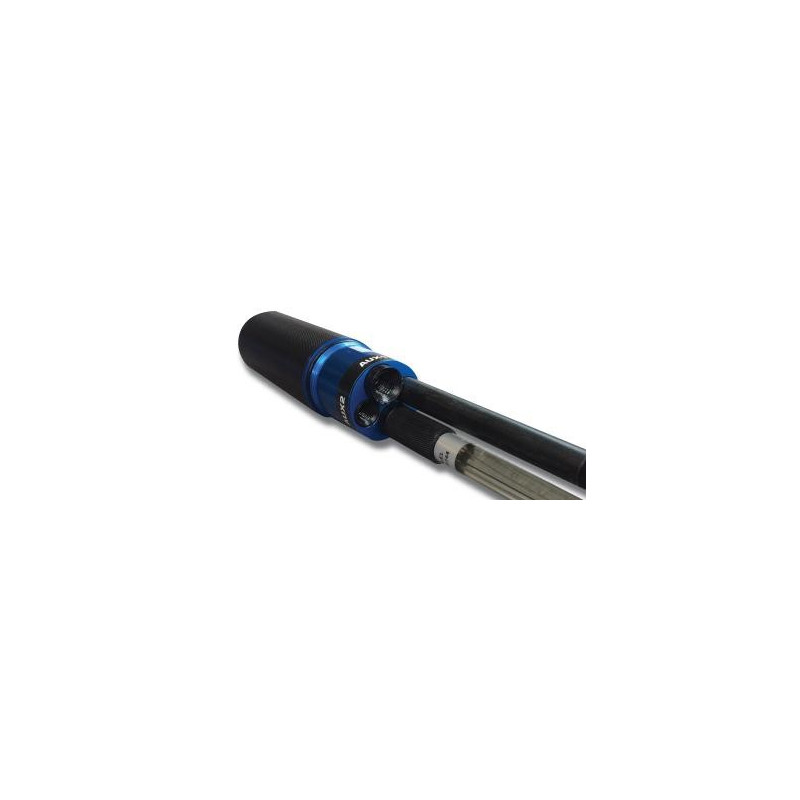

La AP-2000 tiene 2 puertos auxiliares que le permiten añadir más sensores. Se puede usar un puerto para colocar un sensor de Iones Selectivos (ISE) y el otro puerto para un sensor óptico, o bien 2 sensores ISE.

Las sondas se suministran con tapones de cierre en los puertos auxiliares.

Sensor de profundidad

La versión AP-2000-D cuenta con un sensor de profundidad capaz de medir con una precisión de 0,5% FS.

Cable

Puede utilizar con una variedad de longitudes de cable con conectores AquaConn. Los cables disponibles son de 3, 10, 20 y 30m.

AP-2000-Spec

Advanced Optical DO sensor

The optical sensor works on the principle of Dynamic Luminescence Quenching. A gas-permeable material known as a luminophore is excited with short bursts of blue light, which causes molecules in the luminophore to emit red photons.

By measuring the delay of the returned red photons with respect to the blue excitation, the level of dissolved oxygen present can be determined.
The optical method has various advantages over the historical galvanic method for measuring dissolved oxygen.

optical DO sensor

The bright red and blue LED’s of the optical DO sensor

The most important being that as no oxygen is consumed across a membrane, the sensor does not require a flow of liquid passing over it to achieve a stable reading. Other advantages include in frequent calibrations (every 3-6 months), and replaceable caps that last over 2 years.

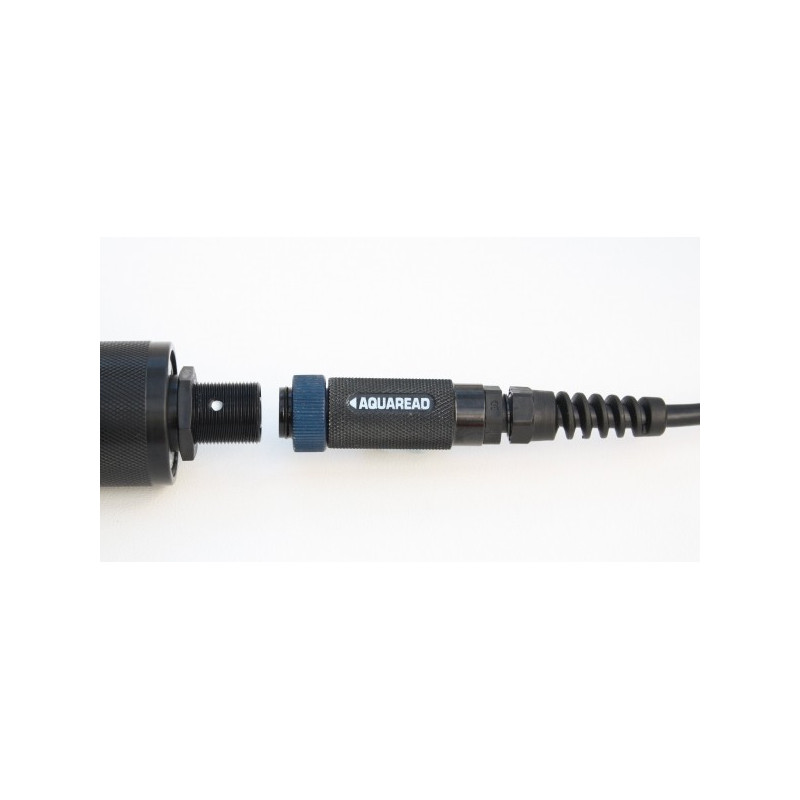

Rugged Connection

All Aquaprobes feature the new AquaConn fully metal connectors. The AP-2000 features the all-metal AquaConn connectors.

These high specification connectors feature large metallic key for a rigid fit, recessed pins for extra protection during pairing, guide markers on each part of the connector to allow you to instantly push the pair together in the correct alignment.



Rugged AquaConn connector system


Standard Parameters

Dissolved Oxygen Range 0 – 500.0% / 0 – 50.00 mg/L
Resolution 0.1% / 0.01mg/L
Accuracy 0 – 200%: ± 1% of reading. 200% – 500%: ± 10%
Conductivity (EC) Range 0 – 200 mS/cm (0 – 200,000 µS/cm)
Resolution 3 Auto-range scales: 0 – 9999 µS/cm, 10.00 – 99.99 mS/cm, 100.0 – 200.0mS/cm
Accuracy ± 1% of reading or ± 1µS/cm if greater
TDS* Range 0 – 100,000 mg/L (ppm)
Resolution 2 Auto-range scales: 0 – 9999mg/L, 10.00 – 100.00g/L
Accuracy ± 1% of reading or ± 1mg/L if greater
Resistivity* Range 5 Ωcm – 1 MΩcm
Resolution 2 Auto-range scales: 5 – 9999 Ωcm, 10.0 – 1000.0 KΩcm
Accuracy ± 1% of reading or ± 1 Ωcm if greater
Salinity* Range 0 – 70 PSU / 0 – 70.00 ppt (g/Kg)
Resolution 0.01 PSU / 0.01 ppt
Accuracy ± 1% of reading or ± 0.1 unit if greater
Seawater Specific Gravity* Range 0 – 50 st
Resolution 0.1 st
Accuracy ± 1.0 st
pH Range 0 – 14 pH / ± 625mV
Resolution 0.01 pH / ± 0.1mV
Accuracy ± 0.01 pH / ± 5mV
ORP Range ± 2000mV
Resolution 0.1mV
Accuracy ± 5mV
Temperature Range -5°C – +50°C (23°F – 122°F)
Resolution 0.01° C/F
Accuracy ± 0.5° C

Optional Parameters

Depth ** Range 0 – 100m (0 – 330F)
Resolution 0.01m/F
Accuracy ± 1%
**Option on the AP-2000. Comes as standard on the AP-7000

Ion Specific Electrodes***

Ammonium Range 0 – 9,000mg/L (ppm)
Resolution 2 Auto-range scales: 0.00 – 99.99 mg/L, 100.0 – 9,000 mg/L
Accuracy ± 10% of reading
Ammonia† Range 0 – 9,000mg/L (ppm)
Resolution 2 Auto-range scales: 0.00 – 99.99 mg/L, 100.0 – 9,000 mg/L
Accuracy ± 10% of reading
Chloride Range 0 – 20,000mg/L (ppm)
Resolution 2 Auto-range scales: 0.00 – 99.99 mg/L, 100.0 – 20,000 mg/L
Accuracy ± 10% of reading
Flouride Range 0 – 1,000mg/L (ppm)
Resolution 2 Auto-range scales: 0.00 – 99.99 mg/L, 100.0 – 999.9 mg/L
Accuracy ± 10% of reading
Nitrate Range 0 – 30,000mg/L (ppm)
Resolution 2 Auto-range scales: 0.00 – 99.99 mg/L, 100.0 – 30,000 mg/L
Accuracy ± 10% of reading
Calcium Range 0 – 2,000mg/L (ppm)
Resolution 2 Auto-range scales: 0.00 – 99.99 mg/L, 100.0 – 2,000 mg/L
Accuracy ± 10% of reading
† Ammonium electrode required. Readings calculated from Ammonium, pH and temperature electrode values.

Optical Electrodes***

Turbidity Range 0 – 3000 NTU
Resolution 2 Auto-range scales: 0.0 99.9 NTU, 100 – 3000 NTU
Repeatability ± 2% of reading
Chlorophyll Range 0 – 500 µg/L (ppb)
Resolution 0.01 µg/L
Repeatability ± 2% of reading
Phycocyanin (Freshwater Blue-Green Algae) Range 0 – 300,000 cells/mL
Resolution 1 cell/mL
Repeatability ± 2% of reading
Phycoerythrin (Marine Blue-Green Algae) Range 0 – 200,000 cells/mL
Resolution 1 cell/mL
Repeatability ± 2% of reading
Rhodamine WT Dye Range 0 – 500 µg/L (ppb)
Resolution 0.01 µg/L
Repeatability ± 5% of reading
Fluorescein Dye Range 0 – 500 µg/L (ppb)
Resolution 0.01 µg/L
Repeatability ± 5% of reading
Refined Oil Range 0 – 10,000 µg/L (ppb)
Resolution 0.1 µg/L
Repeatability ± 2% of reading
CDOM/FDOM Range 0 – 2,000mg/L (ppm)
Resolution 2 Auto-range scales:
0.00 – 99.99 mg/L, 100.0 – 2,000mg/L
Repeatability ± 10% of reading or 2ppm (whichever is greater)

***Note

In addition to the standard parameters supplied with the base Aquaprobe, the AP-2000 has 1 ISE port and 1 optical port, the AP-5000 has 4 ports that can take any combination of ISE or optical sensors and the AP-7000 has 6 ports that can also take any combination of ISE or optical sensors.

The accuracy figures quoted above represent the equipment’s capability at the calibration points at 25°C. These figures do not take into account errors introduced by variations in the accuracy of calibration solutions and errors beyond the control of the manufacturer that may be introduced by environmental conditions in the field.
