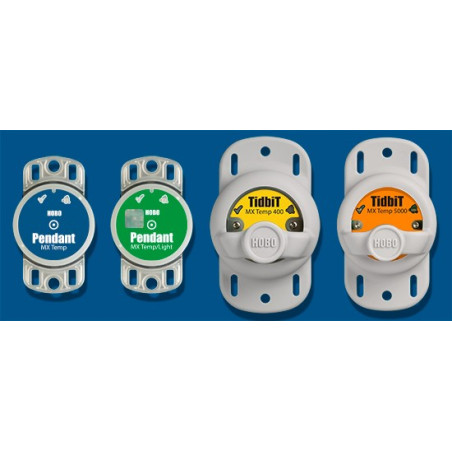

MX2201 Data logger HOBO Pendant® de Temperatura vía Bluetooth

MX2201

Onset

New

Grupo 1

icon-app-store.png   en_app_rgb_wo_60.png

O registrador de nível de temperatura da água HOBO MX2201 aproveita o poder do Bluetooth Low Energy (BLE) para fornecer temperaturas precisas e medições relativas ao nível da luz direto para o seu dispositivo móvel iOS ou Android. Projetado para durabilidade, este registrador impermeável compacto é ideal para medir a temperatura em fluxos, lagos, oceanos e ambientes do solo. A coleta de dados no campo nunca foi tão fácil!

¿QUERES COMPRAR POR QUANTIDADE OU QUERES INFORMAÇAO ADICIONAL?
Ligue para +34 916292106 ou preencha o nosso formulário More info about this Product

75,00 €

Imposto Excluido

Número de Canais 1 canal (temperatura)
Nº Bits ADC 16 bit
Precisão ±0.5°C
Resolução 0.04°C
Com Display No
Classificação IP Submersível
Comunicações Bluetooth BLE
Duração da Bateria 2 anos
Capacidade da Memória 96,000 medidas

Características Principales

  • Convenient wireless setup and download via Bluetooth Low Energy (BLE)
  • Large memory stores 98,000 measurements
  • Waterproof to 30 meters
  • User-replaceable battery
  • Mounting tabs for fast, easy deployment
  • LED alarm notifies you when temperature exceeds set threshold
  • Works with Onset’s free HOBOmobile app
  • ±0.5°C (±0.9°F) accuracy

Em que ambiente esse registrador de dados opera?
Este registrador de dados opera em ambientes internos, externos e subaquáticos.

Quais as medidas suportadas pelo registrador de dados?
O registrador de dados MX2201 suporta as seguintes medidas: temperatura e temperatura da água

Sensor de Temperatura (MX2201 y MX2202)

Rango

-20° to 70°C (-4° to 158°F) in air

-20° to 50°C (-4° to 122°F) in water

Precisión

±0.5°C from -20° to 70°C (-4° to 158°F)

Resolución

0.04°C (0.072°F)

Drift

<0.1°C (0.18°F) per year

Response Time

17 minutes typical to 90% in air moving 1 m/s, unmounted

7 minutes typical to 90% in stirred water, unmounted



Logger

Radio Power

1 mW (0 dBm)

Transmission Range

Approximately 30.5 m (100 ft) line-of-sight

Wireless Data Standard

Bluetooth Smart (Bluetooth Low Energy, Bluetooth 4.0)

Logger Operating Range

-20° to 70°C (-4° to 158°F) in air

Logging Rate

1 second to 18 hours

Buoyancy (Fresh Water)

2g (0.07 oz) positive

Waterproof

To 30.5 m (100 ft)

Memory

96,000 measurements

Battery

CR2032 3V lithium, user replaceable

Battery Life

1 year typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always Off disabled in software.

2 years typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always Off enabled in software.

Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.

To ensure proper battery installation, see Battery Information for detailed instructions on replacing the battery.

Time Accuracy

± 1 minute per month at 25°C (77°F)

Full Memory Dowload

Approximately 45 seconds; may take longer the farther the device is from the logger

Wetted Materials

Polypropylene case, EPDM O-ring

Dimensions

3.35 x 5.64 x 1.6 cm (1.32 x 2.22 x 0.63 inches)

Weight

12.75 g (.45 oz)

The CE Marking identifies this product as complying with all relevant directives in the European Union (EU). This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
