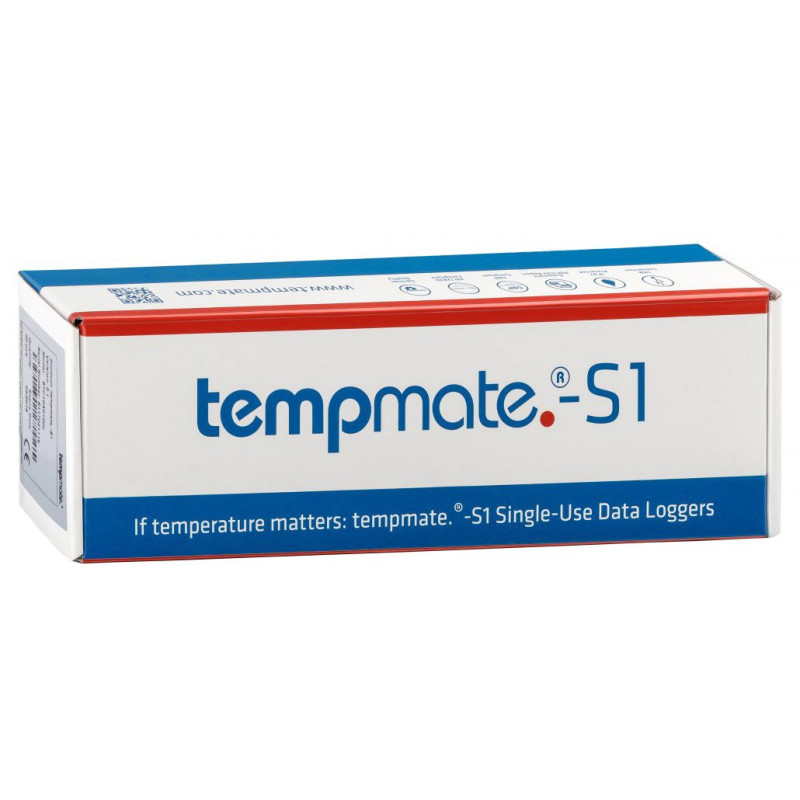

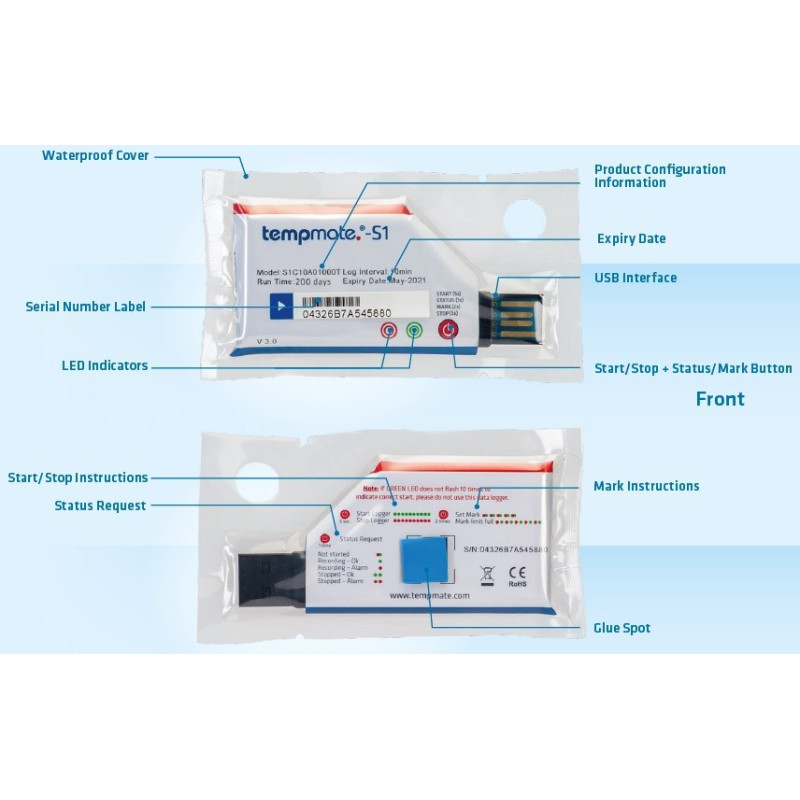

Tempmate.®-S1-V2 Registrador USB Temperatura de un solo uso




Registrador de temperatura econômico compatível com o PIB de uso único com relatórios automatizados em PDF e CSV para logística inteligente.

Volume discounts

Quantidade Preço
1+ 25,00 € 0%
100+ 22,50 € 10%

25,00 €

The minimum purchase order quantity for the product is 20

Número de Canais 1 canal de temperatura de uso único -30°C a 70°C, Resolução: 0.1°C
Nº Bits ADC 10 bit
Com Display No
Classificação IP IP67
Comunicações USB 2.0, A-Type
Duração da Bateria 2 anos
Capacidade da Memória 16.000 leituras, PDF e CSV Relatório Incluindo Gráfico e Tabela
O Sensor mede: Temperatura

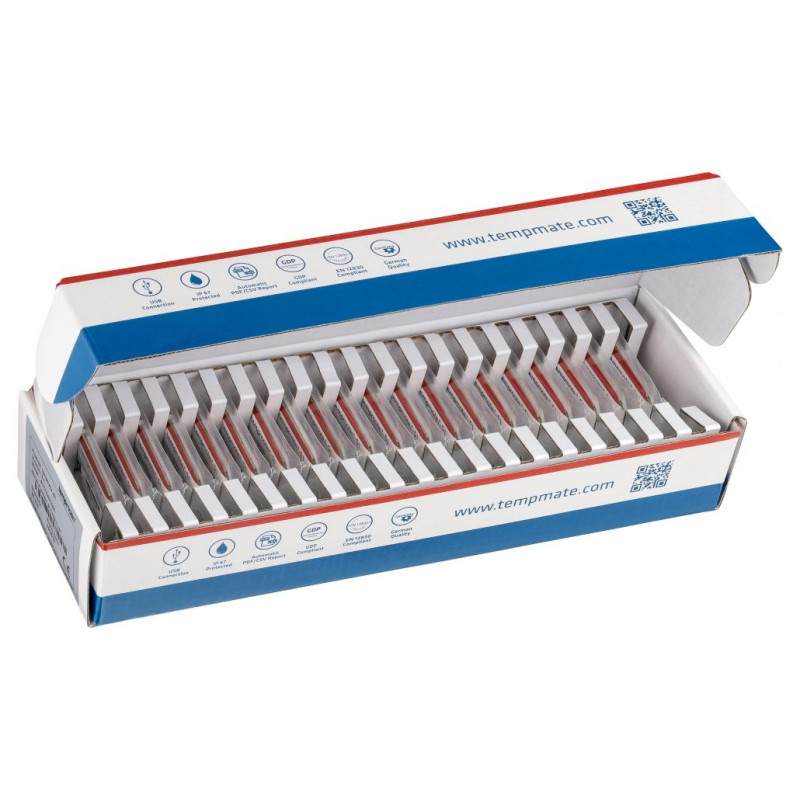

Lote mínimo de 20 Registradores V2 de un-solo-uso.

¿Curiosidad sobre la cadena de frío?

tempmate.® monitoriza de forma continua todos los datos relevantes.

tempmate.® loggers are specially designed for temperature monitoring in pharmaceutical cold chain logistics.
As preprogrammed device tempmate.® can be instantly used to control your temperature sensitive consignment.
The PDF report created contains detailed information such as data curve, every single measurement as a table and statistical information.


Product-related temperature monitoring along the entire cold chain

Cost-eff ective and reliable

Smart design, intuitive operation

Waterproof and food compatible

No additional hardware or software required

Detailed PDF report including graph and table

Intelligent LEDs for status monitoring

Opciones de registro: Un-solo-uso
Rango de temperatura: –30 °C to 70 °C (–22 °F to 158 °F)
Temperature accuracy: ±0.5 °C / 0.9 °F
Temperature resolution: 0.1 °C / °F
Capacidad de Almacenamiento: 12960 lecturas
Vida de Estantería / batería: 1 año / 3.0 v batería de litio
Intervalo de Registro: 10 minutes
Ciclo de Registro: up to 90 days
Modo de Inicio de lecturas: Manual start
Modo de Parada de lecturas: Manual stop or automatic after 90 days
Protection class: IP67 / NEMA 6
Dimensiones: 80 mm × 47 mm × 4 mm (L × W × H)
Peso: approx. 10 g
Certifications: EN 12830, CE, RoHS
Software: PDF reader
Auto PDF report generation: Applicable
Interfaz de conexión: USB 2.0, A-Type


Preguntas Frecuentes sobre el Registrador de temperatura de un-solo-uso tempmate.®

In this chapter you can find answers to the most frequently asked questions. Please choose the topic by clicking on the mouse.

Show all answers
  • Is tempmate IATA compliant and can therefor be used in aircrafts?

    Yes, tempmate.® single-use loggers contain a 3V Lithium battery as power source, which according to IATA can be used in aircrafts. Please use the following documents to attach with you consignment:

  • Which time is displayed in tempmate's PDF reports?

    tempmate data loggers have an integrated real time clock (RTC), which is factory set to UTC time zone. That means, date and time displayed in PDF report is based on UTC and 24-hour clock [MM/DD/YY HH:MM:SS].

    The start time is in seconds accurately documented and stop time always corresponds to the last measurement interval during the device was stopped.

  • Is tempmate's PDF report protected against manipulation?

    Like any electronic document, a PDF file can be manipulated. However, even after the data analysis, the original data remains stored on the tempmate logger so that the data can always be downloaded again and compared with the questionable PDF report. Therefore, it is important that the logger is retained.

  • Why can I not open the PDF report?

    You need Adobe Acrobat version 9.0 or higher to open the PDF file correctly. If you have a previous version installed on the computer, please update:www.get.adobe.com / uk / reader

  • What is the analysis of a PDF report?

    The temperature is displayed as a graph, and table all individual values. In addition, other statistical information is included (eg, serial number). See sample PDF report

  • Are tempmate loggers calibrated?

    Yes, with each delivery, you will receive a free certificate. See Sample Certificate

  • How long the logger are durable / storable?

    Shelf life of tempmate loggers is 12 months for recording mode. Reading the data is always possible as the device is power supplied by USB port of computer. The expiry date is printed on each logger. We are not supplying any loggers with less than 6 months to our customers.

  • Exactly how the built real-time clock (RTC)?

    The real-time clock of the logger does the production. Technical reasons, there may be an error of ± 2 minutes after 5 months or ± 4 minutes after 10 months.

  • How to dispose of tempmate loggers?

    After usage the tempmate loggers belong to electronic scrap. So many components can be recycled.
