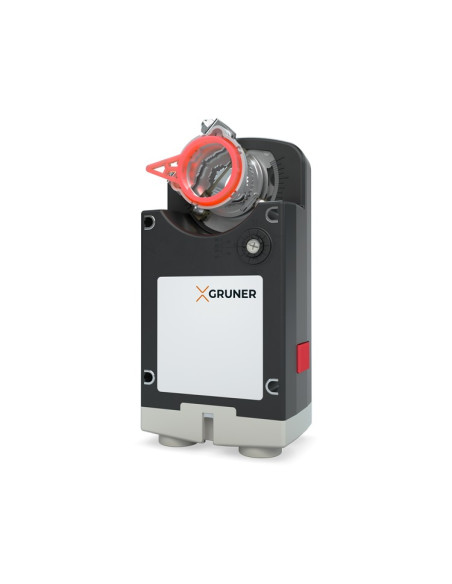

Atuador Rotativo Ref.: 363-024-30-P5

Gruner 363-024-30-P5

Gruner

New

Atuador giratório para ajustar amortecedores em instalações HVAC

- Tempo de execução: 150 s / 90 °
- Torque: 30 Nm
- Tensão nominal: 24 VAC / DC
- Controle: 2/3 pontos
- Potenciômetro de feedback: 5 kΩ
- Tamanho do amortecedor: até aprox. 4 m²
- Acoplamento do eixo: grampo quadrado 9-18 mm / redondo 9-26 mm

230,00 €

Imposto Excluido

---------- INDÚSTRIA ------------ Atuadores Rotativos

Com potenciômetro de feedback: 5 kΩ

- Atuador rotativo sem atuador de retorno por mola
- 24 VAC / DC, 2/3 pontos
- Torque 30 Nm
- Tempo de execução 150 s / 90 °
- Conexão com cabo de 1m
- Sinal de feedback: -
- Acoplamento do eixo: O 9-26 mm, quadrado 9-18 mm
- Montagem com faixa de montagem + parafusos

Electrical data
Nominal voltage 24 VAC/DC, 50/60 Hz
Nominal voltage range 19...29 VAC/DC
Power consumption motor (motion) 4,5 W
Power consumption standby (end position) 1,5 W
Wire sizing 6,0 VA
Control 2-/3-point
Feedback signal potentiometer 5 kΩ
Auxiliary switch -
Contact load -
Switching point -
Connection motor cable 1000 mm, 3 x 0,75 mm² (halogen free)
Connection feedback potentiometer cable 1000 mm, 3 x 0,75 mm² (halogen free)
Connection auxiliary switch -
Connection GUAC -
Functional data
Torque 30 Nm
Damper size up to approx. 4 m²
Synchronised speed ±5%

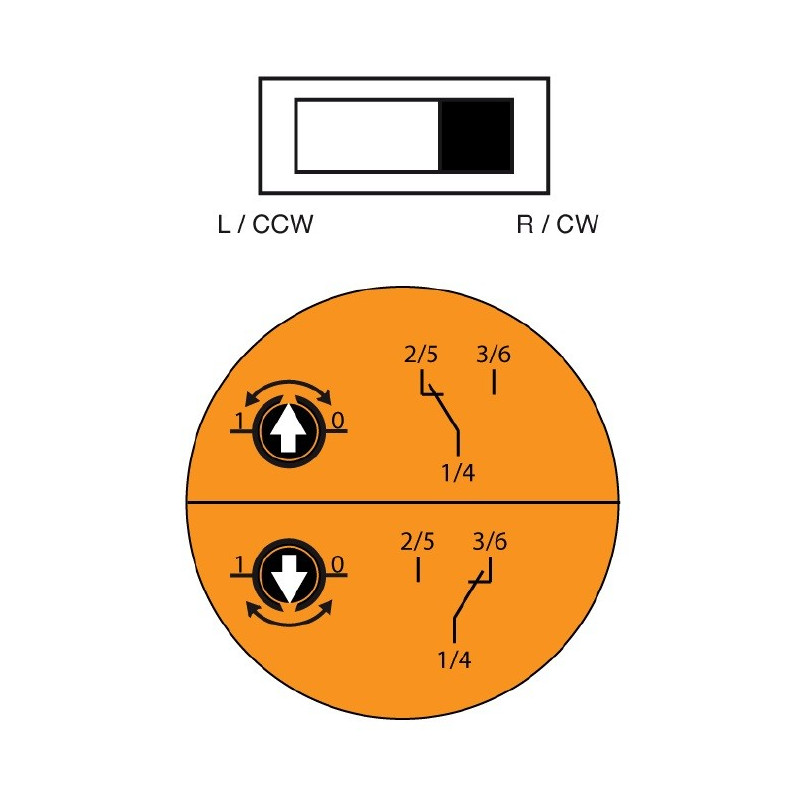

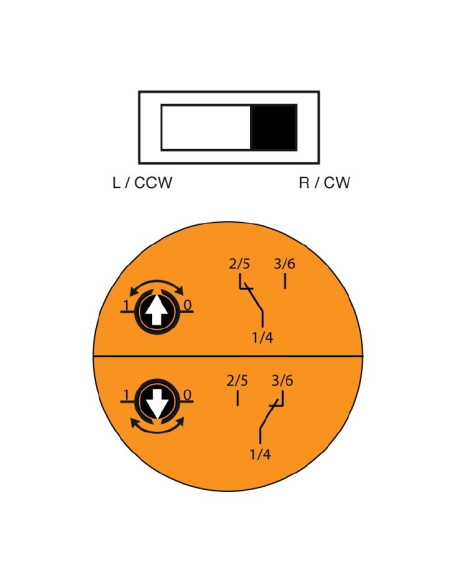

Direction of rotation selected by switch
Manual override Gearing latch disengaged with pushbutton, self-resetting
Angle of rotation 0°...max. 95° can be limited with adjustable mechanical end stops
Running time 150 s / 90°
Sound power level < 45 dB(A)
Shaft coupling clamp ◊ 9-18 mm / Ø 9-26 mm
Position indication mechanical with pointer
Service life < 60 000 cycles (0°...95°...0°)
Safety
Protection class III (safety extra-low voltage)
Degree of protection IP 54
EMC CE (2014/30/EU)
LVD CE (2014/35/EU)
RoHS CE (2011/65/EU - 2015/863/EU - 2017/2102/EU)
Mode of operation Typ 1 (EN 60730-1)
Rated impulse voltage 0,8 kV (EN 60730-1)
Control pollution degree 3 (EN 60730-1)
Ambient temperature normal operation –30°C...+50°C
Storage temperature –30°C...+80°C
Ambient humidity 5...95% r.H., non condensing (EN 60730-1)
Maintenance maintenance free
Dimensions / Weight

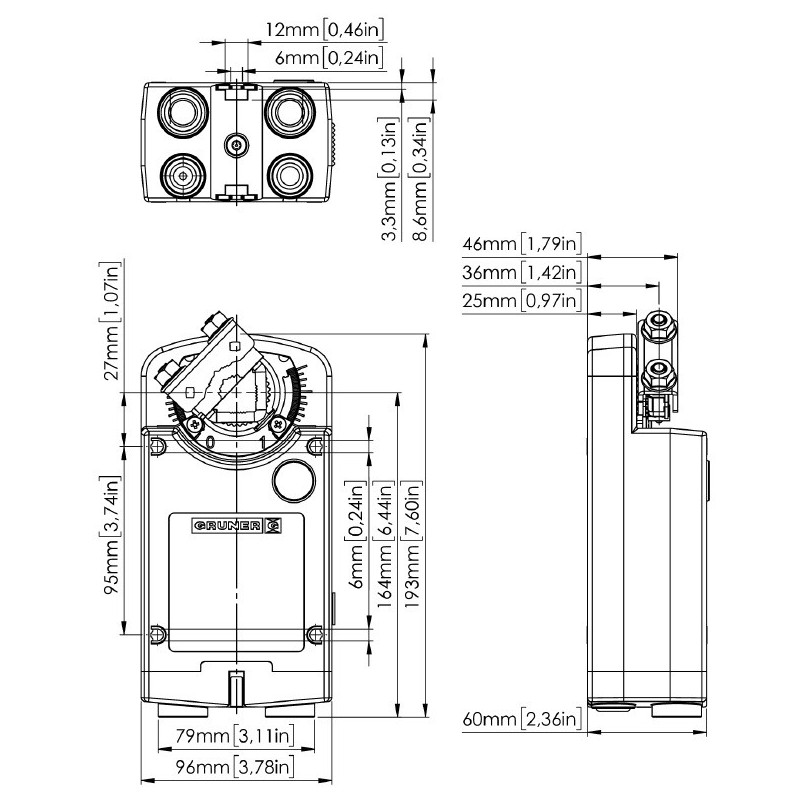

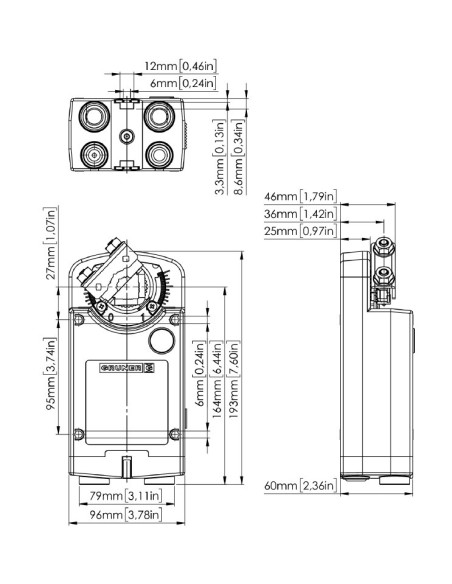

Dimensions 193 x 96 x 60 mm
Weight 1700 g
