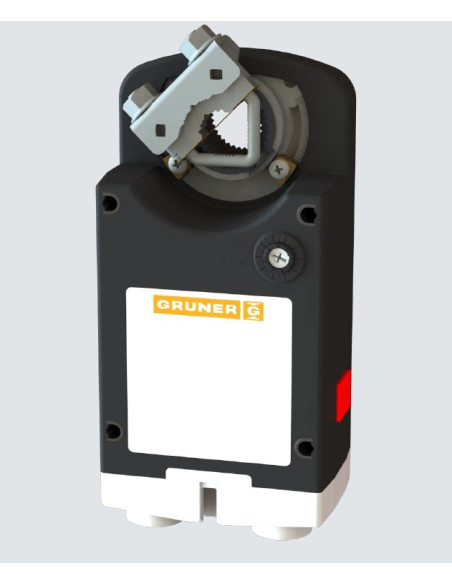

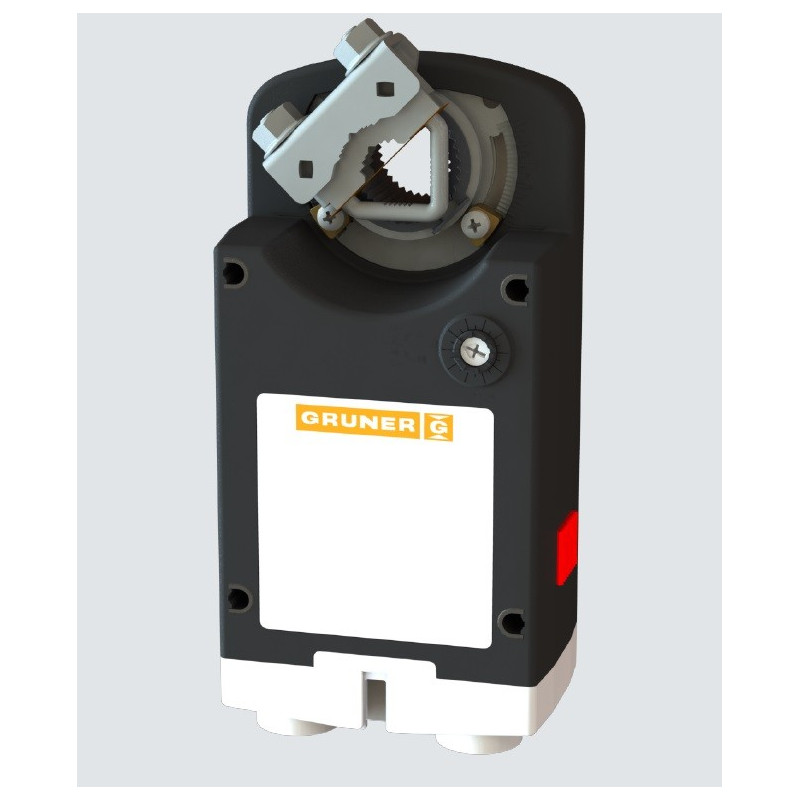

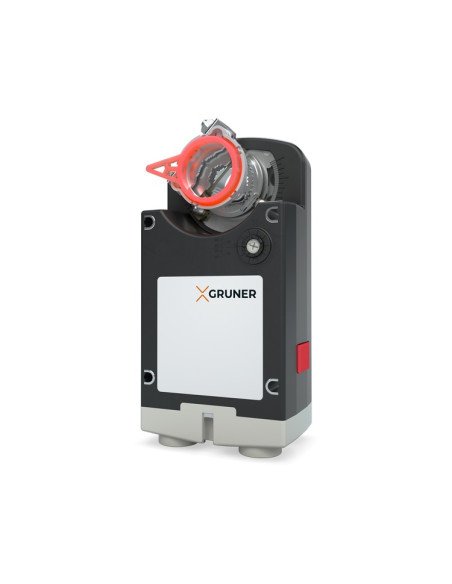

Atuador Rotativo Ref.: 363-024-20-S2

Reference: Gruner 363-024-20-S2

Manufacturer: Gruner

Condition: New

Atuador giratório para ajustar amortecedores em instalações HVAC

More info about this product.

Partilhar no Facebook
Retirar este produto da minha lista de favoritos.
Adicionar este produto à minha lista de favoritos.
Print

GERAL
ESPECIFICAÇOES
MODELOS
Data sheet
Download

---------- INDÚSTRIA ------------	Atuadores Rotativos

Gruner 363-024-20-S2 Specs Download (897.39k)

EC-Declaration of Conformity Download (159.77k)

- Tempo de execução: 150 s / 90 °
- Torque: 20 Nm
- Tensão nominal: 24 VAC / DC
- Controle: 2/3 pontos

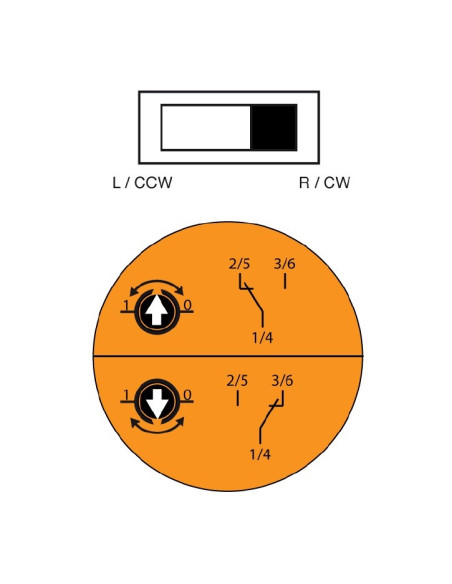

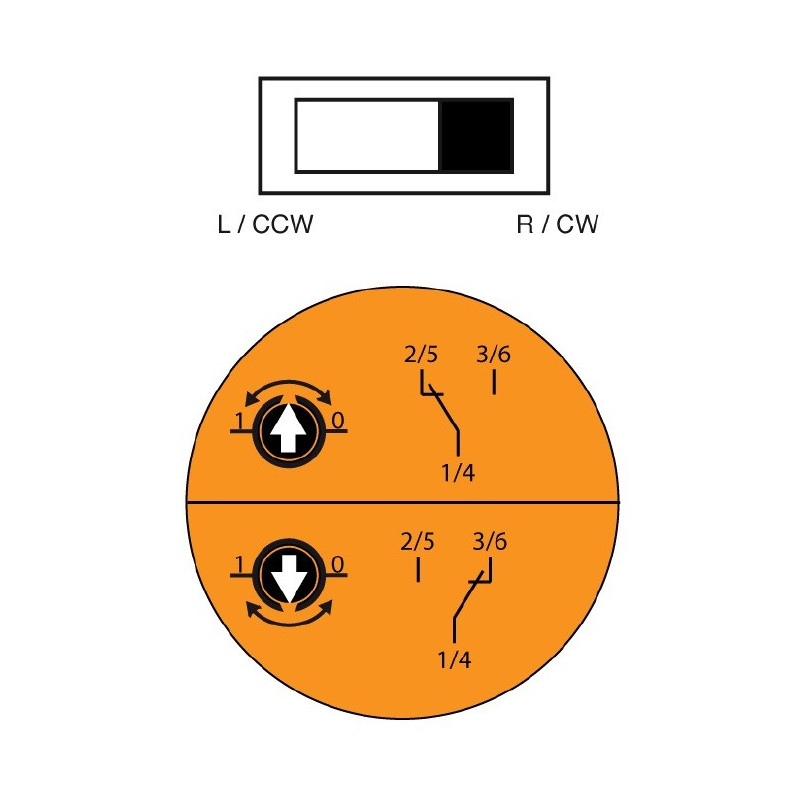

- Chave auxiliar: 2x livremente ajustável
- Tamanho do amortecedor: até aprox. 4 m²
- Acoplamento do eixo: grampo quadrado 9-18 mm / redondo 9-26 mm

Electrical data
Nominal voltage	24 VAC/DC, 50/60 Hz
Nominal voltage range	19...29 VAC/DC
Power consumption motor (motion)	3,0 W
Power consumption standby (end position)	1,5 W
Wire sizing	4,5 VA
Control	2-/3-point
Feedback signal	-
Auxiliary switch	2 x SPDT (Ag)
Contact load	5 (2,5) A, 250 VAC
Switching point	0...95°
Connection motor	cable 1000 mm, 3 x 0,75 mm² (halogen free)
Connection feedback potentiometer	-
Connection auxiliary switch	cable 1000 mm, 6 x 0,75 mm²(halogen free)
Connection GUAC	-
Functional data
Torque	20 Nm
Damper size	up to approx. 4 m²
Synchronised speed	±5%
Direction of rotation	selected by switch
Manual override	Gearing latch disengaged with pushbutton, self-resetting
Angle of rotation	0°...max. 95° can be limited with adjustable mechanical end stops
Running time	150 s / 90°
Sound power level	< 45 dB(A)
Shaft coupling	clamp ◊ 9-18 mm / Ø 9-26 mm
Position indication	mechanical with pointer
Service life	> 60 000 cycles (0°...95°...0°)
Safety
Protection class	III (safety extra-low voltage)
Degree of protection	IP 54
EMC	CE (2014/30/EU)
LVD	CE (2014/35/EU)
RoHS	CE (2011/65/EU - 2015/863/EU - 2017/2102/EU)
Mode of operation	Typ 1 (EN 60730-1)
Rated impulse voltage	0,8 kV (EN 60730-1)
Control pollution degree	3 (EN 60730-1)
Ambient temperature normal operation	–30°C...+50°C
Storage temperature	–30°C...+80°C
Ambient humidity	5...95% r.H., non condensing (EN 60730-1)
Maintenance	maintenance free
Dimensions / Weight

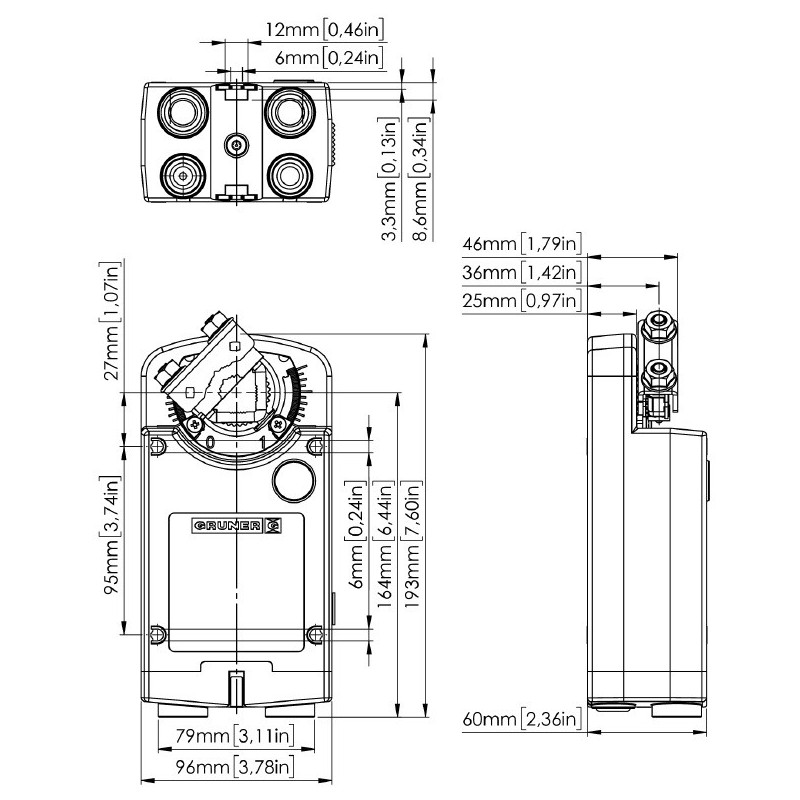

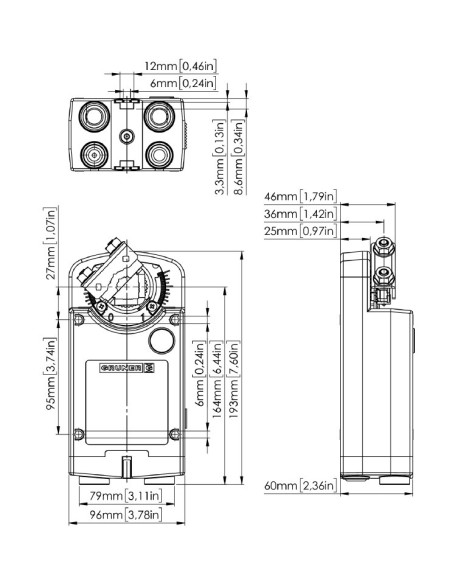

Dimensions	193 x 96 x 60 mm
Weight	1700 g
