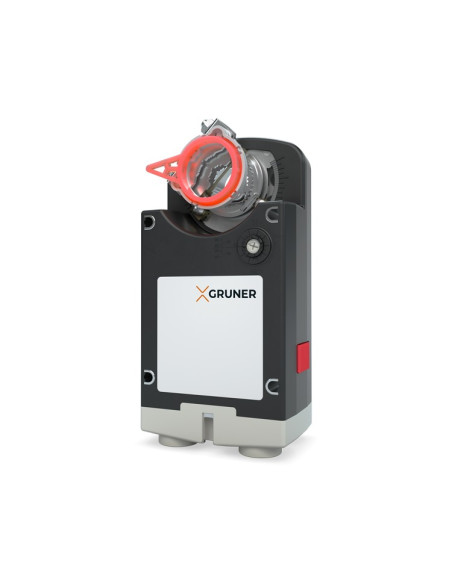

Actuador Rotativo Ref.: 363-024-30-P5

Gruner 363-024-30-P5

Gruner

Nuevo

Actuador rotativo para ajustar compuertas en instalaciones HVAC

- Duración: 150 s / 90 °
- Par: 30 Nm
- Tensión nominal: 24 VAC / DC
- Control: 2- / 3 puntos
- Potenciómetro de retroalimentación: 5 kΩ
- Tamaño de la compuerta: hasta aprox. 4 m²
- Acoplamiento del eje: abrazadera cuadrada 9-18 mm / redonda 9-26 mm

230,00 €

sin IVA

---------- INDUSTRIA ------------ Actuadores Rotativos

Con potenciómetro de realimentación: 5 kΩ

- Actuador rotativo sin actuador de retorno por resorte
- 24 VAC / DC, 2/3 puntos
- Par de apriete 30 Nm
- Tiempo de funcionamiento 150 s / 90 °
- Conexión con cable de 1 m
- Señal de retroalimentación: -
- Acoplamiento del eje: O 9-26 mm, cuadrado 9-18 mm
- Montaje con tira de montaje + tornillos

Electrical data
Nominal voltage 24 VAC/DC, 50/60 Hz
Nominal voltage range 19...29 VAC/DC
Power consumption motor (motion) 4,5 W
Power consumption standby (end position) 1,5 W
Wire sizing 6,0 VA
Control 2-/3-point
Feedback signal potentiometer 5 kΩ
Auxiliary switch -
Contact load -
Switching point -
Connection motor cable 1000 mm, 3 x 0,75 mm² (halogen free)
Connection feedback potentiometer cable 1000 mm, 3 x 0,75 mm² (halogen free)
Connection auxiliary switch -
Connection GUAC -
Functional data
Torque 30 Nm
Damper size up to approx. 4 m²
Synchronised speed ±5%

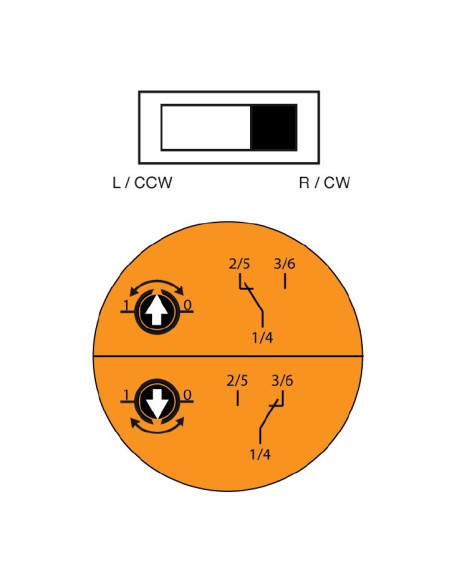

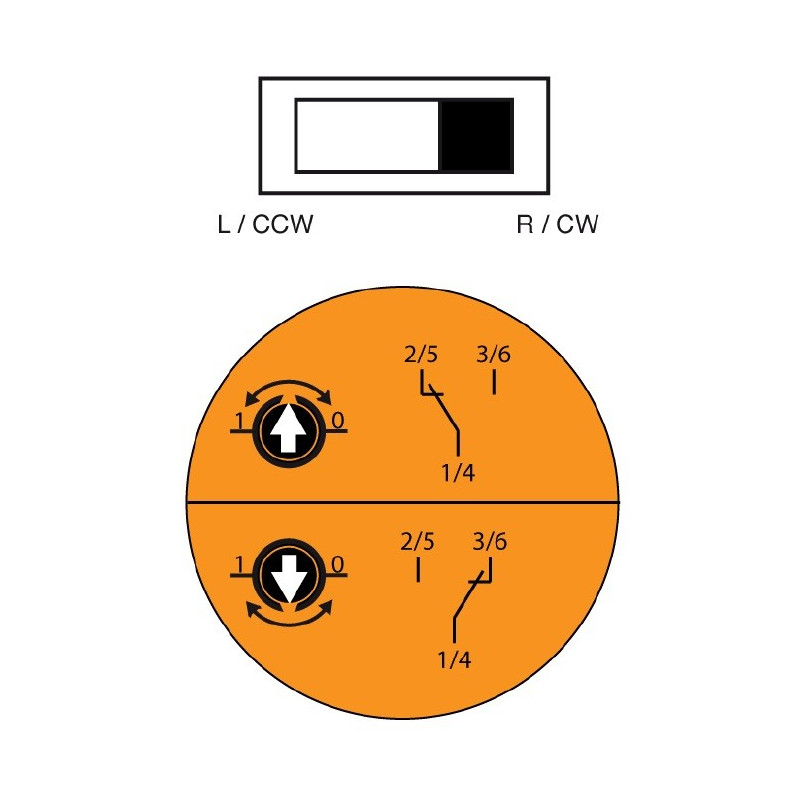

Direction of rotation selected by switch
Manual override Gearing latch disengaged with pushbutton, self-resetting
Angle of rotation 0°...max. 95° can be limited with adjustable mechanical end stops
Running time 150 s / 90°
Sound power level < 45 dB(A)
Shaft coupling clamp ◊ 9-18 mm / Ø 9-26 mm
Position indication mechanical with pointer
Service life < 60 000 cycles (0°...95°...0°)
Safety
Protection class III (safety extra-low voltage)
Degree of protection IP 54
EMC CE (2014/30/EU)
LVD CE (2014/35/EU)
RoHS CE (2011/65/EU - 2015/863/EU - 2017/2102/EU)
Mode of operation Typ 1 (EN 60730-1)
Rated impulse voltage 0,8 kV (EN 60730-1)
Control pollution degree 3 (EN 60730-1)
Ambient temperature normal operation –30°C...+50°C
Storage temperature –30°C...+80°C
Ambient humidity 5...95% r.H., non condensing (EN 60730-1)
Maintenance maintenance free
Dimensions / Weight

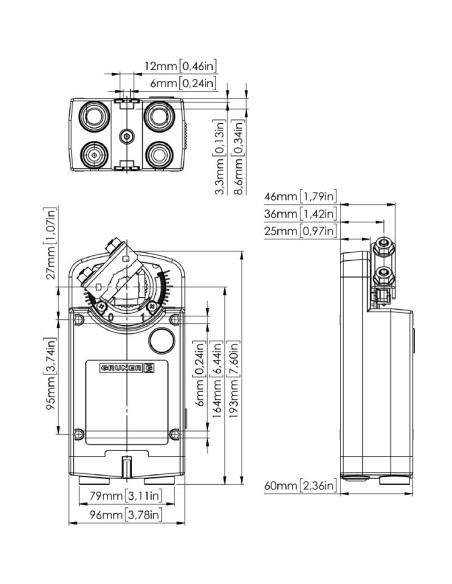

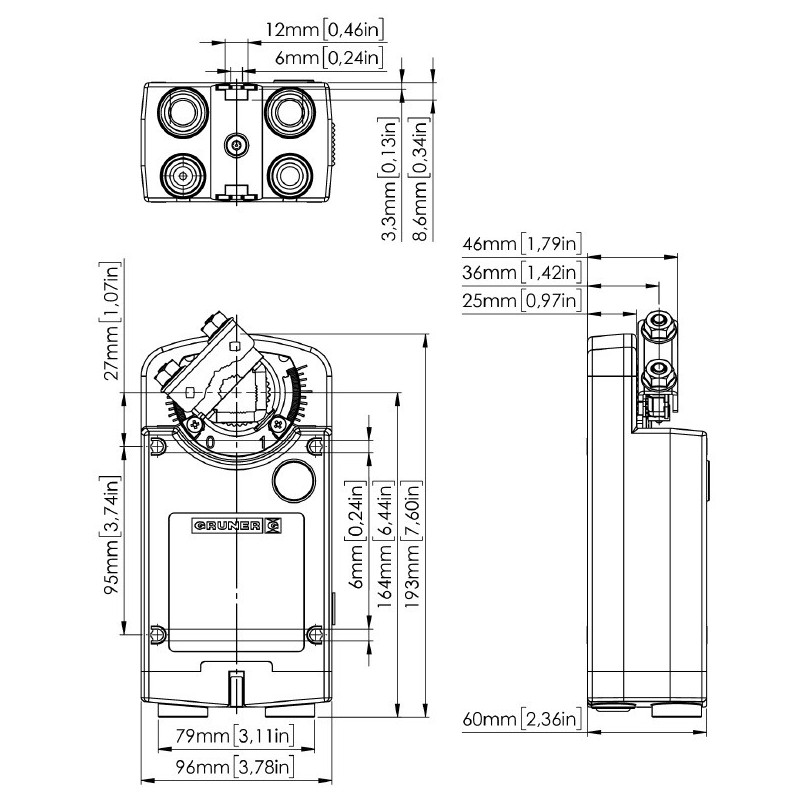

Dimensions 193 x 96 x 60 mm
Weight 1700 g
