U30-NRC Estación Meteorológica HOBO USB (Configurable)

Onset

Nuevo

Grupo 1

Estación Meteorológica HOBO U30 con puerto USB (configurable desde 5 a 15 canales)

665,00 €

Tipo de Instrumento Estación Meteorológica

Estación Meteorológica HOBO U30 vía USB de 12-bits de resolución
 · Hasta 10 canales para sensores inteligentes
 · 500.000 lecturas de memoria no-volátil con intervalos
 · Alarmas con salida por relé configurable por el usuario
 · Caja intemperie NEMA 6 con accesorios para montaje en mástil
 · Batería recargable de 10 Amperios/h de 3-5 años de vida útil, dependiendo de las condicones de uso


Esta estación meteorológica resistente es la solución de monitorización ambiental más duradera de Onset. Los usuarios pueden configurar fácilmente la estación meteorológica HOBO U30-NRC para adaptarse a las necesidades de su aplicación. Use hasta 15 canales para recopilar datos ambientales y luego cárguelos en el software HOBOware® Pro para que los analice expertos.

Ventajas:

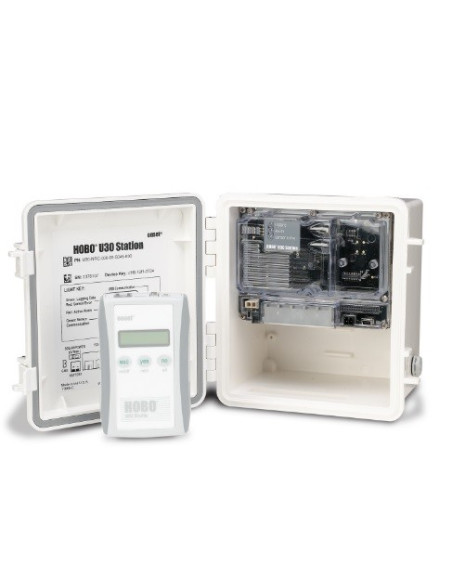

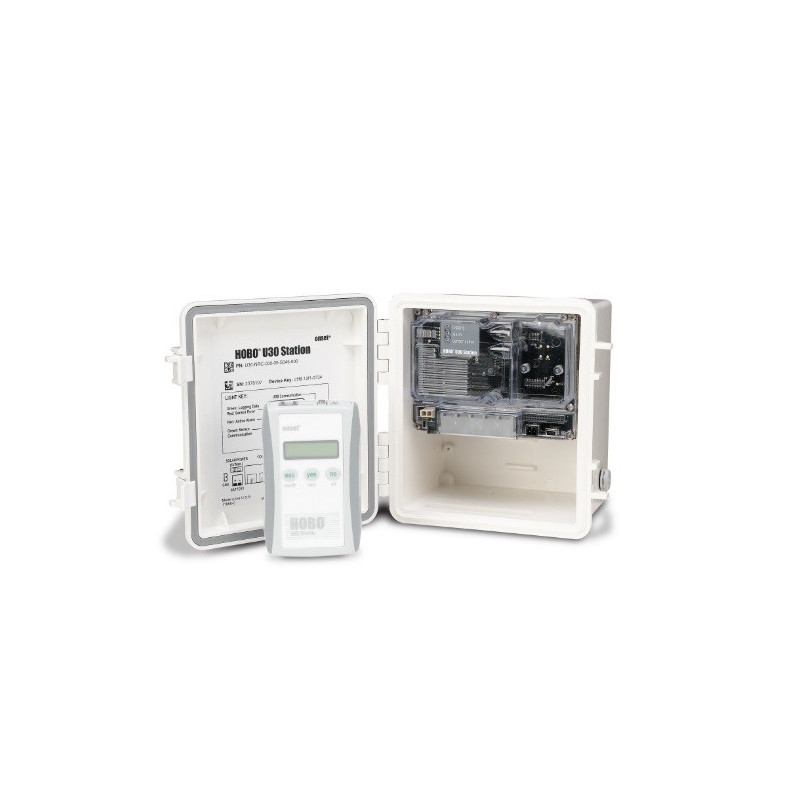

  • All electronics are housed within a rugged double-weatherproof, tamper-proof enclosure
  • Set up is quick and easy with plug-and-play sensors
  • Fast data offload via USB
  • Optional analog inputs with sensor excitation
  • Includes relay that can be activated on user-defined alarm conditions

Medidas:

Meteorológicas:
Barometric Pressure, Leaf Wetness, Light Intensity, PAR, Pulse Input, Rainfall , Relative Humidity, Soil Moisture, Solar Radiation, Temperature, Wind Speed & Direction, 4-20mA, Voltage Input

Energía:
AC Current, AC Voltage, Air Velocity, Amp Hour (Ah), Carbon Dioxide, Compressed Air Flow , DC Current, DC Voltage, Differential Pressure, Gauge Pressure, kW, kWh, Power Factor (PF), Pulse Input, Temperature, Volatile Organic Compound (VOC), Volt-Amp Reactive (VAR), Volt-Amp Reactive Hour (VARh), Volt-Amps (VA), Volts (V), Water Flow, Watt Hours (Wh), Watts (W), 4-20mA, Amps (A), Relative Humidity.

AlphaOmega-Electronics es distribuidor Autorizado de las Estaciónes Meteorológicas de Onset
en España y Portugal desde hace más de 25 años.

Onset Computer Corporation

Estación Meteorológica España

Rango operativo normal: -20°C to 60°C (-4°F to 104°F)

Entradas para Sensores Inteligentes: 10 standard; option to expand to 15

Smart Sensor Compatibility: Compatible with most Onset smart sensors, except for the S-BPA, S-TMA and S-THA

Data Channels: Maximum of 15 (some sensors use more than one data channel)

Alarm Output Relay: Can be configured to be activated, deactivated or pulsed on user-defined sensor alarms. The relay can be configured as normally open or normally closed, and is rated for 30 V and 1 amp max.

Expansion Slot: One expansion slot is available for factory-installed expansion port.

Local Communication: Full Speed USB via USB mini-B connector

Size: 17.8 H x 11.7 D x 19.3 W cm (7.0 H x 4 .6 D x 7.6 W inches)

Weight: 2 kg (4 lbs 10 oz)

Materials: Outer Enclosure: ABS blend with stainless steel hinge pins and bronze inserts
Inner Enclosure: Polycarbonate with bronze inserts
U-Bolts: Steel with zinc dichromate finish
Gaskets: Silicone rubber
Cable entry channel: EPDM rubber
Cable entry bars: Aluminum with ABS plastic thumb screws

Data Storage Memory: Nonvolatile flash data storage, 512K bytes local storage

Memory Modes: Stop when full, wrap around when full

Operational Indicators: Up to six (depending upon options) status lights provide basic diagnostics

Logging Interval: 1 second to 18 hours, user-specified interval

Battery Type: 4 Volt, 4.5 AHr or 10 AHr, Rechargeable sealed lead-acid

Rechargeable Battery Service Life: Typical 3–5 years depending upon conditions of use. Operation within the extended operating range (but outside the normal range) will reduce battery service life.

Time Accuracy: 0 to 2 seconds for the first data point and ±5 seconds per week at 25°C (77°F)

Environmental Rating: Weatherproof enclosure, tested to NEMA 6. (Requires proper installation of cable channel system)

Mounting: 3.8 cm (1.5 inch) mast or wall mount

Enclosure Access: Hinged door secured by two latches with eyelets for securing with user-supplied padlocks

Sensor Network Cable Length: 100 m (328 ft) maximum

External Power: External power is required. The system optionally accepts the following solar panels:

Alternatively it accepts an AC power adapter:

Optional Analog Sensor Port Specifications

Input Channels: Two, single-ended

Field Wiring: Two- or three-wire via screw terminals on detachable connector, 16–24 AWG.
Replacement detachable connectors: Part of spares kit, Part No. A-FS-CVIA-7P-1

Input Range: User-configurable: 0–20 mA DC, 0–20 VDC (suitable for 2.5, 5, 10V sensors)

Minimum / Maximum Input Voltage: 0 / 24 VDC

Minimum / Maximum Input Current: 0 / 24 mA DC

Minimum Current Source Impedance: > 20 KΩ

Accuracy: ± 0.25% of FSR from 50mV to FSV

ADC Resolution 12 bits

Excitation Power: Switched 12 VDC, up to 50 mA; user-selectable warm-up from 5msec to 2 minutes

Visita nuestra categoria de Estaciones Meteorológicas AQUI

Sensores Compatibles. (algunos sensores no-inteligentes pueden requerir alimentación externa o amplificador de señal).
